Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
787-976AC/DC DIN RAIL SUPPLY 12V |
2 |
|
Технический лист |
- | Box | Active | AC | 1 | 115 ~ 230 VAC | - | - | 12V | - | - | - | - | - | 5.2A | - | 4.2 kV | ITE (Commercial) | - | -25°C ~ 55°C | Load Sharing, Universal Input | 2.13" L x 5.67" W x 3.54" H (54.0mm x 144.0mm x 90.0mm) | cURus, EAC, UL | - |
|
TPC 080-148AC/DC DIN RAIL SUPPLY 48V 82W |
12 |
|
Технический лист |
TPC (80W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 48V | - | - | - | - | - | 1.7A | 82W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.80" L x 2.48" W x 3.54" H (96.5mm x 63.0mm x 89.9mm) | CB, CE, cCSAus, SIQ | - |
|
TCL 060-124CAC/DC DIN RAIL SUPPLY 24V 58W |
14 |
|
Технический лист |
TCL (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 85V | 375V | 24V | - | - | - | - | - | 2.5A | 58W | 3 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.94" L x 1.77" W x 2.95" H (100.1mm x 45.0mm x 74.9mm) | CB, CE, cCSAus, cULus, cURus | - |
|
2687-2143AC/DC DIN RAIL SUPPLY |
2 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 100V | 300V | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial), Laboratory | 90.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.82" L x 1.38" W x 4.33" H (97.0mm x 35.0mm x 110.0mm) | CE, cULus, UKCA | 61010-1; 62368-1 |
|
|
DRF-24V120W3GBAAC/DC DIN RAIL 24V 120W 3PHASE |
8 |
|
Технический лист |
Force-GT (120W) | Box | Active | AC | 1 | - | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial), Laboratory | 87.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.88" L x 1.50" W x 4.93" H (124.0mm x 38.1mm x 125.2mm) | CB, CE, cULus, cURus, EAC, KC, SIQ, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
85131AC/DC DIN RAIL SUPPLY 24V 31W |
17 |
|
- |
- | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 31W | - | Laboratory | 84% | -40°C ~ 55°C (With Derating) | IP20 | 2.83" L x 1.97" W x 4.92" H (72.0mm x 50.0mm x 125.0mm) | CE, cULus, cUR, UKCA | - |
|
|
DRF-48V240W1GTADIN-RAIL PS 240W / 48V (COATED) |
18 |
|
Технический лист |
Force-GT (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 375V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial), Laboratory | 94% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Universal Input | 4.60" L x 1.57" W x 4.87" H (116.8mm x 39.9mm x 123.7mm) | CB, CCC, CE, cURus, EAC, KC, TUV, UKCA | 61010-1;60950-1;62368-1 |
|
|
DRF-24V240W1GTADIN-RAIL PS 240W / 24V (COATED) |
14 |
|
Технический лист |
Force-GT (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 375V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial), Laboratory | 94.5% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Universal Input | 4.60" L x 1.57" W x 4.87" H (116.8mm x 39.9mm x 123.7mm) | CB, CCC, CE, cURus, EAC, KC, TUV, UKCA | 61010-1;60950-1;62368-1 |
|
|
ISEDR-120-24DIN RAIL POWER SUPPLY, AC-DC, 12 |
2 |
|
Технический лист |
- | Box | Active | AC | 1 | 100 ~ 120 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | - | - | - | - | - | CE | - |
|
|
78.1A.1.230.2402MOD PWR SUPPLY 120W 5A |
2 |
|
Технический лист |
78 | Box | Active | AC or DC | 1 | 110 ~ 240 VAC | 140V | 370V | 24V | - | - | - | - | - | 500mA | 12W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 40°C | - | - | CE, cULus, EAC, UKCA | - |
|
TPC 120-148AC/DC DIN RAIL SUPPLY 48V 120W |
8 |
|
Технический лист |
TPC (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 48V | - | - | - | - | - | 2.5A | 120W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.33" L x 2.83" W x 3.54" H (110.0mm x 71.9mm x 89.9mm) | CB, CE, cCSAus, SIQ | - |
|
|
1523018PRIMARY-SWITCHED PWR SUPPLY |
4 |
|
Технический лист |
TRIO | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 100V | 240V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Laboratory | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.53" L x 1.38" W x 5.31" H (115.0mm x 35.0mm x 135.0mm) | CB, cUL, cULus, UL | 61010-1 |
|

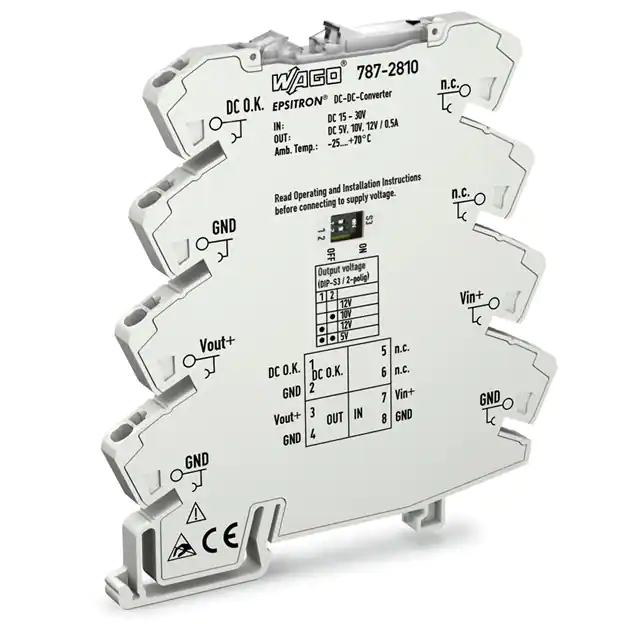

787-2810DC/DC DIN RL SUP 5V 10V 12V 14W |
2 |
|
Технический лист |
- | Bag | Active | DC | 3 | - | 15V | 30V | 5V | 10V | 12V | - | - | - | 500mA | 14W | - | ITE (Commercial), Laboratory | 82.5% | -25°C ~ 70°C | Adjustable Output, IP20 | 3.85" L x 0.24" W x 3.70" H (97.8mm x 6.0mm x 94.0mm) | CE, EAC, UL | 60950-1; 61010-1 |
|
|
89452122PWR SUPPLY OUTPUT 24-28VDC 5A |
4 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 91 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | Industrial, ITE (Commercial) | 89% | -25°C ~ 50°C (With Derating) | Universal Input | 4.04" L x 1.69" W x 4.32" H (102.7mm x 43.0mm x 109.8mm) | CE, UKCA, UL | 62368-1; UL 508 |
|
|
TCL 060-112CPRODUCT TYPE: AC/DC; PACKAGE STY |
6 |
|
Технический лист |
TCL (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 85V | 375V | 12V | - | - | - | - | - | 4A | 48W | 3 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.77" W x 2.95" H (100.1mm x 45.0mm x 74.9mm) | CB, CE, cCSAus, cULus, cURus | - |
|
TPC 120-112AC/DC DIN RAIL SUPPLY 12V 96W |
4 |
|
Технический лист |
TPC (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 12V | - | - | - | - | - | 8A | 96W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.33" L x 2.83" W x 3.54" H (110.0mm x 71.9mm x 89.9mm) | CB, CE, cCSAus, SIQ | - |
|
|
56YSDN480-48010000AC/DC DIN RAIL SUPPLY 48V 480W |
16 |
|
Технический лист |
56YSD480-xy (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 92% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.37" L x 4.92" W x 5.08" H (85.5mm x 125.0mm x 129.0mm) | - | 62368-1; UL 508 |
|
|
56YSDN480-24020000AC/DC DIN RAIL SUPPLY 24V 480W |
16 |
|
Технический лист |
56YSD480-xy (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 92% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.37" L x 4.92" W x 5.08" H (85.5mm x 125.0mm x 129.0mm) | - | 62368-1; UL 508 |
|
85133ECO-RAIL-2 POWER SUPPLY 1-PHASE, |
4 |
|
Технический лист |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 88% | 0°C ~ 40°C | Adjustable Output, IP20, Universal Input | 4.84" L x 1.97" W x 4.92" H (123.0mm x 50.0mm x 125.0mm) | CE, cULus, cURus, UKCA | - |
|
DPX20-24WS3P3DC/DC DIN RAIL SUPPLY 3.3V 20W |
13 |
|
Технический лист |
DPX (20W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 3.3V | - | - | - | - | - | 5A | 20W | - | ITE (Commercial) | 83% | -40°C ~ 95°C | - | 4.92" L x 2.27" W x 0.97" H (125.0mm x 57.6mm x 24.5mm) | CE | - |
