Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

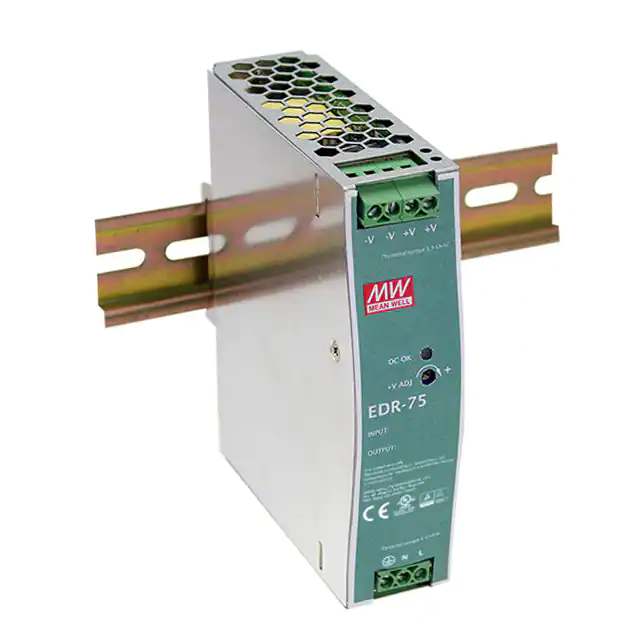

EDR-75-48AC/DC DIN RAIL SUPPLY 48V 77W |
6 |
|
Технический лист |
EDR-75 (75W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 1.6A | 77W | 3 kV | Industrial, ITE (Commercial) | 88.5% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CB, CE, cULus, RCM, TUV | - |
|
DRL-48V75W1AZAC/DC DIN RAIL 48V 75W - LYTE |
56 |
|
Технический лист |
DRL (75W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 48V | - | - | - | - | - | 1.57A | 75W | 3 kV | ITE (Commercial), Laboratory | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.06" W x 4.02" H (123.7mm x 26.9mm x 102.1mm) | CB, CCC, CE, cTUVus, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
REDIIN120-48120W AC/DC-CONVERTER 'DIN-RAIL' |
39 |
|
Технический лист |
REDIIN120 (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial), Laboratory | 89.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.60" L x 1.18" W x 4.87" H (116.8mm x 30.0mm x 123.7mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
|
|
56YSDN150-24005000AC/DC DIN RAIL SUPPLY 24V 120W |
40 |
|
Технический лист |
56YSD150L-xy (150W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 1.57" L x 4.92" W x 4.45" H (40.0mm x 125.0mm x 113.0mm) | - | 62368-1; UL 508 |
|
|
DRL-24V120W1ENAAC/DC DIN RAIL 24V 120W COATED |
19 |
|
Технический лист |
DRL (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial), Laboratory | 88.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.18" W x 4.60" H (123.7mm x 30.0mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
DRL30-15-1AC/DC DIN RAIL SUPPLY 15V 25W |
20 |
|
Технический лист |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 15V | - | - | - | - | - | 1.68A | 25W | 3 kV | Hazardous Locations, ITE (Commercial) | 88% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 1.42" W x 3.58" H (55.6mm x 36.1mm x 90.9mm) | CE | - |
|
|
56YSD100L-4802000AC/DC DIN RAIL SUPPLY 48V 96W |
80 |
|
Технический лист |
56YSD100L-xy (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 2A | 96W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.94" W x 3.66" H (56.0mm x 100.0mm x 93.0mm) | - | 62368-1; UL 508 |
|
|
56YSD100L-2404000AC/DC DIN RAIL SUPPLY 24V 96W |
74 |
|
Технический лист |
56YSD100L-xy (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 4A | 96W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.94" W x 3.66" H (56.0mm x 100.0mm x 93.0mm) | - | 62368-1; UL 508 |
|
|
REDIIN120-24120W AC/DC-CONVERTER 'DIN-RAIL' |
42 |
|
Технический лист |
REDIIN120 (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial), Laboratory | 88.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.60" L x 1.18" W x 4.87" H (116.8mm x 30.0mm x 123.7mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
|
|
DRL-48V120W1ENAC/DC DIN RAIL 48V 120W - LYTE2 |
33 |
|
Технический лист |
DRL (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial), Laboratory | 89.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.18" W x 4.60" H (123.7mm x 30.0mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
56YSDN150-48002500AC/DC DIN RAIL SUPPLY 48V 120W |
40 |
|
Технический лист |
56YSD150L-xy (150W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 1.57" L x 4.92" W x 4.45" H (40.0mm x 125.0mm x 113.0mm) | - | 62368-1; UL 508 |
|
|
56YSDN150-12010000AC/DC DIN RAIL SUPPLY 12V 120W |
40 |
|
Технический лист |
56YSD150L-xy (150W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | ITE (Commercial) | 85.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 1.57" L x 4.92" W x 4.45" H (40.0mm x 125.0mm x 113.0mm) | - | 62368-1; UL 508 |
|
|
DDRH-15-15DRI/P:150~1500VDC;O/P:15V/0~1A |
18 |
|
Технический лист |
DDRH-15 (15W) | Bulk | Active | DC | 1 | - | 150V | 1500V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | ITE (Commercial) | 87% | -40°C ~ 80°C (With Derating) | - | 4.82" L x 2.26" W x 1.71" H (122.3mm x 57.3mm x 43.5mm) | CE, EAC, UKCA | - |
|
|
DDRH-15-05DRI/P:150~1500VDC;O/P:5V/0~2A |
17 |
|
Технический лист |
DDRH-15 (15W) | Bulk | Active | DC | 1 | - | 150V | 1500V | 5V | - | - | - | - | - | 2A | 10W | 4 kV | ITE (Commercial) | 78% | -40°C ~ 80°C (With Derating) | - | 4.82" L x 2.26" W x 1.71" H (122.3mm x 57.3mm x 43.5mm) | CE, EAC, UKCA | - |
|
|
DDRH-15-12DRI/P:150~1500VDC;O/P:12V/0~1.25A |
17 |
|
Технический лист |
DDRH-15 (15W) | Bulk | Active | DC | 1 | - | 150V | 1500V | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | ITE (Commercial) | 79% | -40°C ~ 80°C (With Derating) | - | 4.82" L x 2.26" W x 1.71" H (122.3mm x 57.3mm x 43.5mm) | CE, EAC, UKCA | - |
|
|
DRL-48V120W1ENAAC/DC DIN RAIL 48V 120W COATED |
34 |
|
Технический лист |
DRL (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial), Laboratory | 89.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.18" W x 4.60" H (123.7mm x 30.0mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
56YSD100L-1207500AC/DC DIN RAIL SUPPLY 12V 90W |
80 |
|
Технический лист |
56YSD100L-xy (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 7.5A | 90W | 3 kV | ITE (Commercial) | 83% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.94" W x 3.66" H (56.0mm x 100.0mm x 93.0mm) | - | 62368-1; UL 508 |
|
|
56YSD100L-1506000AC/DC DIN RAIL SUPPLY 15V 90W |
80 |
|
Технический лист |
56YSD100L-xy (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 6A | 90W | 3 kV | ITE (Commercial) | 83% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.94" W x 3.66" H (56.0mm x 100.0mm x 93.0mm) | - | 62368-1; UL 508 |
|
|
DDRH-30-48DRI/P:150~1500VDC;O/P:48V/0~0.625A |
20 |
|
Технический лист |
DDRH-30 (30W) | Bulk | Active | DC | 1 | - | 150V | 1500V | 48V | - | - | - | - | - | 625mA | 10W | 4 kV | ITE (Commercial) | 91% | -40°C ~ 80°C (With Derating) | - | 5.32" L x 2.76" W x 1.71" H (135.0mm x 70.0mm x 43.5mm) | CE, EAC, UKCA | - |
|
|
DDRH-30-15DRI/P:150~1500VDC;O/P:12V/0~2A |
17 |
|
Технический лист |
DDRH-30 (30W) | Bulk | Active | DC | 1 | - | 150V | 1500V | 15V | - | - | - | - | - | 2A | 30W | 4 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | - | 5.32" L x 2.76" W x 1.71" H (135.0mm x 70.0mm x 43.5mm) | CE, EAC, UKCA | - |
