Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPB-120-24AC/DC DIN RAIL SUPPLY 24V 60W |
237 |
|
Технический лист |
SPB | Box | Active | AC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 75% | -10°C ~ 50°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.15" L x 1.97" W x 5.20" H (80.0mm x 50.0mm x 132.0mm) | CE, cULus, EAC | 60950-1 |
|
DRP024V480W1AAAC/DC DIN RAIL SUPPLY 24V 480W |
254 |
|
Технический лист |
CliQ (480W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 88% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.67" L x 6.30" W x 4.76" H (118.5mm x 160.0mm x 121.0mm) | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SEMI, SIQ, UL | F47; 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
LIF240-10B12R2AC/DC DIN RAIL SUPPLY 12V 192W |
42 |
|
Технический лист |
LIF240-10BxxR2 (240W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 16A | 192W | 3 kV | ITE (Commercial), Medical | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.33" L x 1.61" W x 4.88" H (110.0mm x 41.0mm x 124.0mm) | - | 61010-1; 62368-1 |
|
LEC240-24AC/DC DIN RAIL SUPPLY 24V 240W |
36 |
|
Технический лист |
LEC240 (240W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial), Laboratory | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.33" L x 1.26" W x 4.88" H (110.0mm x 32.0mm x 124.0mm) | CE | 61010-1; 62368-1; UL 508 |
|
PYB15-Q48-S5-DINDC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
PYB15-DIN (15W) | Bulk | Obsolete | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 3A | 15W | - | - | 87% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB15-Q48-S3-DINDC/DC DIN RAIL SUPPLY 3.3V 15W |
0 |
|
Технический лист |
PYB15-DIN (15W) | Bulk | Obsolete | DC | 1 | - | 18V | 75V | 3.3V | - | - | - | - | - | 4A | 15W | - | - | 85% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|

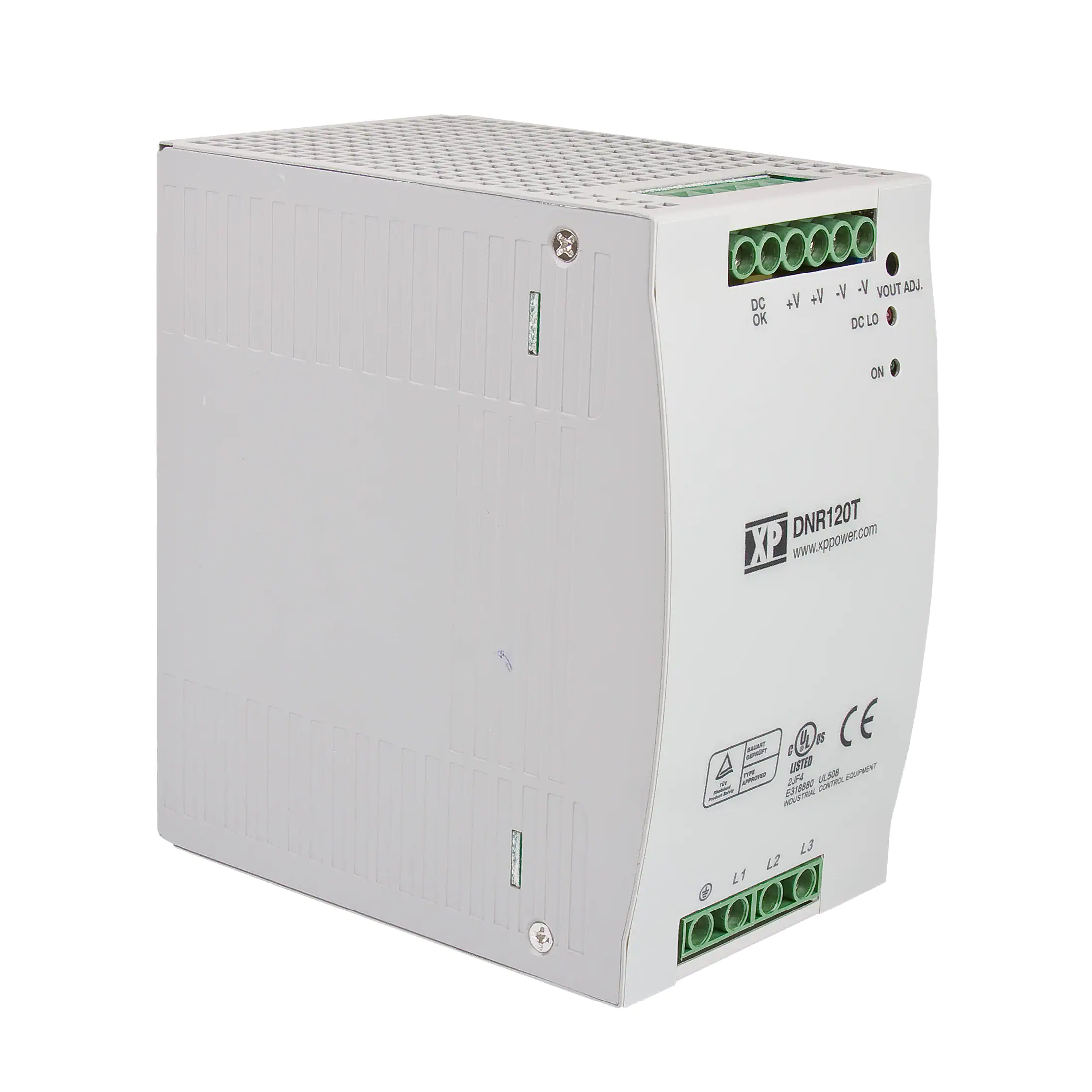

DNR120TS24AC/DC DIN RAIL SUPPLY 24V 120W |
67 |
|
Технический лист |
DNR-TS (120W) | Box | Obsolete | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.39" L x 2.93" W x 4.87" H (111.3mm x 74.3mm x 123.6mm) | - | 62368-1 |
|

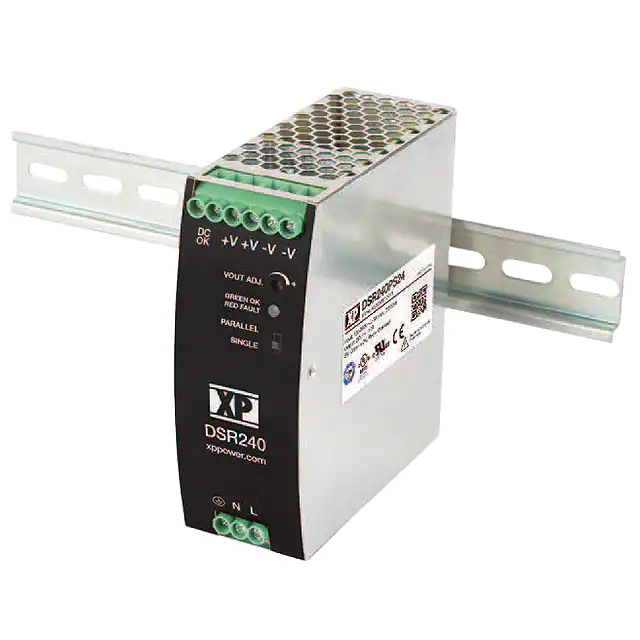

DSR240PS48AC/DC DIN RAIL SUPPLY 48V 240W |
47 |
|
Технический лист |
DSR240 (240W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | - | ITE (Commercial) | 94% | -25°C ~ 70°C | Universal Input | 4.88" L x 1.77" W x 4.69" H (124.0mm x 45.0mm x 119.1mm) | - | 62368-1 |
|
|
DSR240PS24AC/DC DIN RAIL SUPPLY 24V 240W |
36 |
|
Технический лист |
DSR240 (240W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | - | ITE (Commercial) | 94% | -25°C ~ 70°C | Universal Input | 4.88" L x 1.77" W x 4.69" H (124.0mm x 45.0mm x 119.1mm) | - | 62368-1 |
|
VDRS-60-24AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
VDRS-60 (60W) | Bulk | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, cURus, TUV | - |
|
SPD24301AC/DC DIN RAIL SUPPLY 24V 30W |
684 |
|
Технический лист |
SPD (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 1.25A | 30W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 1.59" W x 3.54" H (114.0mm x 40.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
MDR-100-12AC/DC CONVERTER 2X12V 90W |
37 |
|
Технический лист |
MDR-100 (96W) | Retail Package | Active | - | 2 | - | - | - | 12V | 12V | - | - | - | - | - | 90W | 3 kV | Industrial, ITE (Commercial) | 83% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | 3.94" L x 2.17" W x 3.54" H (100.0mm x 55.0mm x 90.0mm) | CB, CE, cULus, EAC, TUV, UKCA | 62368-1; UL 508 |
|
LDN120-24PAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
LDN120 (120W) | Bulk | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4.2 kV | ITE (Commercial) | 87% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.33" L x 1.57" W x 4.53" H (110.0mm x 40.0mm x 115.0mm) | - | - |
|
|
0165N-24V480W1ACQAC/DC CONVERTER, 24V, 480W |
897 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.37" L x 4.87" W x 5.29" H (85.5mm x 123.6mm x 134.3mm) | CSA, EN, IEC, UL | 60950-1; C22.2 |
|
LDC120-48PAC/DC CONVERTER 48V 120W ORING |
2 |
|
Технический лист |
LDC120 (120W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 110V | 345V | 48V | - | - | - | - | - | 2.5A | 120W | 4.2 kV | ITE (Commercial) | 89% | -35°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.09" L x 1.38" W x 4.06" H (104.0mm x 35.0mm x 103.0mm) | - | - |
|

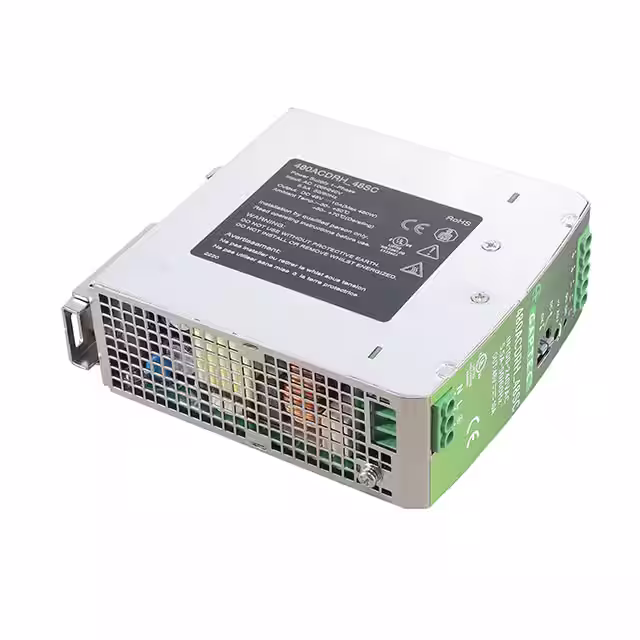

480ACDRH_48SCAC/DC DIN RAIL SUPPLY 48V 480W |
31 |
|
Технический лист |
480ACDRH_SC | Retail Package | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial), Laboratory | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.18" L x 1.89" W x 4.92" H (131.5mm x 48.0mm x 125.0mm) | cURus | 61010-1; 62368-1;UL 508 |
|
SPD24601AC/DC DIN RAIL SUPPLY 24V 60W |
41 |
|
Технический лист |
SPD (60W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 1.59" W x 3.54" H (114.0mm x 40.5mm x 90.0mm) | CCC, CE, cULus, TUV | - |
|
MDR-40-24AC/DC CONVERTER 24V 41W |
29 |
|
Технический лист |
MDR-40 | Retail Package | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 41W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CB, CE, cULus, cURus, EAC, TUV, UKCA | 60950-1; 62368-1; UL 508 |
|
PDRA-240-48AC/DC DIN RAIL SUPPLY 48V 240W |
137 |
|
Технический лист |
PDRA-240 (240W) | Bag | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.72" L x 2.36" W x 4.92" H (120.0mm x 60.0mm x 125.0mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
NDR-120-24AC/DC CONVERTER 24V 120W |
142 |
|
Технический лист |
NDR-120 (120W) | Retail Package | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 120W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.47" L x 4.93" W x 1.57" H (113.5mm x 125.2mm x 40.0mm) | CB, CE, cULus, EAC, TUV, UKCA | 62368-1, UL 508 |
