FET, MOSFET
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

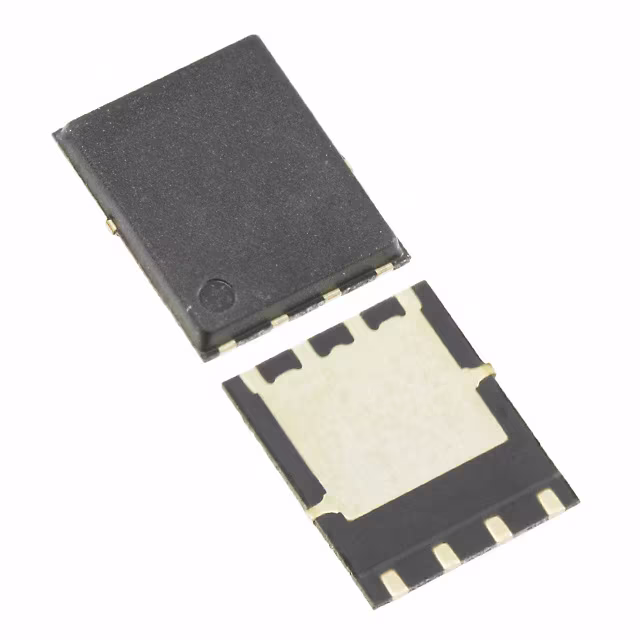

HAT2185WPWS-EMOSFET N-CH 150V 10A 8WPAK |
6,206 |
|
- |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 10A (Ta) | 10V | 190mOhm @ 5A, 10V | 4.5V @ 1mA | 9.7 nC @ 10 V | ±30V | 430 pF @ 25 V | - | 20W (Tc) | 150°C | - | - | Surface Mount | 8-WPAK (3) |
|
HAT2256RWS-EMOSFET N-CH 60V 8A 8SOP |
6,534 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 8A (Ta) | 4.5V, 10V | 30mOhm @ 4A, 10V | 2.5V @ 1mA | 10 nC @ 4.5 V | ±20V | 1210 pF @ 10 V | - | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
HAT2266HWS-EMOSFET N-CH 60V 30A 5LFPAK |
4,056 |
|
- |
- | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Ta) | 4.5V, 10V | 12mOhm @ 15A, 10V | 2.5V @ 1mA | 25 nC @ 4.5 V | ±20V | 3600 pF @ 10 V | - | 23W (Tc) | 150°C | - | - | Surface Mount | LFPAK |
|
|
RJK0301DPB-WS#J0MOSFET N-CH 30V 60A 5LFPAK |
6,675 |
|
- |
- | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Ta) | 4.5V, 10V | 2.8mOhm @ 30A, 10V | 2.5V @ 1mA | 32 nC @ 10 V | +16V, -12V | 5000 pF @ 10 V | - | 65W (Tc) | 150°C | - | - | Surface Mount | LFPAK |
|
|
RJK0305DPB-WS#J0MOSFET N-CH 30V 30A 5LFPAK |
3,209 |
|
- |
- | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Ta) | 4.5V, 10V | 8mOhm @ 15A, 10V | 2.5V @ 1mA | 8 nC @ 4.5 V | +16V, -12V | 1250 pF @ 10 V | - | 45W (Tc) | 150°C | - | - | Surface Mount | LFPAK |
|
|
RJK2557DPA-WS#J0MOSFET N-CH 250V 17A 8WPAK |
2,021 |
|
- |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 17A (Ta) | 10V | 128mOhm @ 8.5A, 10V | 4.5V @ 1mA | 20 nC @ 10 V | ±30V | 1250 pF @ 25 V | - | 30W (Tc) | 150°C | - | - | Surface Mount | 8-WPAK (3) |
|
RJK4006DPD-WS#J2MOSFET N-CH 400V 8A MP3A |
6,480 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 8A (Ta) | 10V | 800mOhm @ 4A, 10V | 4.5V @ 1mA | 20 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 65W (Tc) | 150°C | - | - | Surface Mount | MP-3A |
|
|
RJK4532DPD-E0#J2MOSFET N-CH 450V 4A MP3A |
8,337 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 4A (Ta) | 10V | 2.3Ohm @ 2A, 10V | 4.5V @ 1mA | 9 nC @ 10 V | ±30V | 280 pF @ 25 V | - | 40.3W (Tc) | 150°C | - | - | Surface Mount | MP-3A |
|
|
RJK5006DPD-WS#J2MOSFET N-CH 500V 6A MP3A |
4,246 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 6A (Ta) | 10V | 1.3Ohm @ 3A, 10V | 4.5V @ 1mA | 20 nC @ 10 V | ±30V | 600 pF @ 25 V | - | 65W (Tc) | 150°C | - | - | Surface Mount | MP-3A |
|
|
RJK5030DPD-01#J2MOSFET N-CH 500V 5A MP3A |
2,221 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Ta) | 10V | 1.6Ohm @ 2A, 10V | 4.5V @ 1mA | - | ±30V | 550 pF @ 25 V | - | 41.7W (Tc) | 150°C | - | - | Surface Mount | MP-3A |
|
|
RJK5030DPD-02#J2MOSFET N-CH 500V 5A MP3A |
4,365 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Ta) | 10V | 1.6Ohm @ 2A, 10V | 4.5V @ 1mA | - | ±30V | 550 pF @ 25 V | - | 41.7W (Tc) | 150°C | - | - | Surface Mount | MP-3A |
|
|
RJK5031DPD-01#J2MOSFET N-CH 500V 3A MP3A |
5,164 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 3A (Ta) | 10V | 3.2Ohm @ 1.5A, 10V | 4.5V @ 1mA | - | ±30V | 280 pF @ 25 V | - | 40.3W (Tc) | 150°C | - | - | Surface Mount | MP-3A |
|
|
RJK6002DPD-WS#J2MOSFET N-CH 600V 2A MP3A |
2,725 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Ta) | 10V | 6.8Ohm @ 1A, 10V | 4.5V @ 1mA | 6.2 nC @ 10 V | ±30V | 165 pF @ 25 V | - | 30W (Tc) | 150°C | - | - | Surface Mount | MP-3A |
|
|
RQA0002DNSTB-EMOSFET N-CH 16V 3.8A 2HWSON |
4,132 |
|
Технический лист |
- | 2-DFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 16 V | 3.8A (Ta) | - | - | 750mV @ 1mA | - | ±5V | 102 pF @ 0 V | - | 15W (Tc) | 150°C | - | - | Surface Mount | 2-HWSON (5x4) |
|
|
RQA0004PXDQS#H1MOSFET N-CH 16V 300MA UPAK |
2,488 |
|
Технический лист |
- | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 16 V | 300mA (Ta) | - | - | 900mV @ 1mA | - | ±5V | 10 pF @ 0 V | - | 3W (Ta) | 150°C | - | - | Surface Mount | UPAK |
|
|
RQA0005QXDQS#H1MOSFET N-CH 16V 800MA UPAK |
6,043 |
|
Технический лист |
- | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 16 V | 800mA (Ta) | - | - | 750mV @ 1mA | - | ±5V | 22 pF @ 0 V | - | 9W (Tc) | 150°C | - | - | Surface Mount | UPAK |
|
|
RQA0009SXAQS#H1MOSFET N-CH 16V 3.2A UPAK |
4,750 |
|
- |
- | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 16 V | 3.2A (Ta) | - | - | 800mV @ 1mA | - | ±5V | 76 pF @ 0 V | - | 15W (Tc) | 150°C | - | - | Surface Mount | UPAK |
|
|
RQA0009TXDQS#H1MOSFET N-CH 16V 3.2A UPAK |
3,623 |
|
Технический лист |
- | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 16 V | 3.2A (Ta) | - | - | 800mV @ 1mA | - | ±5V | 76 pF @ 0 V | - | 15W (Tc) | 150°C | - | - | Surface Mount | UPAK |
|
|
RQA0011DNS#G0MOSFET N-CH 16V 3.8A 2HWSON |
9,864 |
|
- |
- | 2-DFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 16 V | 3.8A (Ta) | - | - | 750mV @ 1mA | - | ±5V | 102 pF @ 0 V | - | 15W (Tc) | 150°C | - | - | Surface Mount | 2-HWSON (5x4) |
|
|
RQJ0305EQDQS#H1MOSFET P-CH 30V 3.4A UPAK |
4,453 |
|
Технический лист |
- | TO-243AA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.4A (Ta) | 2.5V, 4.5V | 140mOhm @ 1.7A, 4.5V | 1.4V @ 1mA | 3 nC @ 4.5 V | +8V, -12V | 330 pF @ 10 V | - | 1.5W (Ta) | 150°C | - | - | Surface Mount | UPAK |
