Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66311G0170X127FERRITE CORE E N27 1PC |
5,534 |
|
Технический лист |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
TX13/7.1/4.8-3C94FERRITE CORE TOROID 3C94 |
3,523 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 13 x 7.1 x 4.8 | 3C94 | 0.510" (12.95mm) | - | ±20% | Ungapped | - | 2300 | 2.4 | 29.5 | 12.3 | - | 361.0 | Epoxy | 0.198" (5.03mm) | - | - |
|
E25/10/6-3C94FERRITE CORE E 3C94 |
3,506 |
|
Технический лист |
- | Bulk | Active | E | E 25 x 10 x 6 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.380" (9.65mm) | 1.000" (25.40mm) | 0.250" (6.35mm) |
|
TX14/9/5-3E27FERRITE CORE TOROID 3E+27 |
8,515 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 14 x 9 x 5 | 3E27 | 0.561" (14.25mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.207" (5.25mm) | - | - |
|
B66307G0100X127FERRITE CORE E N27 1PC |
2,306 |
|
Технический лист |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
B66322G0000X127FERRITE CORE E N27 1PC |
1,412 |
|
Технический лист |
E10/5.5/5 | Box | Active | E | E 10 x 5.5 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.216" (5.50mm) | 0.402" (10.20mm) | 0.189" (4.80mm) |
|
|
TX14/9/5-3E6FERRITE CORE TOROID |
1,275 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 14 x 9 x 5 | - | 0.561" (14.25mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.207" (5.25mm) | - | - |
|
B64290L0742X038FERRITE CORE TOROID 6.03UH T38 |
17,029 |
|
Технический лист |
TX13/7.9/6.4 | Box | Active | Toroid | - | T38 | 0.535" (13.60mm) | 6.03 µH | ±30% | Ungapped | - | 10000 | 2.08 | 31.17 | 14.96 | - | 466.0 | Epoxy | 0.281" (7.15mm) | - | - |
|
7898400121FERRITE CORE E SET |
1,636 |
|
Технический лист |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 109.0 | 16.6 | 15.2 | 15.0 | 252.0 | Uncoated | - | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
PLT13/9/1-3C95FERRITE CORE PLT 3C95 |
22,212 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 13 x 9 x 1 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.043" (1.10mm) | 0.504" (12.80mm) | 0.343" (8.70mm) |
|
5976000211FERRITE CORE TOROID 4.4UH 76 |
2,121 |
|
Технический лист |
- | Bag | Active | Toroid | - | 76 | - | 4.4 µH | ±30% | Ungapped | - | 10000 | 286.0 | 20.7 | 7.2 | - | 150.0 | Parylene | - | - | - |
|
TX13/7.9/6.4-3C94FERRITE CORE TOROID 3C94 |
4,025 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 13 x 7.9 x 6.4 | 3C94 | 0.526" (13.35mm) | - | ±25% | Ungapped | 2300.0 | - | 2.21 | 31.2 | 14.1 | - | 442.0 | Epoxy | 0.275" (7.00mm) | - | - |
|
B64290L0652X830FERRITE CORE TOROID 2.71UH N30 |
4,007 |
|
Технический лист |
TX17.4/10.3/7 | Box | Active | Toroid | - | N30 | 0.717" (18.20mm) | 2.71 µH | ±25% | Ungapped | - | 4300 | 2.0 | 42.0 | 21.04 | - | 884.0 | Epoxy | 0.307" (7.80mm) | - | - |
|
B64290L0743X038FERRITE CORE TOROID 5.4UH T38 |
8,310 |
|
Технический лист |
TX16/9/5 | Box | Active | Toroid | - | T38 | 0.661" (16.80mm) | 5.4 µH | ±30% | Ungapped | - | 10000 | 2.33 | 36.75 | 15.78 | - | 580.0 | Epoxy | 0.215" (5.45mm) | - | - |
|

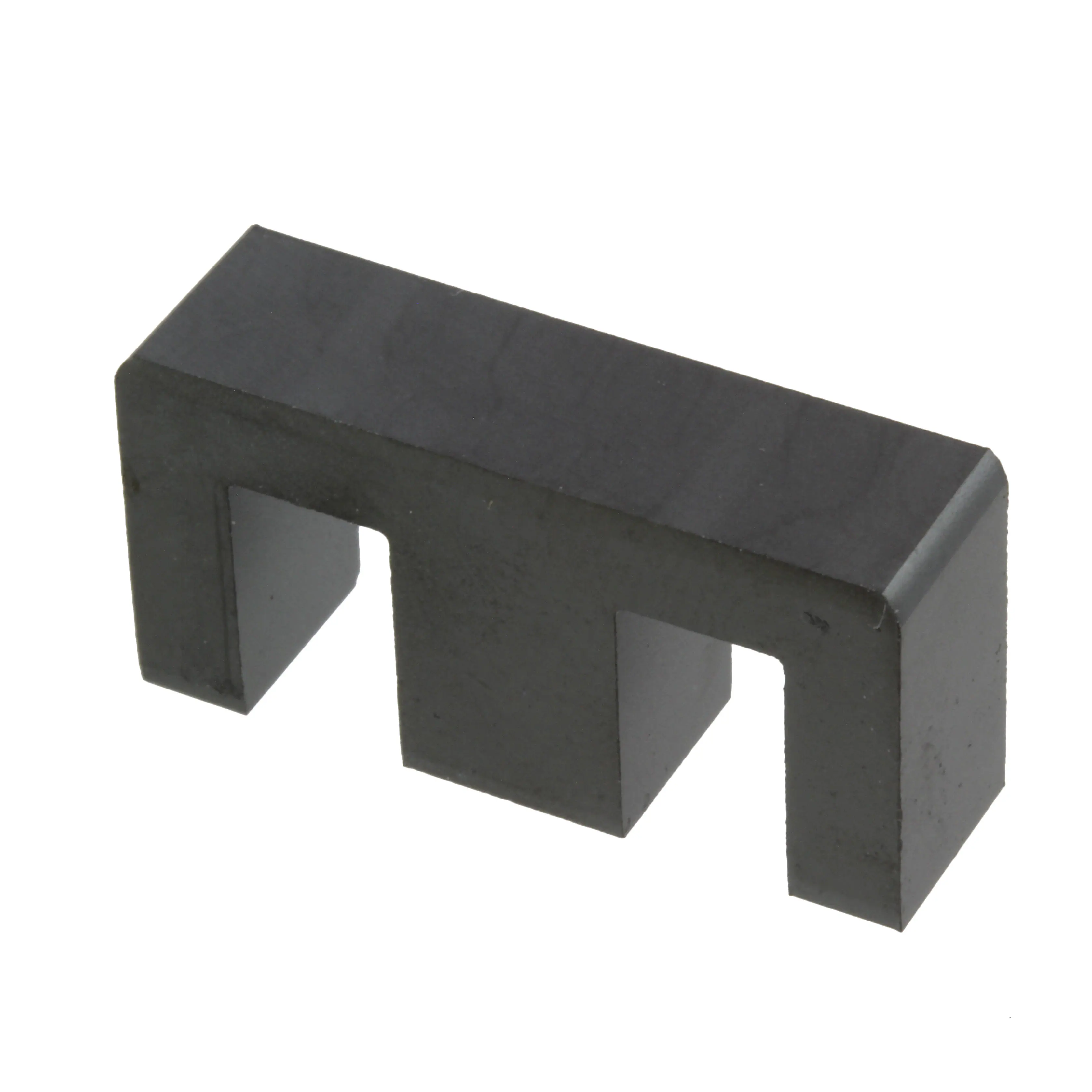

B66317G0100X187FERRITE CORE E N87 1PC |
1,751 |
|
Технический лист |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|
TX10/6/4-3C90FERRITE CORE TOROID 3C90 |
3,000 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.167" (4.25mm) | - | - |
|
|
B66307G0240X187FERRITE CORE E N87 |
2,796 |
|
Технический лист |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N87 | - | - | - | Gapped | - | 2200 | 1.87 | 37.6 | 20.1 | 19.4 | 756.0 | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
B64290L0658X038FERRITE CORE TOROID 4.42UH T38 |
1,453 |
|
Технический лист |
TX14/9/5 | Box | Active | Toroid | - | T38 | 0.594" (15.10mm) | 4.42 µH | ±30% | Ungapped | - | 10000 | 2.84 | 34.98 | 12.3 | - | 430.0 | Epoxy | 0.236" (6.00mm) | - | - |
|
|
TX13/7.9/6.4-3E27FERRITE CORE |
4,157 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.311" (7.90mm) | - | 0.252" (6.40mm) |
|

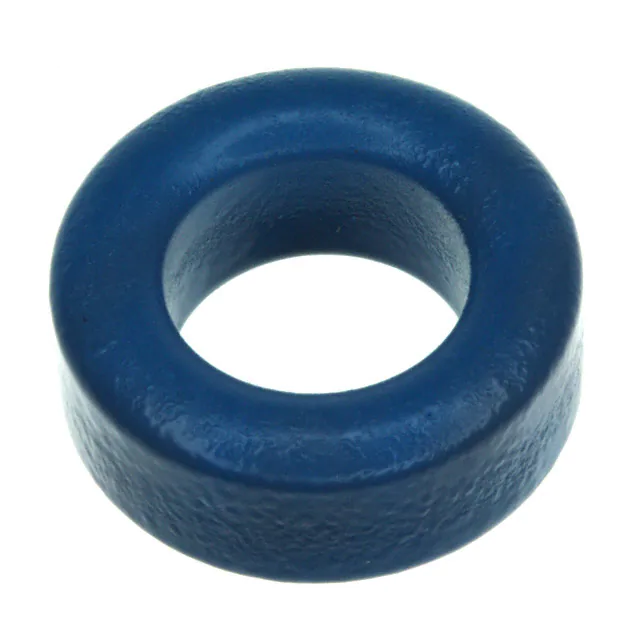

B64290L0045X035FERRITE CORE TOROID 3.87UH T35 |
4,118 |
|
Технический лист |
TX16/9.6/6.3 | Bulk | Active | Toroid | - | T35 | 0.677" (17.20mm) | 3.87 µH | ±25% | Ungapped | - | 6000 | 1.95 | 38.52 | 19.73 | - | 760.0 | Epoxy | 0.287" (7.30mm) | - | - |
