Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65541T0250A048FERRITE CORE P 250NH N48 2PCS |
978 |
|
Технический лист |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | N48 | 0.563" (14.30mm) | 250 nH | ±3% | Gapped | 159.0 | - | 0.8 | 20.0 | 25.0 | 20.0 | 500.0 | Uncoated | 0.167" (4.25mm) | - | - |
|

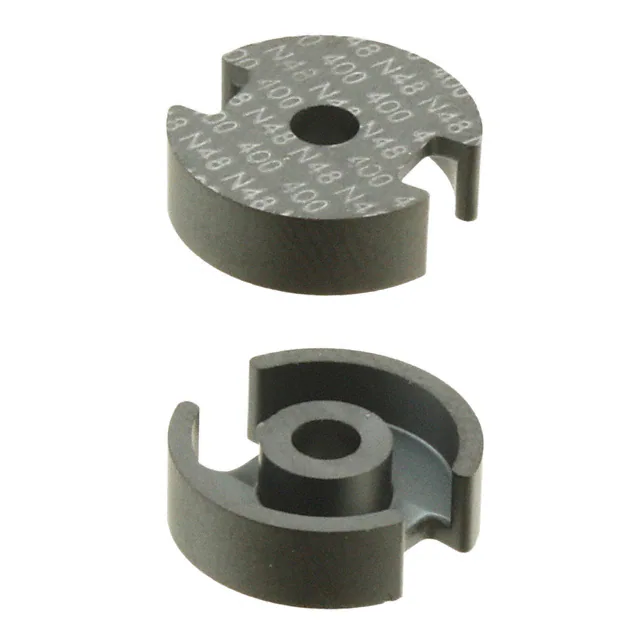

B65541T0400A048FERRITE CORE P 400NH N48 2PCS |
854 |
|
Технический лист |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | N48 | 0.563" (14.30mm) | 400 nH | ±3% | Gapped | 255.0 | - | 0.8 | 20.0 | 25.0 | 20.0 | 500.0 | Uncoated | 0.167" (4.25mm) | - | - |
|
B65807N0160G048FERRITE CORE RM N48 2PCS |
1,130 |
|
Технический лист |
RM6 | Box | Active | RM | RM 6 | N48 | - | - | - | Gapped | - | - | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
PQ26/25-3C96FERRITE CORE PQ 3C96 2PC SET |
524 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 26 x 25 | 3C96 | - | - | ±25% | Ungapped | 1690.0 | - | 0.451 | 54.3 | 120.0 | 108.0 | 6530.0 | Uncoated | 0.972" (24.70mm) | 1.075" (27.30mm) | 0.748" (19.00mm) |
|

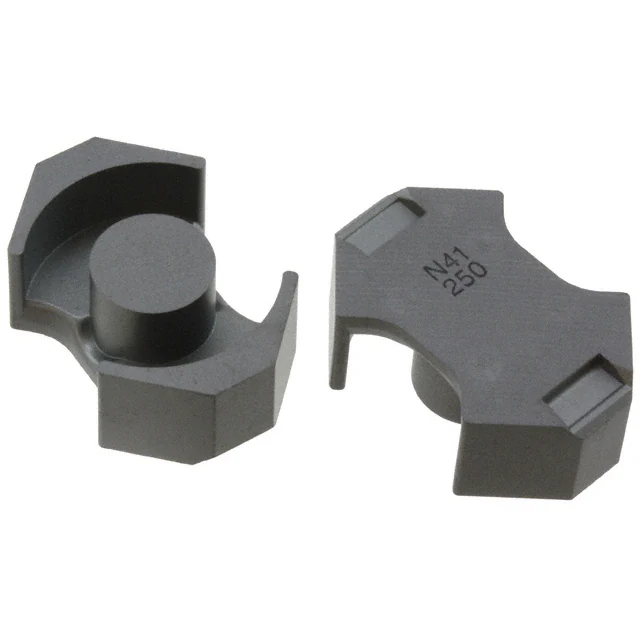

B65811J0250J041FERRITE CORE RM 250NH N41 2PCS |
278 |
|
Технический лист |
RM8 | Box | Active | RM | RM 8 | N41 | - | 250 nH | ±5% | Gapped | 118.0 | 2800 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|

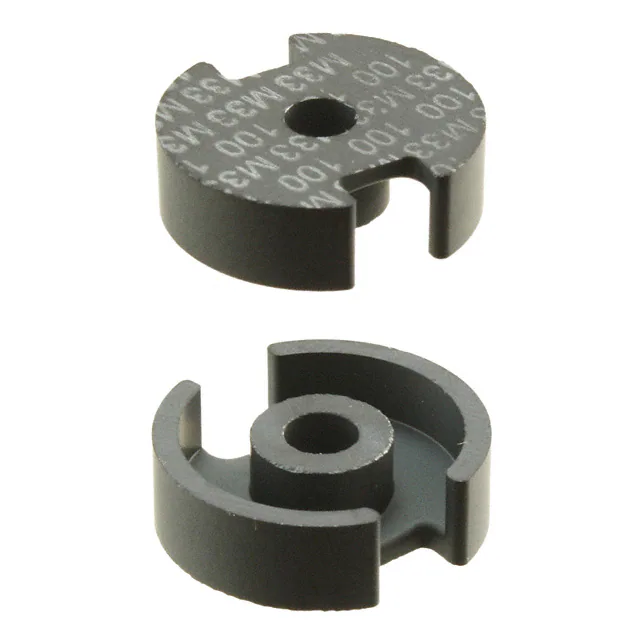

B65541T0100A033FERRITE CORE P 100NH M33 2PCS |
4,838 |
|
Технический лист |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | M33 | 0.563" (14.30mm) | 100 nH | ±3% | Gapped | 64.0 | 750 | 0.8 | 20.0 | 25.0 | 20.0 | 500.0 | Uncoated | 0.167" (4.25mm) | - | - |
|
|
5961001221FERRITE CORE TOROID 145NH 61 |
161 |
|
Технический лист |
- | Box | Active | Toroid | - | 61 | 1.187" (30.15mm) | 145 nH | ±25% | Ungapped | - | 125 | 1.07 | 73.0 | 68.0 | - | 5000.0 | Plastic | 0.576" (14.64mm) | - | - |
|

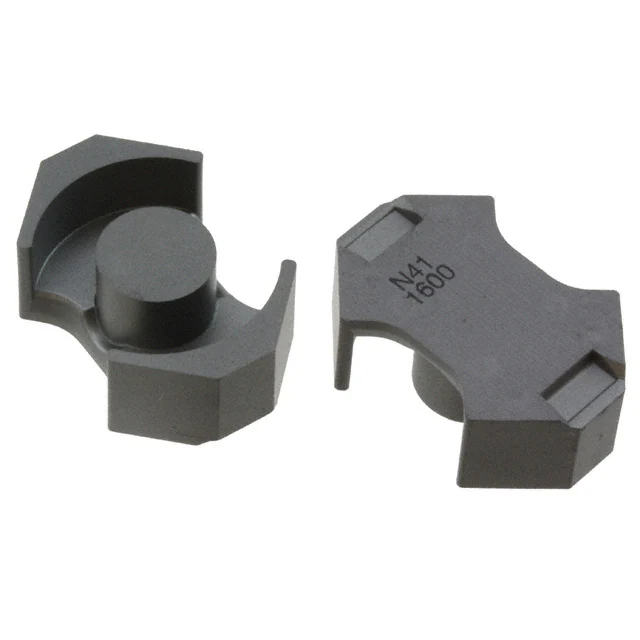

B65811J1600K041FERRITE CORE RM 1.6UH N41 2PCS |
800 |
|
Технический лист |
RM8 | Box | Active | RM | RM 8 | N41 | - | 1.6 µH | ±10% | Gapped | 756.0 | 2800 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
|
TX20/10/7-4C65FERRITE CORE TOROID 4C65 |
124 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 20 x 10 x 7 | 4C65 | 0.797" (20.25mm) | - | ±30% | Ungapped | - | - | 1.3 | 43.6 | 33.6 | - | 1465.0 | Epoxy | 0.291" (7.40mm) | - | - |
|
ER41/7.6/32-3C92FERRITE CORE ER 3C92 |
263 |
|
Технический лист |
- | Bulk | Active | ER | ER 41 x 7.6 x 32 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.300" (7.60mm) | 1.600" (40.64mm) | 1.260" (32.00mm) |
|

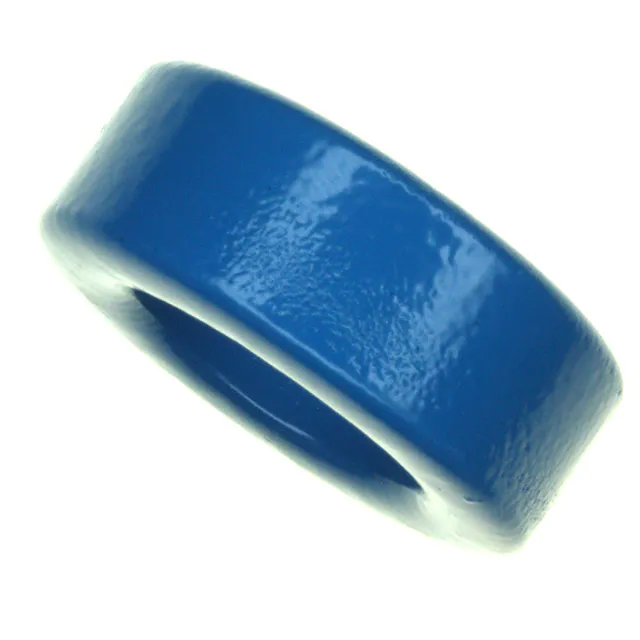

B64290L0048X830FERRITE CORE TOROID 5.46UH N30 |
1,138 |
|
Технический лист |
TX34/20.5/12.5 | Tray | Active | Toroid | - | N30 | 1.397" (35.50mm) | 5.46 µH | ±25% | Ungapped | - | 4300 | 0.99 | 82.06 | 82.6 | - | 6778.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
B66329G1500X187FERRITE CORE E N87 |
249 |
|
Технический лист |
E42/21/20 | Box | Active | E | E 42 x 21 x 20 | N87 | - | - | - | Gapped | - | 2200 | 0.41 | 97.0 | 234.0 | 229.0 | 22700.0 | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.787" (20.00mm) |
|

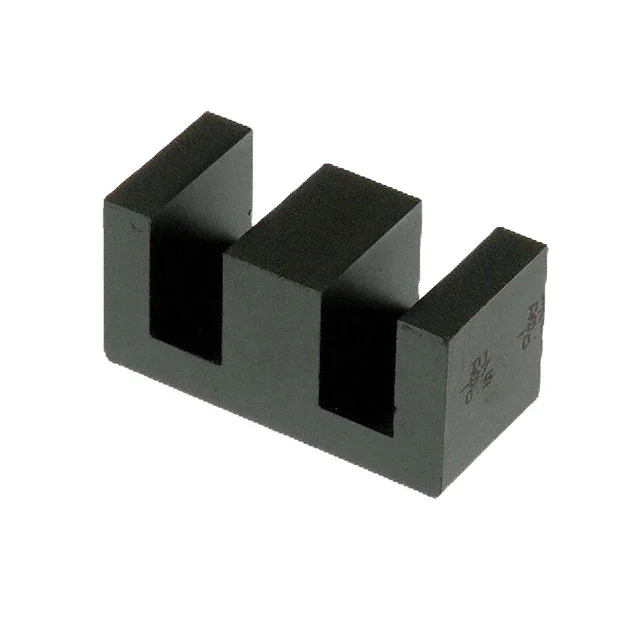

B66329G0500X187FERRITE CORE E N87 |
566 |
|
Технический лист |
E42/21/20 | Box | Active | E | E 42 x 21 x 20 | N87 | - | - | - | Gapped | - | 2200 | 0.41 | 97.0 | 234.0 | 229.0 | 22700.0 | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.787" (20.00mm) |
|
B64290L0616X087FERRITE CORE TOROID 4.68UH N87 |
291 |
|
Технический лист |
TX25.3/14.8/20 | Box | Active | Toroid | - | N87 | 1.047" (26.60mm) | 4.68 µH | ±25% | Ungapped | - | 2200 | 0.59 | 60.07 | 102.5 | - | 6157.0 | Epoxy | 0.839" (21.30mm) | - | - |
|
B64290L0048X087FERRITE CORE TOROID 2.79UH N87 |
1,175 |
|
Технический лист |
TX34/20.5/12.5 | Box | Active | Toroid | - | N87 | 1.397" (35.50mm) | 2.79 µH | ±25% | Ungapped | - | 2200 | 0.99 | 82.06 | 82.6 | - | 6778.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
B65811P0000R087FERRITE CORE RM 4.1UH N87 2PCS |
398 |
|
Технический лист |
RM8/LP | Tray | Active | RM | RM 8 LP | N87 | - | 4.1 µH | -20%, +30% | Ungapped | 1440.0 | 2200 | 0.44 | 28.7 | 64.9 | 55.4 | 1860.0 | Uncoated | 0.228" (5.80mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
E55/28/21-3C92FERRITE CORE E 3C92 |
184 |
|
Технический лист |
- | Bulk | Active | E | E 55 x 28 x 21 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.083" (27.50mm) | 2.213" (56.20mm) | 0.827" (21.00mm) |
|
|
0077076A7FERRITE CORE TOROID 56NH KOOL MU |
2,098 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 1.445" (36.70mm) | 56 nH | ±8% | Ungapped | - | 60 | - | 89.8 | 67.8 | - | 6090.0 | Coated | 0.447" (11.35mm) | - | - |
|
B65661W0000R030FERRITE CORE P 8.3UH N30 2PCS |
608 |
|
Технический лист |
P22/13 | Box | Active | P (Pot Core) | P 22 x 13 | N30 | 0.866" (22.00mm) | 8.3 µH | -20%, +30% | Ungapped | 3020.0 | 4300 | 0.46 | 33.2 | 72.6 | 58.1 | 2410.0 | Uncoated | 0.268" (6.80mm) | - | - |
|

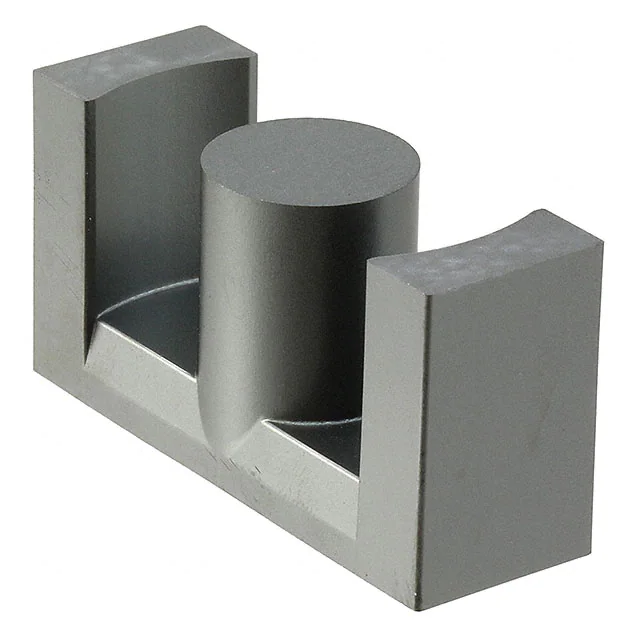

B66365G0500X187FERRITE CORE ETD N87 1PC |
445 |
|
Технический лист |
ETD44/22/15 | Box | Active | ETD | ETD 44 x 22 x 15 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.886" (22.50mm) | 1.724" (43.80mm) | 0.598" (15.20mm) |
