Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9HVA0612P1J00160X38MM 12V, HIGH PERFORMANCE DC |
0 |
|
Технический лист |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 84.3 CFM (2.39m³/min) | 8.000 in H2O (2000.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 33.6 W | 24800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GV1224P1J011FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
9GV0948P1H031FAN AXIAL 92X38MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 39.4 W | 8500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
9HV0912P4G001FAN AXIAL 92X25.2MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.20mm | 118.0 CFM (3.30m³/min) | 1.120 in H2O (279.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 14.76 W | 7350 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9HV0924P4H001FAN AXIAL 92X25.2MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 97.1 CFM (2.72m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 9.12 W | 6050 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9HV0924P4G0011FAN AXIAL 92X25.2MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 118.0 CFM (3.30m³/min) | 1.120 in H2O (279.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 14.64 W | 7350 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9HV0824P1G003FAN AXIAL 80X38MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
AFB1524L-AFAN AXIAL 172X25.4MM 24VDC WIRE |
0 |
|
Технический лист |
AFB | Tray | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 160.8 CFM (4.50m³/min) | 0.305 in H2O (75.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 7.44 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
9LG0612P4M001FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 60L | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 1.08 W | 4200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
|
9CRH0612P6G001FAN 12VDC 60X56MM TACH/PWM |
0 |
|
Технический лист |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 56.00mm | 91.8 CFM (2.57m³/min) | 13.449 in H2O (3350.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 67.2 W | 26100 Front, 26800 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
SFB0412VH-F00FAN BLOWER CF 196X33MM 12VDC |
0 |
|
Технический лист |
SFB | Bulk | Active | 12VDC | Rectangular/Rounded - 196mm L x 109mm H | 33.00mm | 91.0 CFM (2.55m³/min) | 2.694 in H2O (671.1 Pa) | Ball | Blower, Centrifugal (Dual) | Speed Sensor (Tach) | 67.0dB(A) | 55.2 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.849 lb (385.1 g) |
|
|
9HVA0848P1G60180X38MM 48V, HIGH STATIC PRESSUR |
1 |
|
Технический лист |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 132.0 CFM (3.70m³/min) | 5.020 in H2O (1250.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 43.2 W | 16100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

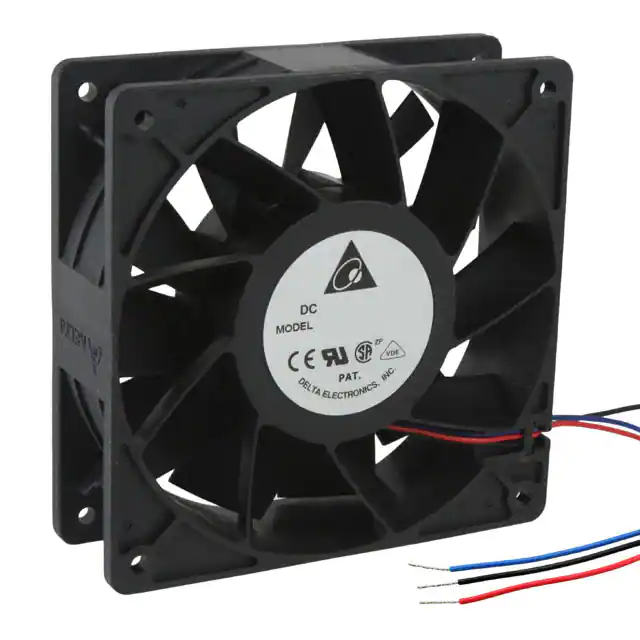

PFB1224UHE-T50FFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
Технический лист |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 48 W | 5500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|

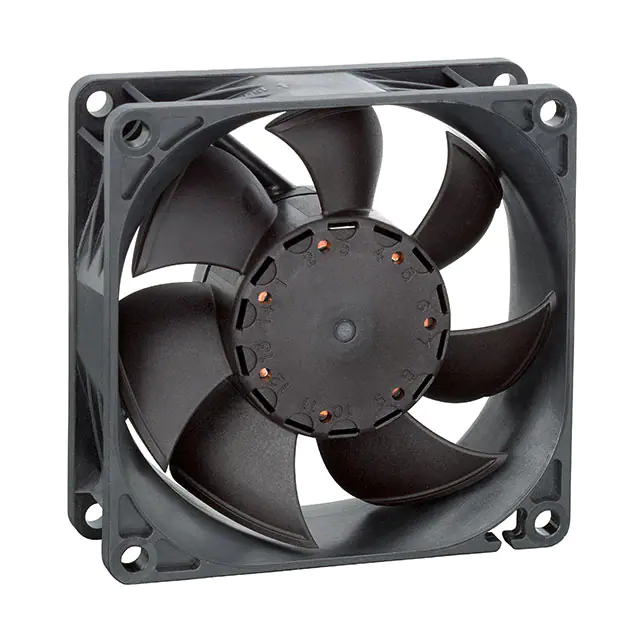

8452/2H4PFAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
8450 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 68.8 CFM (1.93m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6.8 W | 6200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.231 lb (104.78 g) |
|
9GA1224P4S0011FAN AXIAL 120X25.4MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.44 W | 5400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|

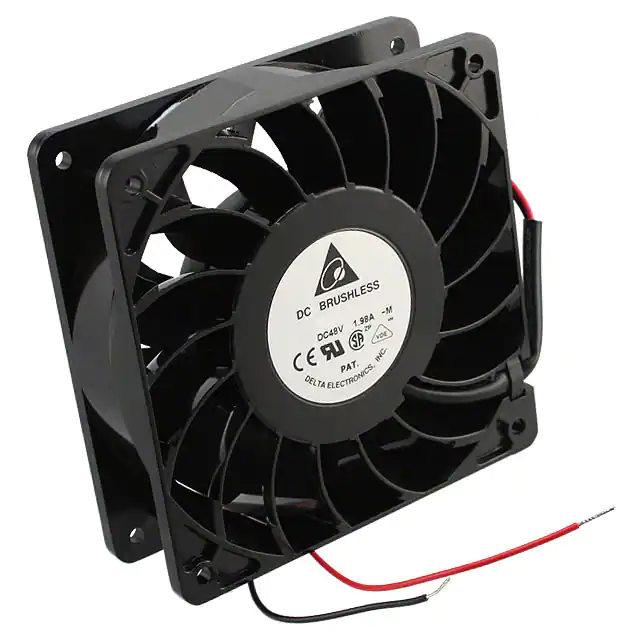

FFB1248XHE-MFAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Технический лист |
FFB | Bulk | Not For New Designs | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 264.6 CFM (7.41m³/min) | 1.705 in H2O (424.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 73.5dB(A) | 79.2 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
4314TFAN AXIAL 119X32MM 24VDC WIRE |
0 |
|
Технический лист |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 30.0dB(A) | 4.8 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 0.485 lb (220.00 g) |
|
9WPA0924P4G001FAN AXIAL 92X25.2MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 6 W | 5700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
OD172SAP-12MBXCIP68FAN AXIAL 172X51.6MM 12VDC WIRE |
0 |
|
Технический лист |
OD172SAP XC | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 152mm H | 51.60mm | 263.0 CFM (7.36m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | 13.2 W | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 1.3 lbs (600.0 g) |
|

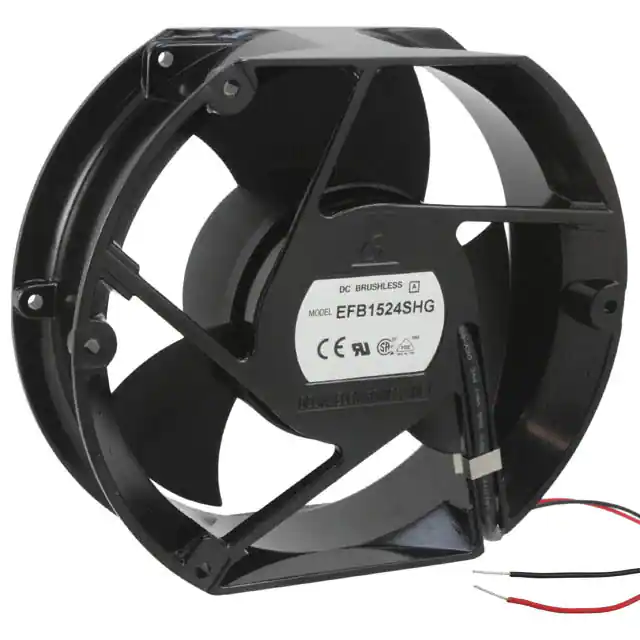

EFB1524SHGFAN AXIAL 172X50.8MM 24VDC WIRE |
0 |
|
Технический лист |
EFB | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 325.0 CFM (9.10m³/min) | 1.083 in H2O (269.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 28.08 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
