Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0812H401FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.76 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.167 lb (75.75 g) |
|

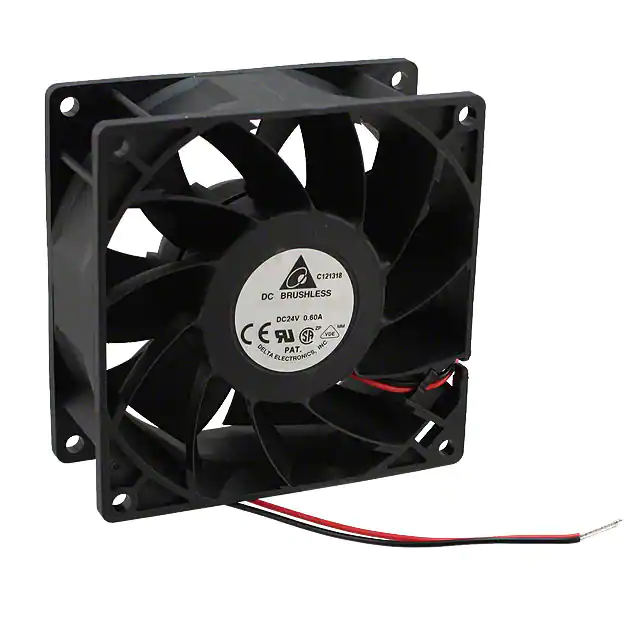

FFB0924SHEFAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
Технический лист |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.5dB(A) | 9.6 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

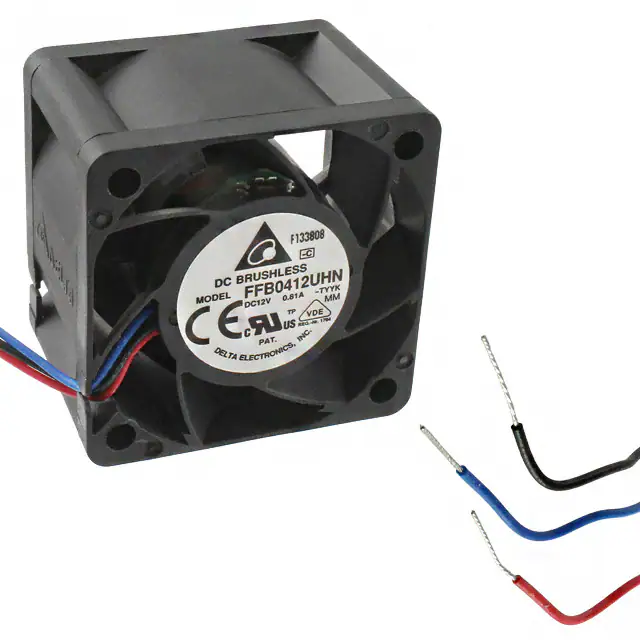

FFB0412UHN-TYYKFAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Технический лист |
FFB | Box | Not For New Designs | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 27.1 CFM (0.759m³/min) | 2.111 in H2O (525.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 7.8 W | 18500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
11925SE-24R-FTD-WFAN AXIAL 119X25MM 24VDC WIRE |
2 |
|
Технический лист |
11925SE | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 128.2 CFM (3.59m³/min) | 0.357 in H2O (88.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.0dB(A) | 7.2 W | 3500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
|
9GA0824H7002FAN AXIAL 80X15MM 24VDC WIRE |
3 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 31.4 CFM (0.879m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.2 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.144 lb (65.32 g) |
|
FFB0924EHE-F00FAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
Технический лист |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 12 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
9A0824G4011FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Технический лист |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 5.04 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0824G401FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 4.8 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
9S0912M401FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.32 W | 2250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9GA0624G6002FAN AXIAL 60X20MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 2.88 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
|
AFB1212HHEFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
Технический лист |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.52 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
GF60252BX-1000U-ADPFAN 60X25MM 24VDC GR487 |
5 |
|
Технический лист |
GF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Auto Restart | 55.4dB(A) | 13.08 W | 12900 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|

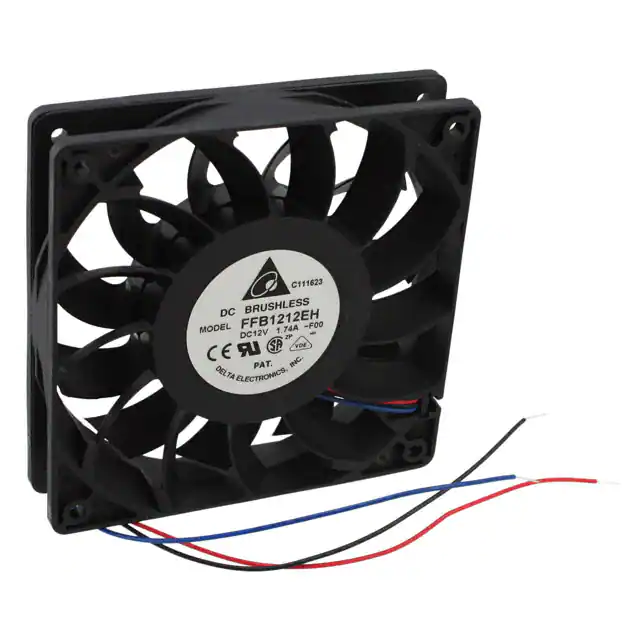

FFB1212EH-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.4dB(A) | 17.4 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
109BM12GC2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 33.00mm | 28.9 CFM (0.809m³/min) | 1.129 in H2O (281.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 51.5dB(A) | 7.2 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.386 lb (175.09 g) |
|
|
9WP0848S401FAN AXIAL 80X25MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 80W | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB(A) | 2.88 W | 3400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WP0612D4011FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.52 W | 5150 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

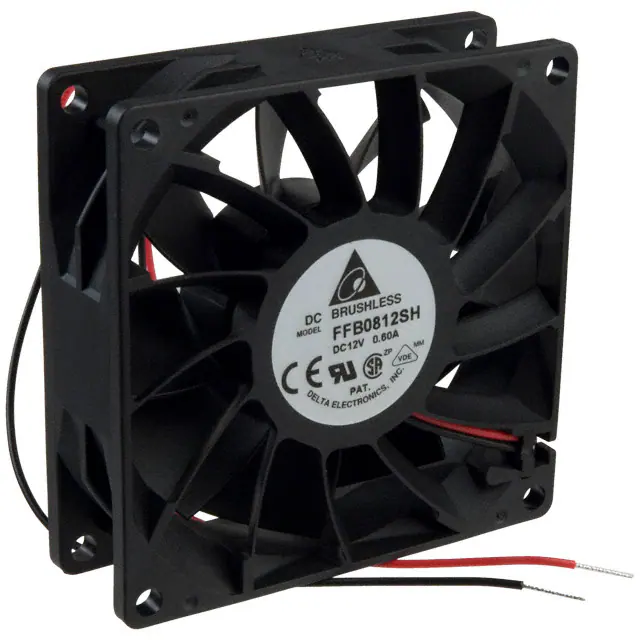

FFB0812SHFAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 67.0 CFM (1.88m³/min) | 0.392 in H2O (97.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.6dB(A) | 6 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.253 lb (114.76 g) |
|
|
9G0624H4002FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 6 W | 9500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9BD12P6S01FAN BLOWER 76X20MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.36 W | 4500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
|

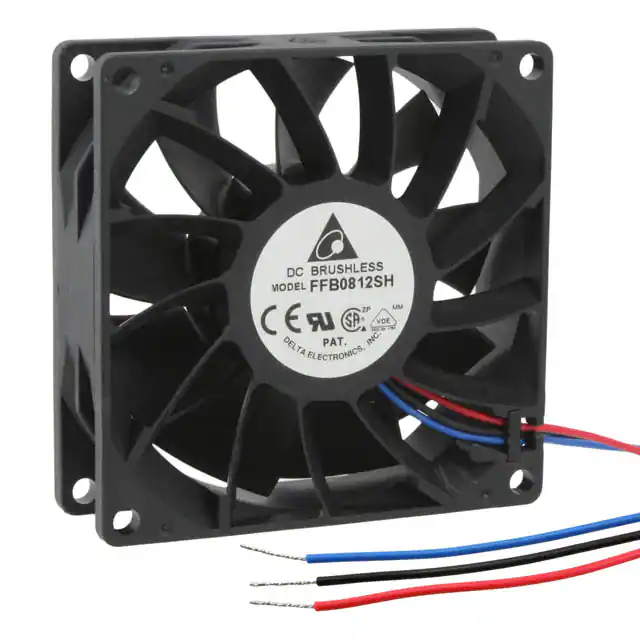

FFB0812SH-R00FAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 67.0 CFM (1.88m³/min) | 0.392 in H2O (97.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.6dB(A) | 6 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.253 lb (114.76 g) |
