Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4414FNNFAN AXIAL 119X25.4MM 24VDC WIRE |
303 |
|
Технический лист |
4400FN | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 117.7 CFM (3.30m³/min) | - | Ball | Tubeaxial | - | 52.0dB(A) | 8.5 W | 4850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|

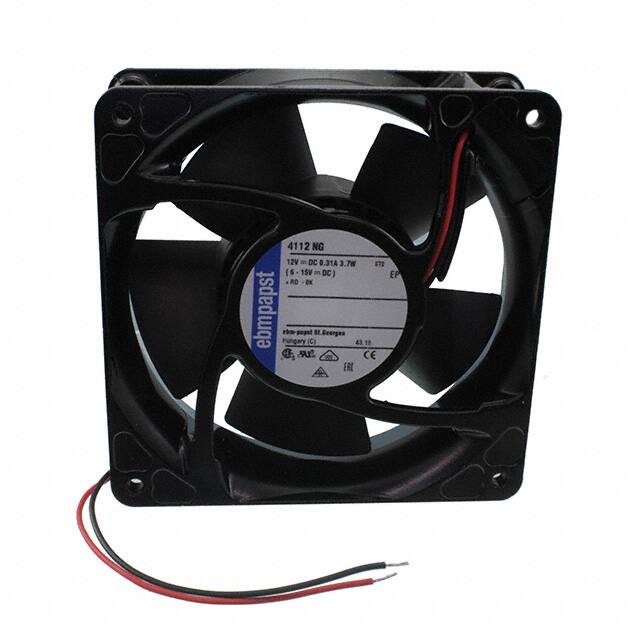

4112NGFAN AXIAL 119X38MM 12VDC WIRE |
452 |
|
Технический лист |
4100N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
9LG0924H4002FAN AXIAL 92X25MM 24VDC WIRE |
33 |
|
Технический лист |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.68 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
|
9LG0912H4002FAN AXIAL 92X25MM 12VDC WIRE |
28 |
|
Технический лист |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.8 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
3218JHFAN AXIAL 92X38MM 48VDC WIRE |
70 |
|
Технический лист |
3200J | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 86.0 CFM (2.41m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 9.5 W | 6800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | - |
|
|
9LG0824P4G001FAN AXIAL 80X25MM 24VDC WIRE |
123 |
|
Технический лист |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.36 W | 5500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

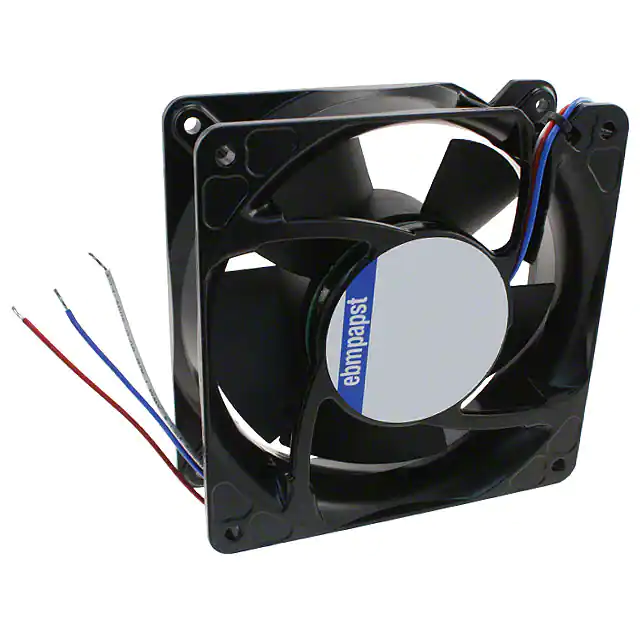

4118N/2H3FAN AXIAL 119X38MM 48VDC WIRE |
41 |
|
Технический лист |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 65.0dB(A) | 19.5 W | 6000 RPM | 3 Wire Leads | - | - | - | 0.86 lb (390.09 g) |
|
4118NH4FAN AXIAL 119X38MM 48VDC WIRE |
27 |
|
Технический лист |
4100N | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 208.9 CFM (5.85m³/min) | - | Ball | Tubeaxial | - | 67.0dB(A) | 28 W | 6800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 0.86 lb (390.09 g) |
|
9TN48P1H01FAN AXIAL 150X35MM 48VDC WIRE |
39 |
|
Технический лист |
San Ace C150 | Box | Active | 48VDC | Square - 150mm L x 150mm H | 35.00mm | 135.0 CFM (3.78m³/min) | 1.570 in H2O (391.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 15.4 W | 3800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|

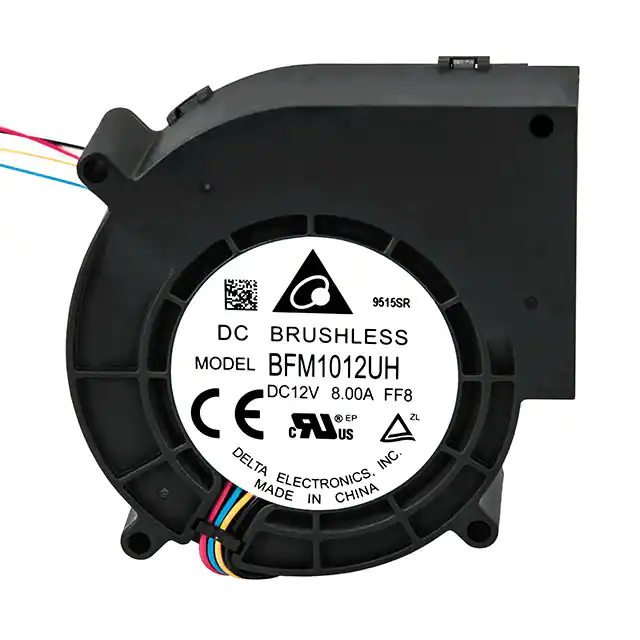

BFM1012UHFF8FAN BLOWER 96.6X32.9MM 12VDC |
427 |
|
Технический лист |
BFM - High-Perfomance | Box | Active | 12VDC | Rectangular/Rounded - 96.6mm L x 94.3mm H | 32.90mm | 66.0 CFM (1.85m³/min) | 6.806 in H2O (1695.3 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 69.6 W | 8700 RPM | 8 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.452 lb (205.02 g) |
|
16003387AFAN BLWR 80X32.4MM 24V WT24Z7-E2 |
578 |
|
Технический лист |
Whiffet | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 32.00mm | 20.0 CFM (0.560m³/min) | - | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 56.8dB(A) | 10.2 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
08080EA-12S-E6D-280X80X80MM, 12VDC, 15,800/16,300 |
49 |
|
Технический лист |
08080EA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 141.0 CFM (3.95m³/min) | 10.000 in H2O (2490.8 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 118 W | 15800 RPM Front, 16300 RPM Rear | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
|
19031074AFAN AXIAL 127X38.1MM 12V GL12B4 |
190 |
|
Технический лист |
Galaxy | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.6dB(A) | 16 W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
|
4418FNHFAN AXIAL 119X25.4MM 48VDC WIRE |
44 |
|
Технический лист |
4400FN | Box | Active | 48VDC | Square - 119mm L x 119mm H | 25.40mm | 132.4 CFM (3.71m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 12 W | 5400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|

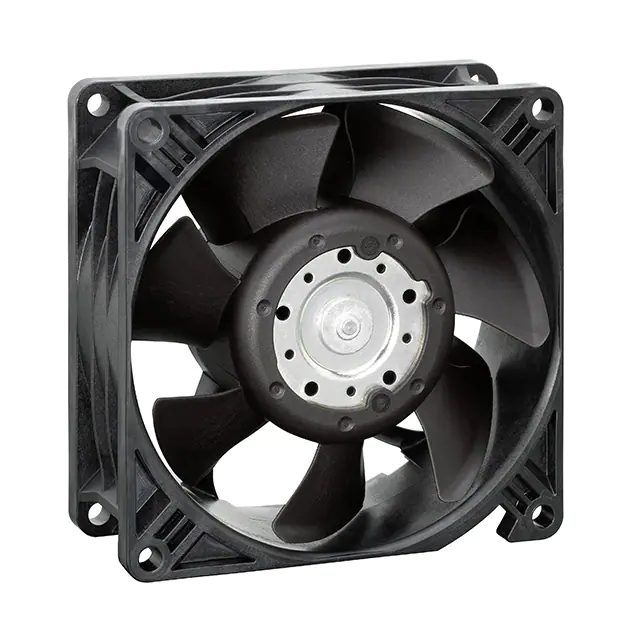

3254J/2H3PFAN AXIAL 92X38MM 24VDC WIRE |
423 |
|
Технический лист |
S-Panther 3250J | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 158.0 CFM (4.42m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 35 W | 7450 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
3258J/2HHPFAN AXIAL 92X38MM 48VDC WIRE |
28 |
|
Технический лист |
S-Panther 3250J | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 138.0 CFM (3.86m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 59.0dB(A) | 24 W | 6650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.529 lb (239.95 g) |
|
9GA1212P4S001FAN AXIAL 120X25.4MM 12VDC WIRE |
28 |
|
Технический лист |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.32 W | 5400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
4312UFAN AXIAL 119X32MM 12VDC WIRE |
135 |
|
Технический лист |
4300U | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.485 lb (219.99 g) |
|
|
9GA1224G4001FAN AXIAL 120X25.4MM 24VDC WIRE |
437 |
|
Технический лист |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 11.28 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|

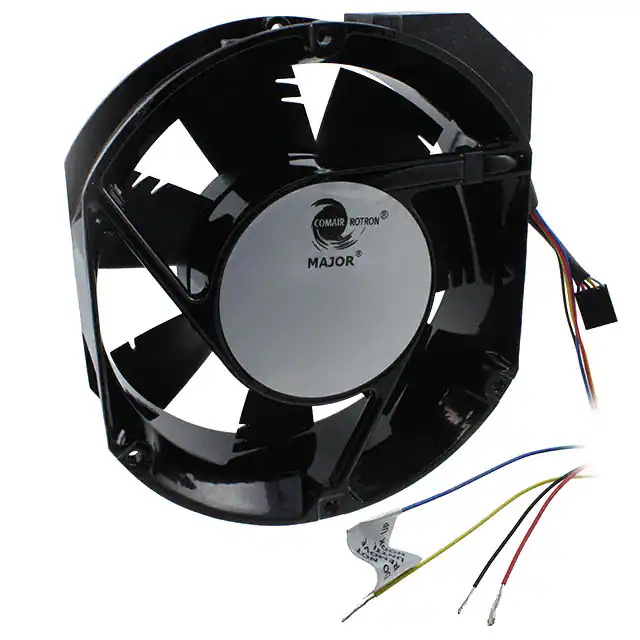

19039692AFAN AXIAL 171.4X50.8MM JQD24Z3A2 |
266 |
|
Технический лист |
Major | Bulk | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 50.80mm | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.1dB(A) | 35 W | 4450 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CE, UL | - |
