Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

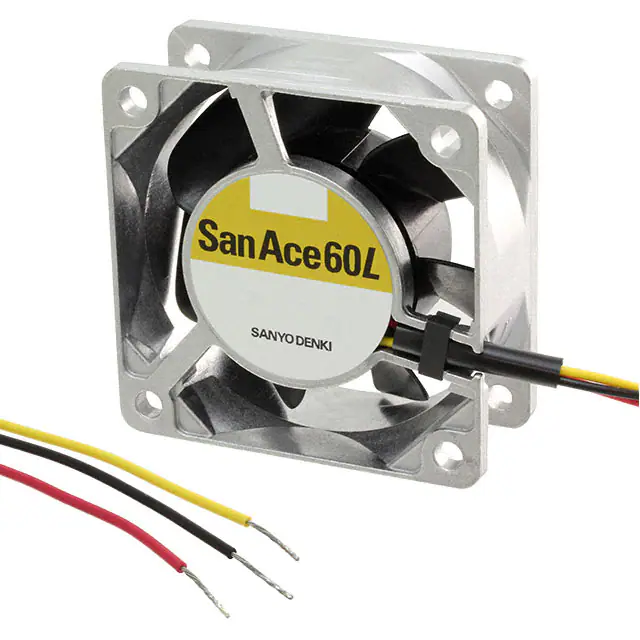

109L0612S401FAN AXIAL 60X25MM 12VDC WIRE |
57 |
|
Технический лист |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.04 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.222 lb (100.7 g) |
|
19031076AFAN AXIAL 127X38.1MM 48V GL48B4 |
130 |
|
Технический лист |
Galaxy | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.6dB(A) | 15 W | 3250 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|

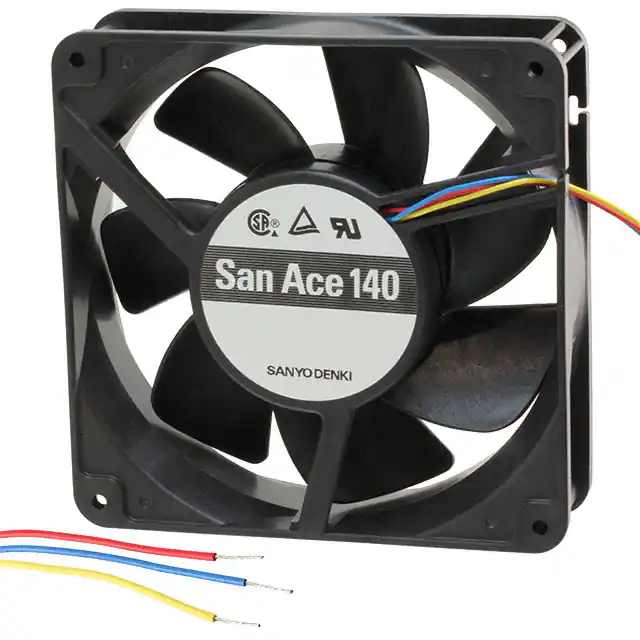

109P1412M101FAN AXIAL 140X38MM 12VDC WIRE |
29 |
|
Технический лист |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 117.0 CFM (3.28m³/min) | 0.209 in H2O (52.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 3.96 W | 1900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
|
PFC1224DE-F00FAN AXIAL 120X38MM 24VDC WIRE |
159 |
|
Технический лист |
PFC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 47 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
|
109BF24HC2FAN BLOWER 120X32MM 24VDC WIRE |
366 |
|
Технический лист |
San Ace B120 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.704 in H2O (175.4 Pa) | Ball | Blower | Speed Sensor (Tach) | 52.0dB(A) | 7.2 W | 2400 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|

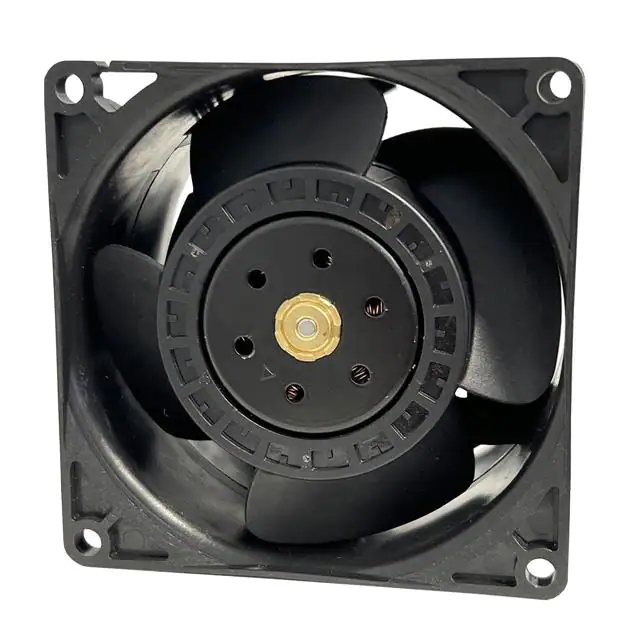

DS0805612V2B-BT0FAN AXIAL DUAL 80X56MM 12VDC |
152 |
|
Технический лист |
DS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 56.00mm | 138.0 CFM (3.86m³/min) | 8.811 in H2O (2194.7 Pa) | Ball | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 83.52 W | 17300 Front, 15000 Rear | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
GE80252B1-000U-AE9FAN AXIAL 80X25MM 24VDC WIRE |
258 |
|
Технический лист |
GE | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | - | 47.5dB(A) | 4.8 W | 4800 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.231 lb (104.78 g) |
|
4182NGXFAN AXIAL 119X38MM 12VDC TERM |
29 |
|
Технический лист |
4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 94.2 CFM (2.64m³/min) | - | Sintec | Tubeaxial | - | 44.0dB(A) | 3.5 W | 2800 RPM | 2 Terminals | - | 14 ~ 167°F (-10 ~ 75°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
4184NMCRFAN AXIAL 119X38MM 24VDC WIRE |
46 |
|
Технический лист |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | - | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | 0.86 lb (390.09 g) |
|
3312NNUFAN AXIAL 92X32MM 12VDC WIRE |
142 |
|
Технический лист |
3300NU | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 2650 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.419 lb (190.06 g) |
|
3314N/2HHFAN AXIAL 92X32MM 24VDC WIRE |
42 |
|
Технический лист |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 63.0 CFM (1.76m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB(A) | 3.5 W | 3450 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
8412NUFAN AXIAL 80X25.4MM 12VDC WIRE |
291 |
|
Технический лист |
8400NU | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.209 lb (94.8 g) |
|
MA1751X48B-FSRFAN AXIAL 172X50.8MM 48VDC WIRE |
41 |
|
Технический лист |
MA1751 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 290.6 CFM (8.14m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 63.0dB(A) | - | 3400 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
3212JHFAN AXIAL 92X38MM 12VDC WIRE |
397 |
|
Технический лист |
3200J | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 86.0 CFM (2.41m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 9 W | 6800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.529 lb (239.95 g) |
|
9LG0624P4J001FAN AXIAL 60X25MM 24VDC WIRE |
1,782 |
|
Технический лист |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.56 W | 8650 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9LG0912P4S001FAN AXIAL 92X25MM 12VDC WIRE |
57 |
|
Технический лист |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 59.7 CFM (1.67m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

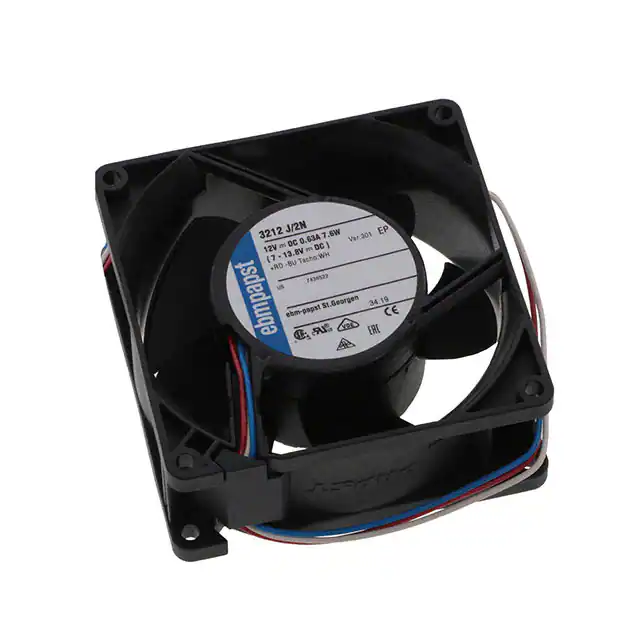

3212J/2N-301FAN AXIAL 92X38MM 12VDC WIRE |
32 |
|
Технический лист |
3200J, S-Force | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 7.5 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | - |
|
9LG0812P4H001FAN AXIAL 80X25MM 12VDC WIRE |
205 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.44 W | 3700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
9LG0812S4002FAN AXIAL 80X25MM 12VDC WIRE |
30 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.04 W | - | 2 Wire Leads | - | - | - | - |
|
|
9LG0824S4002FAN AXIAL 80X25MM 24VDC WIRE |
30 |
|
Технический лист |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.68 W | - | 2 Wire Leads | - | - | - | - |
