Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9LG1212M1D001120X38MM 12V, HIGH PERF LONG LIF |
0 |
|
Технический лист |
San Ace 120L | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1212H1D001120X38MM 12V, HIGH PERF LONG LIF |
0 |
|
Технический лист |
San Ace 120L | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
THB1548DG-CXKQFAN AXIAL 172X50.8MM 48VDC WIRE |
0 |
|
Технический лист |
THB | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 410.5 CFM (11.49m³/min) | 2.085 in H2O (519.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 75.36 W | 5800 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 1.7 lbs (771.1 g) |
|
|
W2G110-AM47-01DC TUBEAXIAL FANS |
0 |
|
- |
W2G110 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | 0.221 in H2O (55.0 Pa) | Ball | Tubeaxial | - | - | 5.6 W | 3100 RPM | 2 Wire Leads | IP22 | -13 ~ 162°F (-25 ~ 72°C) | CSA, VDE, UL | - |
|
|
W2G107-AF35-13DC TUBEAXIAL FANS |
0 |
|
- |
W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 70.0 CFM (1.96m³/min) | - | Ball | Tubeaxial | - | 33.0dB(A) | 2.2 W | - | 2 Terminals | - | - | CSA, VDE, UL | - |
|

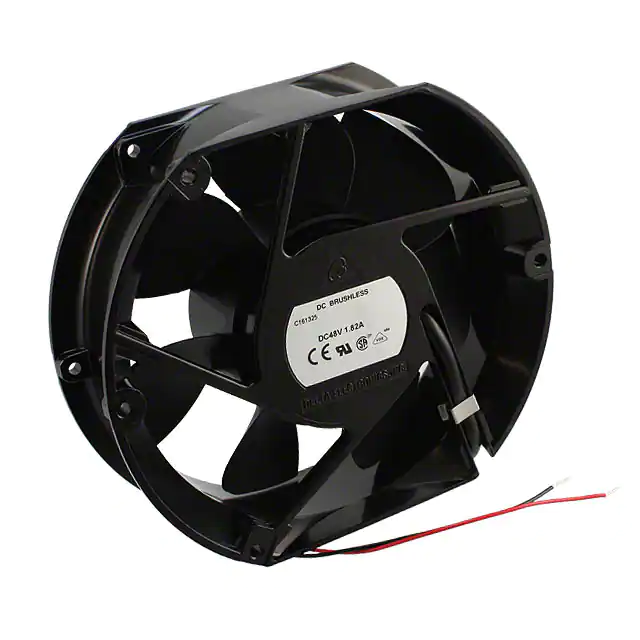

AHB1548GHGFAN AXIAL 172X50.8MM 48VDC WIRE |
0 |
|
Технический лист |
AHB | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 402.7 CFM (11.28m³/min) | 1.964 in H2O (489.2 Pa) | Ball | Tubeaxial | - | 68.5dB(A) | 72.96 W | 5200 RPM | 2 Wire Leads | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 1.8 lb (800.0 g) |
|
|
9WL0912H4002DC AXIAL FAN 92X25 12V |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | 1.8 W | - | 2 Wire Leads | - | - | - | - |
|
|
9WL0924H4002DC AXIAL FAN 92X25 24V |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | 1.68 W | - | 2 Wire Leads | - | - | - | - |
|
|
9WL0912M400292X25MM 12V; SPLASH & DUST PROOF |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0924M400292X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0924F400292X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0912H4001DC AXIAL FAN 92X25 12V TACH |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 1.8 W | - | 3 Wire Leads | - | - | - | - |
|
|
9WL0924H4001DC AXIAL FAN 92X25 24V TACH |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 1.68 W | - | 3 Wire Leads | - | - | - | - |
|
|
9WL0924M400192X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.097 in H2O (24.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 960 mW | 2400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WL0924M4D00192X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0912H4D00192X25MM 12V; SPLASH & DUST PROOF |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0912M400192X25MM 12V; SPLASH & DUST PROOF |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.097 in H2O (24.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 960 mW | 2400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WL0924F400192X25MM 24V; SPLASH & DUST PROOF |
0 |
|
Технический лист |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 43.1 CFM (1.21m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.2 W | 2800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
MSI1380H24B-BBRFAN IMP MTRZD 133X80.5MM 24VDC |
0 |
|
Технический лист |
MSI1380 | Box | Active | 24VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart | 66.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
|
MSI1380H48B-BBRFAN IMP MTRZD 133X80.5MM 48VDC |
0 |
|
Технический лист |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart | 66.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
