Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9W1TM48P4H01FAN IMP MTRZD 100X25MM 48VDC |
0 |
|
Технический лист |
San Ace 100W | Box | Active | 48VDC | Round - 100mm Dia | 25.00mm | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.56 W | 6400 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|

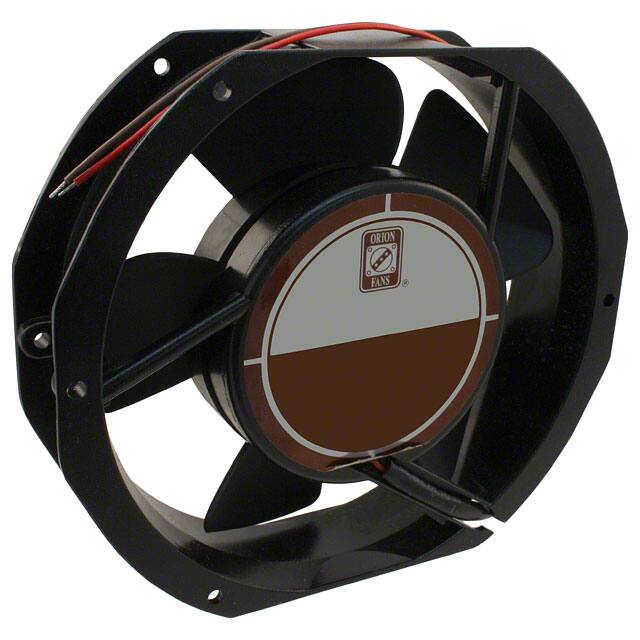

OD172SAPL-48HBFAN AXIAL 172X38.5MM 48VDC WIRE |
0 |
|
Технический лист |
OD172SAPL | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 225.0 CFM (6.30m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Auto Restart | 55.0dB | - | 4000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 1.7 lbs (760.0 g) |
|
|
109L5748H5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 13.44 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109L5748M5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 5.28 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109L1748H5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 13.44 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109L1748M5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB(A) | 5.28 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109L1748M501FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 5.28 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
OD172SAP-24HB04FAN AXIAL 172X50.8MM 24VDC WIRE |
0 |
|
Технический лист |
OD172S | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart, Thermistor | 52.0dB | - | 3300 RPM | 2 Wire Leads | - | -40 ~ 167°F (-40 ~ 75°C) | cURus, TUV | - |
|
|
9RA1424S1D001140X38MM 24VDC LOW NOISE LCKRTRS |
0 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424S1D0011140X38MM 24VDC LOW NOISE RBLS LC |
0 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412S1D001140X38MM 12VDC LOW NOISE LCKRTRS |
0 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412S1D0011140X38MM 12VDC LOW NOISE RBLS LC |
0 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OD172AP-12MBThermal Products |
0 |
|
- |
OD172AP | Bulk | Active | 12VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Auto Restart | 41.3dB(A) | 13.2 W | 2475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-24H3BThermal Products |
0 |
|
- |
OD172AP | Bulk | Active | 24VDC | Round - 172mm Dia | 51.00mm | 318.0 CFM (8.90m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | Auto Restart | 60.1dB(A) | 63.6 W | 4125 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-12H3BThermal Products |
0 |
|
- |
OD172AP | Bulk | Active | 12VDC | Round - 172mm Dia | 51.00mm | 318.0 CFM (8.90m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | Auto Restart | 60.1dB(A) | 64.8 W | 4125 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-48HHBThermal Products |
0 |
|
- |
OD172AP | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | 298.0 CFM (8.34m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Auto Restart | 57.4dB(A) | 49.4 W | 3900 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-48H3BThermal Products |
0 |
|
- |
OD172AP | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | 318.0 CFM (8.90m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | Auto Restart | 60.1dB(A) | 62.4 W | 4125 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-24HHBThermal Products |
0 |
|
- |
OD172AP | Bulk | Active | 24VDC | Round - 172mm Dia | 51.00mm | 298.0 CFM (8.34m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Auto Restart | 57.4dB(A) | 50.4 W | 3900 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-12HHBThermal Products |
0 |
|
- |
OD172AP | Bulk | Active | 12VDC | Round - 172mm Dia | 51.00mm | 298.0 CFM (8.34m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Auto Restart | 57.4dB(A) | 50.4 W | 3900 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-48HBThermal Products |
0 |
|
- |
OD172AP | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | 230.0 CFM (6.44m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 52.7dB(A) | 23.5 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
