Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E1748F502FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 9.12 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1748M502FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 5.28 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
3314U-348DC TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109E5748C502FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 57.6 W | 4800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5748K502FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 33.6 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1748C502FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 57.6 W | 4800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1748K502FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 33.6 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E5748H5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 13.44 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5748F501FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 9.12 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1748H5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 13.44 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1748F501FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 9.12 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1748M501FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 5.28 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1748K501FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 33.6 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
_Series.JPG)
|
6248N/12FAN AXL 171.5X50.8MM 48VDC TERM |
0 |
|
Технический лист |
6200N | Bulk | Obsolete | 48VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 17 W | 3400 RPM | 3 Terminals | - | 14 ~ 162°F (-10 ~ 72°C) | - | 1.8 lbs (816.5 g) |
|
|
5218NHHDC TUBEAXIAL FAN |
0 |
|
- |
5200N | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 200.3 CFM (5.61m³/min) | - | Ball | Tubeaxial | - | 58.0dB(A) | 18 W | 4900 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|

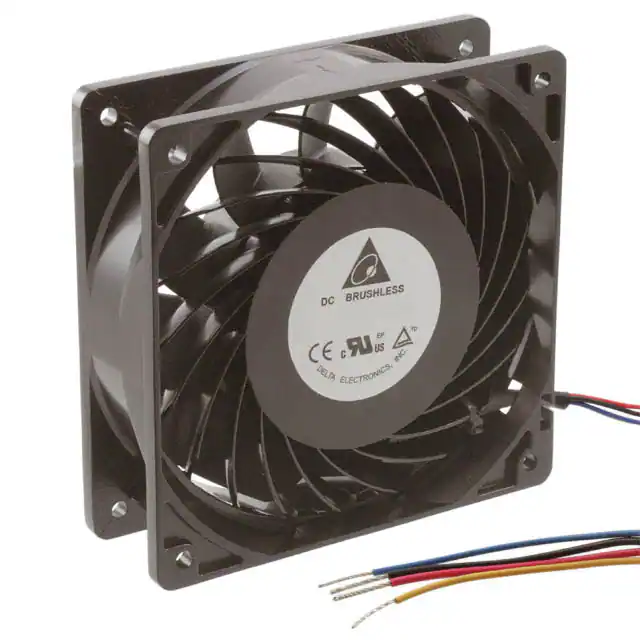

THA1248BEFAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Технический лист |
THA | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 318.2 CFM (8.91m³/min) | 3.091 in H2O (770.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 99.36 W | 7600 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 1.1 lbs (500.0 g) |
|
|
AFB1548VH-CD8GFAN AXIAL 172X25.4MM 48VDC WIRE |
0 |
|
Технический лист |
AFB | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 305.0 CFM (8.54m³/min) | 1.198 in H2O (298.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 31.2 W | 5000 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, VDE | 1.1 lbs (499.0 g) |
|
|
8452/2LDC TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 17.7 CFM (0.496m³/min) | 0.048 in H2O (11.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 14.0dB(A) | 410 mW | 1700 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
8452/2HHPDC TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 48.9 CFM (1.37m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 3.5 W | 4400 RPM | 2 Wire Leads | - | -4°F (-20°C) | - | - |
|
|
9GV1412H1002140X38MM 12V, GUIDE VANE, HIGH A |
0 |
|
Технический лист |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
