Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109BJ12MC2FAN BLOWER 126X32MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B127 | Box | Active | 12VDC | Square/Rounded - 126mm L x 127mm H | 32.00mm | 21.5 CFM (0.602m³/min) | 0.441 in H2O (110.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 3.48 W | 1900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.639 lb (289.85 g) |
|
|
109BJ12MD2FAN BLOWER 126X32MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B127 | Box | Active | 12VDC | Square/Rounded - 126mm L x 127mm H | 32.00mm | 21.5 CFM (0.602m³/min) | 0.441 in H2O (110.0 Pa) | Ball | Blower | Locked Rotor Sensor | 40.0dB(A) | 3.48 W | 1900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.639 lb (289.85 g) |
|
|
109BJ12HD2FAN BLOWER 126X32MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B127 | Box | Active | 12VDC | Square/Rounded - 126mm L x 127mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.826 in H2O (205.8 Pa) | Ball | Blower | Locked Rotor Sensor | 46.0dB(A) | 6.24 W | 2400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.639 lb (289.85 g) |
|
|
109BJ24HD2FAN BLOWER 126X32MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B127 | Box | Active | 24VDC | Square/Rounded - 126mm L x 127mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.826 in H2O (205.8 Pa) | Ball | Blower | Locked Rotor Sensor | 46.0dB(A) | 6.24 W | 2400 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.639 lb (289.85 g) |
|
|
109BJ24MD2FAN BLOWER 126X32MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B127 | Box | Active | 24VDC | Square/Rounded - 126mm L x 127mm H | 32.00mm | 21.5 CFM (0.602m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Blower | Locked Rotor Sensor | 40.0dB(A) | 3.6 W | 1900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.639 lb (289.85 g) |
|
|
109BJ24MC2FAN BLOWER 126X32MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B127 | Box | Active | 24VDC | Square/Rounded - 126mm L x 127mm H | 32.00mm | 21.5 CFM (0.602m³/min) | 0.441 in H2O (110.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 3.6 W | 1900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.639 lb (289.85 g) |
|
|
EFB1524VHG-R00FAN AXIAL 172X50.8MM 24VDC WIRE |
0 |
|
Технический лист |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4312/19FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
- |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | 0.313 in H2O (78.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, EAC, UL, VDE | - |
|
|
9HV1248G1002FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 293.0 CFM (8.20m³/min) | 5.220 in H2O (1300.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 75.0dB(A) | 96 W | 11500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.1 lbs (499.0 g) |
|
|
9CRA0812G8001FAN AXIAL DUAL 80X80MM 12VDC |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 76.0dB(A) | 63.6 W | 12000 Front, 11300 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.993 lb (450.42 g) |
|
|
4318/2RDC TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9HV1248G1001FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 293.0 CFM (8.20m³/min) | 5.220 in H2O (1300.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 75.0dB(A) | 96 W | 11500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.1 lbs (499.0 g) |
|
|
9HV1248G1D001120X38MM 48V, HIGH PERFORMANCE G |
0 |
|
Технический лист |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9WPA0924B400192X25MM 24VDC TACH |
0 |
|
Технический лист |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 31.8 CFM (0.890m³/min) | 0.069 in H2O (17.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.0dB(A) | 0.96 W | 2100 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
5118NLFAN AXIAL 135X38MM 48VDC WIRE |
0 |
|
Технический лист |
5100N | Box | Obsolete | 48VDC | Square - 135mm L x 135mm H | 38.00mm | 71.8 CFM (2.01m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 2.6 W | 1400 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE | 1.4 lbs (635.0 g) |
|

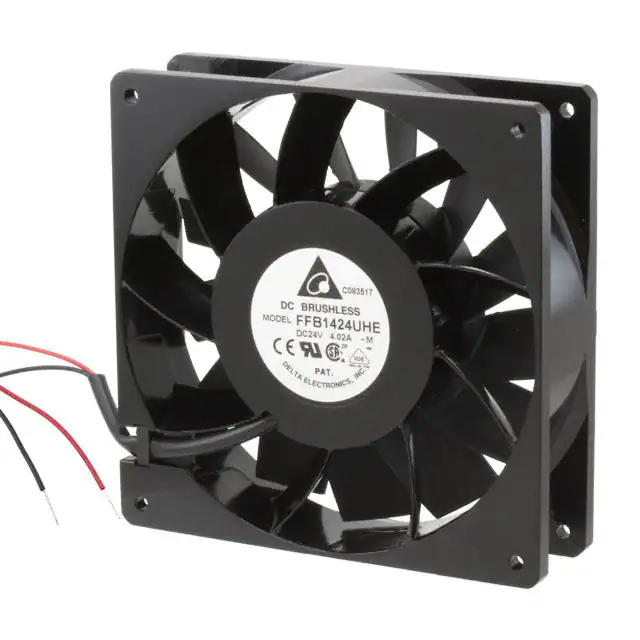

FFB1424UHE-MFAN AXIAL 139.7X38MM 24VDC WIRE |
0 |
|
Технический лист |
FFB | Box | Obsolete | 24VDC | Square - 139.7mm L x 139.7mm H | 38.00mm | 367.6 CFM (10.29m³/min) | 1.644 in H2O (409.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 74.0dB(A) | 80.4 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.4 lbs (650.0 g) |
|
|
9CRE0612P0G001FAN AXIAL DUAL 60X76MM 12VDC |
0 |
|
Технический лист |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 70.6 CFM (1.98m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 27.6 W | 16500 Front, 13000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.684 lb (310.26 g) |
|
|
PFE0514B1-000U-H9948VDC FAN 140X51MM PWM |
0 |
|
Технический лист |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 250.3 CFM (7.01m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 61.4dB(A) | 22.56 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PFE0514B1-000U-G9948VDC FAN 140X51MM ALARM |
0 |
|
Технический лист |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 250.3 CFM (7.01m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.4dB(A) | 22.56 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

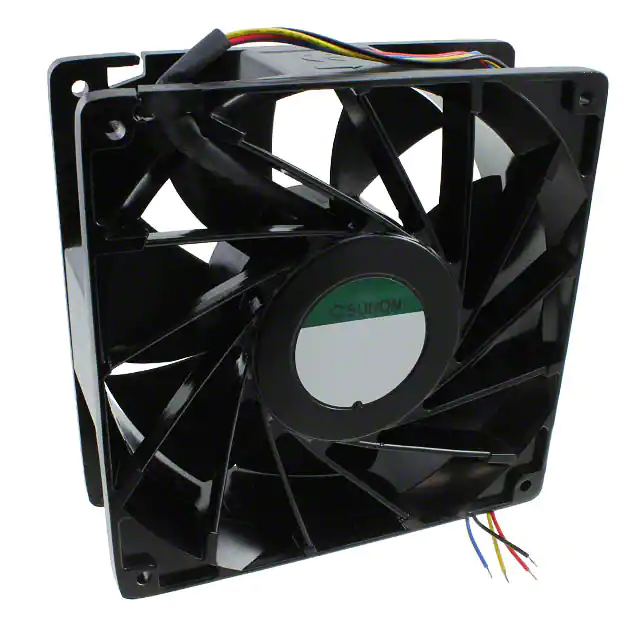

PFE0514B1-000U-S99FAN AXIAL 140X50.8MM 48VDC WIRE |
0 |
|
Технический лист |
PFE | Box | Active | 48VDC | Square - 140mm L x 140mm H | 50.80mm | 250.3 CFM (7.01m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.4dB(A) | 22.56 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.4 lbs (635.0 g) |
