Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL81805EVAL3ZEVAL BOARD FOR ISL81805 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5V, 12V | 20A, 20A | -36V ~ -60V | Boost | 200kHz | Board(s) | ISL81805 |
|
|
I6A10A-001-EVK-S1PXEVAL BOARD FOR I6A4W010A033V001R |
0 |
|
Технический лист |
i6A4W | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 250 W | 3.3V ~ 40V | 10A | 9V ~ 53V | Buck | 400kHz | Board(s) | i6A4W010A033V-001-R |
|
|
ISL81806EVAL1ZEVAL BOARD FOR ISL81806 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 80V | Buck | 500kHz | Board(s) | ISL81806 |
|

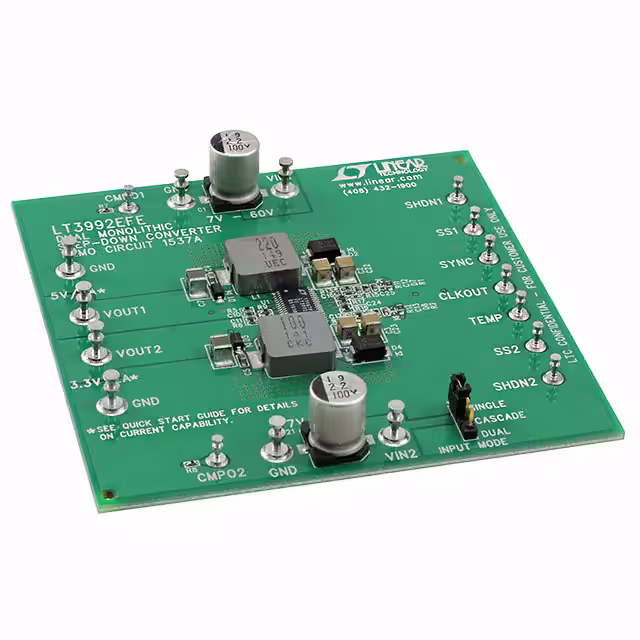

DC1537AEVAL BOARD FOR LT3992 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 7V ~ 60V | Buck | 300kHz | Board(s) | LT3992 |
|
EVLCMB1-AIO210WEVAL BOARD FOR STCMB1 |
0 |
|
Технический лист |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 210 W | 12V | 17.5A | 90 ~ 264 VAC | - | - | Board(s) | STCMB1 |
|

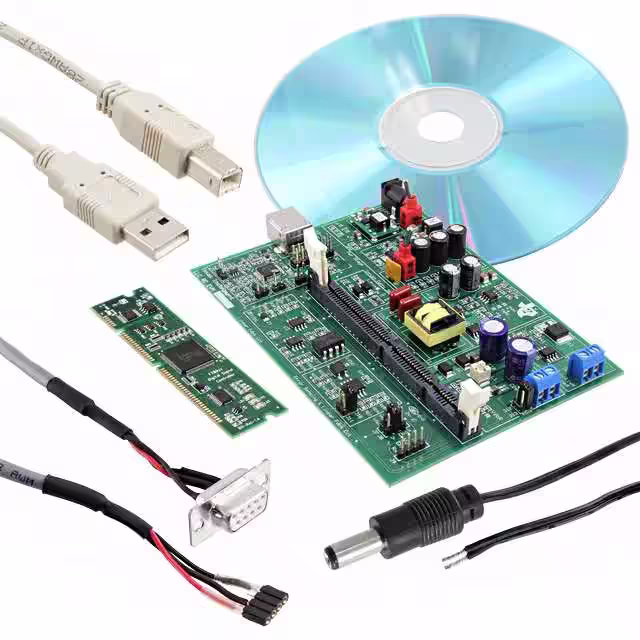

TMDSRESDCKITEVAL BOARD FOR TMDSCNCD2808 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 15 W | 12V | - | 16V ~ 22V | Resonant | - | Board(s) | TMDSCNCD2808, TMDSCNCD28335, TMDXCNCD28027 |
|

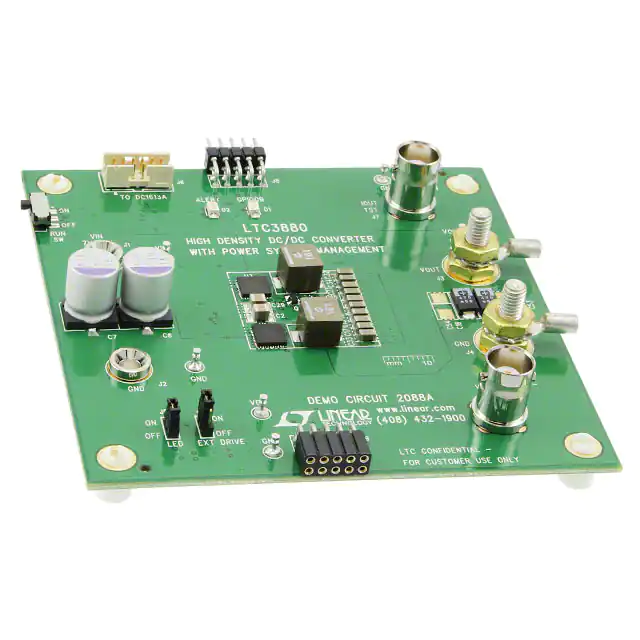

DC2088AEVAL BOARD FOR LTC3880 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3880 |
|

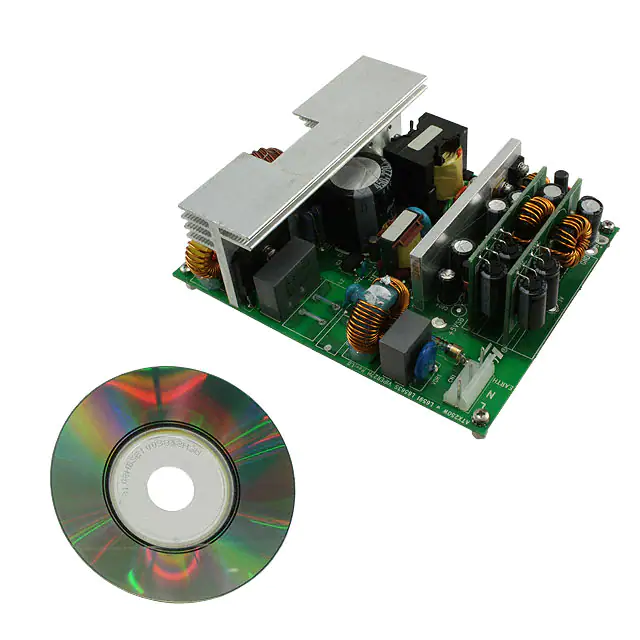

STEVAL-ISA145V1EVAL BOARD FOR L6563S L6591 |
0 |
|
Технический лист |
VIPer™ plus | Box | Obsolete | Power Supply, ATX | 4 Isolated Outputs | 250 W | 3.3V, 5V, 5V ,12V | 13.5A, 12A, 8A, 2A | 88 ~ 264 VAC | Flyback | 80kHz | Board(s) | L6563S, L6591, L6727, VIPer27H |
|
|
ISL91211BIK-REFZEVAL BOARD FOR ISL91211B |
0 |
|
Технический лист |
- | Box | Obsolete | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | - | - | Buck | - | Board(s) | ISL91211B |
|
|
ISL62883CEVAL2ZEVAL BOARD FOR ISL62883C |
0 |
|
Технический лист |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 75A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | ISL62883C |
|
|
ISL6269AEVAL2ZEVAL BOARD FOR ISL6269A ISL6269B |
0 |
|
Технический лист |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V or 1.2V | 5A | 5V ~ 25V | Buck | 300kHz or 600kHz | Board(s) | ISL6269A, ISL6269B |
|
TMDSHVPFCKITEVAL BOARD FOR TMS320F28027 |
0 |
|
Технический лист |
C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 300 W | 390V | - | 85 ~ 265 VAC | - | - | Board(s) | TMS320F28027 |
|

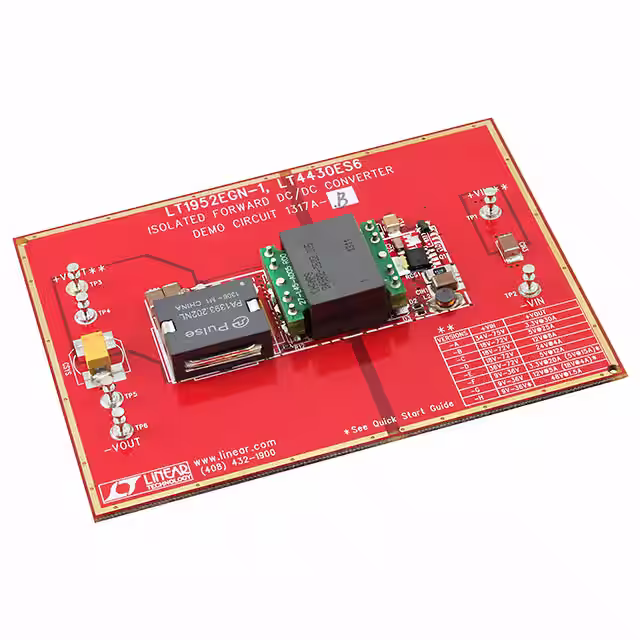

DC1317A-BEVAL BOARD FOR LT19521 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 25A | 18V ~ 72V | Forward Converter | 200kHz | Board(s) | LT1952-1 |
|
|
DC1317A-GEVAL BOARD FOR LT19521 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 12V | 8A | 9V ~ 36V | Buck-Boost | 200kHz | Board(s) | LT1952-1 |
|

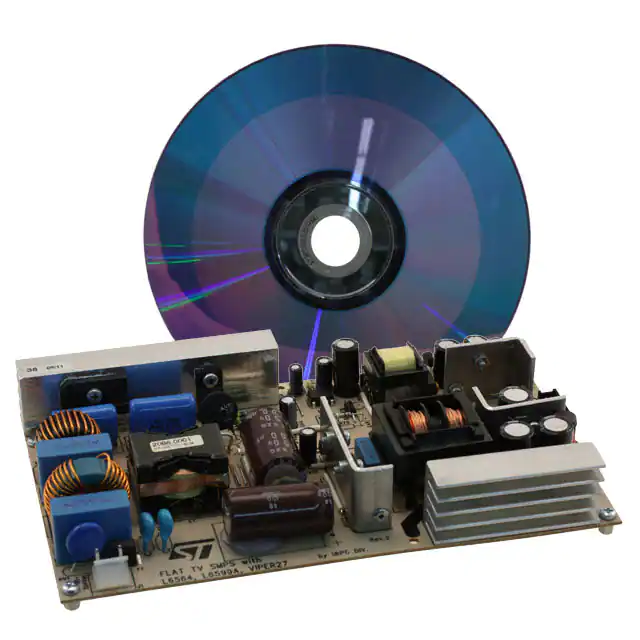

EVL170W-FTVEVAL BOARD FOR VIPER27LN L6564 |
1 |
|
Технический лист |
VIPER™ | Bulk | Active | Power Supply with PFC | 2 Isolated Outputs | 170 W | 5V, 12V, 24V | 6A, 2A, 2A | 90 ~ 264 VAC | Flyback | 130kHz | Board(s) | Viper27LN, L6564, L6599A |
|

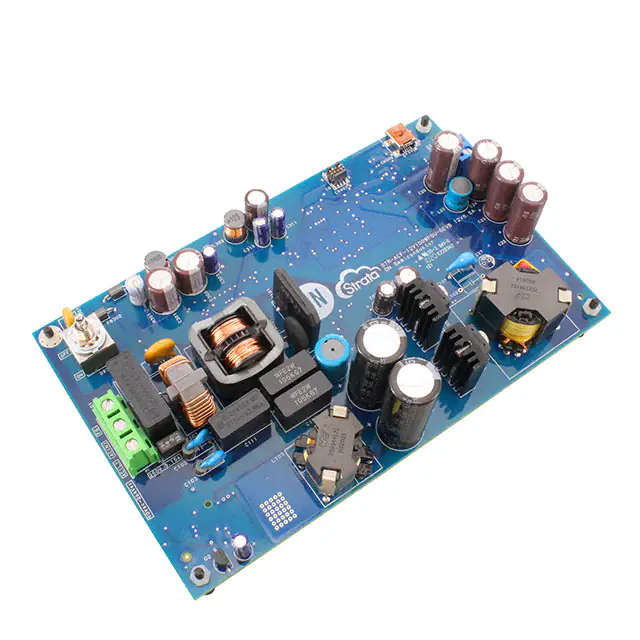

STR-ACF-12V100WPSU-GEVBEVAL BOARD FOR NCP1568 |
0 |
|
Технический лист |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 100 W | 12V | 8.5A | 90 ~ 264 VAC | Flyback | - | Board(s) | NCP1568 |
|
NCP1337ADAPGEVBEVAL BOARD FOR NCP1337 |
0 |
|
Технический лист |
GreenPoint™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 60 W | 12V | 5A | 90 ~ 265 VAC | Flyback | 130kHz | Board(s) | NCP1337 |
|
|
ISL62883EVAL2ZEVAL BOARD FOR ISL62883 |
0 |
|
Технический лист |
Robust Ripple Regulator™ (R3) | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 1.5V | 75A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | ISL62883 |
|

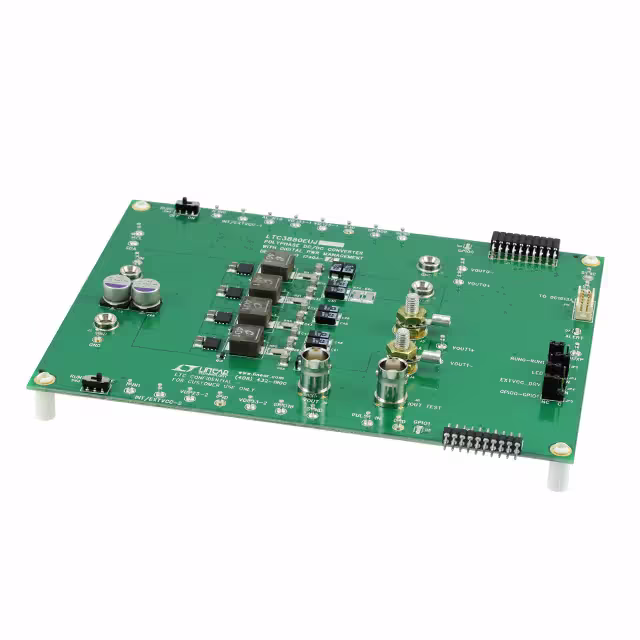

DC1740A-AEVAL BOARD FOR LTC3880 |
0 |
|
Технический лист |
PolyPhase® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 80A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3880 |
|

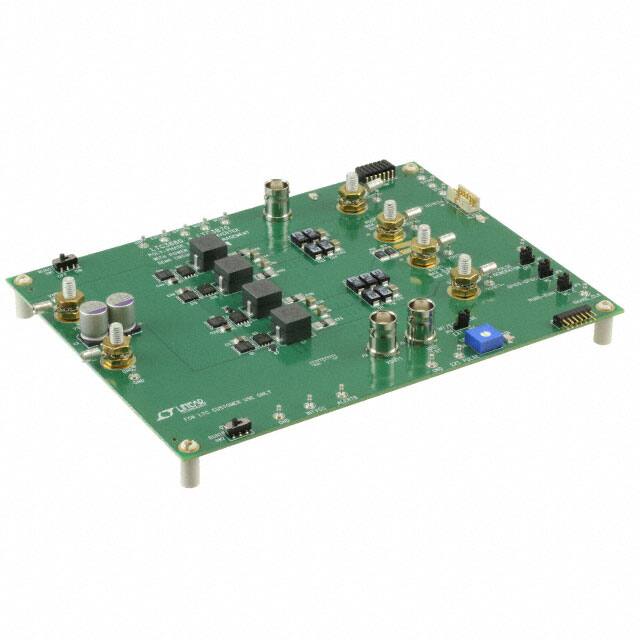

DC2089A-AEVAL BOARD FOR LTC3870 LTC3880 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 80A | 7V ~ 14V | Buck | 350kHz | Board(s) | LTC3870, LTC3880 |
