Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL_DJT090A0X43-SRPZ (4 MODULE)EVAL BOARD FOR DJT090 |
0 |
|
- |
DLynxII™ | Bulk | Active | DC/DC Converter | 4 Non-Isolated Outputs | 20 W | 0.5V ~ 2V | 90A | 7V ~ 14.4V | - | 100kHz | Board(s) | DJT090 |
|
|
ISL6271AEVAL1EVAL BOARD FOR ISL6271A |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 0.85V ~ 1.6V, 1.1V, 1.3V | 800mA, 50mA, 40mA | 2.76V ~ 5.5V | Buck | 1.2MHz | Board(s), Cable(s) | ISL6271A |
|
|
MAX77646EVKIT#EVAL BOARD FOR MAX77646 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down with LDO | 4 Non-Isolated Outputs | - | - | - | 1.8V ~ 3.3V | Buck-Boost | - | Board(s) | MAX77646 |
|
|
MAX16491EVKIT#EVAL BOARD FOR MAX16491 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 9A | 4.5V ~ 16V | Buck | 860kHz | Board(s) | MAX16491 |
|

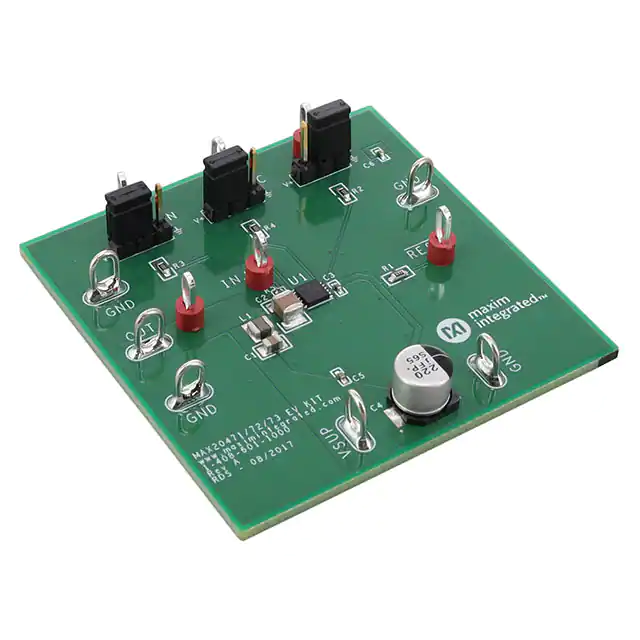

MAX20471EVKIT#EVAL BOARD FOR MAX20471 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.8V, 5.25V | 500mA | 3V ~ 4V | Boost | 2.2MHz | Board(s) | MAX20471 |
|

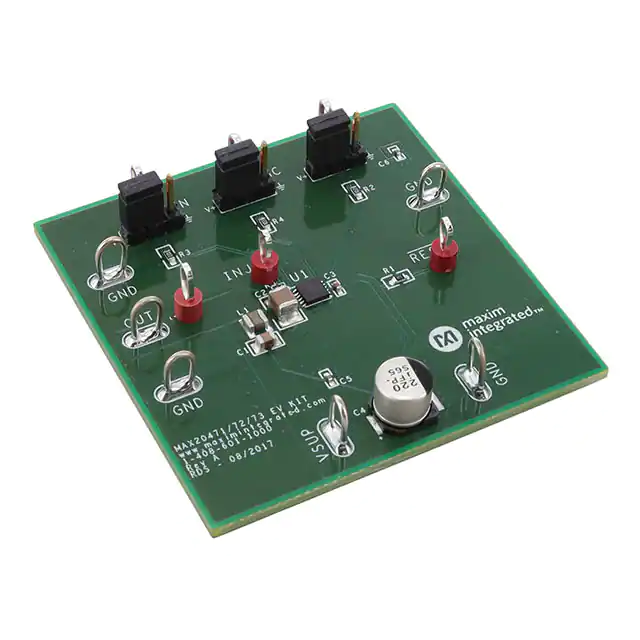

MAX20472EVKIT#EVAL BOARD FOR MAX20472 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.8V, 5.25V | 500mA | 3V ~ 4V | Boost | 2.2MHz | Board(s) | MAX20472 |
|
|
MAX20419EVKIT#EVAL BOARD FOR MAX20419 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.25V, 2.3V, 5V | 2A, 2A, 750mA | 3V ~ 5.5V | Boost, Buck | 2.2MHz | Board(s) | MAX20419 |
|

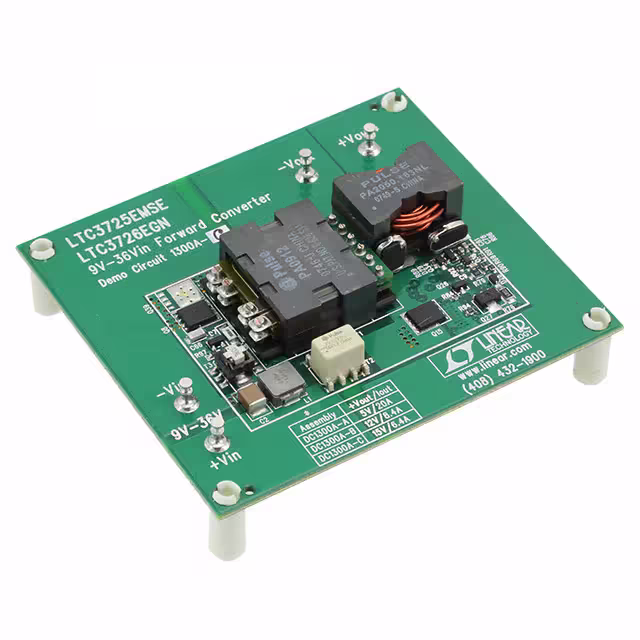

DC1300A-CEVAL BOARD FOR LTC3725 LTC3726 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | 6.7A | 9V ~ 36V | Forward Converter | 250kHz | Board(s) | LTC3725, LTC3726 |
|

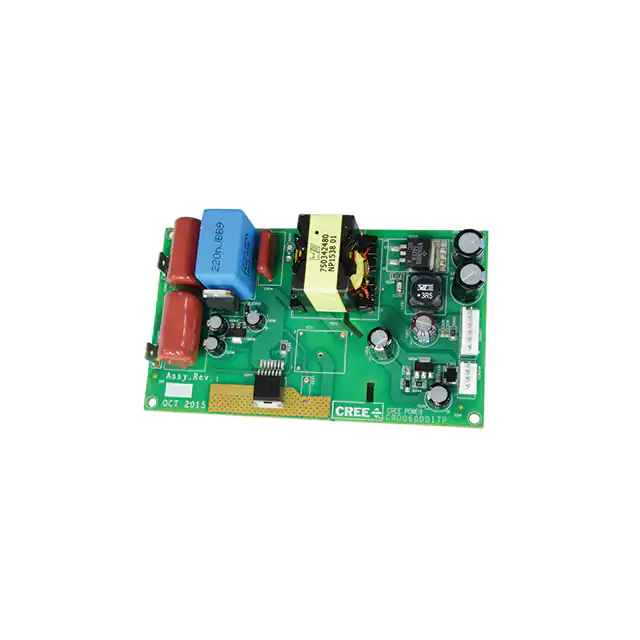

CRD-060DD17P-2EVAL BOARD FOR C2M1000170D |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 2 Isolated Outputs | 60 W | 12V, 12V | 4A, 100mA | 300V ~ 1000V | Flyback | - | Board(s) | C2M1000170D |
|
|
MAX16993EVKIT#EVAL BOARD FOR MAX16993 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V | 3A, 3A, 3A | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | MAX16993 |
|
|
MAX20008EEVKIT#EVAL BOARD FOR MAX20008E |
0 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 3.5V ~ 36V | Buck | 400kHz | Board(s) | MAX20008E |
|

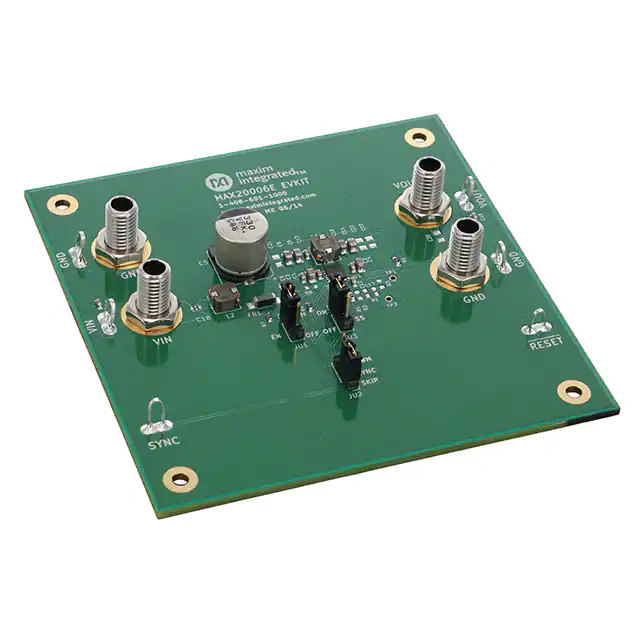

MAX20006EEVKIT#EVAL BOARD FOR MAX20006E |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3.5V ~ 36V | Buck | 2.2MHz | Board(s) | MAX20006E |
|
|
DC3219AEVAL BOARD FOR LT8625S |
0 |
|
Технический лист |
Silent Switcher®3 | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 8A | 2.7V ~ 18V | Buck | - | Board(s) | LT8625S |
|
|
DC1174A-BEVAL BOARD FOR LTC3725 LTC3726 |
0 |
|
Технический лист |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 50 W | 12V | 4.2A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|
|
DC1174A-AEVAL BOARD FOR LTC3725 LTC3726 |
0 |
|
Технический лист |
µModule® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 50 W | 5V | 10A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|
|
MAX15258DL2EVKIT#EVAL BOARD FOR MAX15258 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | 48V | - | -36V ~ -60V | Boost | - | Board(s) | MAX15258 |
|

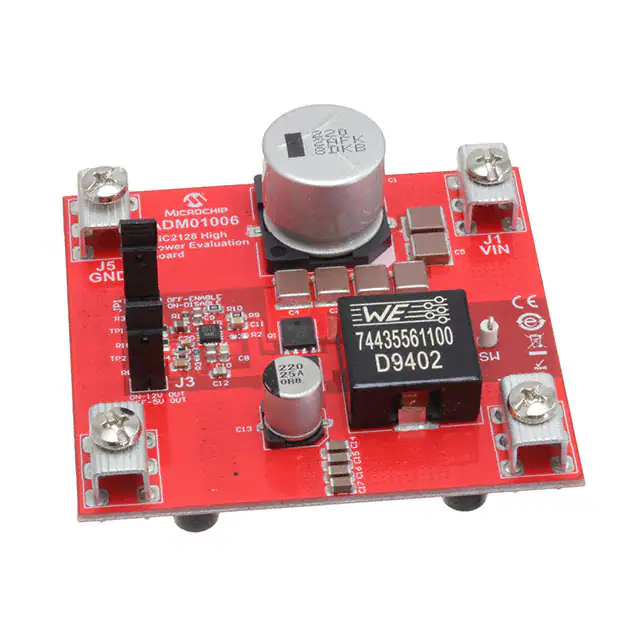

ADM01006MIC2128 HIGH POWER EVAL BOARD |
0 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | - | - | - | Board(s) | - |
|

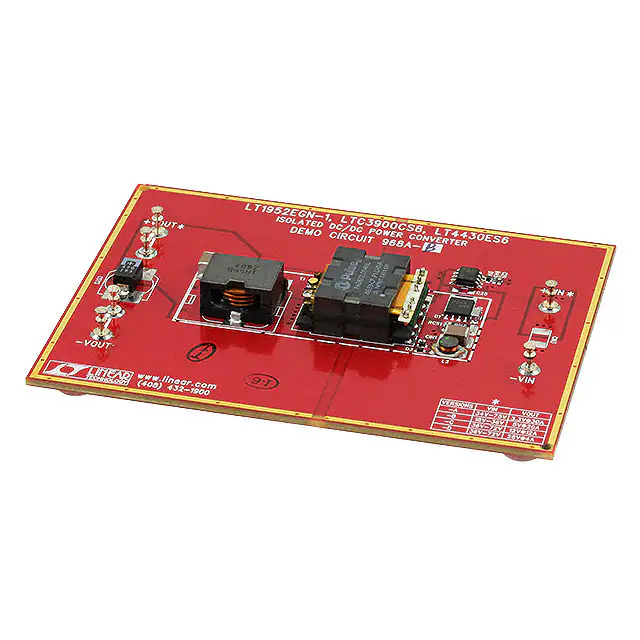

DC968A-BEVAL BOARD FOR LT19521 LT4430 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 20A | 18V ~ 36V | Buck | 300kHz | Board(s) | LT1952-1, LT4430, LTC3900 |
|

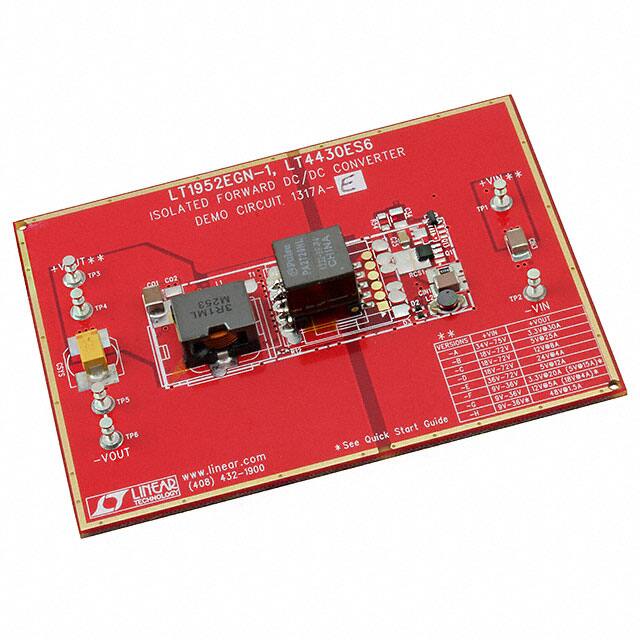

DC1317A-EEVAL BOARD FOR LT19521 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 12A | 36V ~ 72V | Forward Converter | 260kHz | Board(s) | LT1952-1 |
|

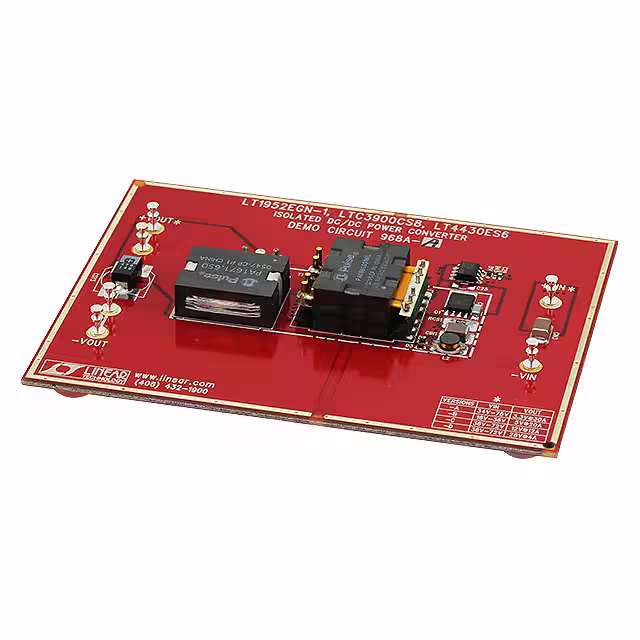

DC968A-AEVAL BOARD FOR LT19521 LT4430 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 75V | Buck | 300kHz | Board(s) | LT1952-1, LT4430, LTC3900 |
