DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5161390-1SWITCH STANDARD DIP SPST |
4,401 |
|
Технический лист |
- | Box | Active | SPST | 1 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
DS03-254-03BESWITCH SLIDE DIP SPST 0.025A 24V |
560 |
|
Технический лист |
DS03-254 | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

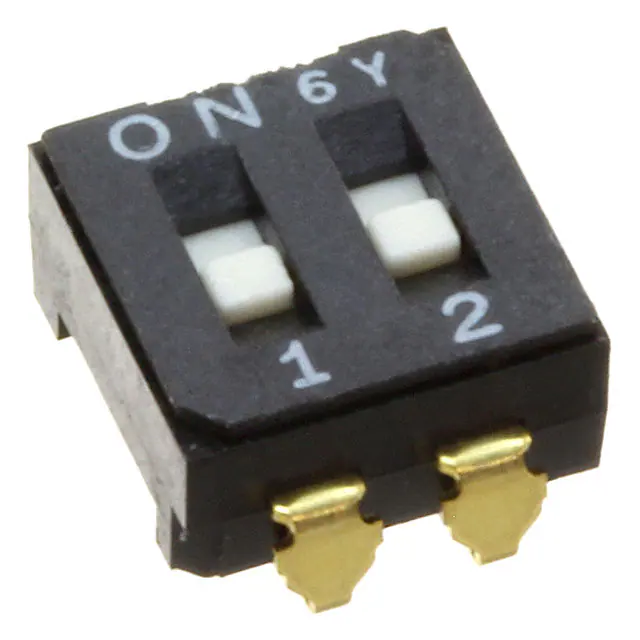

CFS-0201MASWITCH SLIDE DIP SPST 0.1A 6V |
242 |
|
Технический лист |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDA02H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
2,023 |
|
Технический лист |
SDA | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01C-254-S-10BESWITCH SLIDE DIP SPST 0.025A 24V |
989 |
|
Технический лист |
DS01-254 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

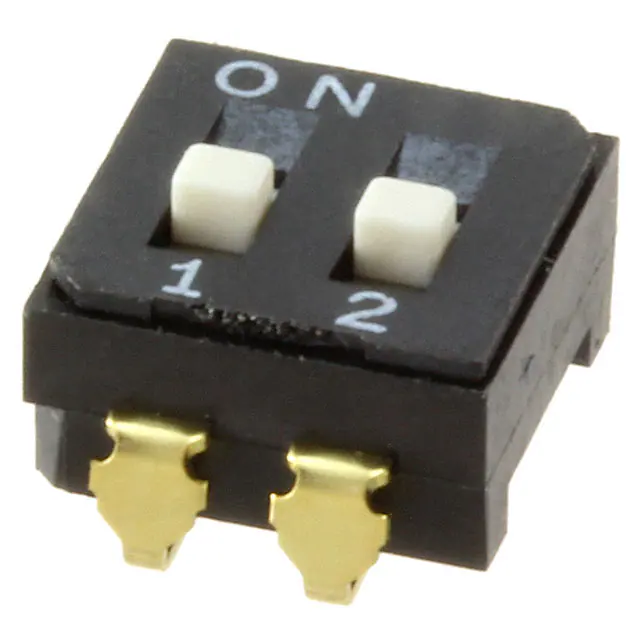

CFS-0202TASWITCH SLIDE DIP SPST 0.1A 6V |
1,635 |
|
Технический лист |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-1L-06BKSWITCH SLIDE DIP SPST 0.025A 24V |
1,131 |
|
Технический лист |
DS04-254 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

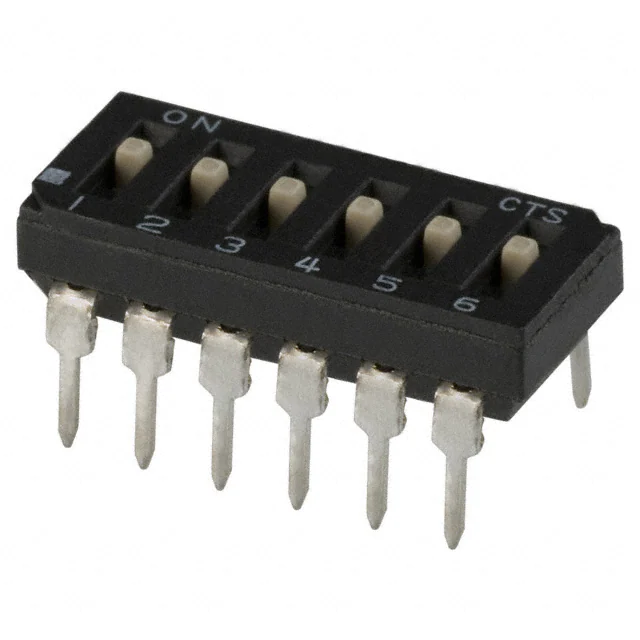

209-6MSSWITCH SLIDE DIP SPST 0.1A 20V |
349 |
|
Технический лист |
209 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
418127270902SWITCH SLIDE DIP SPST 0.025A 24V |
190 |
|
Технический лист |
WS-DITV | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT04RHSWITCH SLIDE DIP SPST 0.025A 24V |
469 |
|
Технический лист |
KT | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
210-10MSSWITCH SLIDE DIP SPST 0.1A 20V |
1,156 |
|
Технический лист |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
208-8LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
907 |
|
Технический лист |
208 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

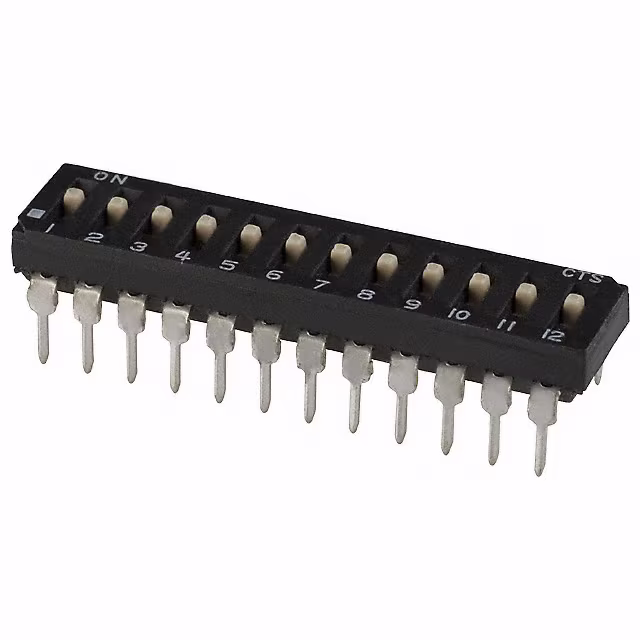

209-12LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
6,978 |
|
Технический лист |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
A6TN-2104SWITCH SLIDE DIP SPST 0.025A 24V |
1,888 |
|
Технический лист |
A6TN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
KP02RSWITCH PIANO DIP SPST 0.025A 24V |
257 |
|
Технический лист |
KP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KT04RTHSWITCH SLIDE DIP SPST 0.025A 24V |
572 |
|
Технический лист |
KT | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
209-6LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
825 |
|
Технический лист |
209 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
KG12ESWITCH SLIDE DIP SPST 0.025A 24V |
829 |
|
Технический лист |
KG | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ01EXTSWITCH SLIDE DIP SPST 0.025A 24V |
182 |
|
Технический лист |
KJ | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0301TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,280 |
|
Технический лист |
CFS | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
