DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90HBW08PRTSWITCH SLIDE DIP SPST 0.025A 24V |
4,187 |
|
Технический лист |
90HB | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
FR02KC16P-RSW ROTARY DIP HEX COMP 0.1A 5V |
382 |
|
Технический лист |
FR02 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR02FR10P-RSWITCH ROTARY DIP BCD 0.1A 5V |
828 |
|
Технический лист |
FR02 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
A6RV-162RFSWITCH ROTARY DIP HEX 0.025A 24V |
779 |
|
Технический лист |
A6RV | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
90HBJ04PTSWITCH SLIDE DIP SPST 0.025A 24V |
1,891 |
|
Технический лист |
90HB | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78J04TSWITCH SLIDE DIP SPDT 0.15A 30V |
2,827 |
|
Технический лист |
78 | Tube | Active | SPDT | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

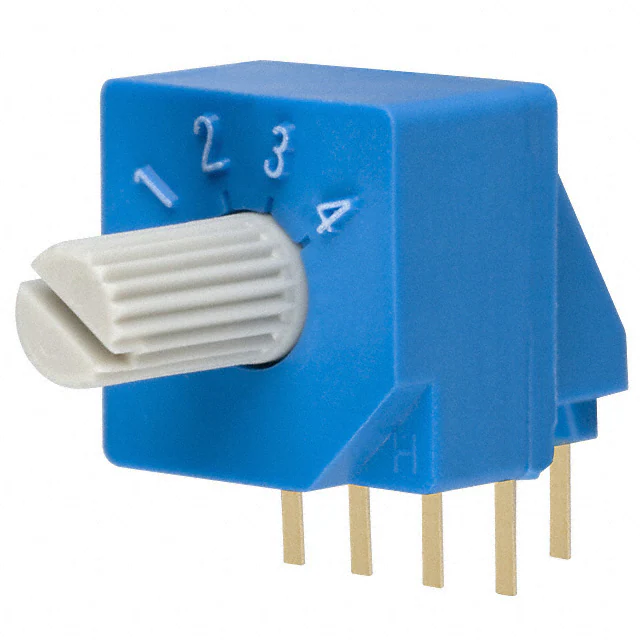

S-2151SWITCH ROTARY DIP SP4T 0.1A 5V |
191 |
|
Технический лист |
S-2050 | Bulk | Active | SP4T | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
P65SMT703SWITCH ROTARY DIP HEX 0.2A 50V |
2,936 |
|
Технический лист |
P65 | Tube | Active | Hexadecimal | 16 | 200mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
94HAB10WRTSWITCH ROTARY DIP BCD 0.1A 50V |
6,551 |
|
Технический лист |
94H | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|

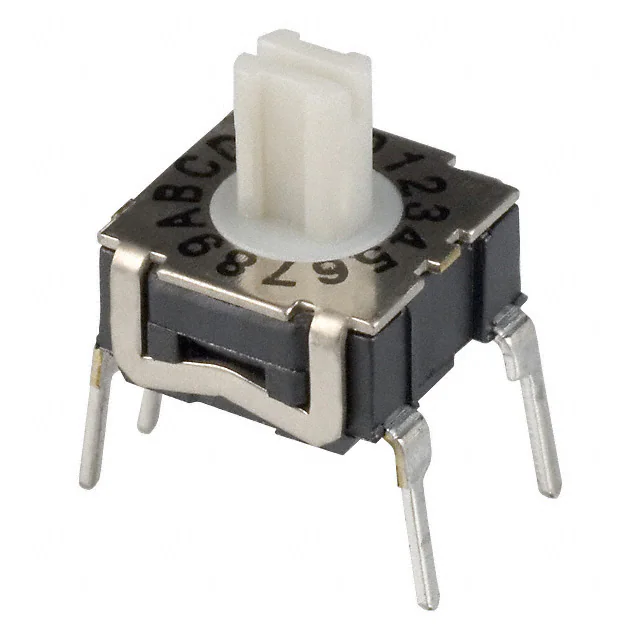

RTE1602N44SWITCH ROTARY DIP HEX 0.1A 30V |
940 |
|
Технический лист |
RTE | Tube | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

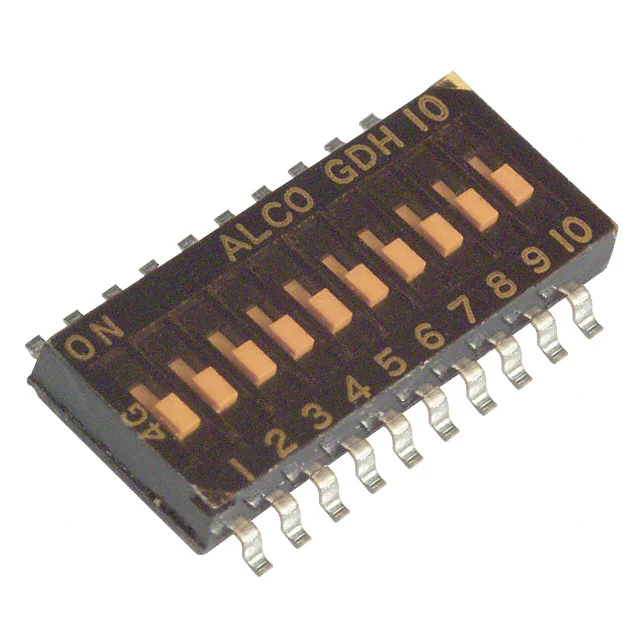

1-1571983-3SWITCH SLIDE DIP SPST 0.025A 24V |
19,656 |
|
Технический лист |
GDH | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
78J02TSWITCH SLIDE DIP SPDT 0.15A 30V |
235 |
|
Технический лист |
78 | Tube | Active | SPDT | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90HBW02PRTSWITCH SLIDE DIP SPST 0.025A 24V |
7,836 |
|
Технический лист |
90HB | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
97R08STSWITCH SLIDE DIP SPST 0.025A 24V |
4,226 |
|
Технический лист |
97 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
94HAB08WTSWITCH ROTARY DIP OCTAL 0.1A 50V |
1,132 |
|
Технический лист |
94H | Tube | Active | Octal | 8 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
94HAB08TSWITCH ROTARY DIP OCTAL 0.1A 50V |
1,545 |
|
Технический лист |
94H | Tube | Active | Octal | 8 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
A6R-161RFSWITCH ROTARY DIP HEX 0.025A 24V |
240 |
|
Технический лист |
A6R | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

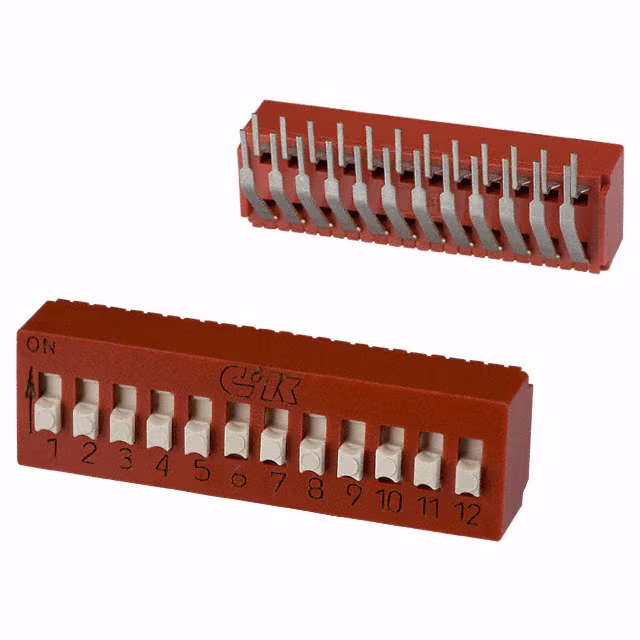

BD12AVSWITCH SLIDE DIP SPST 0.1A 5V |
218 |
|
Технический лист |
BD | Tube | Active | SPST | 12 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
90HBW06PRTSWITCH SLIDE DIP SPST 0.025A 24V |
5,920 |
|
Технический лист |
90HB | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

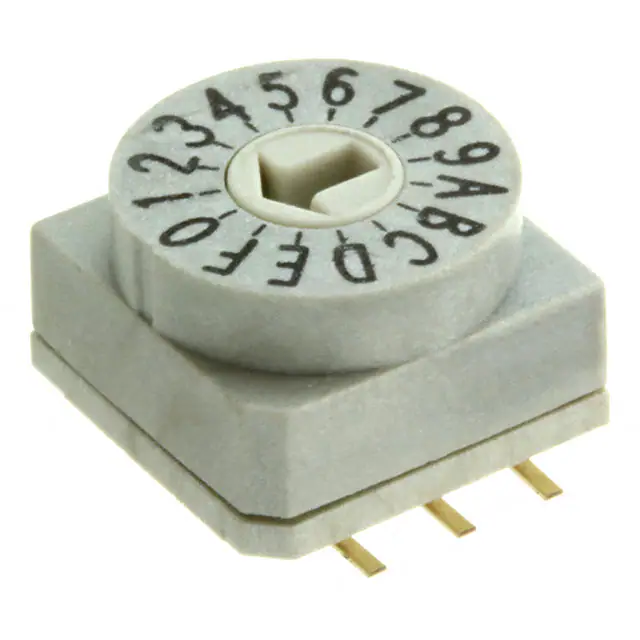

428521320816SWITCH ROTARY DIP HEX 0.15A 24V |
1,743 |
|
Технический лист |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
