DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010815DC2-70-1007 |
16 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 1 | 28V | - | - | - | 2.5A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
1011523DC1-80-1002 |
16 |
|
Технический лист |
DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 1 | 12V | - | - | - | 6.7A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010792DC4-70-1006 |
15 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 1 | 24V | - | - | - | 2.9A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010794DC4-70-1008 |
11 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 2 | 48V | - | - | - | 1.5A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010812DC2-70-1004 |
9 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 1 | 12V | - | - | - | 5.8A | 69W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1011524DC1-80-1003 |
5 |
|
Технический лист |
DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 1 | 15V | - | - | - | 5.3A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010789DC4-70-1003 |
5 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 1 | 5V | - | - | - | 14A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
VTB12SC110-ODC-DC ENCLOSED CHASSIS TYPE IN |
10 |
|
Технический лист |
VTB-SC-O (50W) | Bulk | Active | Enclosed | 85V | 160V | 1 | 12V | - | - | - | 4.2A | 50W | - | ITE (Commercial) | 75% | -10°C ~ 50°C | Chassis Mount | 6.30" L x 3.82" W x 1.46" H (160.0mm x 97.0mm x 37.0mm) | - | - |
|

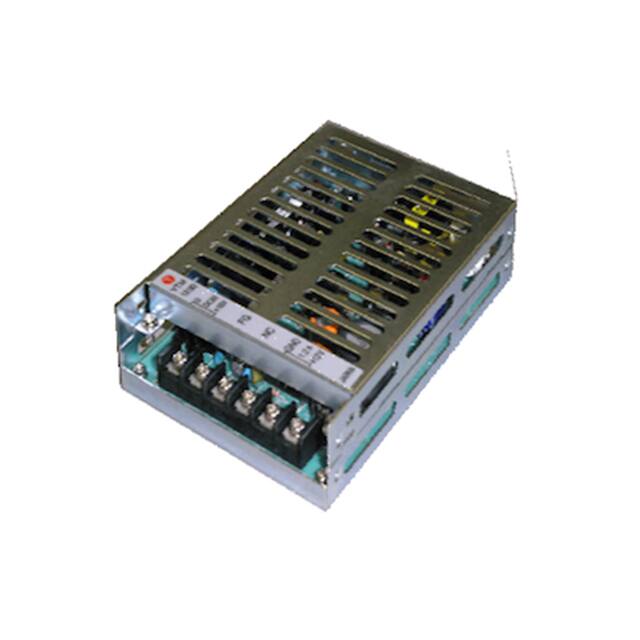

VTB24SC110-ODC/DC CONVERTER 24V 60W |
10 |
|
Технический лист |
VTB-SC-O (50W) | Bulk | Active | Enclosed | 85V | 160V | 1 | 24V | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 80% | -10°C ~ 50°C | Chassis Mount | 6.30" L x 3.82" W x 1.46" H (160.0mm x 97.0mm x 37.0mm) | - | - |
|
VTB24SC48-ODC-DC ENCLOSED CHASSIS TYPE IN |
10 |
|
Технический лист |
VTB-SC-O (50W) | Bulk | Active | Enclosed | 38V | 63V | 1 | 24V | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 80% | -10°C ~ 50°C | Chassis Mount | 6.30" L x 3.82" W x 1.46" H (160.0mm x 97.0mm x 37.0mm) | - | - |
|
VTB05SC110-ODC-DC ENCLOSED CHASSIS TYPE IN |
5 |
|
Технический лист |
VTB-SC-O (50W) | Bulk | Active | Enclosed | 85V | 160V | 1 | 5V | - | - | - | 10A | 50W | - | ITE (Commercial) | 70% | -10°C ~ 50°C | Chassis Mount | 6.30" L x 3.82" W x 1.46" H (160.0mm x 97.0mm x 37.0mm) | - | - |
|
VTB24SC24-ODC/DC CONVERTER 24V 60W |
3 |
|
Технический лист |
VTB-SC-O (50W) | Bulk | Active | Enclosed | 19V | 36V | 1 | 24V | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 80% | -10°C ~ 50°C | Chassis Mount | 6.30" L x 3.82" W x 1.46" H (160.0mm x 97.0mm x 37.0mm) | - | - |
|
|
VTB12SC24-ODC-DC ENCLOSED CHASSIS TYPE IN |
2 |
|
Технический лист |
VTB-SC-O (50W) | Bulk | Active | Enclosed | 19V | 36V | 1 | 12V | - | - | - | 4.2A | 50W | - | ITE (Commercial) | 75% | -10°C ~ 50°C | Chassis Mount | 6.30" L x 3.82" W x 1.46" H (160.0mm x 97.0mm x 37.0mm) | - | - |
|
|
1010805DC2-70-2002 |
22 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 2 | 5V | 12V | - | - | 6A, 4A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010952DC2-70-2007 |
13 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 2 | 5V | 29V | - | - | 6A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010804DC2-70-2001 |
12 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 2 | 3.3V | 5V | - | - | 6A, 5A | 44W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010784DC4-70-2003 |
12 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 2 | 5V | 24V | - | - | 6A, 2A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010807DC2-70-2004 |
10 |
|
Технический лист |
DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 2 | 12V | -12V | - | - | 3A, 3A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010782DC4-70-2001 |
9 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 2 | 3.3V | 5V | - | - | 6A, 5A | 44W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010785DC4-70-2004 |
6 |
|
Технический лист |
DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 2 | 12V | -12V | - | - | 3A, 3A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
