DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010627DC2-110-2003 |
2 |
|
Технический лист |
DC2-110 (110W) | Box | Active | Open Frame | 18V | 36V | 2 | 5V | 24V | - | - | 10A, 3A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
AHV12VN500V5MAWHV 12V TO 500V 2.5W DC-DC CONVE |
2 |
|
Технический лист |
- | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ -500V | - | - | - | 5mA | 2.5W | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|
AHV12VN3KV1MAWHigh Voltage - Non-Isolated |
7 |
|
Технический лист |
- | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 3000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|

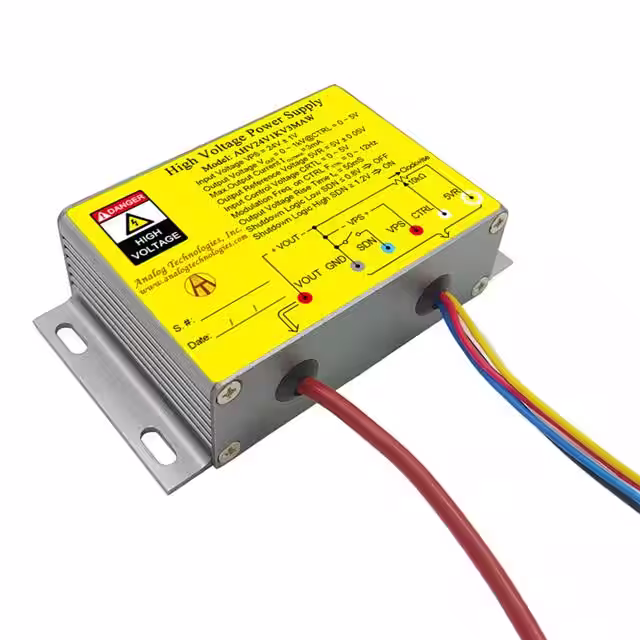

AHV24V1KV3MAWHigh Voltage - Non-Isolated |
2 |
|
Технический лист |
* | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B70SR24125CCDC/DC CONVERTER 24V 300W |
19 |
|
Технический лист |
B70SR (300W) | Bag | Obsolete | Enclosed | 36V | 106V | 1 | 24V | - | - | - | 12.5A | 300W | 2.25 kV | ITE (Commercial) | 92.5% | -40°C ~ 75°C | Chassis Mount | 7.48" L x 2.99" W x 1.73" H (190.0mm x 75.9mm x 43.9mm) | CE | - |
|
PYB30-Q48-D5-UDC/DC CONVERTER +/-5V 30W |
0 |
|
Технический лист |
PYB30-U (30W) | Bulk | Obsolete | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 3A, 3A | 30W | - | - | 86% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.16" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | EN, IEC | - |
|
|
PYB30-Q48-D12-UDC/DC CONVERTER +/-12V 30W |
0 |
|
Технический лист |
PYB30-U (30W) | Bulk | Obsolete | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | - | - | 87% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.16" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | EN, IEC | - |
|

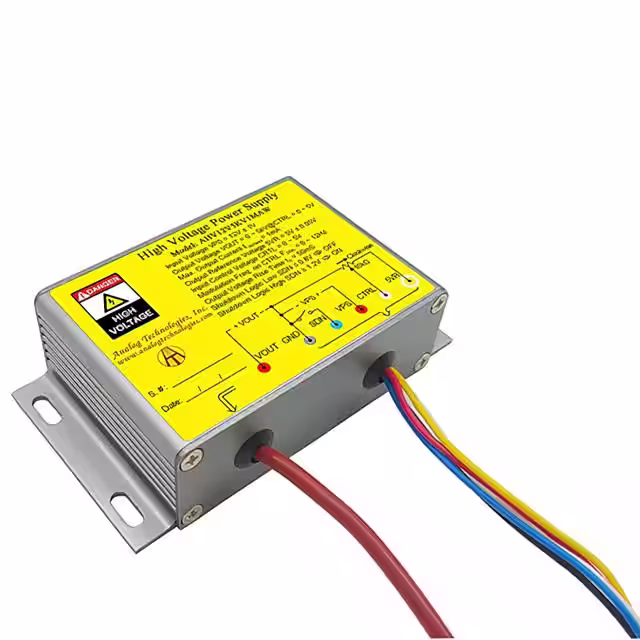

AHV12V5KV1MAWHigh Voltage - Non-Isolated |
11 |
|
Технический лист |
- | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 5kV | - | - | - | 1mA | 5W | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 3.23" L x 2.17" W x 1.10" H (82.0mm x 55.1mm x 27.9mm) | - | - |
|
|
AHV12V5KV1MAWHV 12V to 5kV 5W DC-DC Converter |
11 |
|
Технический лист |
- | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 5000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 3.23" L x 2.17" W x 1.10" H (82.0mm x 55.1mm x 27.9mm) | - | - |
|
|
AHV12VN5KV1MAWHigh Voltage - Non-Isolated |
5 |
|
Технический лист |
- | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 5000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|

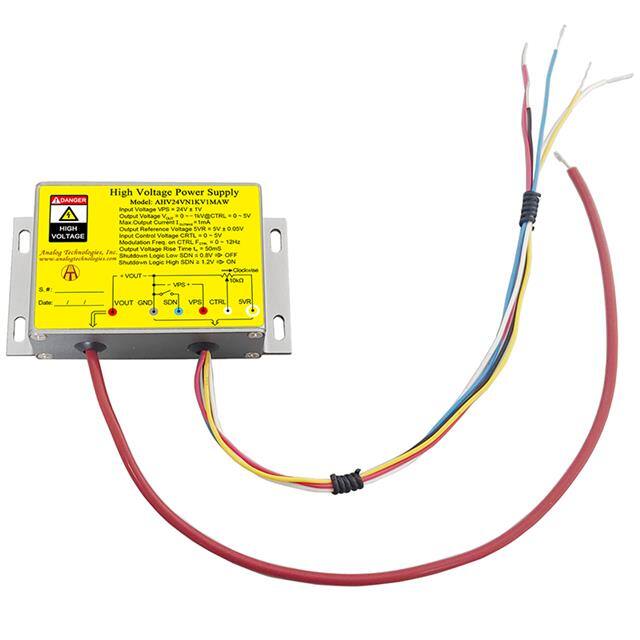

AHV24VN1KV1MAWHigh Voltage - Non-Isolated |
3 |
|
Технический лист |
- | Bulk | Active | Enclosed | 23V | 25V | 1 | 0 ~ 1000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.63" W x 1.10" H (104.4mm x 66.8mm x 27.9mm) | - | - |
|
|
AHV12VN1KV1MAWHigh Voltage - Non-Isolated |
2 |
|
Технический лист |
- | Bulk | Active | Enclosed | 11V | 13V | 1 | 0 ~ 1000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|
|
1010652DC4-110-3001 |
22 |
|
Технический лист |
DC4-110 (110W) | Box | Active | Open Frame | 36V | 72V | 3 | 5V | 12V | - | -12V | 10A, 3A, 3A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1011037DC2-110-3003 |
18 |
|
Технический лист |
DC2-110 (110W) | Box | Active | Open Frame | 18V | 36V | 3 | 5V | 24V | - | -24V | 10A, 2A, 2A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
1010685DC4-150-1003 |
16 |
|
Технический лист |
DC4-150 (150W) | Box | Active | Open Frame | 36V | 72V | 1 | 5V | - | - | - | 30A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010689DC4-150-1007 |
13 |
|
Технический лист |
DC4-150 (150W) | Box | Active | Open Frame | 36V | 72V | 1 | 28V | - | - | - | 5.4A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010690DC4-150-1008 |
9 |
|
Технический лист |
DC4-150 (150W) | Box | Active | Open Frame | 36V | 72V | 1 | 48V | - | - | - | 3.1A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010688DC4-150-1006 |
8 |
|
Технический лист |
DC4-150 (150W) | Box | Active | Open Frame | 36V | 72V | 1 | 24V | - | - | - | 6.3A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010665DC2-150-1005 |
6 |
|
Технический лист |
DC2-150 (150W) | Box | Active | Open Frame | 18V | 36V | 1 | 15V | - | - | - | 10A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010663DC2-150-1003 |
6 |
|
Технический лист |
DC2-150 (150W) | Box | Active | Open Frame | 18V | 36V | 1 | 5V | - | - | - | 30A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
