DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD-50B-5DC/DC CONVERTER 5V 50W |
14 |
|
Технический лист |
SD-50 (50W) | Box | Active | Enclosed | 19V | 36V | 1 | 5V | - | - | - | 10A | 50W | 1.5 kV | ITE (Commercial) | 73% | -10°C ~ 60°C (With Derating) | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | CE | - |
|
TMDC 10-2415DC/DC CONVERTER 24V 10W |
62 |
|
Технический лист |
TMDC 10 (10W) | Tube | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 416mA | 10W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 92.5°C (With Derating) | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE, cURus | - |
|
TMDC 10-2411DC/DC CONVERTER 5.1V 10W |
28 |
|
Технический лист |
TMDC 10 (10W) | Tube | Active | Enclosed | 9V | 36V | 1 | 5.1V | - | - | - | 2A | 10W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 92.5°C (With Derating) | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE, cURus | - |
|
RSD-100D-12DC/DC CONVERTER 12V 101W |
221 |
|
Технический лист |
RSD-100 (100W) | Box | Active | Enclosed | 67.2V | 143V | 1 | 12V | - | - | - | 8.4A | 101W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.34" L x 2.68" W x 1.42" H (161.0mm x 68.0mm x 36.0mm) | CE | - |
|
TMDC 60-2411DC/DC CONVERTER 5.1V 61W |
45 |
|
Технический лист |
TMDC 60 (60W) | Box | Active | Enclosed | 9V | 36V | 1 | 5.1V | - | - | - | 12A | 61W | 2.5 kV | ITE (Commercial) | 90% | -40°C ~ 85°C (With Derating) | Chassis Mount | 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.1mm) | CB, CE, cURus | - |
|
VHK50W-Q48-S24DC/DC CONVERTER 24V 50W |
59 |
|
Технический лист |
VHK50W (50W) | Box | Active | Enclosed | 18V | 75V | 1 | 24V | - | - | - | 2.08A | 50W | - | - | 83% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|

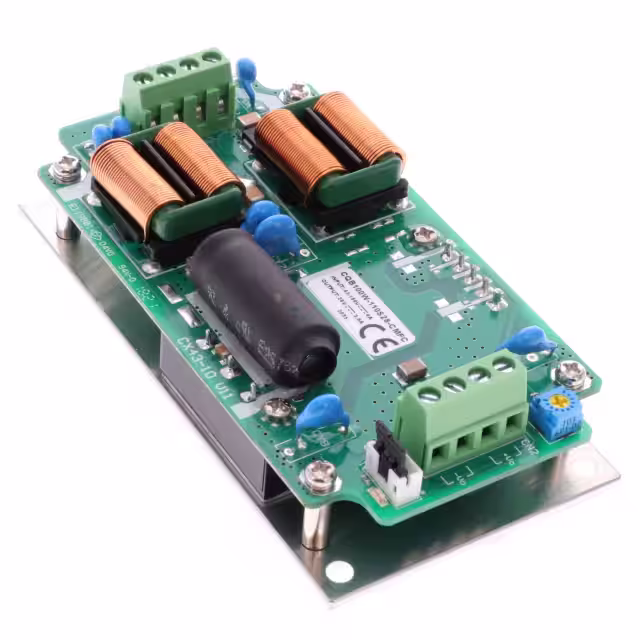

CQB100W-110S24N-CMFCDC/DC CONVERTER 24V 101W |
48 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Open Frame | 43V | 160V | 1 | 24V | - | - | - | 4.2A | 101W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 60950-1; 62368-1 |
|
|
CQB100W-110S12-CMFCDC/DC CONVERTER 12V 101W |
42 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Open Frame | 43V | 160V | 1 | 12V | - | - | - | 8.4A | 101W | 3 kV | ITE (Commercial), Railway | 91% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 60950-1; 62368-1 |
|
|
CQB100W-110S24-CMFCDC/DC CONVERTER 24V 101W |
39 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Open Frame | 43V | 160V | 1 | 24V | - | - | - | 4.2A | 101W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 60950-1; 62368-1 |
|
|
CQB100W-110S15-CMFCDC/DC CONVERTER 15V 101W |
38 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Open Frame | 43V | 160V | 1 | 15V | - | - | - | 6.7A | 101W | 3 kV | ITE (Commercial), Railway | 91% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 60950-1; 62368-1 |
|

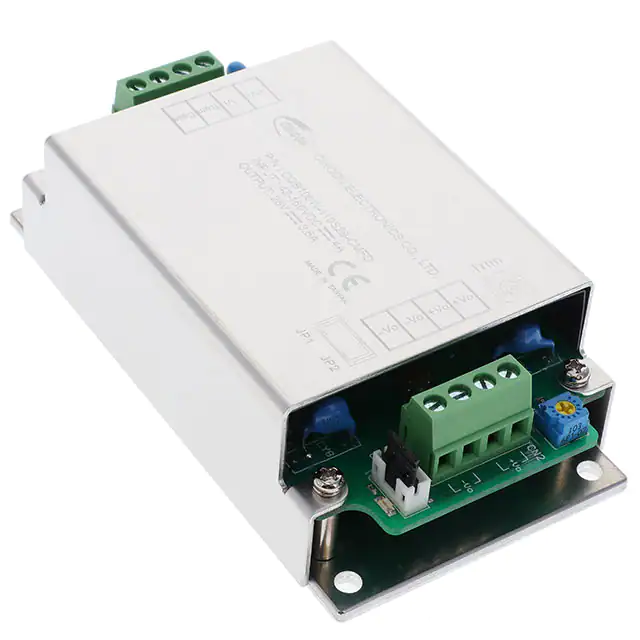

CQB100W-110S28-CMFDDC/DC CONVERTER 28V 101W |
48 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 28V | - | - | - | 3.6A | 101W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|
CQB100W-110S48N-CMFDDC/DC CONVERTER 48V 101W |
48 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 48V | - | - | - | 2.1A | 101W | 3 kV | ITE (Commercial), Railway | 89.5% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|
CQB100W-110S48-CMFDDC/DC CONVERTER 48V 101W |
48 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 48V | - | - | - | 2.1A | 101W | 3 kV | ITE (Commercial), Railway | 89.5% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|

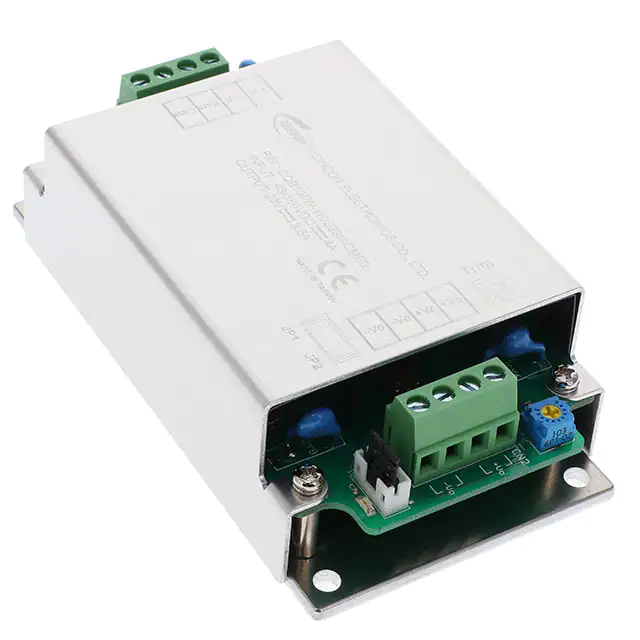

CQB100W-110S28N-CMFDDC/DC CONVERTER 28V 101W |
37 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 28V | - | - | - | 3.6A | 101W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|

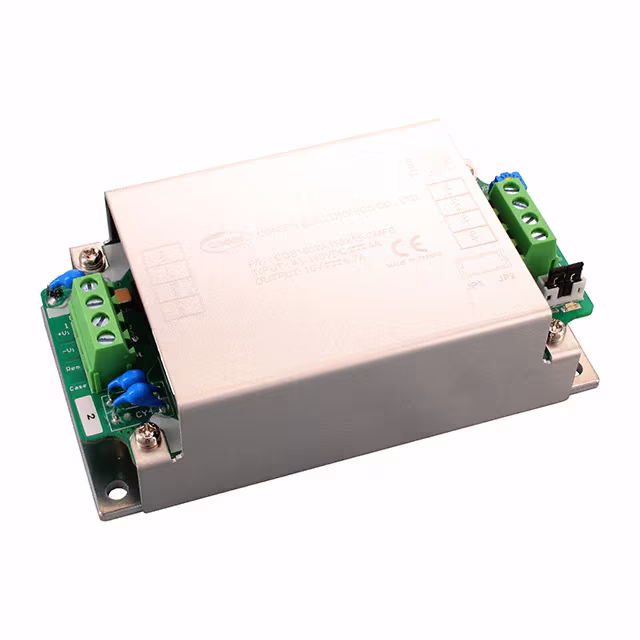

CQB100W-110S15-CMFDDC/DC CONVERTER 15V 101W |
36 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 15V | - | - | - | 6.7A | 101W | 3 kV | ITE (Commercial), Railway | 91% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|

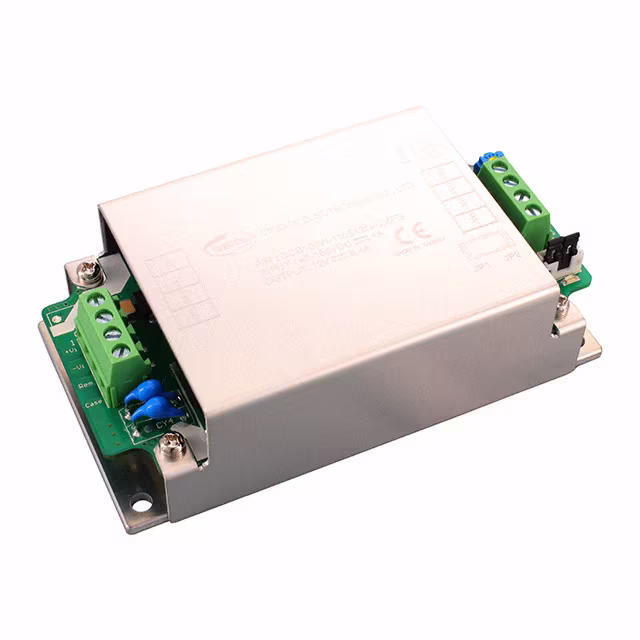

CQB100W-110S12N-CMFDDC/DC CONVERTER 12V 101W |
33 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 12V | - | - | - | 8.4A | 101W | 3 kV | ITE (Commercial), Railway | 91% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|
CQB100W-110S15N-CMFDDC/DC CONVERTER 15V 101W |
26 |
|
Технический лист |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 15V | - | - | - | 6.7A | 101W | 3 kV | ITE (Commercial), Railway | 91% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|
VHK75W-Q24-S12DC/DC CONVERTER 12V 75W |
70 |
|
Технический лист |
VHK75W (75W) | Box | Active | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 6.25A | 75W | - | - | 81.5% | -40°C ~ 85°C | Chassis Mount | 4.25" L x 4.00" W x 1.50" H (108.0mm x 101.6mm x 38.1mm) | - | - |
|
|
VHK75W-Q48-S12DC/DC CONVERTER 12V 75W |
43 |
|
Технический лист |
VHK75W (75W) | Box | Active | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 6.25A | 75W | - | - | 82.5% | -40°C ~ 85°C | Chassis Mount | 4.25" L x 4.00" W x 1.50" H (108.0mm x 101.6mm x 38.1mm) | - | - |
|
VHK200W-Q48-S48DC/DC CONVERTER 48V 200W |
216 |
|
Технический лист |
VHK200W (200W) | Box | Active | Enclosed | 18V | 75V | 1 | 48V | - | - | - | 4.2A | 200W | - | - | 88% | -40°C ~ 100°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
