DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSD-100B-12DC/DC CONVERTER 12V 101W |
10 |
|
Технический лист |
RSD-100 (100W) | Box | Active | Enclosed | 16.8V | 31.2V | 1 | 12V | - | - | - | 8.4A | 101W | 4 kV | ITE (Commercial), Railway | 89% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.34" L x 2.68" W x 1.42" H (161.0mm x 68.0mm x 36.0mm) | CE | - |
|
|
RSD-100C-12DC/DC CONVERTER 12V 101W |
32 |
|
Технический лист |
RSD-100 (100W) | Box | Active | Enclosed | 33.6V | 62.4V | 1 | 12V | - | - | - | 8.4A | 101W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.34" L x 2.68" W x 1.42" H (161.0mm x 68.0mm x 36.0mm) | CE | - |
|
TMDC 40-2412DC/DC CONVERTER 12V 40W |
412 |
|
Технический лист |
TMDC 40 (40W) | Box | Active | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 3.33A | 40W | 2.5 kV | ITE (Commercial) | 90% | -40°C ~ 85°C (With Derating) | Chassis Mount | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.7mm) | CB, CE, cURus | - |
|
DTE4024S24DC/DC CONVERTER 24V 40W |
97 |
|
Технический лист |
DTE40 (40W) | Bulk | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 1.67A | 40W | - | ITE (Commercial) | 90% | -40°C ~ 85°C | Chassis Mount | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.6mm) | CB, CE, cURus | 62368-1 |
|
TMDC 60-2415DC/DC CONVERTER 24V 60W |
198 |
|
Технический лист |
TMDC 60 (60W) | Box | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 2.5A | 60W | 2.5 kV | ITE (Commercial) | 91% | -40°C ~ 85°C (With Derating) | Chassis Mount | 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.1mm) | CB, CE, cURus | - |
|
TMDC 60-2418DC/DC CONVERTER 48V 60W |
45 |
|
Технический лист |
TMDC 60 (60W) | Box | Active | Enclosed | 9V | 36V | 1 | 48V | - | - | - | 1.25A | 60W | 2.5 kV | ITE (Commercial) | 91% | -40°C ~ 85°C (With Derating) | Chassis Mount | 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.1mm) | CB, CE, cURus | - |
|
TMDC 60-2412DC/DC CONVERTER 12V 60W |
74 |
|
Технический лист |
TMDC 60 (60W) | Box | Active | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 5A | 60W | 2.5 kV | ITE (Commercial) | 91% | -40°C ~ 85°C (With Derating) | Chassis Mount | 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.1mm) | CB, CE, cURus | - |
|

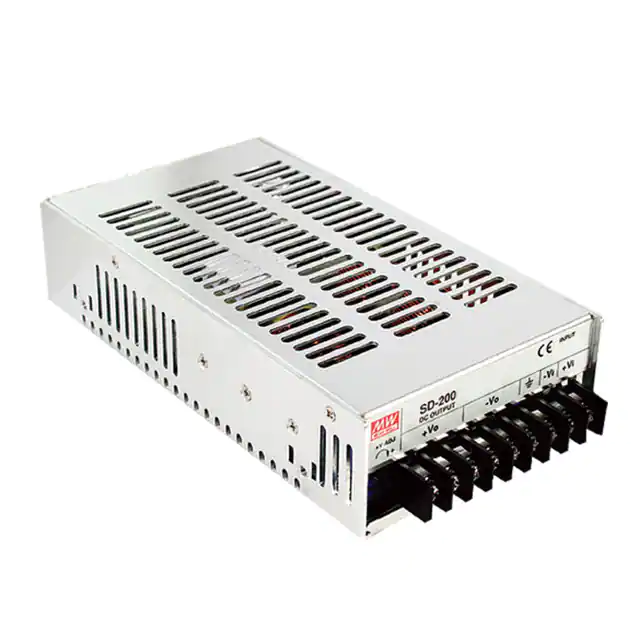

SD-200B-12DC/DC CONVERTER 12V 200W |
29 |
|
Технический лист |
SD-200 (200W) | Box | Active | Enclosed | 19V | 36V | 1 | 12V | - | - | - | 16.7A | 200W | 1.5 kV | ITE (Commercial) | 82% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CE | - |
|
DTE6024S24DC/DC CONVERTER 24V 60W |
316 |
|
Технический лист |
DTE60 (60W) | Bulk | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 91% | -40°C ~ 85°C | Chassis Mount | 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.0mm) | CB, CE, cURus | 62368-1 |
|
|
DTE6024S12DC/DC CONVERTER 12V 60W |
154 |
|
Технический лист |
DTE60 (60W) | Bulk | Active | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 5A | 60W | - | ITE (Commercial) | 91% | -40°C ~ 85°C | Chassis Mount | 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.0mm) | CB, CE, cURus | 62368-1 |
|

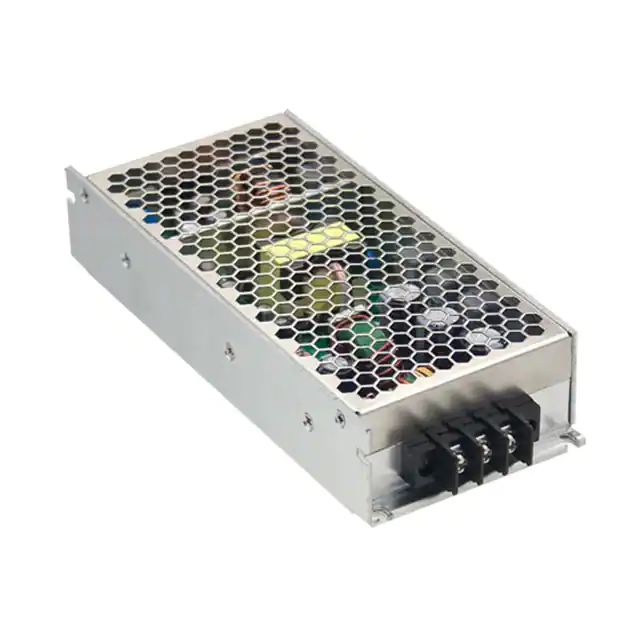

RSD-200C-48DC/DC CONVERTER 48V 202W |
63 |
|
Технический лист |
RSD-200 (200W) | Box | Active | Enclosed | 33.6V | 62.4V | 1 | 48V | - | - | - | 4.2A | 202W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Chassis Mount | 7.52" L x 3.39" W x 1.57" H (191.0mm x 86.0mm x 40.0mm) | CE | - |
|
|
RSD-200B-12DC/DC CONVERTER 12V 200W |
28 |
|
Технический лист |
RSD-200 (200W) | Box | Active | Enclosed | 16.8V | 31.2V | 1 | 12V | - | - | - | 16.7A | 200W | 4 kV | ITE (Commercial), Railway | 89% | -40°C ~ 70°C (With Derating) | Chassis Mount | 7.52" L x 3.39" W x 1.57" H (191.0mm x 86.0mm x 40.0mm) | CE | - |
|

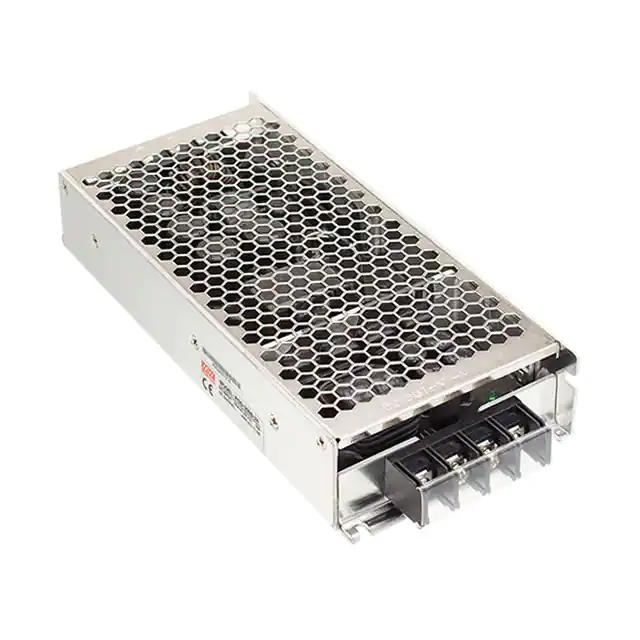

RSD-300C-24DC/DC CONVERTER 24V 300W |
33 |
|
Технический лист |
RSD-300 (300W) | Box | Active | Enclosed | 33.6V | 62.4V | 1 | 24V | - | - | - | 12.5A | 300W | 4 kV | ITE (Commercial), Railway | 91.5% | -40°C ~ 70°C (With Derating) | Chassis Mount | 8.50" L x 3.80" W x 1.57" H (216.0mm x 96.5mm x 40.0mm) | CE | - |
|
SD-500L-24DC/DC CONVERTER 24V 504W |
40 |
|
Технический лист |
SD-500 (500W) | Box | Active | Enclosed | 19V | 72V | 1 | 24V | - | - | - | 21A | 504W | 2 kV | ITE (Commercial) | 88% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CB, CE | - |
|
B40SR12424ADC/DC CONVERTER 12.4V 300W |
61 |
|
Технический лист |
B40SR (200W) | Bulk | Active | Enclosed | 18V | 60V | 1 | 12.4V | - | - | - | 24A | 300W | - | ITE (Commercial) | 88.8% | -40°C ~ 85°C | Chassis Mount | 7.48" L x 2.99" W x 1.69" H (190.0mm x 76.0mm x 43.0mm) | CE, UL | - |
|
TEQ 40-2415WIRDC/DC CONVERTER 24V 40W |
34 |
|
Технический лист |
TEQ 40WIR (40W) | Box | Active | Enclosed | 9.5V | 36V | 1 | 24V | - | - | - | 1.67A | 40W | 1.6 kV | ITE (Commercial), Railway | 90% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|

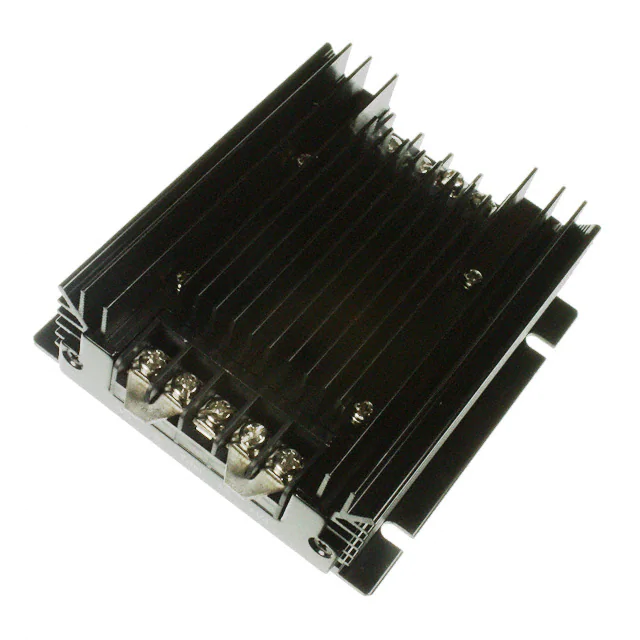

VHK100W-Q24-S28DC/DC CONVERTER 28V 100W |
8 |
|
Технический лист |
VHK100W (100W) | Bulk | Active | Enclosed | 9V | 36V | 1 | 28V | - | - | - | 3.57A | 100W | - | - | 86% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.4mm x 101.9mm x 38.1mm) | - | - |
|
|
B62SR12424ADC/DC CONVERTER 12.4V 298W |
58 |
|
Технический лист |
B62SR (240W) | Bulk | Active | Enclosed | 18V | 106V | 1 | 12.4V | - | - | - | 24A | 298W | 2.25 kV | ITE (Commercial) | 89% | -40°C ~ 75°C | Chassis Mount | 7.48" L x 2.99" W x 1.73" H (190.0mm x 75.9mm x 43.9mm) | CE | - |
|
TEQ 40-7212WIRDC/DC CONVERTER 12V 40W |
97 |
|
Технический лист |
TEQ 40WIR (40W) | Box | Active | Enclosed | 43V | 160V | 1 | 12V | - | - | - | 3.33A | 40W | 3 kV | ITE (Commercial), Railway | 89.5% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|

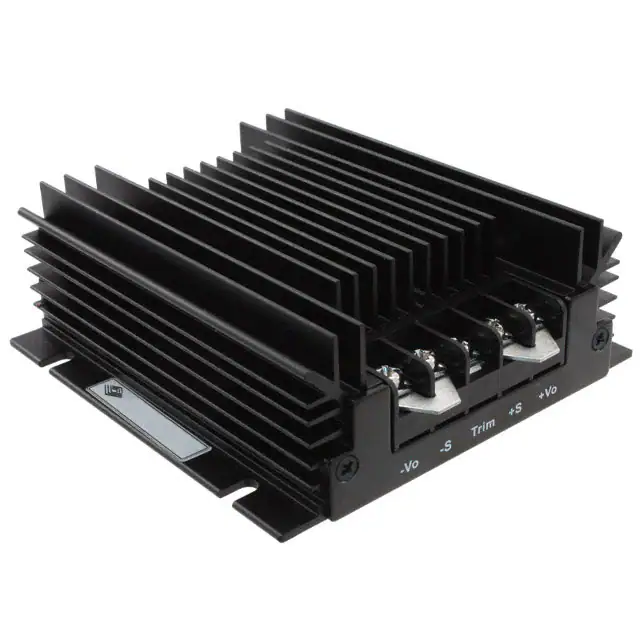

VHK50W-Q24-S24DC/DC CONVERTER 24V 50W |
85 |
|
Технический лист |
VHK50W (50W) | Box | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 2.08A | 50W | - | - | 82% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
