DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSD-45A-5DC/DC CONVERTER 5V 30W |
0 |
|
Технический лист |
PSD-45 (45W) | Box | Active | Open Frame | 9.2V | 18V | 1 | 5V | - | - | - | 6A | 30W | 1.5 kV | ITE (Commercial) | 74% | -10°C ~ 60°C (With Derating) | Chassis Mount | 5.00" L x 2.99" W x 1.18" H (127.0mm x 76.0mm x 30.0mm) | CB, CE | - |
|
RSD-30H-3.3DC/DC CONVERTER 3.3V 20W |
2 |
|
Технический лист |
RSD-30 (30W) | Box | Active | Enclosed | 40V | 160V | 1 | 3.3V | - | - | - | 6A | 20W | 4 kV | ITE (Commercial), Railway | 87% | -40°C ~ 70°C (With Derating) | Chassis Mount | 4.45" L x 2.36" W x 0.98" H (113.0mm x 60.0mm x 25.0mm) | CE | - |
|
EC5SBW-24D15-CMFPWR SUPP, BATT & COND |
1 |
|
Технический лист |
EC5SBW-CMF (30W) | Bulk | Active | Open Frame | 10V | 36V | 2 | 15V | -15V | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 88.5% | -40°C ~ 85°C (With Derating) | Chassis Mount | 3.31" L x 1.48" W x 1.20" H (84.1mm x 37.6mm x 30.5mm) | CE, UKCA | 62368-1 |
|
|
EC5SBW-48S15-CMFPWR SUPP, BATT & COND |
1 |
|
Технический лист |
EC5SBW-CMF (30W) | Bulk | Active | Open Frame | 19V | 74V | 1 | 15V | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 85°C (With Derating) | Chassis Mount | 3.31" L x 1.48" W x 1.20" H (84.1mm x 37.6mm x 30.5mm) | CE, UKCA | 62368-1 |
|
|
EC5SBW-48S12-CMFPWR SUPP, BATT & COND |
1 |
|
Технический лист |
EC5SBW-CMF (30W) | Bulk | Active | Open Frame | 19V | 74V | 1 | 12V | - | - | - | 2.5A | 30W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 85°C (With Derating) | Chassis Mount | 3.31" L x 1.48" W x 1.20" H (84.1mm x 37.6mm x 30.5mm) | CE, UKCA | 62368-1 |
|
|
EC5SBW-24S15-CMFPWR SUPP, BATT & COND |
0 |
|
Технический лист |
EC5SBW-CMF (30W) | Bulk | Active | Open Frame | 10V | 36V | 1 | 15V | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 89.5% | -40°C ~ 85°C (With Derating) | Chassis Mount | 3.31" L x 1.48" W x 1.20" H (84.1mm x 37.6mm x 30.5mm) | CE, UKCA | 62368-1 |
|
DTJ1548D05DC/DC CONVERTER +/-5V 15W |
0 |
|
Технический лист |
DTJ15 (15W) | Box | Active | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 1.5A, 1.5A | 15W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|
TMDC 06-4818DC/DC CONVERTER 48V 6W |
4 |
|
Технический лист |
TMDC 06 (6W) | Tube | Active | Enclosed | 18V | 75V | 1 | 48V | - | - | - | 125mA | 6W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 92.5°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE, cURus | - |
|
RSD-60H-5DC/DC CONVERTER 5V 60W |
3 |
|
Технический лист |
RSD-60 (60W) | Box | Active | Enclosed | 40V | 160V | 1 | 5V | - | - | - | 12A | 60W | 4 kV | ITE (Commercial), Railway | 89% | -40°C ~ 70°C (With Derating) | Chassis Mount | 5.04" L x 2.36" W x 0.98" H (128.0mm x 60.0mm x 25.0mm) | CE | - |
|

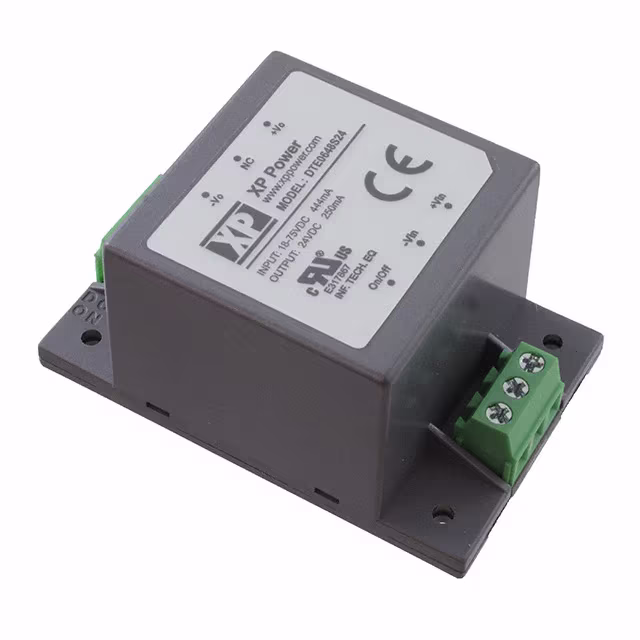

DTE0648S24DC/DC CONVERTER 24V 6W |
5 |
|
Технический лист |
DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 1 | 24V | - | - | - | 250mA | 6W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|
DTE0648S12DC/DC CONVERTER 12V 6W |
5 |
|
Технический лист |
DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 500mA | 6W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|

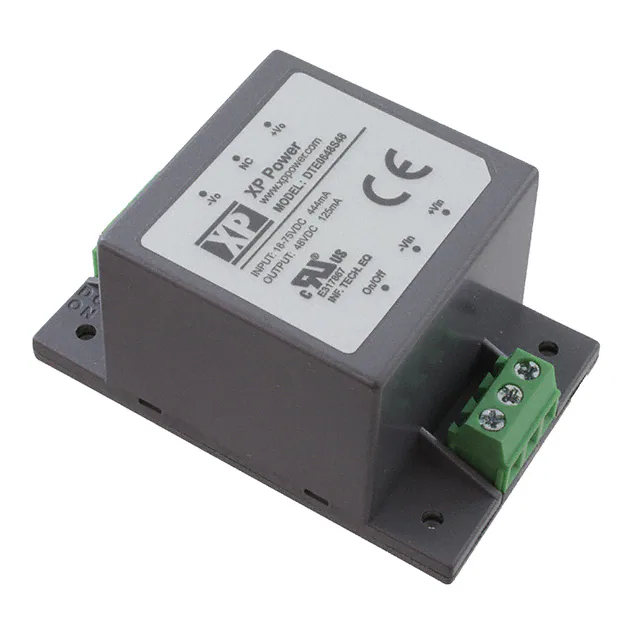

DTE0648S48DC/DC CONVERTER 48V 6W |
5 |
|
Технический лист |
DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 1 | 48V | - | - | - | 125mA | 6W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|

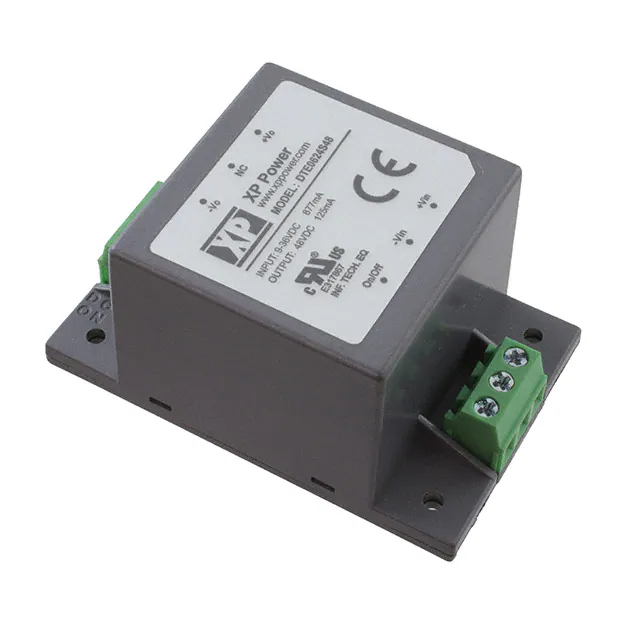

DTE0624S48DC/DC CONVERTER 48V 6W |
4 |
|
Технический лист |
DTE06 (6W) | Box | Active | Enclosed | 9V | 36V | 1 | 48V | - | - | - | 125mA | 6W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|

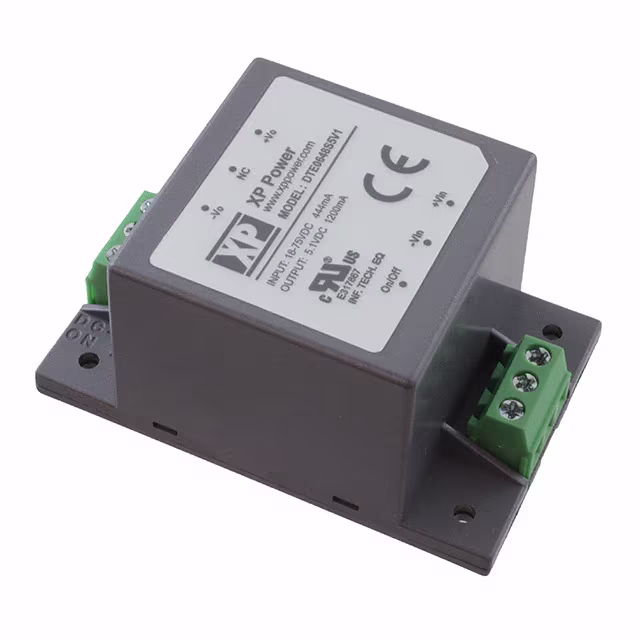

DTE0648S5V1DC/DC CONVERTER 5.1V 6.1W |
0 |
|
Технический лист |
DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 1 | 5.1V | - | - | - | 1.2A | 6.1W | 3 kV | ITE (Commercial) | 80% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|
TMDC 06-4823DC/DC CONVERTER +/-15V 6W |
4 |
|
Технический лист |
TMDC 06 (6W) | Tube | Active | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 200mA, 200mA | 6W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 92.5°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE, cURus | - |
|

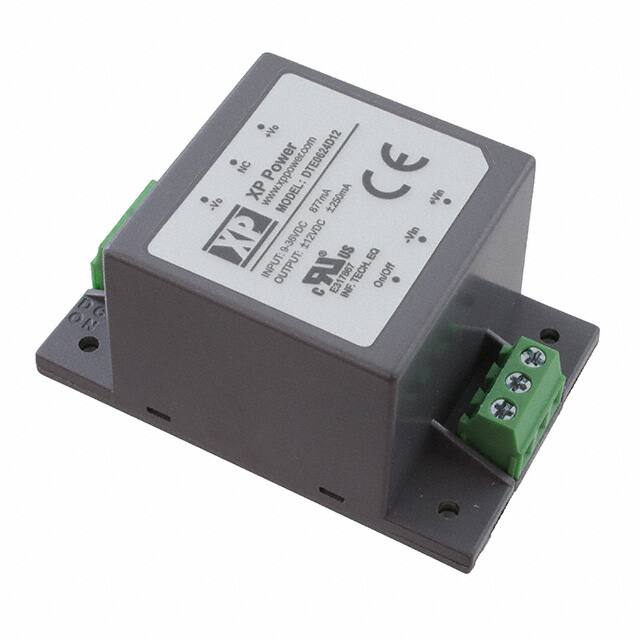

DTE0624D12DC/DC CONVERTER +/-12V 6W |
0 |
|
Технический лист |
DTE06 (6W) | Box | Active | Enclosed | 9V | 36V | 2 | 12V | -12V | - | - | 250mA, 250mA | 6W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|
|
DDRH-30-24STI/P:150~1500VDC;O/P:24V/0~1.25A |
2 |
|
Технический лист |
DDRH-30 (30W) | Bulk | Active | Enclosed, High Voltage | 150V | 1500V | 1 | 24V | - | - | - | 1.25A | 30W | 4 kV | ITE (Commercial) | 91% | -40°C ~ 80°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.26" H (135.0mm x 70.0mm x 32.0mm) | CE, EAC, UKCA | - |
|
DTJ2048S3V3DC/DC CONVERTER 3.3V 18W |
5 |
|
Технический лист |
DTJ20 (20W) | Box | Active | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 5.5A | 18W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|
|
DTJ2048S15DC/DC CONVERTER 15V 20W |
3 |
|
Технический лист |
DTJ20 (20W) | Box | Active | Enclosed | 18V | 75V | 1 | 15V | - | - | - | 1.33A | 20W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|
|
EC5SBW-48D15-CMFPWR SUPP, BATT & COND |
1 |
|
Технический лист |
EC5SBW-CMF (30W) | Bulk | Active | Open Frame | 19V | 74V | 2 | 15V | -15V | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 85°C (With Derating) | Chassis Mount | 3.31" L x 1.48" W x 1.20" H (84.1mm x 37.6mm x 30.5mm) | CE, UKCA | 62368-1 |
