DC-DC преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Количество выходов | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

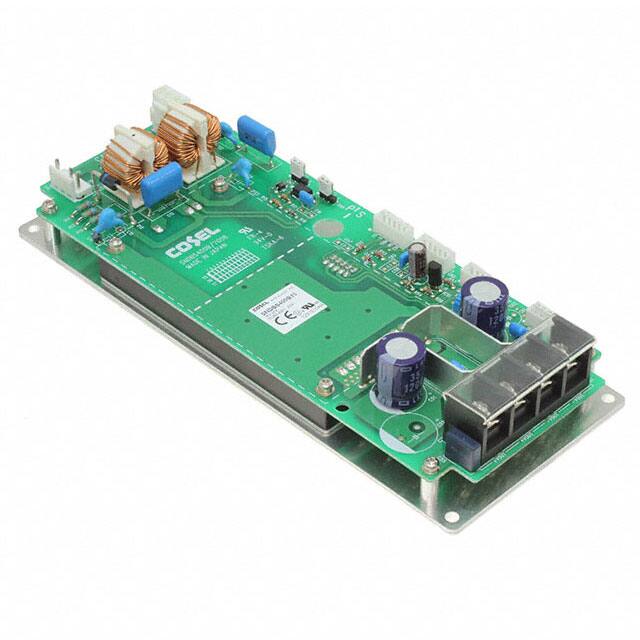

SNDBS700B24DC/DC CONVERTER 24V 696W |
1 |
|
Технический лист |
SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 24V | - | - | - | 29A | 696W | - | ITE (Commercial) | 90% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
|
SNDBS700B48DC/DC CONVERTER 48V 696W |
1 |
|
Технический лист |
SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 48V | - | - | - | 14.5A | 696W | - | ITE (Commercial) | 91% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
|
TEP 200-4818WIRCMFDC/DC CONVERTER 48V 216W |
1 |
|
Технический лист |
TEP 200WIRCMF (200W) | Box | Active | Open Frame | 18V | 75V | 1 | 48V | - | - | - | 4.5A | 216W | 3 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | CB, CE, cURus | - |
|
TEQ 300-7218WIRDC/DC CONVERTER 48V 302W |
1 |
|
Технический лист |
TEQ 300WIR (300W) | Box | Active | Enclosed | 43V | 160V | 1 | 48V | - | - | - | 6.3A | 302W | 3 kV | Industrial, ITE (Commercial), Railway | 92% | -40°C ~ 80°C | Chassis Mount | 6.00" L x 4.00" W x 1.52" H (152.4mm x 101.6mm x 38.6mm) | CB, CE, cULus, cURus | - |
|
DCM3414V75H31C2T01DC/DC CONVERTER 48V 28V 320W |
1 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | 91.8% | - | - | - | - | - |
|
|
DCM3414V75H31C2C01DC/DC CONVERTER 28V 320W |
0 |
|
Технический лист |
VI Chip® DCM® (320W) | Bulk | Active | Enclosed | 36V | 75V | 1 | 28V | - | - | - | 11.43A | 320W | 2.25 kV | ITE (Commercial) | 91.8% | -20°C ~ 100°C | Chassis Mount | 3.38" L x 1.40" W x 0.37" H (85.9mm x 35.5mm x 9.3mm) | CE, cTUVus, cURus | - |
|
HP001PAA025DC/DC CONVERTER 10V-1000V 10W |
1 |
|
Технический лист |
HP (10W) | Box | Active | Enclosed, High Voltage | 21.6V | 26.4V | 1 | 10V ~ 1000V | - | - | - | 10mA | 10W | - | ITE (Commercial) | - | 0°C ~ 50°C | Chassis Mount | 5.79" L x 3.86" W x 1.85" H (147.0mm x 98.0mm x 47.0mm) | cURus, UL | - |
|
DCM3714VD2K13E0C01DC/DC CONVERTER 12V 500W |
0 |
|
Технический лист |
VI Chip® DCM® (500W) | Box | Active | Enclosed | 160V | 420V | 1 | 12V | - | - | - | 41.67A | 500W | - | ITE (Commercial) | 92% | -20°C ~ 100°C | Chassis Mount | 3.74" L x 1.40" W x 0.37" H (95.1mm x 35.5mm x 9.3mm) | CE, cTUVus | - |
|
|
DCM3714VD2H31E0C01DC/DC CONVERTER 28V 500W |
0 |
|
Технический лист |
VI Chip® DCM® (500W) | Bulk | Active | Enclosed | 200V | 420V | 1 | 28V | - | - | - | 17.86A | 500W | - | ITE (Commercial) | 93.6% | -20°C ~ 100°C (With Derating) | Chassis Mount | 3.75" L x 1.40" W x 0.37" H (95.3mm x 35.6mm x 9.4mm) | CE, cTUVus | 60950-1 |
|
|
DCM3714VD2K31E0C01DC/DC CONVERTER 28V 500W |
0 |
|
Технический лист |
VI Chip® DCM® (500W) | Box | Active | Enclosed | 160V | 420V | 1 | 28V | - | - | - | 17.86A | 500W | - | ITE (Commercial) | 93.6% | -20°C ~ 100°C | Chassis Mount | 3.74" L x 1.40" W x 0.37" H (95.1mm x 35.5mm x 9.3mm) | CE, cTUVus | - |
|
|
DCM3714VD2K31E0T01DC/DC CONVERTER 28V 500W |
0 |
|
Технический лист |
VI Chip® DCM® (500W) | Box | Active | Enclosed | 160V | 420V | 1 | 28V | - | - | - | 17.86A | 500W | - | ITE (Commercial) | 93.6% | -40°C ~ 100°C | Chassis Mount | 3.74" L x 1.40" W x 0.37" H (95.1mm x 35.5mm x 9.3mm) | CE, cTUVus | - |
|
BCM4414VD1E5135T02DC/DC CONVERTER 50V |
0 |
|
Технический лист |
VI Chip® BCM® | Tray | Active | Enclosed | 260V | 410V | 1 | 50V | - | - | - | 35A | - | - | ITE (Commercial) | 97.2% | -40°C ~ 100°C | Chassis Mount | 4.35" L x 1.40" W x 0.37" H (110.6mm x 35.5mm x 9.3mm) | CE, cURus, TUV | - |
|
4479-107DC/DC CONVERTER 300V 900MW |
0 |
|
Технический лист |
4479 (2W) | Box | Active | Enclosed, High Voltage | 22V | 28V | 1 | 300V | - | - | - | 3mA | 900mW | - | ITE (Commercial) | - | -10°C ~ 50°C | Chassis Mount | 3.75" L x 1.93" W x 0.59" H (95.2mm x 49.0mm x 15.0mm) | UL | - |
|
3590-1D20DC/DC CONVERTER 2500V 5W |
1 |
|
Технический лист |
3590 (5W) | Box | Active | Enclosed, High Voltage | 21.6V | 30V | 1 | 2500V | - | - | - | 2mA | 5W | - | ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Chassis Mount | 3.75" L x 1.96" W x 0.79" H (95.3mm x 49.8mm x 20.1mm) | UL | - |
|
2C24-P20-CDC/DC CONVERTER 2000V 20W |
1 |
|
Технический лист |
Ultravolt® C | Bulk | Active | Enclosed | 23V | 30V | 1 | 2000V | - | - | - | 10mA | 20W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 4.75" L x 2.00" W x 1.00" H (120.7mm x 50.8mm x 25.4mm) | CE, cURus | - |
|
HP010NIP025DC/DC CONVERTER 20V-10000V 10W |
1 |
|
Технический лист |
HP (10W) | Box | Active | Enclosed, High Voltage | 21.6V | 26.4V | 1 | 20V ~ 10000V | - | - | - | 1mA | 10W | - | ITE (Commercial) | - | 0°C ~ 50°C | Chassis Mount | 7.87" L x 3.86" W x 1.85" H (200.0mm x 98.0mm x 47.0mm) | - | - |
|
20A24-P15-E-1DC/DC CONVERTER |
1 |
|
Технический лист |
UltraVolt® 20A | Bulk | Active | Enclosed | 23V | 30V | 1 | 0V ~ 20kV | - | - | - | 750µA | 15W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 6.36" L x 1.71" W x 1.21" H (161.6mm x 43.4mm x 30.6mm) | CE, cUL, UL | 60950-1 |
|

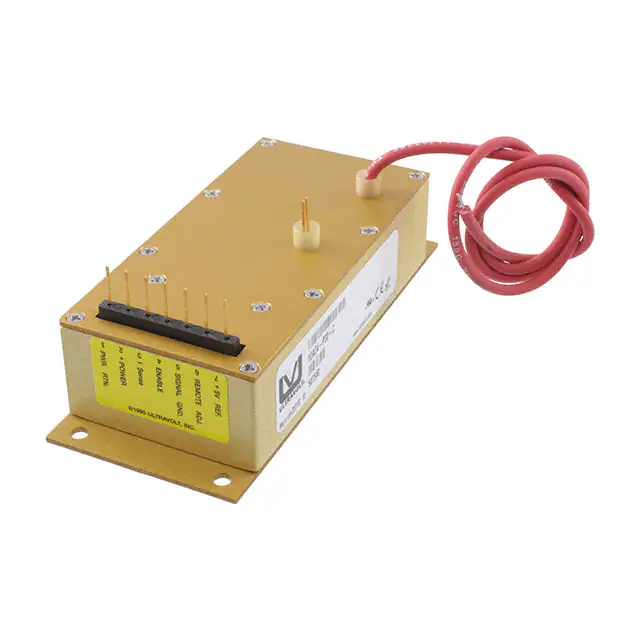

10A24-P30-CDC/DC CONVERTER 10000V 30W |
1 |
|
Технический лист |
Ultravolt® 10A | Bulk | Active | Enclosed | 23V | 30V | 1 | 10000V | - | - | - | 3mA | 30W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 3.73" L x 1.53" W x 1.00" H (94.7mm x 38.9mm x 25.4mm) | CE, cURus | 60950-1 |
|
NHV24-15K450NDC/DC CONVERTER -15000V 6.8W |
0 |
|
Технический лист |
NHV | Bulk | Active | Enclosed | 22.8V | 25.2V | 1 | -15000V | - | - | - | 450µA | 6.8W | - | ITE (Commercial) | - | 0°C ~ 50°C | Chassis Mount | 6.30" L x 3.94" W x 1.50" H (160.0mm x 100.0mm x 38.0mm) | - | - |
|

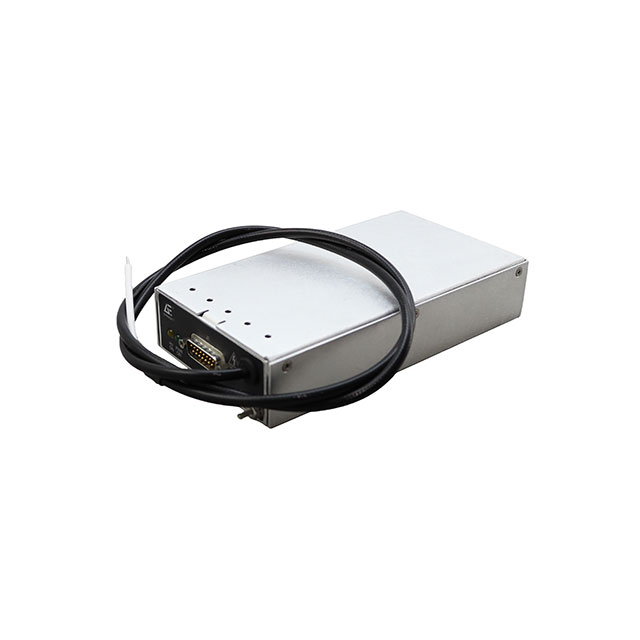

25LE24-P15DC/DC CONVERTER 25000V 15W |
1 |
|
Технический лист |
Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 25000V | - | - | - | 600µA | 15W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
