Процесс, температура
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Входной диапазон | Тип выхода | Метод управления | Связь | Количество символов в строке | Тип дисплея | Отображаемые символы - Высота | Напряжение - Питание | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5CC-RX2ABM-800CONTROL TEMP/PROCESS 100-240V |
10 |
|
Технический лист |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5GC-QX2A6M-000CONTROL TEMP/PROC RELAY/VOLT OUT |
2 |
|
Технический лист |
E5GC | Box | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5C2-R20K AC100240 0200CONTROL TEMP RELAY OUT 100-240V |
5 |
|
Технический лист |
E5C2 | Bulk | Active | Temperature Controller (Type K) | 0°C ~ 200°C | Relay | On/Off | - | - | Analog Dial | - | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | IP40 | Sensor Fault Detection |
|

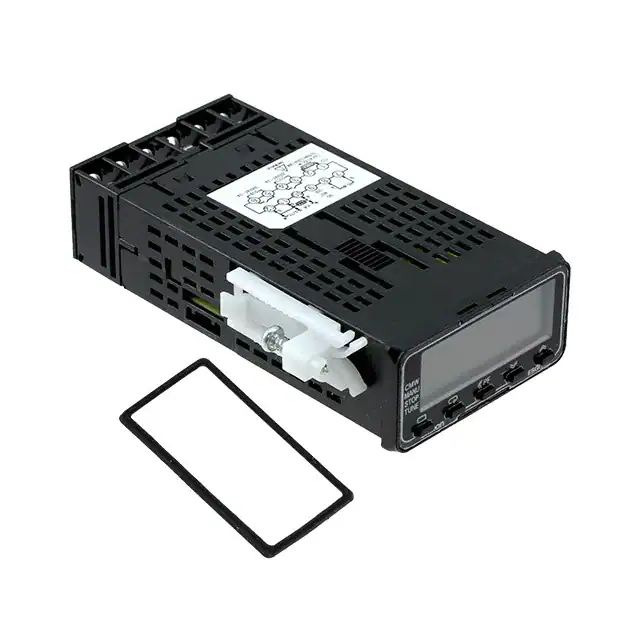

E5GC-RX1D6M-600CONTROL TEMP/PROC RELAY OUT 24V |
9 |
|
Технический лист |
E5GC-600 | Box | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Limit Function |
|
|
E5GC-QX1DCM-000CONTROL TEMP/PROC 24V PANEL MT |
15 |
|
Технический лист |
E5GC | Bulk | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5CB-Q1TCD AC/DC24CONTROL TEMP RELAY/VOLT OUT 24V |
11 |
|
Технический лист |
E5CB | Box | Active | Temperature Controller (Type J, K, R, S, T) | -200°C ~ 1700°C | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LED - Dual Color Characters | 0.638" (16.20mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5C2-R20KW AC100240 321832CONTROL TEMP RELAY OUT 100-240V |
2 |
|
Технический лист |
E5C2 | Bulk | Active | Temperature Controller (Type K) | 0°C ~ 1000°C, 32°F ~ 1832°F | Relay | On/Off | - | - | Analog Dial | - | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | IP40 | Sensor Fault Detection |
|
|
E5GC-QX1D6M-015CONTROL TEMP/PROC 24V PANEL MT |
8 |
|
Технический лист |
E5GC | Box | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5GC-RX1D6M-000CONTROL TEMP/PROC RELAY OUT 24V |
2 |
|
Технический лист |
E5GC | Bulk | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5CSV-Q2T-F AC100-240CONTROL TEMP 100-240V PANEL MT |
7 |
|
Технический лист |
E5CSV | Bulk | Active | Temperature Controller (RTD, Type J, K, L, N, R, T, U) | -99°C ~ 1700°C | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|
E5DC-RX2ASM-002CONTROL TEMP/PROCESS 100-240V |
2 |
|
Технический лист |
E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 100 ~ 240VAC | - | DIN Rail | Screw Terminal | IP20 | - |
|

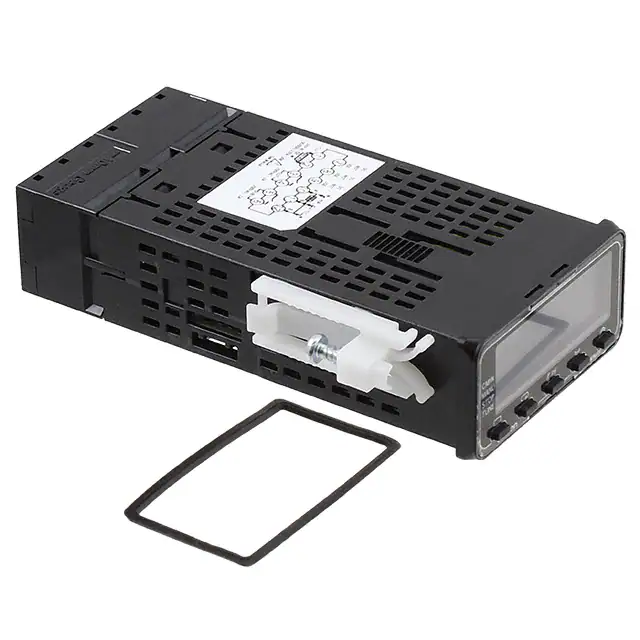

E5GC-RX1DCM-000CONTROL TEMP/PROC RELAY OUT 24V |
6 |
|
Технический лист |
E5GC | Bulk | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GC-RX2A6M-000CONTROL TEMP/PROCESS 100-240V |
10 |
|
Технический лист |
E5GC | Bulk | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5CB-Q1TC AC100-240CONTROL TEMP 100-240V PANEL MT |
4 |
|
Технический лист |
E5CB | Box | Active | Temperature Controller (Type J, K, R, S, T) | -200°C ~ 1700°C | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LED - Dual Color Characters | 0.638" (16.20mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5DC-QX2DSM-000CONTROL TEMP/PROC 24V DIN RAIL |
2 |
|
Технический лист |
E5DC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Screw Terminal | IP20 | - |
|

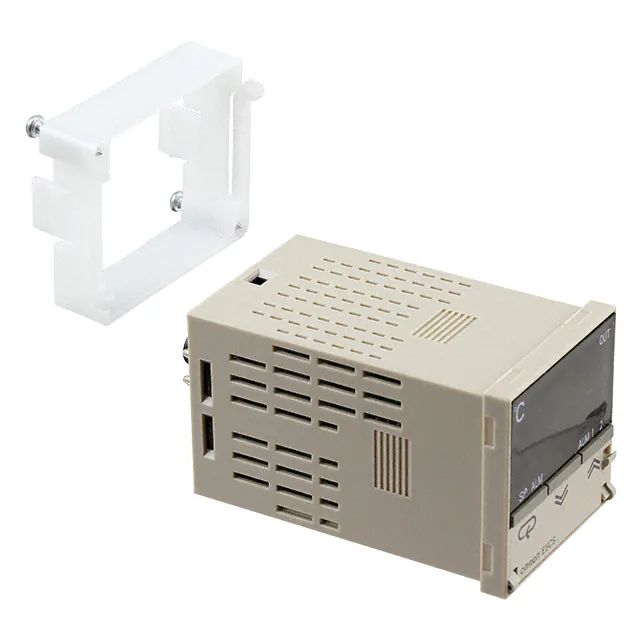

E5CS-RKJDU-W AC/DC24CONTROL TEMP RELAY OUT 24V |
2 |
|
Технический лист |
E5CS | Bulk | Active | Temperature Controller (Type J, K, L) | 0°C ~ 999°C | Relay | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | IP50 - Dust Protected | Sensor Fault Detection |
|
|
E5CC-QX2DBM-000CONTROL TEMP/PROCESS OUT 24V |
2 |
|
Технический лист |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5DC-CX0DSM-015CONTROL TEMP/PROC ANALOG OUT 24V |
4 |
|
Технический лист |
E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Screw Terminal | IP20 | - |
|
|
E5DC-RX0DSM-015CONTROL TEMP/PROCESS REL OUT 24V |
3 |
|
Технический лист |
E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Screw Terminal | IP20 | - |
|
E5AC-RX1ASM-800CONTROL TEMP/PROCESS 100-240V |
2 |
|
Технический лист |
E5AC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.984" (25.00mm), 0.590" (15.00mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
