Процесс, температура
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Входной диапазон | Тип выхода | Метод управления | Связь | Количество символов в строке | Тип дисплея | Отображаемые символы - Высота | Напряжение - Питание | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDC-4300-41111111Controller - Temperature, Proces |
40 |
|
Технический лист |
300 | Retail Package | Active | Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T) | -250°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 150mV | Relay (4) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | 0.590" (15.00mm), 0.413" (10.50mm) | 90 ~ 264VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP50 - Dust Protected | 2nd Analog Input, Event Input, Auto-Tuning, Sensor Fault Detection, Alarm Signaling |
|
|
FDC-4300-51101031Controller - Temperature, Proces |
45 |
|
Технический лист |
300 | Retail Package | Active | Process, Temperature Controller (RTD, Voltage, Current, Type B, E, J, K, L, N, R, S, T) | -250°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 150mV | Relay (2) | On/Off, Proportional (PID) | Retransmission 4 ~ 20mA/0 ~ 20mA | 4, 4 | LED - Dual Color Characters | 0.590" (15.00mm), 0.413" (10.50mm) | 12 ~ 24 VDC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | 2nd Analog Input, Event Input, Auto-Tuning, Sensor Fault Detection, Alarm Signaling |
|
|
FDC-4300-51110031Controller - Temperature, Proces |
45 |
|
Технический лист |
300 | Retail Package | Active | Process, Temperature Controller (RTD, Voltage, Current, Type B, E, J, K, L, N, R, S, T) | -250°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 150mV | Relay (2) | On/Off, Proportional (PID) | Retransmission 4 ~ 20mA/0 ~ 20mA | 4, 4 | LED - Dual Color Characters | 0.590" (15.00mm), 0.413" (10.50mm) | 12 ~ 24 VDC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | 2nd Analog Input, Event Input, Auto-Tuning, Sensor Fault Detection, Alarm Signaling |
|
|
FDC-4300-41111131Controller - Temperature, Proces |
40 |
|
Технический лист |
300 | Retail Package | Active | Process, Temperature Controller (RTD, Voltage, Current, Type B, E, J, K, L, N, R, S, T) | -250°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 150mV | Relay (4) | On/Off, Proportional (PID) | Retransmission 4 ~ 20mA/0 ~ 20mA | 4, 4 | LED - Dual Color Characters | 0.590" (15.00mm), 0.413" (10.50mm) | 90 ~ 264VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP65/IP20 - Dust Tight, Water Resistant | 2nd Analog Input, Event Input, Auto-Tuning, Sensor Fault Detection, Alarm Signaling |
|
|
FDC-4300-51111111Controller - Temperature, Proces |
45 |
|
Технический лист |
300 | Retail Package | Active | Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T) | -250°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 150mV | Relay (4) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | 0.590" (15.00mm), 0.413" (10.50mm) | 12 ~ 24 VDC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | 2nd Analog Input, Event Input, Auto-Tuning, Sensor Fault Detection, Alarm Signaling |
|
|
FDC-4300-41370011Controller - Temperature, Proces |
40 |
|
Технический лист |
FDC-4300 | Retail Package | Active | Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T) | 0 ~ 20mA, 0 ~ 10VDC | Analog (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 90 ~ 264VAC | - | DIN Rail | Screw Terminal | IP65 - Dust Tight, Water Resistant, NEMA 4X | Event Input |
|
|
FDC-4300-51131030Controller - Temperature, Proces |
45 |
|
Технический лист |
300 | Retail Package | Active | Process, Temperature Controller (RTD, Voltage, Current, Type B, E, J, K, L, N, R, S, T) | -250°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 150mV | Analog, Relay (2) | On/Off, Proportional (PID) | Retransmission 4 ~ 20mA/0 ~ 20mA | 4, 4 | LED - Dual Color Characters | 0.590" (15.00mm), 0.413" (10.50mm) | 12 ~ 24 VDC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP50 - Dust Protected | 2nd Analog Input, Event Input, Auto-Tuning, Sensor Fault Detection, Alarm Signaling |
|
|
FDC-4300-51C11131Controller - Temperature, Proces |
45 |
|
Технический лист |
300 | Retail Package | Active | Process, Temperature Controller (RTD, Voltage, Current, Type B, E, J, K, L, N, R, S, T) | -250°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 150mV | Relay (3), Solid State | On/Off, Proportional (PID) | Retransmission 4 ~ 20mA/0 ~ 20mA | 4, 4 | LED - Dual Color Characters | 0.590" (15.00mm), 0.413" (10.50mm) | 12 ~ 24 VDC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | 2nd Analog Input, Event Input, Auto-Tuning, Sensor Fault Detection, Alarm Signaling |
|
DTB4824RRDELTA TEMPERATURE CONTROLLER DTB |
2 |
|
Технический лист |
DT | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Rectangular - 45.00mm x 22.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
DTB4848RRDELTA TEMPERATURE CONTROLLER DTB |
20 |
|
Технический лист |
DT | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DTB4848VRDELTA TEMPERATURE CONTROLLER DTB |
21 |
|
Технический лист |
DT | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|

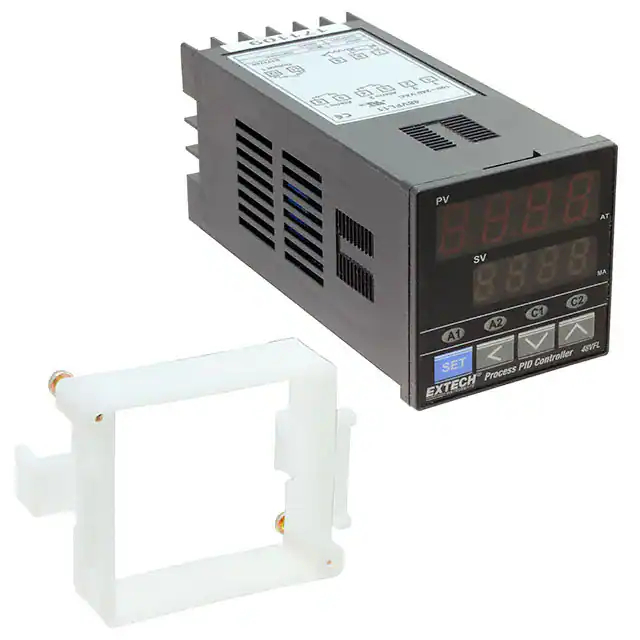

48VFL11CONTROLLER, PID, 1/16 DIN |
14 |
|
Технический лист |
- | Box | Active | Temperature Controller (RTD, Type B, C, E, J, K, N, R, S, T) | -270°C ~ 1800°C | Relay | On/Off, Proportional (PID) | - | 4, 4 | LED - Dual Color Characters | - | 90 ~ 264VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP63 - Dust Tight, Water Resistant | - |
|
E5GC-RX1A6M-000CONTROL TEMP/PROCESS 100-240V |
15 |
|
Технический лист |
E5GC | Bulk | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5DC-RX2ASM-000CONTROL TEMP/PROCESS 100-240V |
7 |
|
Технический лист |
E5DC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 100 ~ 240VAC | - | DIN Rail | Screw Terminal | IP20 | - |
|
E5CC-RX3D5M-000CONTROL TEMP/PROC RELAY OUT 24V |
18 |
|
Технический лист |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-QX3A5M-000CONTROL TEMP/PROC RELAY/VOLT OUT |
24 |
|
Технический лист |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-QX2ASM-800CONTROL TEMP RELAY/VOLT 100-240V |
5 |
|
Технический лист |
E5CC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5CSV-Q1T-F AC100-240CONTROL TEMP 100-240V PANEL MT |
9 |
|
Технический лист |
E5CSV | Box | Active | Temperature Controller (RTD, Type J, K, L, N, R, T, U) | -99°C ~ 1700°C | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|
|
E5CC-RW2AUM-000CONTROL TEMP/PROCESS 100-240V |
11 |
|
Технический лист |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|

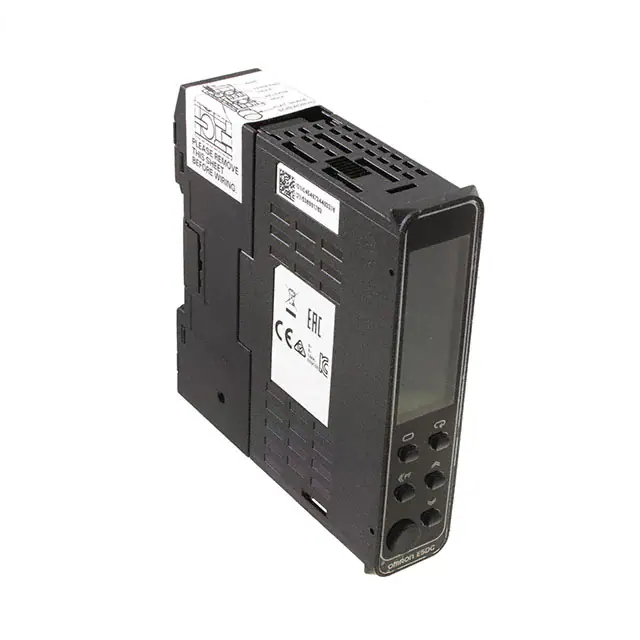

E5DC-QX2DBM-002CONTROL TEMP RLY OUT DIN 24VAC/V |
12 |
|
Технический лист |
E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Spring Terminal | IP20 | - |
