Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21793.6CABLE GLAND 8.89-12.95MM 3/4" |
42 |
|
Технический лист |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | 3/4" NPT | 0.630" (16.00mm) | - | 1.050" (26.7mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

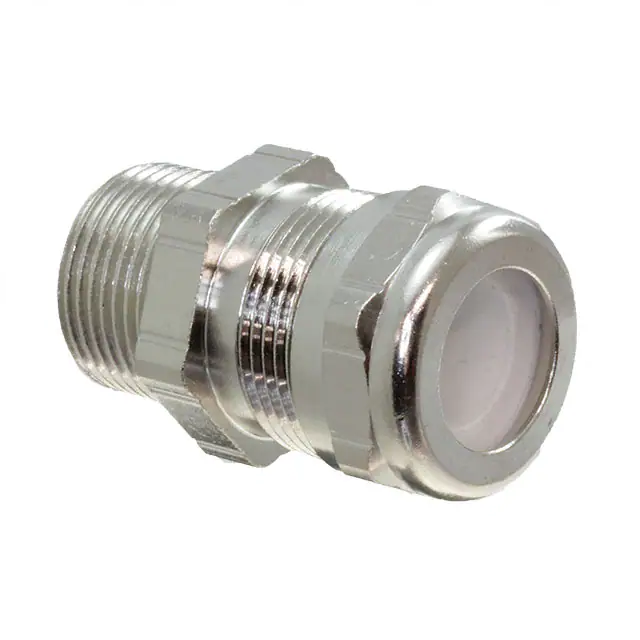

21786.6CABLE GLAND 11.43-15.5MM 3/4" |
41 |
|
Технический лист |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | 3/4" NPT | 0.630" (16.00mm) | - | 1.050" (26.7mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1300980180CABLE GRIP 28.58-31.75MM 1 1/4" |
9 |
|
Технический лист |
Cable Grip | 1.125" (28.58mm) | 1.250" (31.75mm) | 1 1/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
21576.6CABLE GLAND 9.91-13.97MM M24 |
18 |
|
Технический лист |
Cable Gland | 0.390" (9.91mm) | 0.550" (13.97mm) | M24x1.5 | 0.430" (10.92mm) | - | 0.940" (23.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

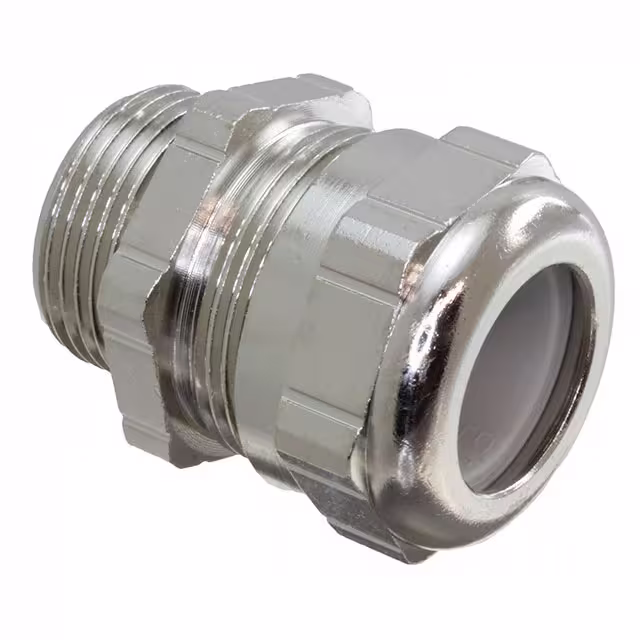

21577.6CABLE GLAND 13.97-18.03MM M24 |
10 |
|
Технический лист |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | M24x1.5 | 0.430" (10.92mm) | - | 0.940" (23.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

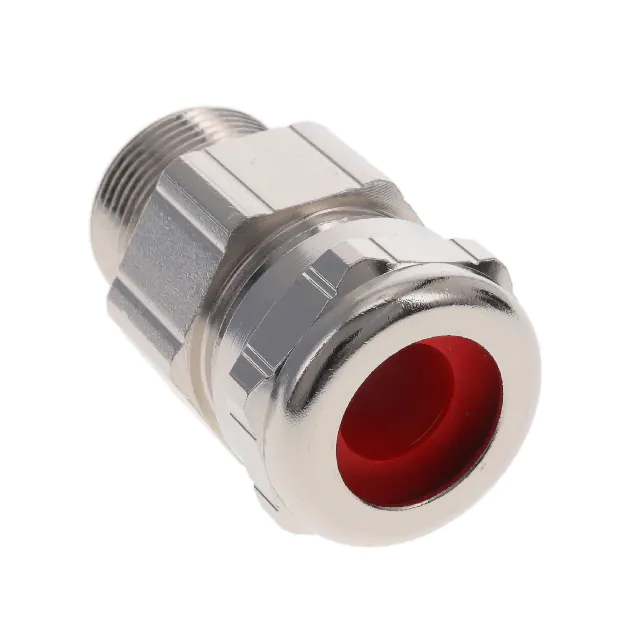

97279.6/15CABLE GLAND 8.89-12.95MM M25 |
49 |
|
Технический лист |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

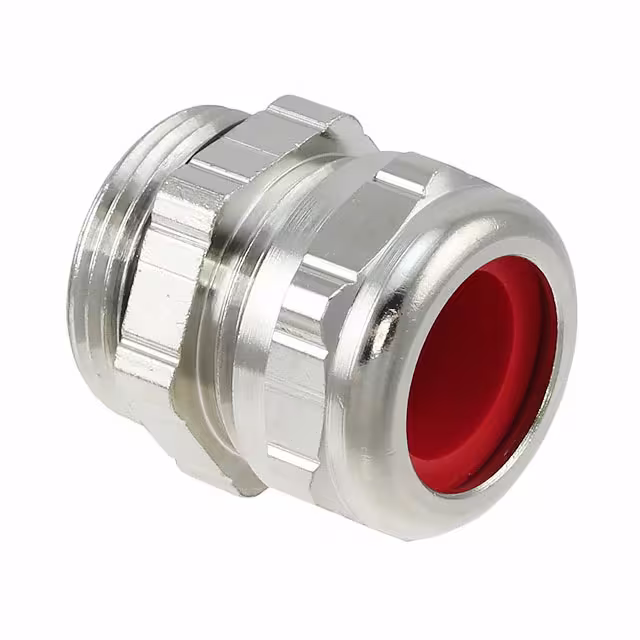

09620005006CABLE GLAND 9-13MM PG16 METAL |
8 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | PG16 | - | - | - | Metal | Compression Nut | Silver | IP68 - Dust Tight, Waterproof | - | |
|
09620005024CABLE GLAND 6.5-8.5MM PG11 METAL |
8 |
|
Технический лист |
Cable Gland | 0.256" (6.50mm) | 0.335" (8.50mm) | PG11 | - | - | - | Metal | Compression Nut | Silver | IP68 - Dust Tight, Waterproof | - | |
|
21670.6CABLE GLAND 23.88-27.94MM PG36 |
10 |
|
Технический лист |
Cable Gland | 0.940" (23.88mm) | 1.100" (27.94mm) | PG36 | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21688.6CABLE GLAND 13.97-18.03MM PG21 |
22 |
|
Технический лист |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21689.6CABLE GLAND 17.02-20.57MM PG21 |
17 |
|
Технический лист |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

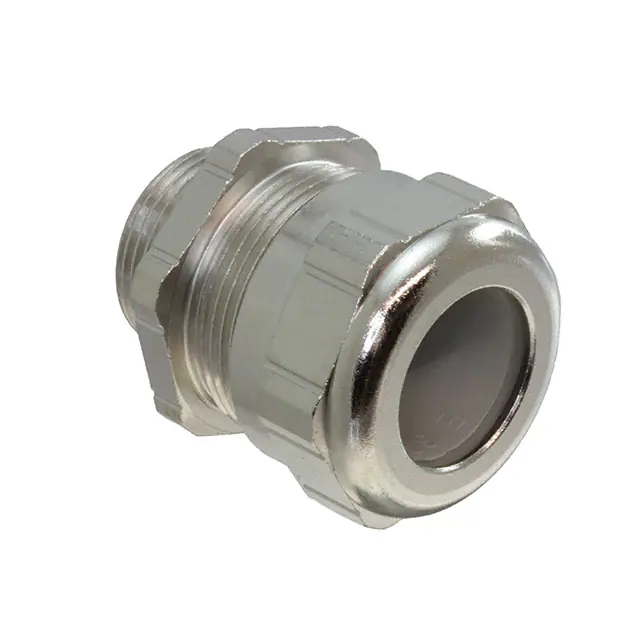

21628.6CABLE GLAND 17.02-20.07MM M25 |
21 |
|
Технический лист |
Cable Gland | 0.670" (17.02mm) | 0.790" (20.07mm) | M25x1.5 | 0.430" (10.92mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
EM-SGL-PG29-MET-CCABLE GLND 18.01-25MM PG29 BRASS |
15 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Locknut, Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EM-SGL-M40-MET-GCABLE GLAND 19-28MM M40 BRASS |
13 |
|
Технический лист |
Cable Gland | 0.748" (19.00mm) | 1.102" (28.00mm) | M40x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | Locknut, Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
AIO-CSJM50CABLE GLAND 32-38MM M50 BRASS |
45 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.496" (38.00mm) | M50x1.5 | 0.433" (11.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1300980159CABLE GRP RA 19.05-22.23MM 1"NPT |
0 |
|
Технический лист |
Cable Grip - 90° | 0.750" (19.05mm) | 0.875" (22.23mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|

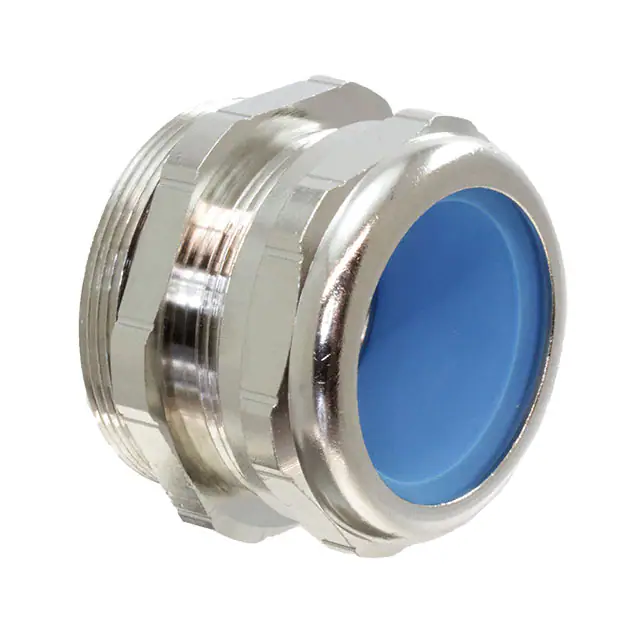

97162.6CABLE GLAND 28.96-34.04MM M50 |
7 |
|
Технический лист |
Cable Gland | 1.140" (28.96mm) | 1.340" (34.04mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

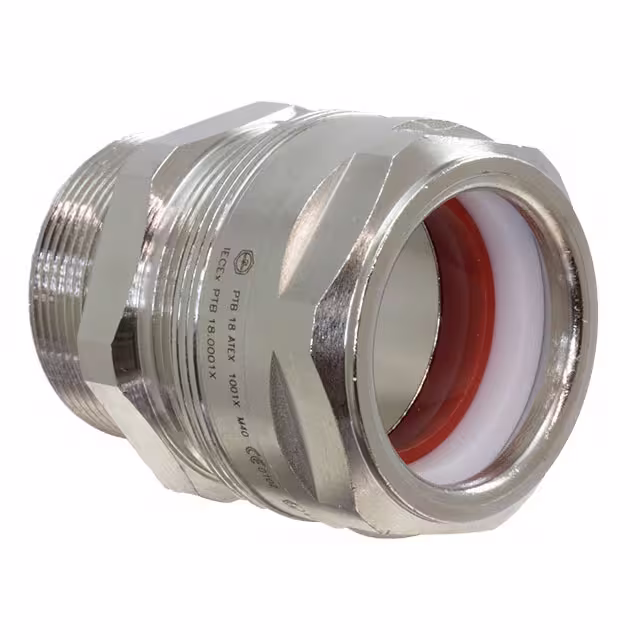

LEX240MSHTSCABLE GLAND 25.91-34.04MM M40 |
3 |
|
Технический лист |
Cable Gland | 1.020" (25.91mm) | 1.340" (34.04mm) | M40x1.5 | 0.630" (16.00mm) | - | 1.575" (40.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
|
09620005008CABLE GLND 14-18.01MM PG21 METAL |
10 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.709" (18.01mm) | PG21 | - | - | - | Metal | Compression Nut | Silver | IP68 - Dust Tight, Waterproof | - | |
|
LEX3038VA/316LHTSCABLE GLND 7.11-10.92MM 3/8" NPT |
5 |
|
Технический лист |
Cable Gland | 0.280" (7.11mm) | 0.430" (10.92mm) | 3/8" NPT | 0.630" (16.00mm) | - | 0.472" (12.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C |
