Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

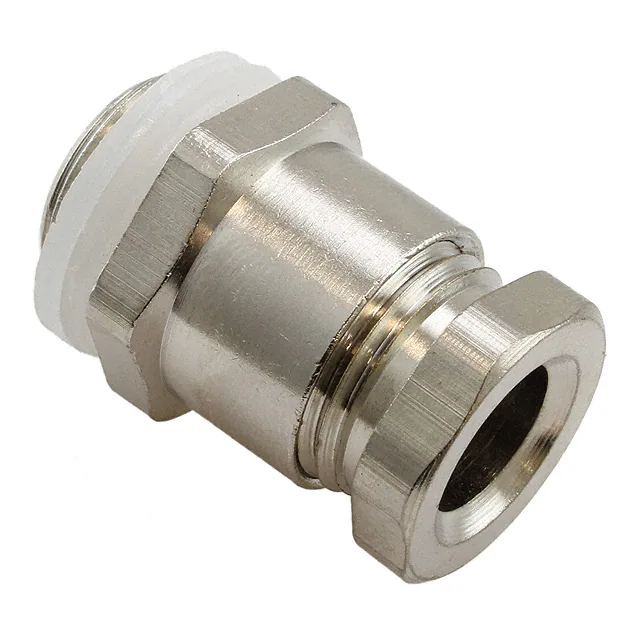

13050200CABLE GLAND 6-8MM PG9 BRASS |
31 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | PG9 | - | - | - | Brass | - | Silver | IP65 - Dust Tight, Water Resistant | -20°C ~ 100°C | |
|
EP-SGL-PG16-GR-BCABLE GLAND 10-14MM PG16 |
89 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EP-SGL-PG16-BL-BCABLE GLAND 10-14MM PG16 |
31 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
CGM25N63CABLE GLAND 10-16MM M25 THERMOPL |
68 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.630" (16.00mm) | M25x1.5 | 0.590" (14.99mm) | - | - | Thermoplastic | O-Ring, Seal | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
53112927CABLE GLAND 3.52-5MM M12 |
40 |
|
Технический лист |
Cable Gland | 0.139" (3.52mm) | 0.197" (5.00mm) | M12 | 0.484" (12.29mm) | - | 0.484" (12.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
EP-SGL-NPT12-GR-BCABLE GLAND 6-12MM 1/2" NPT |
69 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
12002306CABLE GLAND 10-14MM M20 POLYAMID |
29 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Strain Relief | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
96572.0CABLE FEEDTHROUGH 8.89-13.97MM |
27 |
|
Технический лист |
Cable Feedthrough | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
|
EP-SGL-NPT12-GR-DCABLE GLAND 10-14MM 1/2" NPT |
80 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EP-SGL-NPT34-GR-BCABLE GLAND 13-18.01MM 3/4" NPT |
68 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EP-SGL-M25-GR-GCABLE GLAND 13-18.01MM M25 |
31 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
MPG11 NC080CABLE GLAND 5-10MM PG11 BRASS |
78 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.236" (6.00mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
EP-SGL-PG21-BL-BCABLE GLAND 13-18.01MM PG21 |
28 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
96573.1CABLE FEEDTHROUGH 16-20.07MM M25 |
50 |
|
Технический лист |
Cable Feedthrough | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
12002401CABLE GLAND 13-18.01MM M25 |
60 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Strain Relief | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EM-SGL-M25-MET-ECABLE GLAND 10-14MM M25 BRASS |
46 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Locknut, Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
53112879CABLE GLAND 4-7MM M16 POLYAMIDE |
82 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.276" (7.00mm) | M16 | 0.642" (16.31mm) | - | 0.642" (16.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
96574.0CABLE FEED 20.07-24.89MM M32 |
94 |
|
- |
Cable Feedthrough | 0.790" (20.07mm) | 0.980" (24.89mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
96574.1CABLE FEED 20.07-24.89MM M32 |
51 |
|
Технический лист |
Cable Feedthrough | 0.790" (20.07mm) | 0.980" (24.89mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
|
EM-SGL-PG9-MET-CCABLE GLAND 4-8MM PG9 BRASS |
46 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | Locknut, Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C |
