Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2148CABLE GLAND 39-44MM PG48 |
16 |
|
Технический лист |
Cable Gland | 1.535" (39.00mm) | 1.732" (44.00mm) | PG48 | 0.551" (14.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
MNPT1 NC080CABLE GLAND 18.01-25MM 1" NPT |
61 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | 1" NPT | 0.512" (13.00mm) | - | 1.315" (33.4mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
S1542CABLE GLAND 34-45MM M63 POLYAMID |
62 |
|
Технический лист |
Cable Gland | 1.339" (34.00mm) | 1.772" (45.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
96570.7CABLE FEEDTHR 5.08-7.62MM M12 |
43 |
|
Технический лист |
Cable Feedthrough | 0.200" (5.08mm) | 0.300" (7.62mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
BG212VA5CPCABLE GLAND 3.5-5MM M12 S STEEL |
11 |
|
Технический лист |
Cable Gland | 0.138" (3.50mm) | 0.197" (5.00mm) | M12x1.5 | 0.276" (7.00mm) | - | 0.472" (12.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
50.663 M/EMVCABLE GLAND 32-42MM M63 BRASS |
12 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50.663 M1/EMVCABLE GLAND 38-48MM M63 BRASS |
4 |
|
Технический лист |
Cable Gland | 1.496" (38.00mm) | 1.890" (48.00mm) | M63x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50.663M1/EMV/LCABLE GLAND 38-48MM M63 BRASS |
4 |
|
Технический лист |
Cable Gland | 1.496" (38.00mm) | 1.890" (48.00mm) | M63x1.5 | 0.551" (14.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S2642CABLE GLAND 28-39MM M63 POLYAMID |
5 |
|
Технический лист |
Cable Gland | 1.102" (28.00mm) | 1.535" (39.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

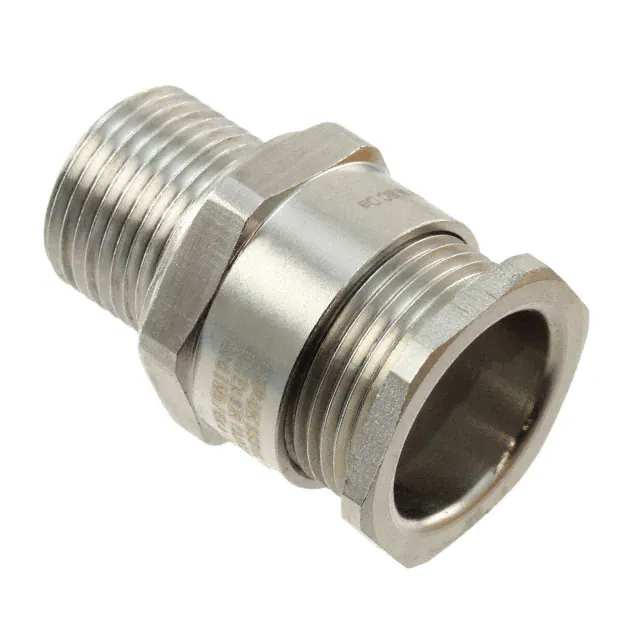

1411076CABLE GLAND 6.5-14MM M20 S STEEL |
13 |
|
Технический лист |
Cable Gland | 0.256" (6.50mm) | 0.551" (14.00mm) | M20 | 0.591" (15.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
BG210VACPCABLE GLAND 5-7MM M10 S STEEL |
7 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.276" (7.00mm) | M10x1 | 0.236" (6.00mm) | - | 0.394" (10.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
19000005099CABLE GLAND 20-32MM M40 BRASS |
3 |
|
Технический лист |
Cable Gland | 0.787" (20.00mm) | 1.260" (32.00mm) | M40 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

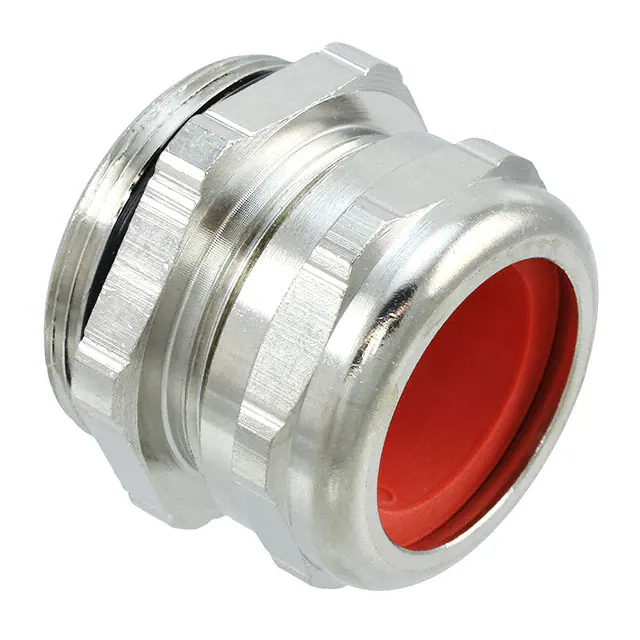

19620005098CABLE GLAND 20-25MM M40 |
2 |
|
Технический лист |
Cable Gland | 0.787" (20.00mm) | 0.984" (25.00mm) | M40 | - | - | - | - | - | - | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
K151-1063-00CABLE GLAND 40-53MM M63 BRASS |
5 |
|
Технический лист |
Cable Gland | 1.575" (40.00mm) | 2.087" (53.00mm) | M63x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | Contact Spring, O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
K151-1050-00CABLE GLAND 31-42MM M50 BRASS |
12 |
|
Технический лист |
Cable Gland | 1.220" (31.00mm) | 1.654" (42.00mm) | M50x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | Contact Spring, O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
50.663M/EMV/LCABLE GLAND 32-42MM M63 BRASS |
2 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.551" (14.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

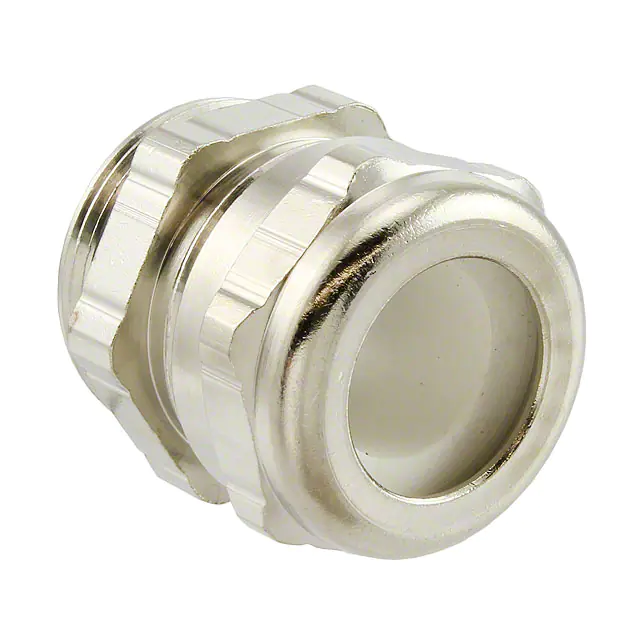

09620005007CABLE GLAND 11.5-15.5MM PG21 MET |
11 |
|
Технический лист |
Cable Gland | 0.453" (11.50mm) | 0.610" (15.50mm) | PG21 | - | - | - | Metal | Compression Nut | Silver | IP68 - Dust Tight, Waterproof | - | |
|
09000005098CABLE GLAND 29-34MM PG36 METAL |
7 |
|
Технический лист |
Cable Gland | 1.142" (29.00mm) | 1.339" (34.00mm) | PG36 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|

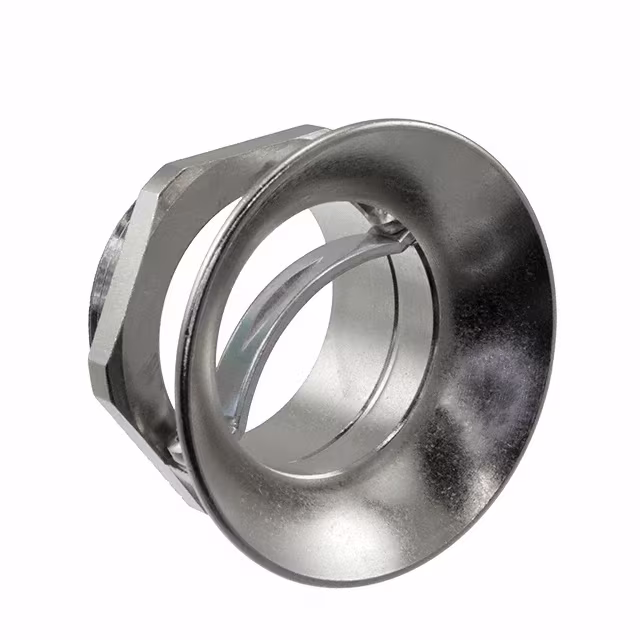

09370005106CABLE GLAND 29.97MM PG29 METAL |
4 |
|
Технический лист |
Cable Gland | - | 1.180" (29.97mm) | PG29 | - | - | - | Metal | - | Silver | - | - | |
|

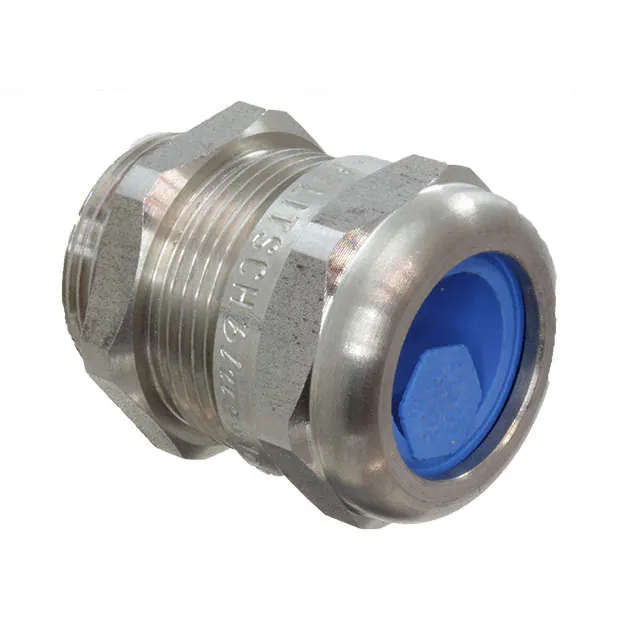

96573.7CABLE FEEDTHROUGH 16-20.07MM M25 |
3 |
|
Технический лист |
Cable Feedthrough | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C |
