Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1SNG626138R0000CABLE GLAND 12-20MM 1" NPT |
87 |
|
Технический лист |
Cable Gland | 0.472" (12.00mm) | 0.787" (20.00mm) | 1" NPT | 0.709" (18.01mm) | - | - | Polyamide (PA6), Nylon 6 | Locknut, Seal | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
CGM20N63CABLE GLAND 8-16MM M20 THERMOPL |
61 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.630" (16.00mm) | M20x1.5 | 0.390" (9.91mm) | - | - | Thermoplastic | O-Ring, Seal | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
NG-9516CABLE GLAND 13-16.99MM PG21 |
60 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.669" (16.99mm) | PG21 | 0.425" (10.80mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Gasket, Nut, Seal | Black | - | -40°C ~ 105°C | |
|
50.632 PA/RSWCABLE GLAND 12-21MM M32 POLYAMID |
27 |
|
Технический лист |
Cable Gland | 0.472" (12.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

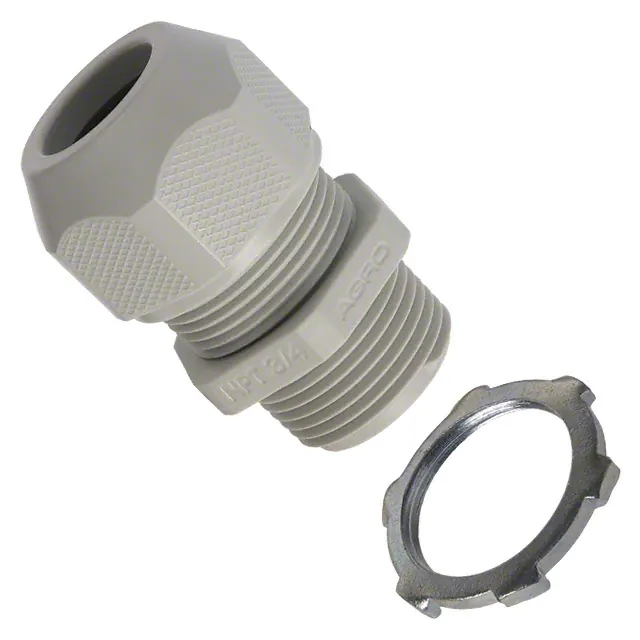

A1555.N0750.18CABLE GLAND 11-18.01MM 3/4" NPT |
59 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
21.720PA7035CABLE GLAND RA 7-12MM M20 |
74 |
|
Технический лист |
Cable Gland - 90° | 0.276" (7.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP55 - Dust Protected, Water Resistant | -20°C ~ 100°C | |
|
S1221CABLE GLAND 9-16MM PG21 POLYAMID |
70 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.630" (16.00mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
21.725PA7035CABLE GLAND RA 8.5-15MM M25 |
60 |
|
Технический лист |
Cable Gland - 90° | 0.335" (8.50mm) | 0.591" (15.00mm) | M25x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP55 - Dust Protected, Water Resistant | -20°C ~ 100°C | |
|
50.616 MCABLE GLAND 5-9MM M16 BRASS |
50 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16x1.5 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.616M/EMV/LCABLE GLAND 5-9MM M16 BRASS |
42 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
A1100.06.030CABLE GLAND 2.5-3MM M6 BRASS |
57 |
|
Технический лист |
Cable Gland | 0.098" (2.50mm) | 0.118" (3.00mm) | M06x1 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
19000005180CABLE GLAND 5-9MM M20 POLYAMIDE |
77 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M20 | - | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

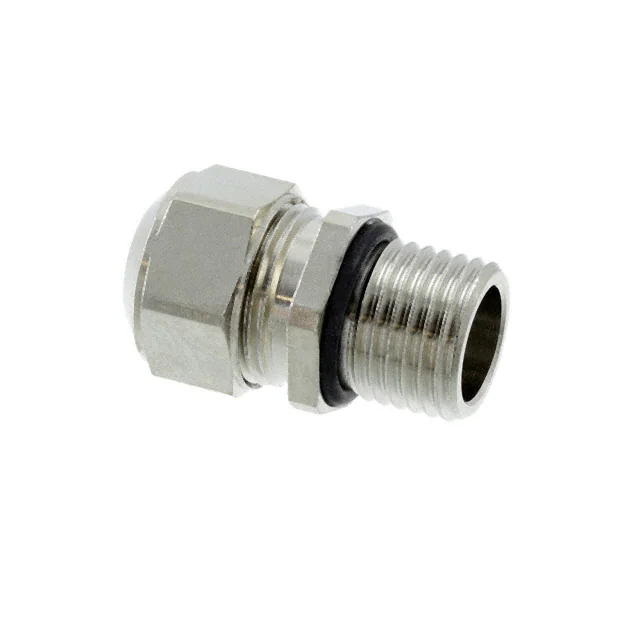

A1100.07.080CABLE GLAND 6.5-8MM PG7 BRASS |
80 |
|
Технический лист |
Cable Gland | 0.256" (6.50mm) | 0.315" (8.00mm) | PG7 | 0.394" (10.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
52015770CABLE GLAND 1.98-5MM PG7 BRASS |
100 |
|
Технический лист |
Cable Gland | 0.078" (1.98mm) | 0.197" (5.00mm) | PG7 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
5308 923CABLE GLAND 14-25MM 1" NPT |
85 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.311" (33.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

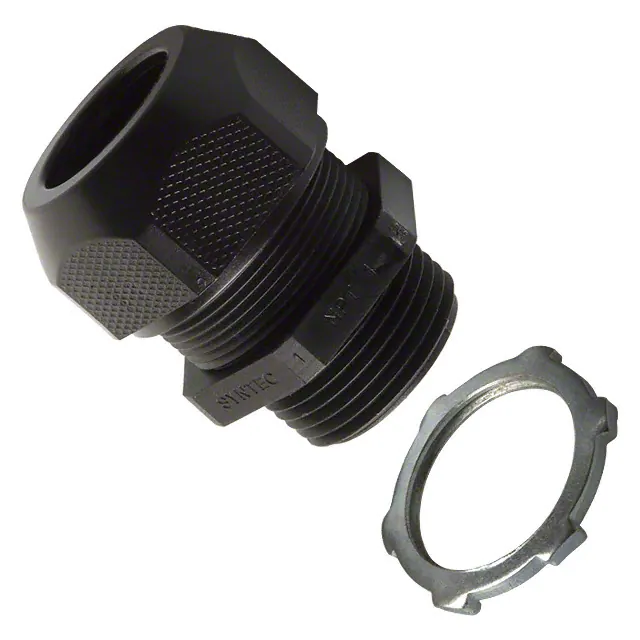

A1545.N1000.22CABLE GLAND 17-22MM 1" NPT |
66 |
|
Технический лист |
Cable Gland | 0.669" (17.00mm) | 0.866" (22.00mm) | 1" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Black | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
PNC3/4 SL080CABLE GLAND 13-18.01MM 3/4" NPT |
90 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
PXA980CABLE GLAND 14-20MM SILICONE |
40 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.787" (20.00mm) | - | - | - | - | Silicone | - | Multiple | IP68 - Dust Tight, Waterproof | - | |
|
A1555.N1000.22CABLE GLAND 17-22MM 1" NPT |
48 |
|
Технический лист |
Cable Gland | 0.669" (17.00mm) | 0.866" (22.00mm) | 1" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|

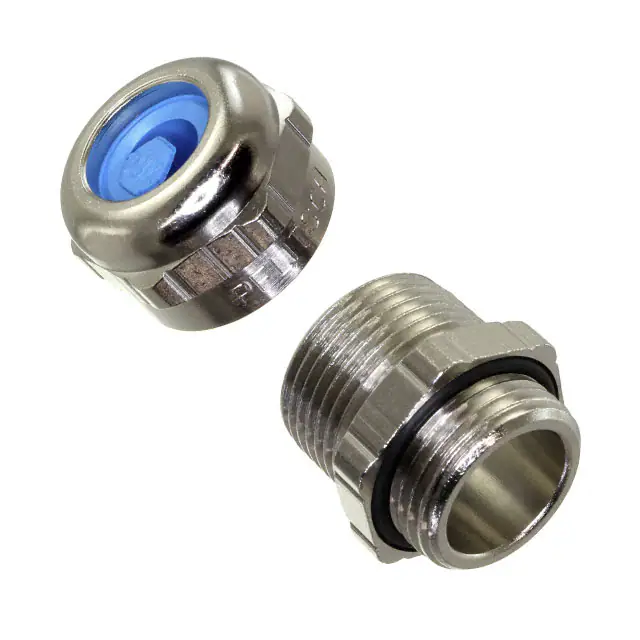

96572.6CABLE FEEDTHROUGH 8.89-13.97MM |
50 |
|
Технический лист |
Cable Feedthrough | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
