Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4760CABLE GRIP 5.84-10.03MM PG11 |
1,068 |
|
Технический лист |
Cable Grip | 0.230" (5.84mm) | 0.395" (10.03mm) | PG11 | 0.390" (9.91mm) | - | 0.732" (18.6mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
3229CABLE GRIP 2.92-7.93MM 3/8" NPT |
1,673 |
|
Технический лист |
Cable Grip | 0.115" (2.92mm) | 0.312" (7.93mm) | 3/8" NPT | 0.530" (13.46mm) | - | 0.669" (17.0mm) | Polyamide (PA66), Nylon 6/6 | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
S1607CABLE GLAND 2-5MM M12 POLYAMIDE |
547 |
|
Технический лист |
Cable Gland | 0.079" (2.00mm) | 0.197" (5.00mm) | M12x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
M3207GBACABLE GRIP PG7 POLYAMIDE |
444 |
|
Технический лист |
Cable Grip, Multi-Hole | - | - | PG7 | 0.320" (8.13mm) | - | 0.059" (1.5mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
M4360GBHCABLE GRIP M20 POLYAMIDE |
361 |
|
Технический лист |
Cable Grip, Multi-Hole | - | - | M20 | - | - | 0.787" (20.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
4792CABLE GRIP 5.84-13.87MM PG16 |
354 |
|
Технический лист |
Cable Grip | 0.230" (5.84mm) | 0.546" (13.87mm) | PG16 | 0.450" (11.43mm) | - | 0.886" (22.5mm) | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
1909800000CABLE GLAND 10-14MM PG16 |
149 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
|
M4380CABLE GRIP 14.99-25.4MM M32 |
498 |
|
Технический лист |
Cable Grip | 0.590" (14.99mm) | 1.000" (25.40mm) | M32 | 0.570" (14.48mm) | - | 1.260" (32.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
96569.6CABLE GLAND SPLIT M50 BRASS |
288 |
|
Технический лист |
Cable Gland - Split | - | - | M50x1.5 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | - | - | |
|
M4524GBM-SMCABLE GRIP 1 1/4" NPT POLYAMIDE |
109 |
|
Технический лист |
Cable Grip, Multi-Hole | - | - | 1 1/4" NPT | 0.780" (19.81mm) | - | 1.680" (42.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
96575.0CABLE FEEDTHROUGH 25.91-32MM M40 |
146 |
|
Технический лист |
Cable Feedthrough | 1.020" (25.91mm) | 1.260" (32.00mm) | M40x1.5 | 0.310" (7.87mm) | - | 1.570" (39.9mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|

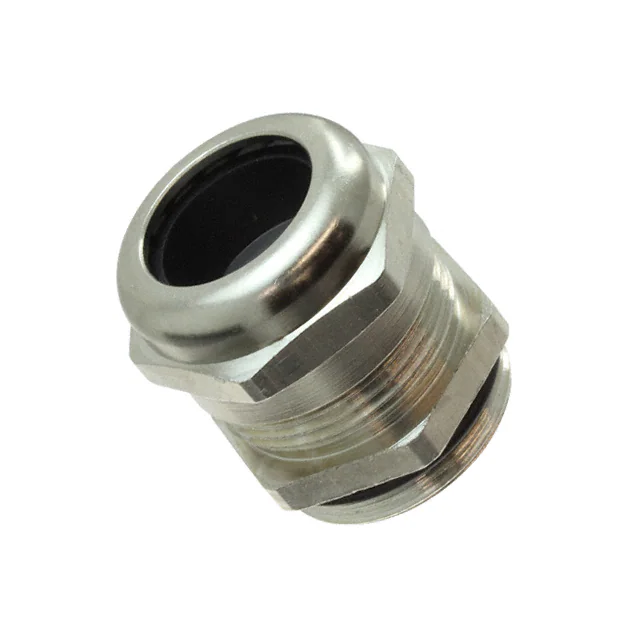

4264120CABLE GLAND 7-10.5MM M20 BRASS |
531 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.413" (10.50mm) | M20x1.5 | 0.276" (7.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|

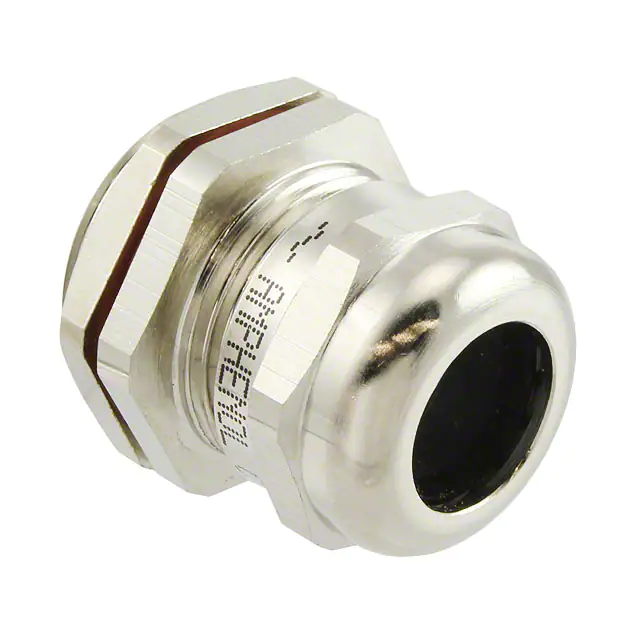

AIO-CSJM24CABLE GLAND 10-14MM M24 BRASS |
135 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M24x1.5 | 0.315" (8.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

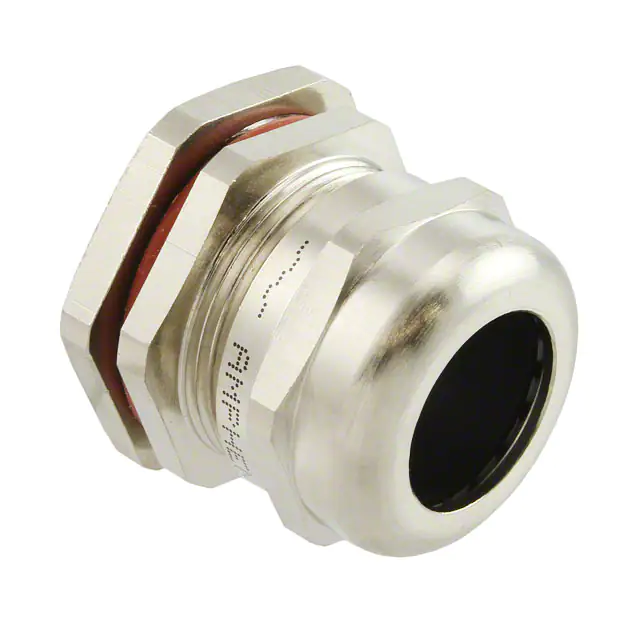

AIO-CSJM30CABLE GLAND 13-18.01MM M30 BRASS |
477 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M30x2 | 0.315" (8.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
AIO-CSPG42CABLE GLAND 32-38MM PG42 |
145 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.496" (38.00mm) | PG42 | 0.551" (14.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black, Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
96570.7/15CABLE FEEDTHR 5.08-7.62MM M12 |
50 |
|
Технический лист |
Cable Feedthrough | 0.200" (5.08mm) | 0.300" (7.62mm) | M12x1.5 | - | - | 0.470" (11.9mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
53806752CABLE GLAND 7-13MM M25 S STEEL |
26 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Stainless Steel | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 2, 4X, 6, 12 | -40°C ~ 100°C | |
|
84181256CABLE GLAND 11-16.99MM M25 |
67 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|
|
1SNG601035R0000CABLE GLAND 4-8MM M16 POLYAMIDE |
1,550 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
1SNG601056R0000CABLE GLAND 6-12MM M20 POLYAMIDE |
1,218 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C |
