Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPG16 NC080CABLE GLAND 10-14MM PG16 BRASS |
299 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.256" (6.50mm) | - | 0.886" (22.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
RT0L-10CG-NS1CABLE GRIP 3-5MM 9/16-24 ZINC |
304 |
|
Технический лист |
Cable Grip | 0.118" (3.00mm) | 0.197" (5.00mm) | 9/16-24 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
53112004CABLE GLAND 3.48-7MM 1/4" NPT |
325 |
|
Технический лист |
Cable Gland | 0.137" (3.48mm) | 0.276" (7.00mm) | 1/4" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
AIO-CSPG36CABLE GLAND 22-32MM PG36 |
193 |
|
Технический лист |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | PG36 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black, Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
53112240CABLE GLAND 8-14MM PG16 BRASS |
1,758 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.551" (14.00mm) | PG16 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
53112130CABLE GLAND 6-13MM M25 BRASS |
158 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
98324.6CABLE GLND 6-13MM 1/2" NPT BRASS |
107 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | 1/2" NPT | 0.630" (16.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
K151-1032-00CABLE GLAND 17-25.5MM M32 BRASS |
147 |
|
Технический лист |
Cable Gland | 0.669" (17.00mm) | 1.004" (25.50mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | Contact Spring, O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
RT0S-16CG-NS2CABLE GRIP 13.5-16.99MM 15/16-20 |
261 |
|
Технический лист |
Cable Grip | 0.531" (13.50mm) | 0.669" (16.99mm) | 15/16-20 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
|
RT0L-16CG-NS2CABLE GRIP 13.5-16.99MM 15/16-20 |
289 |
|
Технический лист |
Cable Grip | 0.531" (13.50mm) | 0.669" (16.99mm) | 15/16-20 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|

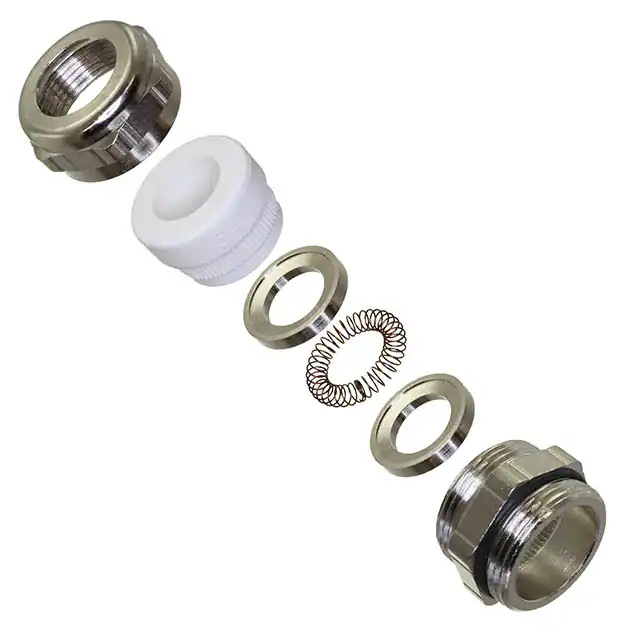

18633.6CABLE GLAND 11.43-15.5MM PG21 |
156 |
|
Технический лист |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
21783.6CABLE GLAND 6.86-10.41MM 1/2" |
157 |
|
Технический лист |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | 1/2" NPT | 0.630" (16.00mm) | - | 0.840" (21.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
RT0B-14CG-NS1CABLE GRP RA 6-10.5MM 13/16-20 |
266 |
|
Технический лист |
Cable Grip - 90° | 0.236" (6.00mm) | 0.413" (10.50mm) | 13/16-20 | - | - | - | Aluminum Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
|
RT0B-12CG-NS1CABLE GRP RA 6.5-10MM 11/16-24 |
276 |
|
Технический лист |
Cable Grip - 90° | 0.256" (6.50mm) | 0.394" (10.00mm) | 11/16-24 | - | - | - | Aluminum Alloy, Nickel Plated | O-Ring | Silver | - | - | |
|
|
K151-1040-00CABLE GLAND 24-33MM M40 BRASS |
125 |
|
Технический лист |
Cable Gland | 0.945" (24.00mm) | 1.299" (33.00mm) | M40x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | Contact Spring, O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
S2248CABLE GLAND 26-35MM PG48 |
304 |
|
Технический лист |
Cable Gland | 1.024" (26.00mm) | 1.378" (35.00mm) | PG48 | 0.551" (14.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
84181252CABLE GLAND 4-8MM M16 POLYAMIDE |
225 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|
53806751CABLE GLAND 6-10MM M20 S STEEL |
32 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.394" (10.00mm) | M20x1.5 | 0.315" (8.00mm) | - | - | Stainless Steel | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
84181250CABLE GLAND 3-6.5MM M12 POLYAMID |
96 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | 0.236" (6.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|
53105100CABLE GLAND 4.01-6MM M12 S STEEL |
37 |
|
Технический лист |
Cable Gland | 0.158" (4.01mm) | 0.236" (6.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Stainless Steel | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 2, 4, 6, 12 | -20°C ~ 100°C |
