Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMS16 BK080CABLE GLAND 5-10MM M16 POLYAMIDE |
1,351 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
M4504CABLE GRIP 12.45-19.94MM PG29 |
140 |
|
Технический лист |
Cable Grip | 0.490" (12.45mm) | 0.785" (19.94mm) | PG29 | 0.570" (14.48mm) | - | 1.469" (37.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
53112882CABLE GLAND 5-10MM M16 POLYAMIDE |
847 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16 | 0.315" (8.00mm) | - | 0.642" (16.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.620 M/RCABLE GLAND 5-13MM M20 BRASS |
104 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
A1100.10.060CABLE GLAND 4-6MM M10 BRASS |
303 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.236" (6.00mm) | M10x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
CG-P-36CABLE GLAND 23-32MM PG36 |
137 |
|
Технический лист |
Cable Gland | 0.906" (23.00mm) | 1.260" (32.00mm) | PG36 | 0.591" (15.00mm) | - | 1.850" (47.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
53112885CABLE GLAND 4-7MM M16 POLYAMIDE |
2,884 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.276" (7.00mm) | M16 | 0.642" (16.31mm) | - | 0.642" (16.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
K345-1025-00CABLE GLAND 3-8MM M25 POLYAMIDE |
155 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP65 - Dust Tight, Water Resistant | -40°C ~ 70°C | |
|
50.616 M/EMVCABLE GLAND 5-9MM M16 BRASS |
202 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16x1.5 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
A1100.12.080CABLE GLAND 6.5-8MM M12 BRASS |
238 |
|
Технический лист |
Cable Gland | 0.256" (6.50mm) | 0.315" (8.00mm) | M12x1.5 | 0.394" (10.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
1411165CABLE GLAND 11-16.99MM M25 BRASS |
323 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
|
M8437GBHCABLE GRIP 6.35-8.48MM 1" NPT |
121 |
|
Технический лист |
Cable Grip - Split | 0.250" (6.35mm) | 0.334" (8.48mm) | 1" NPT | 0.760" (19.30mm) | - | 1.327" (33.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
50.009CABLE GLAND 4-8MM PG9 BRASS |
225 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
A1100.06.025CABLE GLAND 2-2.5MM M6 BRASS |
2,141 |
|
Технический лист |
Cable Gland | 0.079" (2.00mm) | 0.098" (2.50mm) | M06x1 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
4220616CABLE GLAND 4-9.5MM M16 BRASS |
151 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.374" (9.50mm) | M16x1.5 | 0.197" (5.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
19000005184CABLE GLAND 10-14MM M20 POLYAMID |
131 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20 | - | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

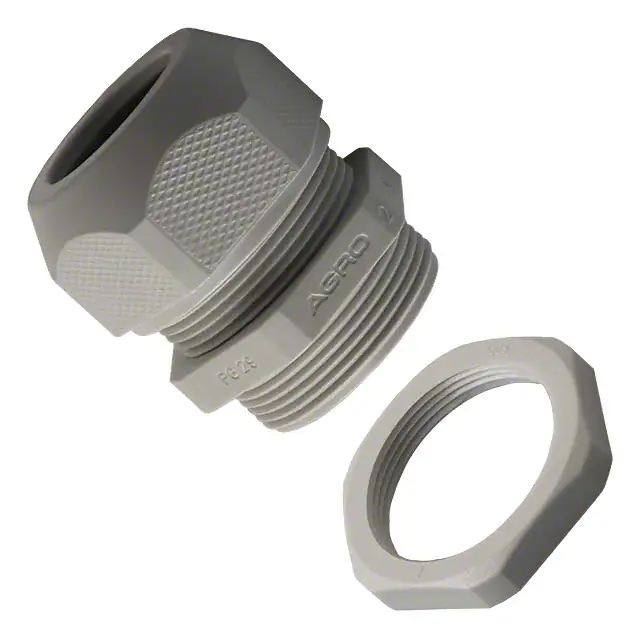

A1555.29.25CABLE GLAND 17-25MM PG29 |
983 |
|
Технический лист |
Cable Gland | 0.669" (17.00mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | 1.457" (37.0mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|

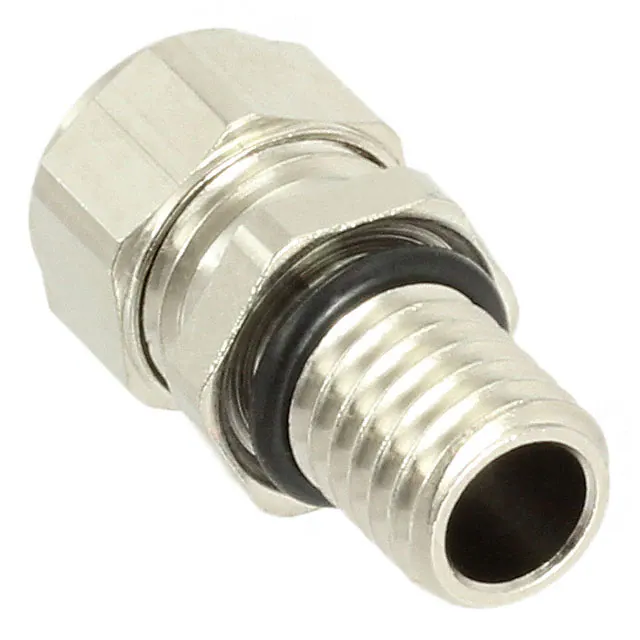

A1100.08.050CABLE GLAND 3.5-5MM M8 BRASS |
222 |
|
Технический лист |
Cable Gland | 0.138" (3.50mm) | 0.197" (5.00mm) | M8x1.25 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
S2616CABLE GLAND 5-13MM M25 POLYAMIDE |
190 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.512" (13.00mm) | M25x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

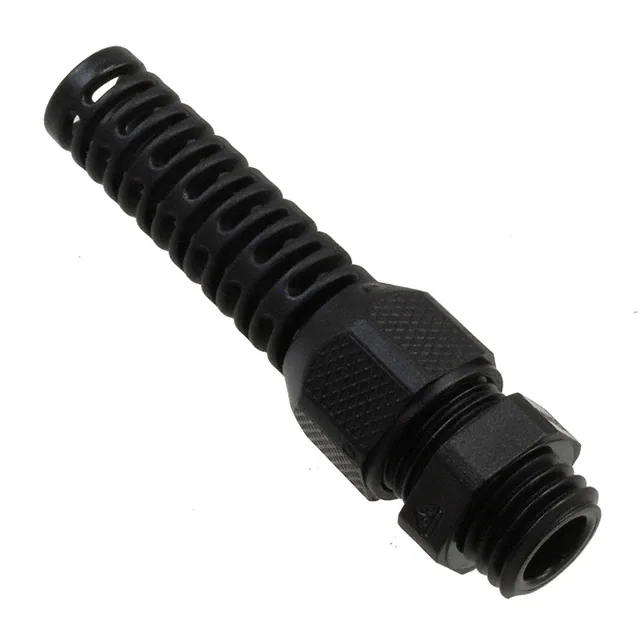

5306130CABLE GLAND 2.5-6.5MM M12 |
354 |
|
Технический лист |
Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | M12x1.5 | 0.236" (6.00mm) | - | 0.472" (12.0mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C |
