Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.007CABLE GLAND 3-6.5MM PG7 BRASS |
201 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | PG7 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5306107CABLE GLAND 2.5-6.5MM PG7 |
162 |
|
Технический лист |
Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|

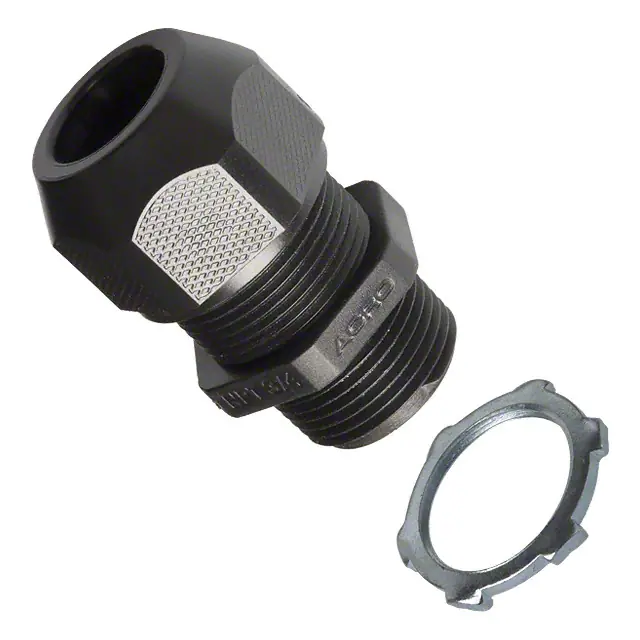

A1545.N0750.14CABLE GLAND 6.5-14MM 3/4" NPT |
144 |
|
Технический лист |
Cable Gland | 0.256" (6.50mm) | 0.551" (14.00mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Black | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
PMS12 BK080CABLE GLAND 3-6.5MM M12 POLYAMID |
129 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.315" (8.00mm) | - | 0.472" (12.0mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
M8439CABLE GRIP 12.45-19.94MM 1" NPT |
1,803 |
|
Технический лист |
Cable Grip | 0.490" (12.45mm) | 0.785" (19.94mm) | 1" NPT | 0.760" (19.30mm) | - | 1.327" (33.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
S1121CABLE GLAND 13-18.01MM PG21 |
1,045 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
S1134CABLE GLAND 13-18.01MM 3/4" NPT |
214 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
21.716PA7035CABLE GLAND RA 5-9MM M16 |
203 |
|
Технический лист |
Cable Gland - 90° | 0.197" (5.00mm) | 0.354" (9.00mm) | M16x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP55 - Dust Protected, Water Resistant | -20°C ~ 100°C | |
|
50.616 M-LCABLE GLAND 5-9MM M16 BRASS |
115 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
3225CABLE GRIP 14.99-25.15MM PG29 |
248 |
|
Технический лист |
Cable Grip | 0.590" (14.99mm) | 0.990" (25.15mm) | PG29 | 0.590" (14.99mm) | - | 1.469" (37.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
M3234GDA-SMCABLE GRIP POLYAMIDE |
192 |
|
Технический лист |
Cable Grip, Multi-Hole | - | - | - | 0.610" (15.49mm) | - | 1.040" (26.4mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
19000005182CABLE GLAND 6-12MM M20 POLYAMIDE |
135 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20 | - | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
M3234GBR-SMCABLE GRIP 3/4" NPT POLYAMIDE |
216 |
|
Технический лист |
Cable Grip, Multi-Hole | - | - | 3/4" NPT | 0.620" (15.75mm) | - | 1.040" (26.4mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
50.612M/EMV/LCABLE GLAND 3-6MM M12 BRASS |
301 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.236" (6.00mm) | M12x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S2234CABLE GLAND 9-16MM 3/4" NPT |
251 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.630" (16.00mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
50.612 MCABLE GLAND 3-6MM M12 BRASS |
125 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.236" (6.00mm) | M12x1.5 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
S2134CABLE GLAND 13-18.01MM 3/4" NPT |
537 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
M3225CABLE GRIP 14.99-25.4MM PG29 |
714 |
|
Технический лист |
Cable Grip | 0.590" (14.99mm) | 1.000" (25.40mm) | PG29 | 0.570" (14.48mm) | - | 1.469" (37.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
PNC1/2W SL080CABLE GLAND 10-14MM 1/2" NPT |
305 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | 0.840" (21.3mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|

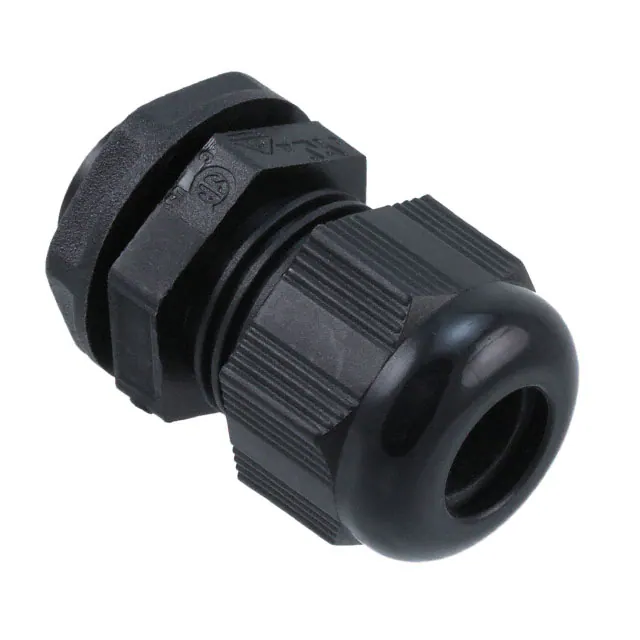

1478769-2CABLE GLAND 5-10MM POLYAMIDE |
842 |
|
- |
Cable Gland, Anti-Vibration | 0.197" (5.00mm) | 0.394" (10.00mm) | - | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | Locknut | Black | IP68 - Dust Tight, Waterproof | - |
