Автомобильные реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A21CSQ48VDC1.6RRELAY AUTOMOTIVE SPDT 40A 48V |
395 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

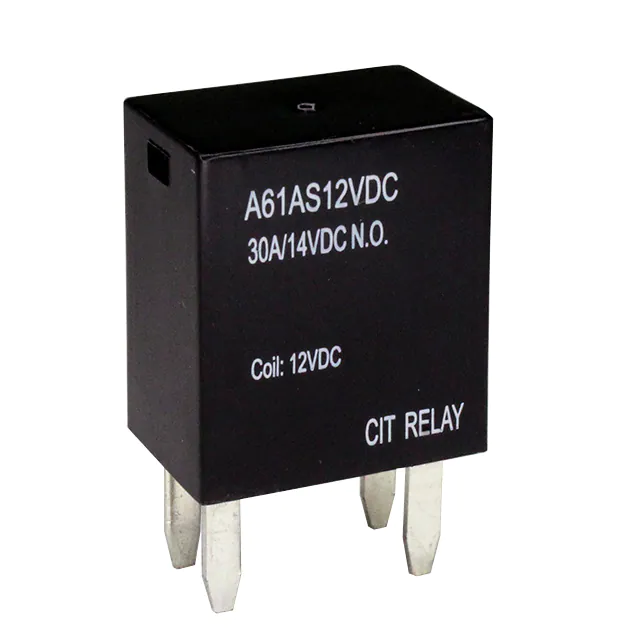

A61AS12VDC.9RRELAY AUTOMOTIVE SPST 30A 12V |
218 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS12VDC1.3DRELAY AUTOMOTIVE SPST 30A 12V |
212 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2F1CSQ24VDC1.9RRELAY AUTOMOTIVE SPDT 40A 24V |
107 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

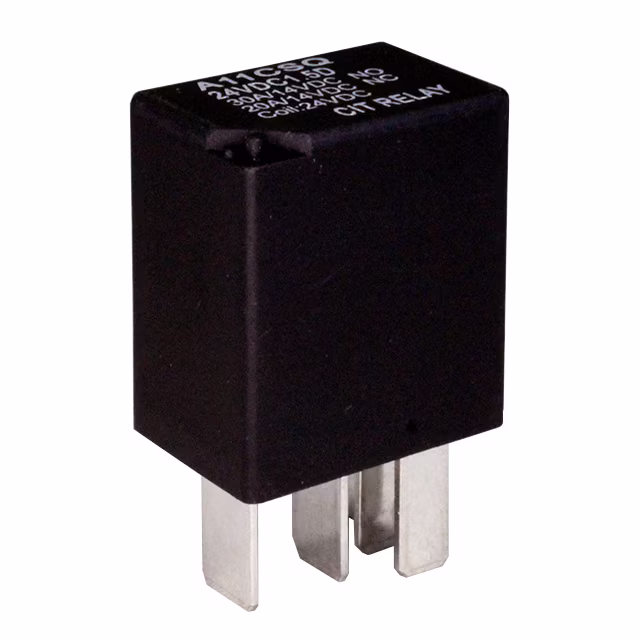

A11CSQ24VDC1.5DRELAY AUTOMOTIVE SPDT 30A 24V |
824 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

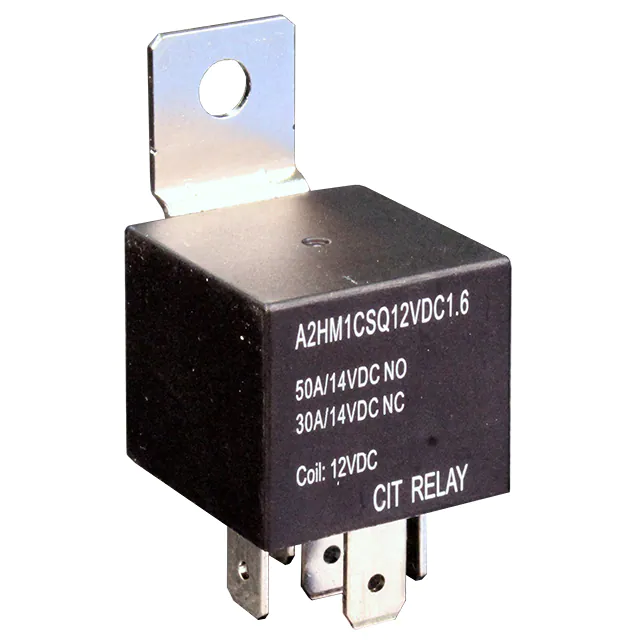

A2HM1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 50A 12V |
419 |
|
Технический лист |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

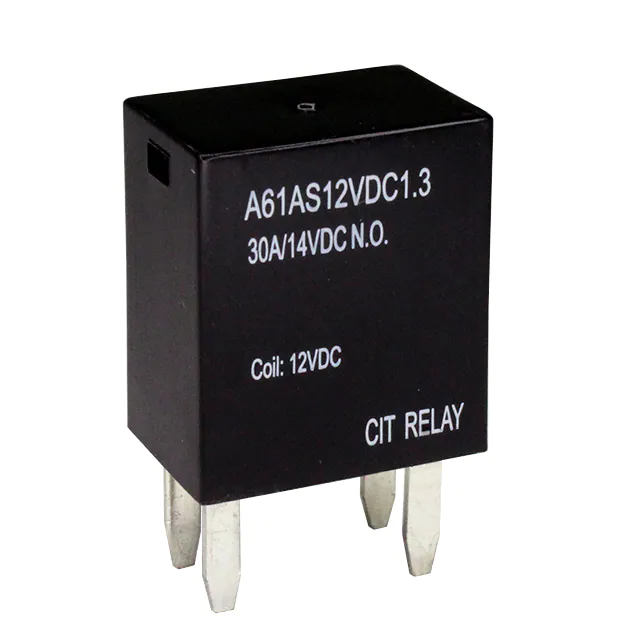

A61AS12VDC1.3RRELAY AUTOMOTIVE SPST 30A 12V |
500 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS24VDC1.3RELAY AUTOMOTIVE SPST 30A 24V |
240 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A171AHS24VDC.96DRELAY AUTOMOTIVE SPST 30A 24V |
254 |
|
Технический лист |
A17 | Tray | Active | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS24VDC.9RRELAY AUTOMOTIVE SPST 30A 24V |
250 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS24VDC.9DRELAY AUTOMOTIVE SPST 30A 24V |
230 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

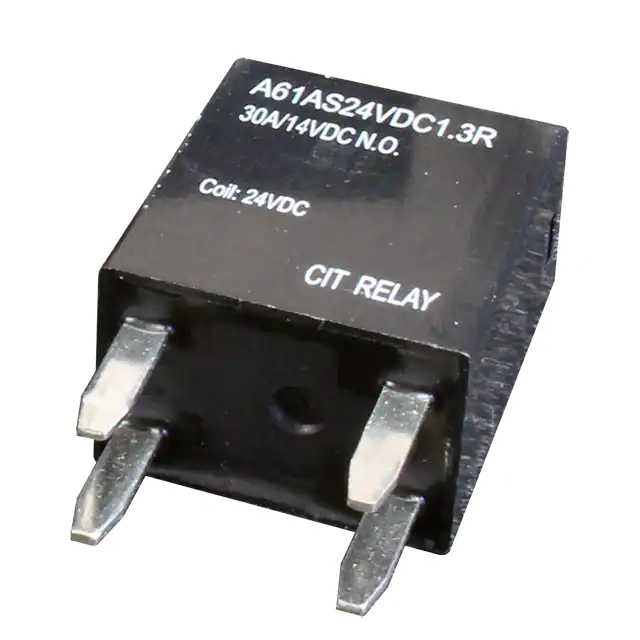

A61AS24VDC1.3RRELAY AUTOMOTIVE SPST 30A 24V |
250 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2S1CSQ6VDC1.6DRELAY AUTOMOTIVE SPDT 40A 6V |
154 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A61CS24VDC1.3RELAY AUTOMOTIVE SPDT 30A 24V |
495 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
G8G-17R DC12AUTO MOTIVE PCB RELAY, DC 12V |
1,786 |
|
Технический лист |
G8G | Tube | Active | Non Latching | 40 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 6.5 VDC | 0.5 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
A61CS12VDC.9DRELAY AUTOMOTIVE SPDT 30A 12V |
428 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61CS24VDC.9RELAY AUTOMOTIVE SPDT 30A 24V |
250 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

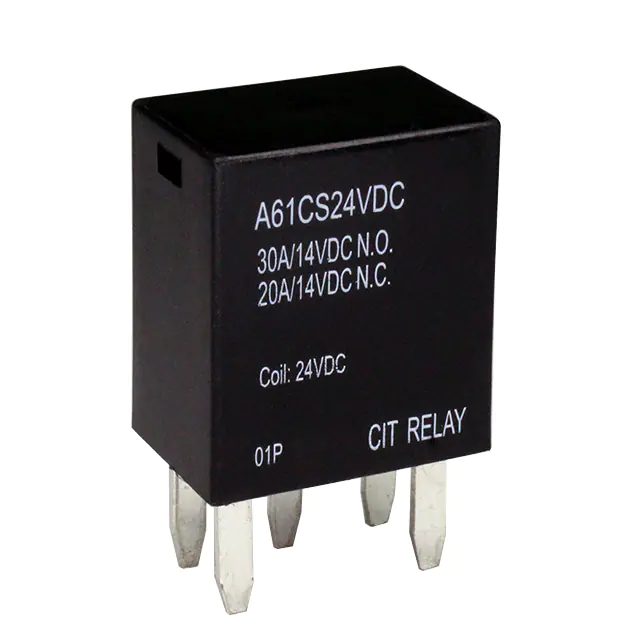

A61CS24VDC.9DRELAY AUTOMOTIVE SPDT 30A 24V |
217 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2M1CSQ6VDC1.6DRELAY AUTOMOTIVE SPDT 40A 6V |
130 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A11ASQ48VDC1.2RELAY AUTOMOTIVE SPST 30A 48V |
411 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
