Автомобильные реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

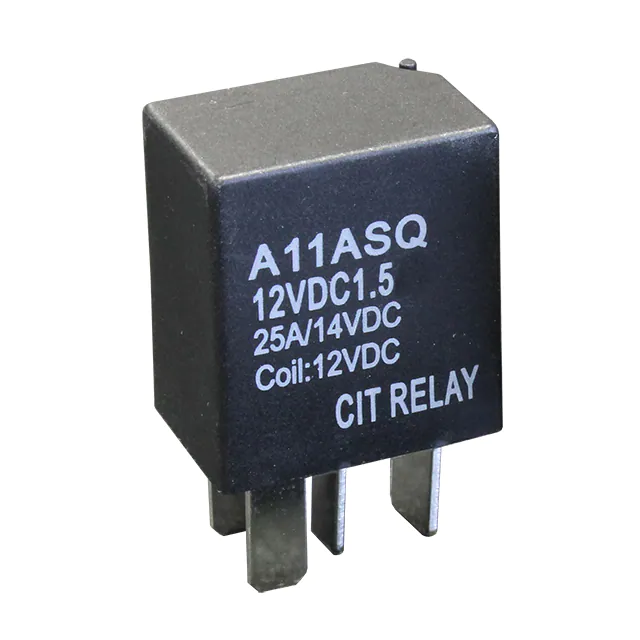

A11ASQ12VDC1.5RELAY AUTOMOTIVE SPST 30A 12V |
739 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

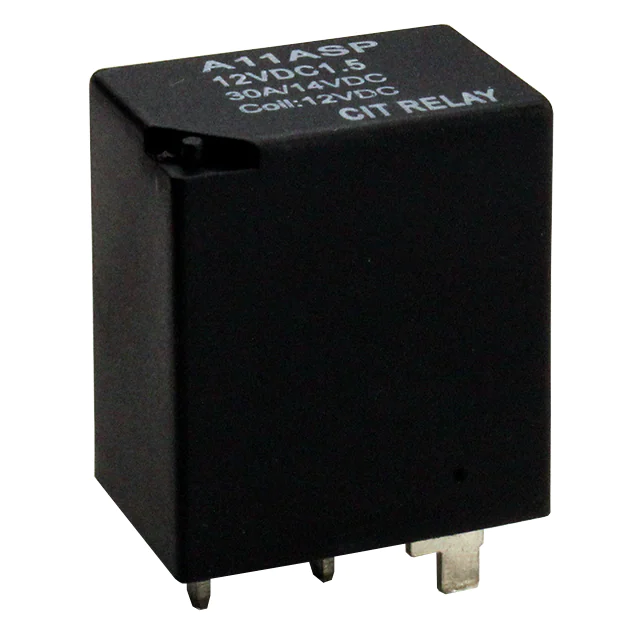

A11ASP12VDC1.5RELAY AUTOMOTIVE SPST 30A 12V |
150 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

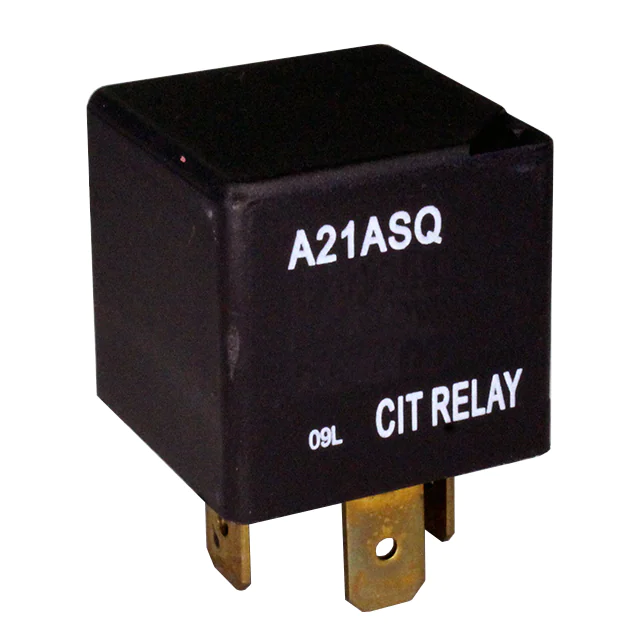

A21ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V |
333 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

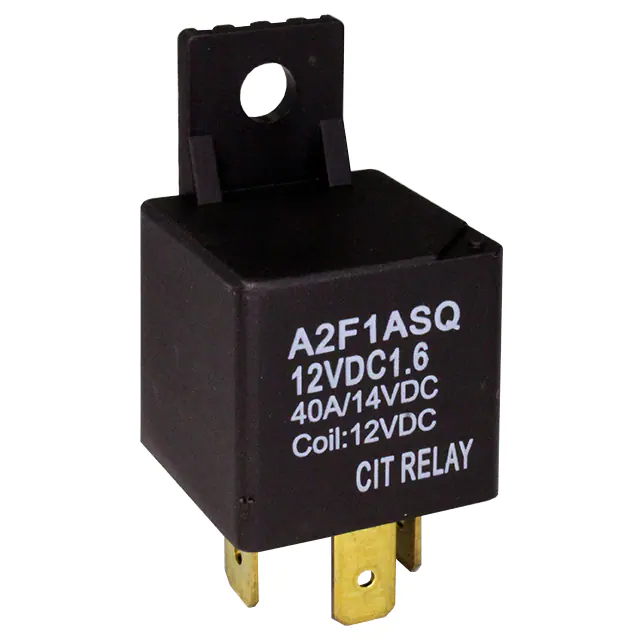

A2F1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V |
303 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASP24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
379 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

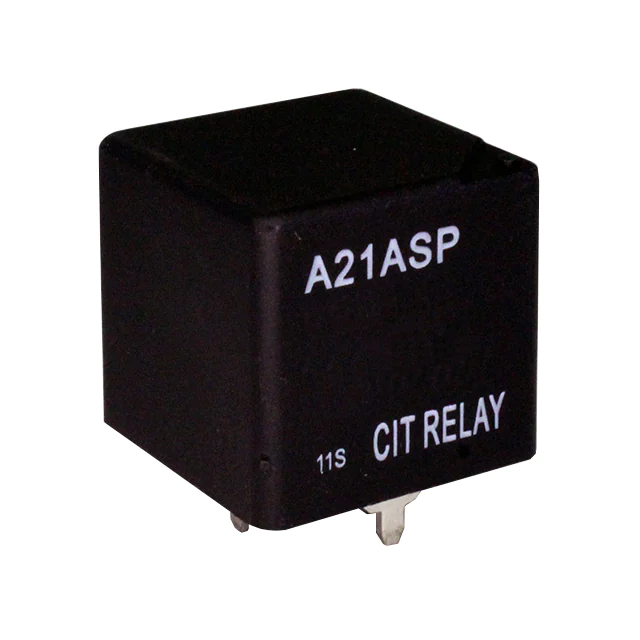

A21ASP24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
400 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

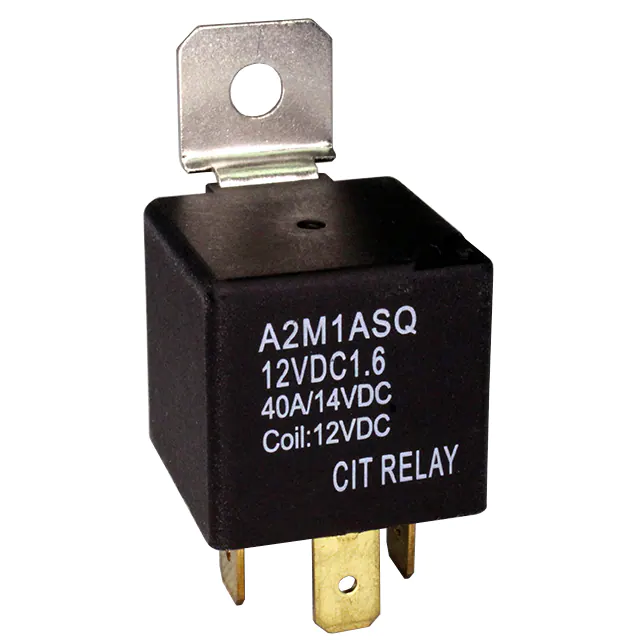

A2M1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V |
229 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21ASP24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V |
400 |
|
Технический лист |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A11CSP48VDC1.2DRELAY AUTOMOTIVE SPDT 30A 48V |
497 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

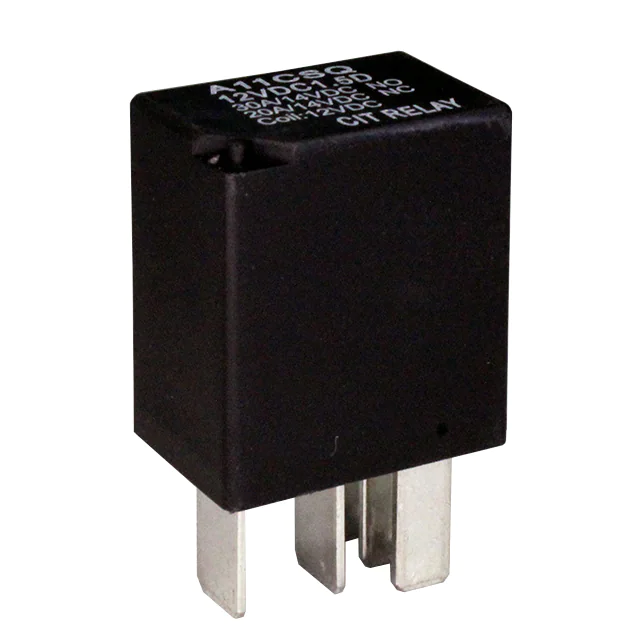

A11CSQ12VDC1.5DRELAY AUTOMOTIVE SPDT 30A 12V |
305 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

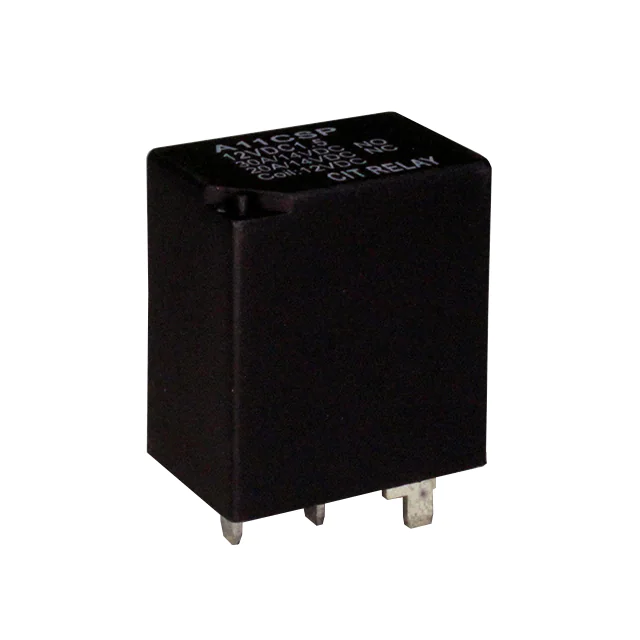

A11CSP12VDC1.5RRELAY AUTOMOTIVE SPDT 30A 12V |
185 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

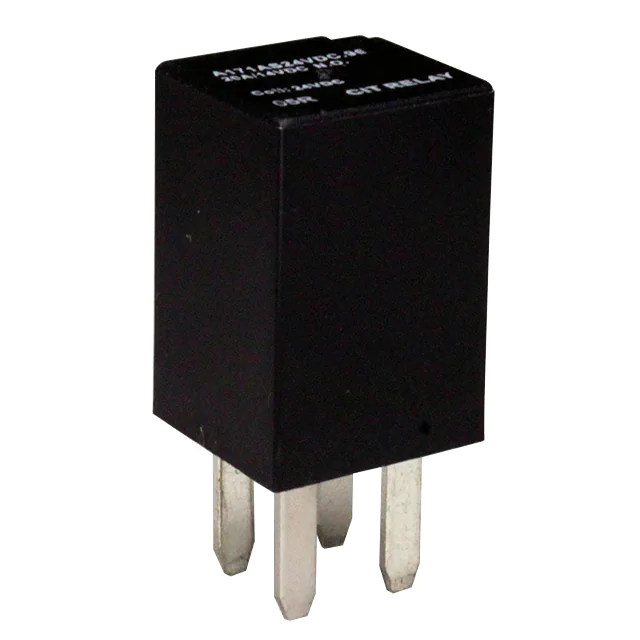

A171AS24VDC.96DRELAY AUTOMOTIVE SPST 30A 24V |
799 |
|
Технический лист |
A17 | Tray | Active | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

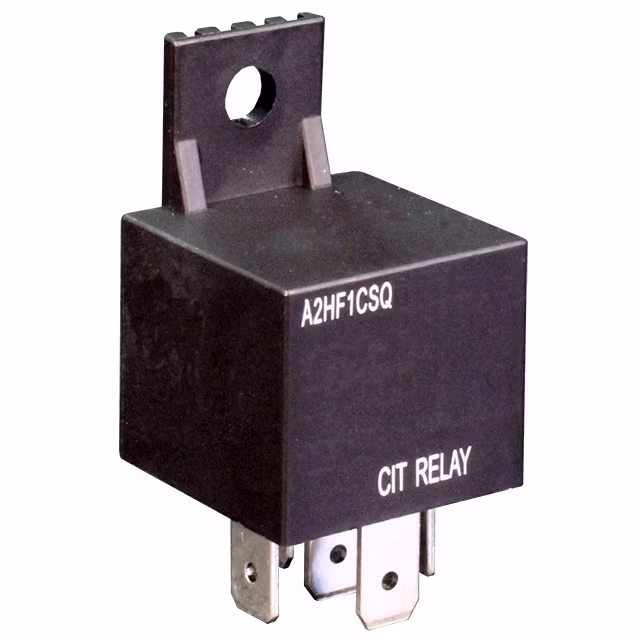

A2HF1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 50A 24V |
143 |
|
Технический лист |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

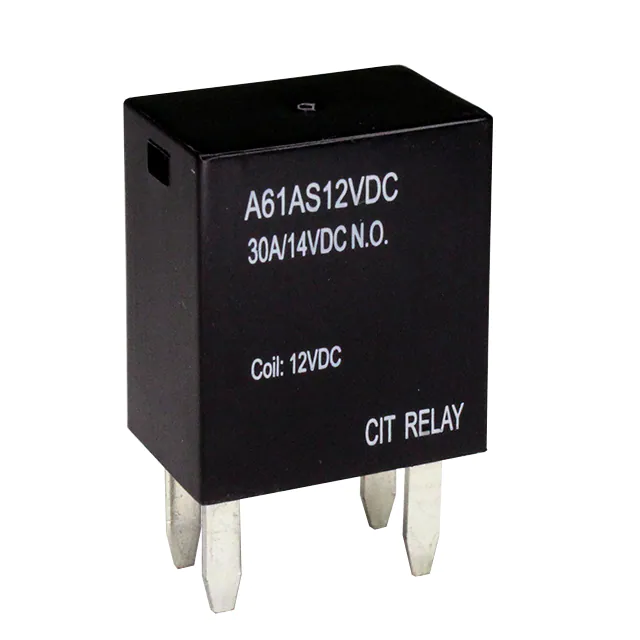

A61AS12VDC.9DRELAY AUTOMOTIVE SPST 30A 12V |
144 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11CSP24VDC1.5DRELAY AUTOMOTIVE SPDT 30A 24V |
500 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11CSQ6VDC1.2RELAY AUTOMOTIVE SPDT 30A 6V |
370 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 200 mA | 6VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A61CS24VDC.9RRELAY AUTOMOTIVE SPDT 30A 24V |
240 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS24VDC.9RELAY AUTOMOTIVE SPST 30A 24V |
114 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A11CSQ6VDC1.2RRELAY AUTOMOTIVE SPDT 30A 6V |
449 |
|
Технический лист |
A1 | Tube | Active | Non Latching | 200 mA | 6VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A61AS12VDC.9RELAY AUTOMOTIVE SPST 30A 12V |
142 |
|
Технический лист |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
