Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP124003-2BUZZER PIEZO 3V 12X12MM SMD |
2,007 |
|
Технический лист |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 4kHz | Piezo | - | - | 75dB @ 3V, 10cm | 5mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.130" (3.30mm) |
|
|
SD1614TT-B3MBUZZER MAGNETIC 12V 16MM TH |
1,310 |
|
Технический лист |
SD | Bulk | Last Time Buy | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 6 ~ 16V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 100mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) | 0.551" (14.00mm) |
|
|
IE122305-7BUZZER ELECTRO 5V 12MM TH |
940 |
|
Технический лист |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.3kHz | Electromechanical | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.382" (9.70mm) |
|
|
PB 9.9 - 3 VBUZZER PIEZO 3V 9X9MM W SMD |
673 |
|
Технический лист |
- | Strip | Active | - | Peak-Peak Signal | 3 V | 1 ~ 25V | 4kHz | Piezo | - | - | 70dB @ 3V, 10cm | 1mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.079" (2.00mm) |
|

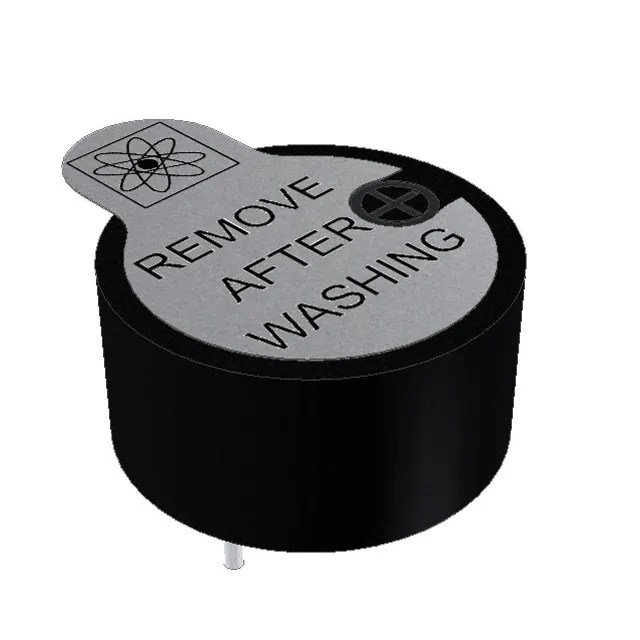

AT-1436-TWT-RBUZZER PIEZO 5V 13.8MM TH |
326 |
|
Технический лист |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 20V | 3.6kHz | Piezo | Single Tone | - | 80dB @ 5V, 10cm | 3mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) | 0.287" (7.30mm) |
|
SMT-0827-TW-3V-RBUZZER MAGNETIC 0.34"X 0.34" SMD |
1,791 |
|
Технический лист |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | - | 2 ~ 5V | 2.73kHz | Electromechanical/Magnetic | Continuous | - | 85dB @ 3.6V, 10cm | 70mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.236" (6.00mm) |
|
|
CMI-9650C-120BUZZER MAGNETIC 12V 9.60MM TH |
658 |
|
Технический лист |
CMI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 10 ~ 13V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) | 0.217" (5.50mm) |
|
CPT-1762-90-SMT-TRBUZZER PIEZO 12V 17.00MM SMD |
1,646 |
|
Технический лист |
CPT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 30V (Max) | 4kHz | Piezo | - | - | 90dB @ 12V, 10cm | 12mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.669" Dia (17.00mm) | 0.264" (6.70mm) |
|
CPS-3314-90L095BUZZER PIEZO 24V 33.00MM CUSTOM |
133 |
|
Технический лист |
CPS | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 24 V | 18 ~ 30V | 4kHz | Piezo | Single Tone | - | 90dB @ 24V, 100cm | 20mA | Top | -30°C ~ 85°C | - | - | - | Custom | Wire Leads | 1.299" Dia (33.00mm) | 0.571" (14.50mm) |
|

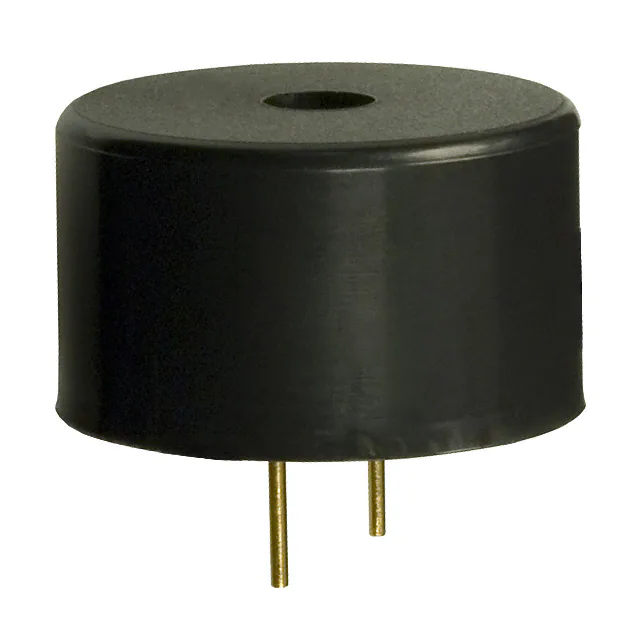

CEP-1106BUZZER PIEZO 10V 22.80MM TH |
511 |
|
Технический лист |
CEP | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 30V (Max) | - | Piezo | Single Tone | - | 88dB @ 10V, 20cm | 18mA | Top | -30°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.898" Dia (22.80mm) | 0.551" (14.00mm) |
|
|
PT-3534FPQBUZZER PIEZO 9V 39MM TH |
1,630 |
|
Технический лист |
PT | Bulk | Active | Transducer, Externally Driven | DC | 9 V | 3 ~ 28V | 3.4kHz | Piezo (with Feedback) | Single Tone | - | 105dB @ 9V, 10cm | 12mA | Top | -20°C ~ 100°C | - | - | - | Through Hole | PC Pins | 1.535" Dia (39.00mm) | 0.803" (20.40mm) |
|
CPI-2397-85TBUZZER PIEZO 12V 23.4MM TH |
218 |
|
Технический лист |
CPI | Box | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 3.2kHz | Piezo | Single Tone | - | 85dB @ 12V, 10cm | 13mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.921" Dia (23.40mm) | 0.402" (10.20mm) |
|

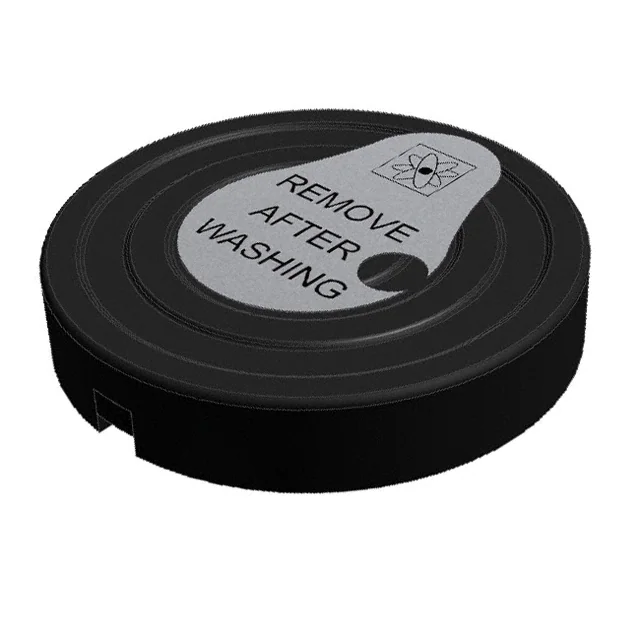

AT-2460-TWT-RBUZZER PIEZO 10V 24MM TH |
446 |
|
Технический лист |
AT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 6kHz | Piezo | Single Tone | - | 85dB @ 10V, 10cm | 8mA | Top | -30°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.197" (5.00mm) |
|
TP114105-2BUZZER PIEZO 5V 12X12MM" W SMD |
1,229 |
|
Технический лист |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4.1kHz | Piezo | - | - | 75dB @ 5V, 10cm | 3mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.433" L x 0.354" W (11.00mm x 9.00mm) | 0.079" (2.00mm) |
|
|
SMT-1820-T-12V-RBUZZER PIEZO 12V 18X18MM SMD |
984 |
|
Технический лист |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 25V | 2kHz | Piezo | - | - | 90dB @ 12V, 10cm | 15mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.709" L x 0.709" W (18.00mm x 18.00mm) | 0.335" (8.50mm) |
|
|
IP224512-2BUZZER PIEZO 12V 22MM FLANGE |
160 |
|
Технический лист |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 4.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.866" Dia (22.00mm) | 0.425" (10.80mm) |
|
|
AST605QBUZZER MAGN 5V 12.6X12.6 W SMD |
16,363 |
|
Технический лист |
AST | Tube | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4 ~ 7V | 2.4kHz | Magnetic | Single Tone | - | 87dB @ 5V, 10cm | 50mA | Top | -40°C ~ 85°C | - | Washable | - | Surface Mount | Solder Pads | 0.496" L x 0.496" W (12.60mm x 12.60mm) | 0.283" (7.20mm) |
|
PT-3110P-05QBUZZER PIEZO 5V 34.5MM TH |
231 |
|
Технический лист |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 1.1kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 2mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 1.358" Dia (34.50mm) | 0.413" (10.50mm) |
|
CPE-171BUZZER PIEZO 10V 9.00MM TH |
723 |
|
Технический лист |
CPE | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 30V (Max) | - | Piezo | Single Tone | - | 75dB @ 10V, 10cm | 4mA | Top | -30°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.335" (8.50mm) |
|
CPT-308-28-85TBUZZER PIEZO 12V 30MM TH |
299 |
|
Технический лист |
CPT | Box | Active | Transducer, Externally Driven | DC | 12 V | 5 ~ 28V | 1.2kHz | Piezo | Single Tone | - | 70dB @ 12V, 30cm | 12mA | Top | -30°C ~ 85°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) | 0.275" (6.98mm) |
