Сигнализаторы, зуммеры и сирены
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Драйвер Схема | Тип входа | Напряжение - Номинальное | Диапазон напряжений | Частота | Технология | Режим работы | Длительность | Уровень звукового давления (SPL) | Ток - Питание | Расположение порта | Рабочая температура | Сертифицирующее агентство | Номинальные значения | Защита от проникновения | Тип крепления | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

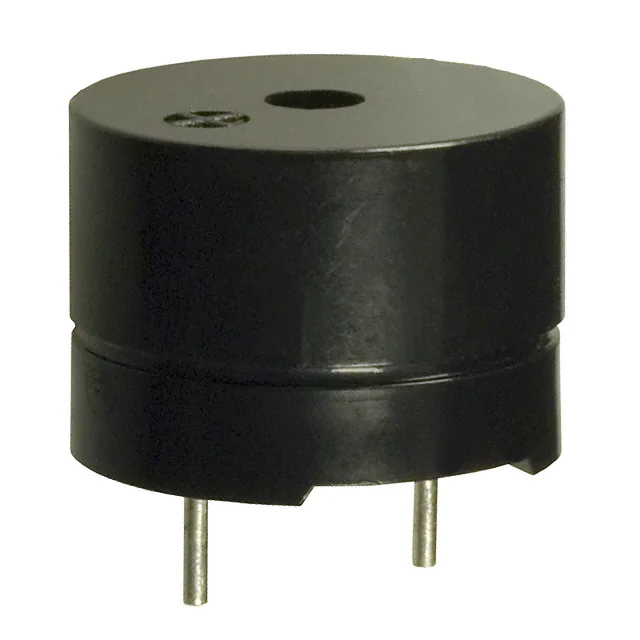

GT-11PBUZZER MAGNETIC 1.5V 12MM TH |
2,500 |
|
Технический лист |
GT | Bulk | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.354" (9.00mm) |
|
CPE-165BUZZER PIEZO 10V 14.00MM CUSTOM |
2,549 |
|
Технический лист |
CPE | Bag | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 30V (Max) | - | Piezo | Single Tone | - | 85dB @ 10V, 10cm | 11mA | Top | -30°C ~ 85°C | - | - | - | Custom | Wire Leads | 0.551" Dia (14.00mm) | 0.177" (4.50mm) |
|
|
PB-1224PE-05QBUZZER MAGNETIC 5V 12MM TH |
5,050 |
|
Технический лист |
PB | Tube | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4.5 ~ 5.5V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 50mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.402" (10.20mm) |
|
WST-0905TBUZZER MAGNETIC 5V 9.6MM TH |
198 |
|
Технический лист |
WST | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 8V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) | 0.205" (5.20mm) |
|
|
AT-1220-TT-5-RBUZZER MAGNETIC 1.5V 12MM TH |
315 |
|
Технический лист |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 3V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 73dB @ 1.5V, 10cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.224" (5.70mm) |
|
|
TP134005-1BUZZER PIEZO 5V 13.8MM TH |
790 |
|
Технический лист |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 20V | 4kHz | Piezo | - | - | 80dB @ 5V, 10cm | 1mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) | 0.287" (7.30mm) |
|

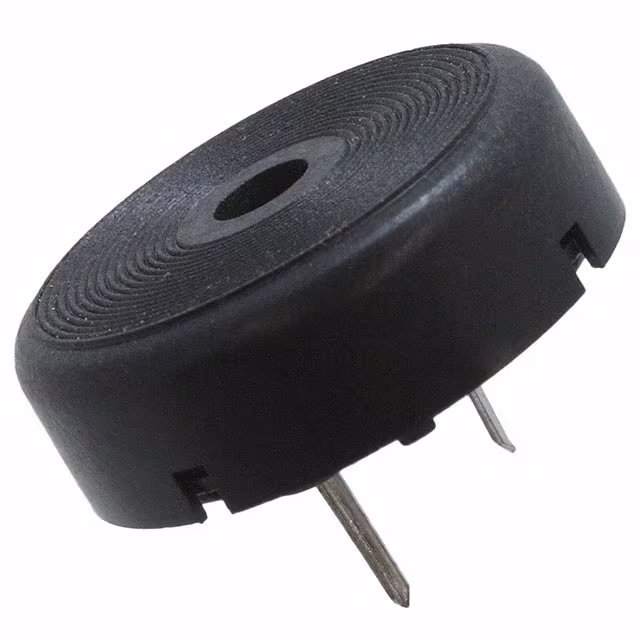

PT-2207BUZZER PIEZO 10V 22MM TH |
153 |
|
Технический лист |
PT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 4kHz | Piezo | Single Tone | - | 85dB @ 10V, 10cm | 3mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.311" (7.90mm) |
|

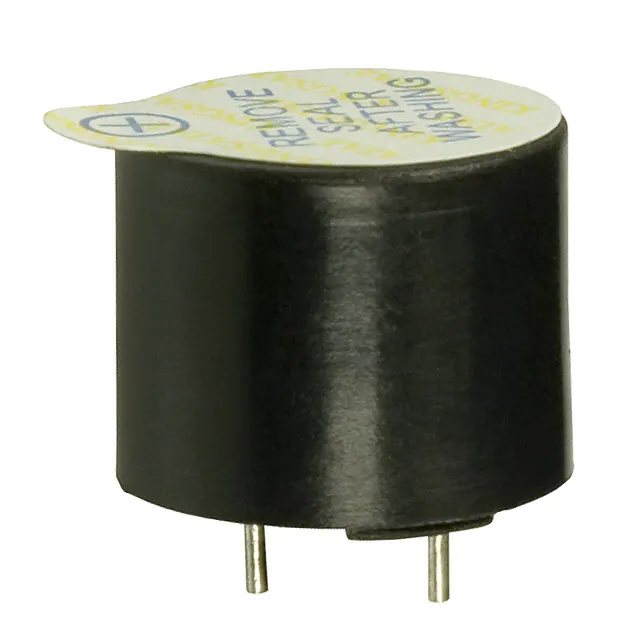

CEM-14R06CTBUZZER MAGNETIC 1.5V 12.00MM TH |
2,075 |
|
Технический лист |
CEM | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 1.7V | 2.8kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 40mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.413" (10.50mm) |
|
|
CEM-1612BUZZER MAGNETIC 12V 16.00MM TH |
7,727 |
|
Технический лист |
CEM | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 6 ~ 18V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 40mA | Top | -20°C ~ 60°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) | 0.571" (14.50mm) |
|

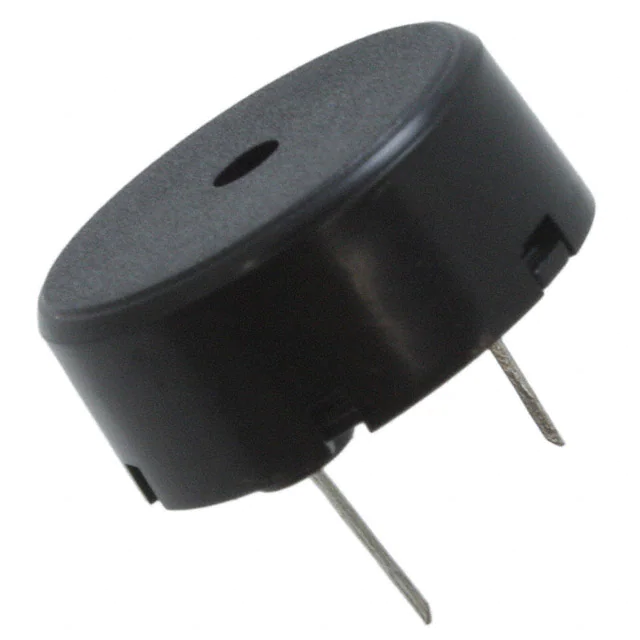

PT-1707BUZZER PIEZO 5V 17MM TH |
415 |
|
Технический лист |
PT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 20V | 4kHz | Piezo | Single Tone | - | 78dB @ 5V, 10cm | 1mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.669" Dia (17.00mm) | 0.331" (8.40mm) |
|
AT-3046-TT-RBUZZER PIEZO 10V 30MM TH |
200 |
|
Технический лист |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 4.6kHz | Piezo | - | - | 95dB @ 10V, 10cm | 5mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) | 0.295" (7.50mm) |
|
CPT-2475-92TBUZZER PIEZO 10V 24MM TH |
1,537 |
|
Технический лист |
CPT | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 4kHz | Piezo | - | - | 92dB @ 10V, 10cm | 8mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.303" (7.70mm) |
|
|
CPT-1625-80-SMT-TRBUZZER PIEZO 5V 13X13MM SMD |
4,375 |
|
Технический лист |
CPT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4.1kHz | Piezo | - | - | 80dB @ 5V, 10cm | 3mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.118" (3.00mm) |
|
|
AT-1720-TT-RBUZZER PIEZO 3V 17MM TH |
400 |
|
Технический лист |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 3 ~ 25V | 2kHz | Piezo | Single Tone | - | 70dB @ 3V, 10cm | 5mA | Top | -20°C ~ 105°C | - | - | - | Through Hole | PC Pins | 0.669" Dia (17.00mm) | 0.358" (9.10mm) |
|
|
CMT-6736-80TBUZZER MAGNETIC 1.5V 6.7MM TH |
748 |
|
Технический лист |
CMT | Box | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 3kHz | Magnetic | - | - | 75dB @ 1.5V, 10cm | 80mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.264" Dia (6.70mm) | 0.154" (3.90mm) |
|
|
SMT-1027-S-HT-2-RBUZZER MAGN 3.6V 10X10MMSMD |
3,964 |
|
Технический лист |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 5V | 2.7kHz | Electromechanical/Magnetic | - | - | 95dB @ 3.6V, 10cm | 100mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.142" (3.60mm) |
|
CST-911APBUZZER MAGNETIC 1.5V 9.00MM TH |
127 |
|
Технический лист |
CST | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 2V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 80mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.197" (5.00mm) |
|
SMT-0825-T-HT-RBUZZER MAGNETIC 3.6V 0.3X0.3 SMD |
1,702 |
|
Технический лист |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2 ~ 5V | 2.5kHz | Electromechanical/Magnetic | - | - | 85dB @ 3.6V, 10cm | 100mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.169" (4.30mm) |
|
|
SMT-0824-S-2-RBUZZER MAGNETIC 5V 0.34X0.34 SMD |
3,267 |
|
Технический лист |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 3 ~ 7V | 2.4kHz | Electromechanical/Magnetic | - | - | 85dB @ 5V, 10cm | 100mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.169" (4.30mm) |
|
AT-1620-TWT-5-RBUZZER MAGNETIC 6V 16MM TH |
141 |
|
Технический лист |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 6 V | 3 ~ 12V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 6V, 10cm | 50mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) | 0.571" (14.50mm) |
