Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

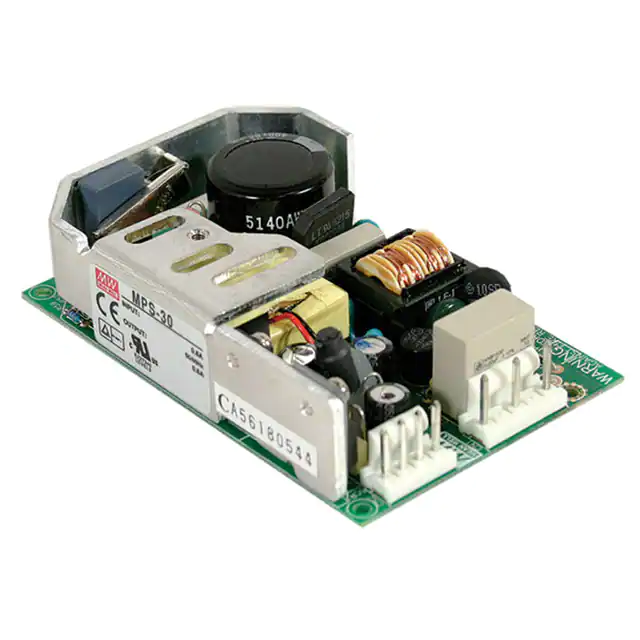

MPS-30-27AC/DC CONVERTER 27V 30W |
0 |
|
Технический лист |
MPS-30 (30W) | Box | Obsolete | Open Frame | 1 | 88 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 30W | Medical | 4 kV | 78% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.59" W x 0.93" H (101.6mm x 65.8mm x 23.5mm) | CB, CE, cURus, TUV |
|
|
MPS-30-48AC/DC CONVERTER 48V 29W |
0 |
|
Технический лист |
MPS-30 (30W) | Box | Obsolete | Open Frame | 1 | 88 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 600 mA | - | - | - | - | - | 29W | Medical | 4 kV | 78% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.59" W x 0.93" H (101.6mm x 65.8mm x 23.5mm) | CB, CE, cURus, TUV |
|
|
MPS-30-5AC/DC CONVERTER 5V 25W |
0 |
|
Технический лист |
MPS-30 (30W) | Box | Obsolete | Open Frame | 1 | 88 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | Medical | 4 kV | 72% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.59" W x 0.93" H (101.6mm x 65.8mm x 23.5mm) | CB, CE, cURus, TUV |
|

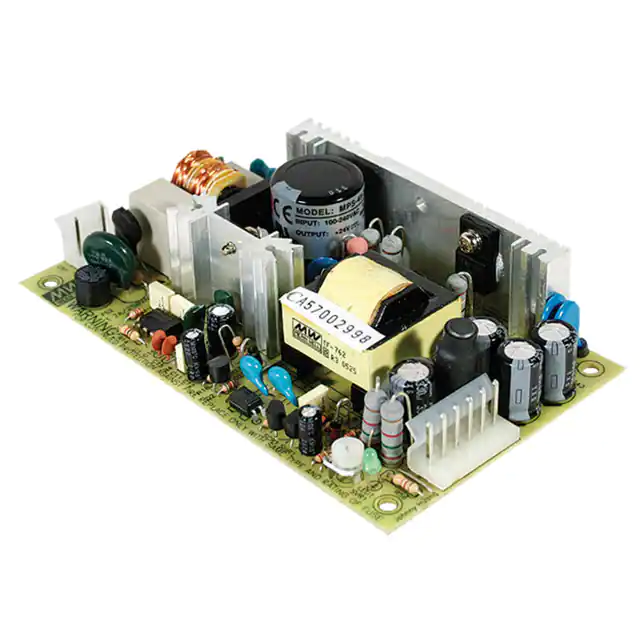

MPS-45-12AC/DC CONVERTER 12V 44W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 3.7 A | - | - | - | - | - | 44W | Medical | 4 kV | 76% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|
MPS-45-13.5AC/DC CONVERTER 13.5V 45W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 13.5V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 45W | Medical | 4 kV | 76% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|
MPS-45-15AC/DC CONVERTER 15V 45W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | Medical | 4 kV | 77% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|
MPS-45-24AC/DC CONVERTER 24V 46W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 46W | Medical | 4 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|
MPS-45-27AC/DC CONVERTER 27V 46W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 46W | Medical | 4 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|
MPS-45-3.3AC/DC CONVERTER 3.3V 26W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 8 A | - | - | - | - | - | 26W | Medical | 4 kV | 65% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|
MPS-45-48AC/DC CONVERTER 48V 48W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 1 A | - | - | - | - | - | 48W | Medical | 4 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|
MPS-45-5AC/DC CONVERTER 5V 40W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | Medical | 4 kV | 72% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|
MPS-45-7.5AC/DC CONVERTER 7.5V 41W |
0 |
|
Технический лист |
MPS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 7.5V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 41W | Medical | 4 kV | 75% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|

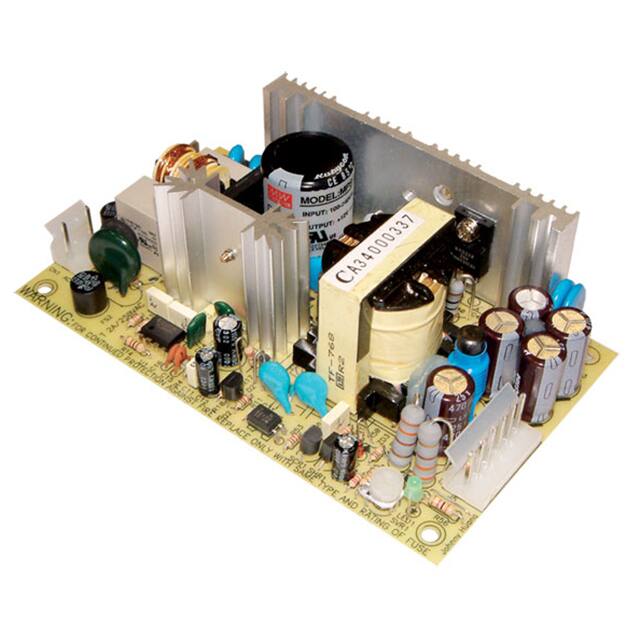

MPS-65-12AC/DC CONVERTER 12V 62W |
0 |
|
Технический лист |
MPS-65 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 62W | Medical | 4 kV | 77% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
MPS-65-13.5AC/DC CONVERTER 13.5V 63W |
0 |
|
Технический лист |
MPS-65 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 13.5V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 63W | Medical | 4 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
MPS-65-15AC/DC CONVERTER 15V 63W |
0 |
|
Технический лист |
MPS-65 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 63W | Medical | 4 kV | 79% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
MPS-65-24AC/DC CONVERTER 24V 65W |
0 |
|
Технический лист |
MPS-65 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | Medical | 4 kV | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
MPS-65-27AC/DC CONVERTER 27V 65W |
0 |
|
Технический лист |
MPS-65 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 65W | Medical | 4 kV | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
MPS-65-3.3AC/DC CONVERTER 3.3V 40W |
0 |
|
Технический лист |
MPS-65 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | 40W | Medical | 4 kV | 66% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
MPS-65-48AC/DC CONVERTER 48V 65W |
0 |
|
Технический лист |
MPS-65 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 1.35 A | - | - | - | - | - | 65W | Medical | 4 kV | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
MPS-65-5AC/DC CONVERTER 5V 60W |
0 |
|
Технический лист |
MPS-65 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 12 A | - | - | - | - | - | 60W | Medical | 4 kV | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
