Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

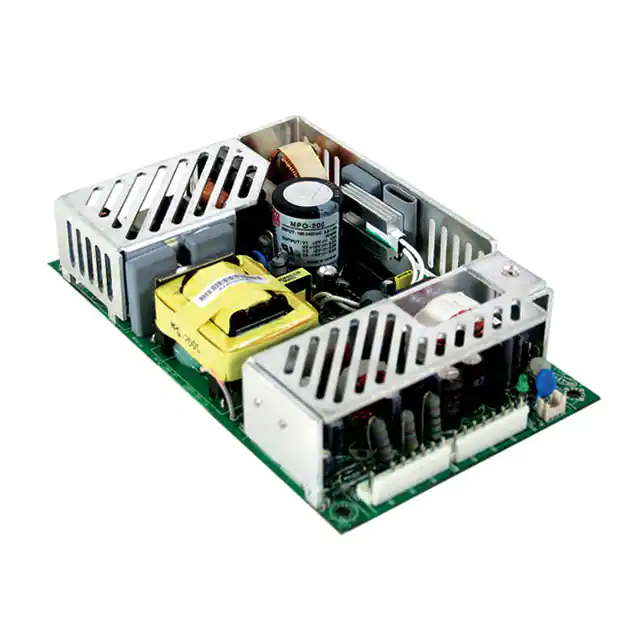

MPD-200AAC/DC CONVERTER 5V 12V 140W |
0 |
|
Технический лист |
MPD-200 (200W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | - | - | - | - | 15 A | 5.4 A | - | - | - | - | 140W (196W Forced Air) | ITE (Commercial), Medical | 3 kV | 82% | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.5mm) | CB, CE, cURus, TUV |
|
MPD-45AAC/DC CONVERTER 5V 12V 40W |
0 |
|
Технический лист |
MPD-45 (45W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | - | - | - | - | 3.2 A | 2 A | - | - | - | - | 40W | Medical | 4 kV | 76% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|
|

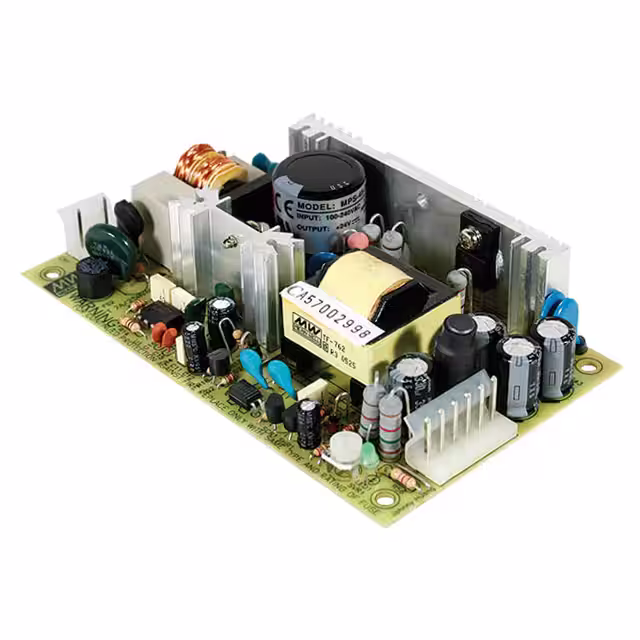

MPD-45BAC/DC CONVERTER 5V 24V 45W |
0 |
|
Технический лист |
MPD-45 (45W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | - | - | - | - | 3.2 A | 1.2 A | - | - | - | - | 45W | Medical | 4 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) | CB, CE, cURus, TUV |
|

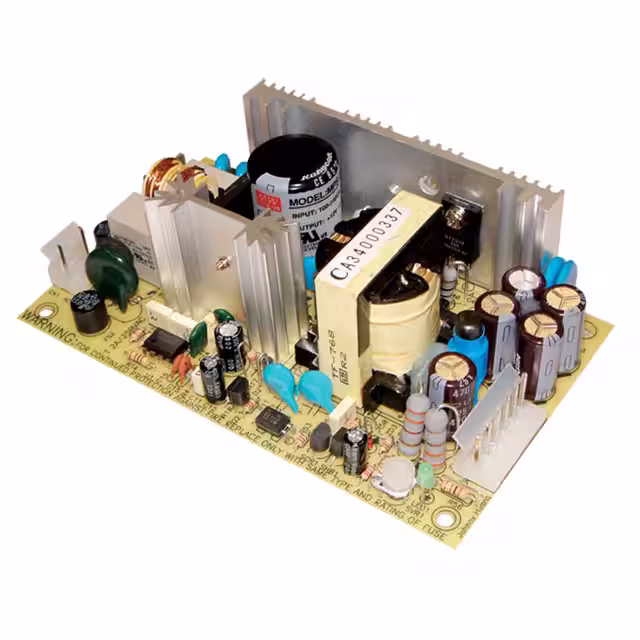

MPD-65AAC/DC CONVERTER 5V 12V 61W |
0 |
|
Технический лист |
MPD-65 (65W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 12V | - | - | - | - | 5.5 A | 2.8 A | - | - | - | - | 61W | Medical | 4 kV | 75% | -10°C ~ 55°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|
|
MPD-65BAC/DC CONVERTER 5V 24V 66W |
0 |
|
Технический лист |
MPD-65 (65W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | - | - | - | - | 3.5 A | 2 A | - | - | - | - | 66W | Medical | 4 kV | 78% | -10°C ~ 55°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | CB, CE, cURus, TUV |
|

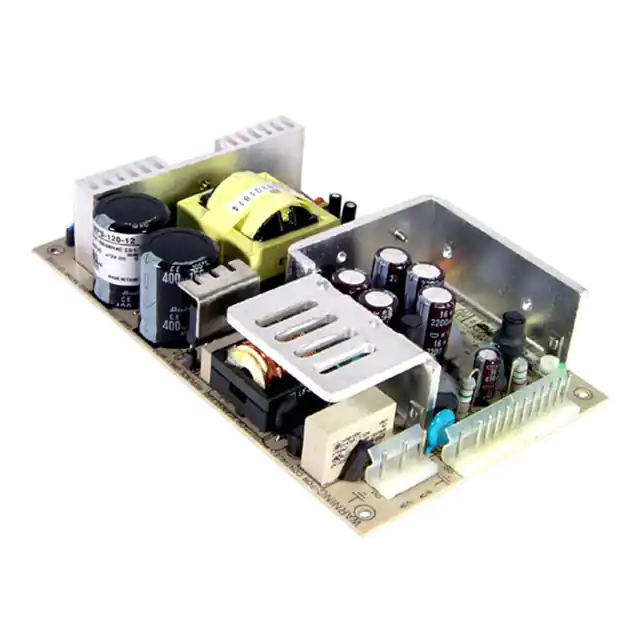

MPS-120-12AC/DC CONVERTER 12V 120W |
0 |
|
Технический лист |
MPS-120 (120W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W | Medical | 4 kV | 77% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 2.25" W x 1.40" H (177.8mm x 57.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-120-15AC/DC CONVERTER 15V 120W |
0 |
|
Технический лист |
MPS-120 (120W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W | Medical | 4 kV | 79% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 2.25" W x 1.40" H (177.8mm x 57.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-120-24AC/DC CONVERTER 24V 120W |
0 |
|
Технический лист |
MPS-120 (120W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W | Medical | 4 kV | 81% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 2.25" W x 1.40" H (177.8mm x 57.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-120-3.3AC/DC CONVERTER 3.3V 79W |
0 |
|
Технический лист |
MPS-120 (120W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 24 A | - | - | - | - | - | 79W | Medical | 4 kV | 68% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 2.25" W x 1.40" H (177.8mm x 57.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-120-48AC/DC CONVERTER 48V 120W |
0 |
|
Технический лист |
MPS-120 (120W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W | Medical | 4 kV | 82% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 2.25" W x 1.40" H (177.8mm x 57.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-120-5AC/DC CONVERTER 5V 110W |
0 |
|
Технический лист |
MPS-120 (120W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | Medical | 4 kV | 73% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 2.25" W x 1.40" H (177.8mm x 57.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
MPS-200-12AC/DC CONVERTER 12V 140W |
0 |
|
Технический лист |
MPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 11.7 A | - | - | - | - | - | 140W (200W Forced Air) | Medical | 4 kV | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-200-15AC/DC CONVERTER 15V 141W |
0 |
|
Технический лист |
MPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 141W (201W Forced Air) | Medical | 4 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-200-24AC/DC CONVERTER 24V 142W |
0 |
|
Технический лист |
MPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 142W (202W Forced Air) | Medical | 4 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-200-3.3AC/DC CONVERTER 3.3V 92W |
0 |
|
Технический лист |
MPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 28 A | - | - | - | - | - | 92W (132W Forced Air) | Medical | 4 kV | 77% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-200-48AC/DC CONVERTER 48V 144W |
0 |
|
Технический лист |
MPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 3 A | - | - | - | - | - | 144W (202W Forced Air) | Medical | 4 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
|
MPS-200-5AC/DC CONVERTER 5V 140W |
0 |
|
Технический лист |
MPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 28 A | - | - | - | - | - | 140W (200W Forced Air) | Medical | 4 kV | 81% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.6mm) | CB, CE, cURus, TUV |
|
MPS-30-12AC/DC CONVERTER 12V 30W |
0 |
|
Технический лист |
MPS-30 (30W) | Box | Obsolete | Open Frame | 1 | 88 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Medical | 4 kV | 75% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.59" W x 0.93" H (101.6mm x 65.8mm x 23.5mm) | CB, CE, cURus, TUV |
|
|
MPS-30-15AC/DC CONVERTER 15V 30W |
0 |
|
Технический лист |
MPS-30 (30W) | Box | Obsolete | Open Frame | 1 | 88 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | Medical | 4 kV | 76% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.59" W x 0.93" H (101.6mm x 65.8mm x 23.5mm) | CB, CE, cURus, TUV |
|
|
MPS-30-24AC/DC CONVERTER 24V 29W |
0 |
|
Технический лист |
MPS-30 (30W) | Box | Obsolete | Open Frame | 1 | 88 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 1.2 A | - | - | - | - | - | 29W | Medical | 4 kV | 77% | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.59" W x 0.93" H (101.6mm x 65.8mm x 23.5mm) | CB, CE, cURus, TUV |
