Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011359CHCOREL-70-2008 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 9V | 48V | - | - | - | - | 2 A | 1.5 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011202CHCOREL-70-2001 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 3.3V | 5V | - | - | - | - | 6 A | 5 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011208CHCOREL-70-2007 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 29V | - | - | - | - | 6 A | 2 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011203CHCOREL-70-2002 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 6 A | 4 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011207CHCOREL-70-2006 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5.5V | -5.5V | - | - | - | - | 6 A | 5 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011205CHCOREL-70-2004 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 3 A | 3 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|

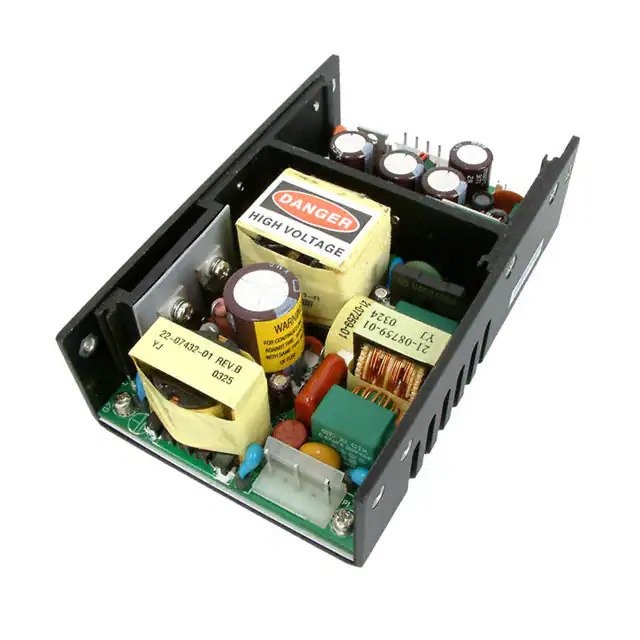

VSUU-120-24AC/DC CONVERTER 24V 120W |
0 |
|
Технический лист |
VSUU-120 (120W) | Bulk | Not For New Designs | Open Frame | 1 | 90 ~ 260 VAC, 130 ~ 370 VDC | 24V | - | - | - | - | - | 6 A | - | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|

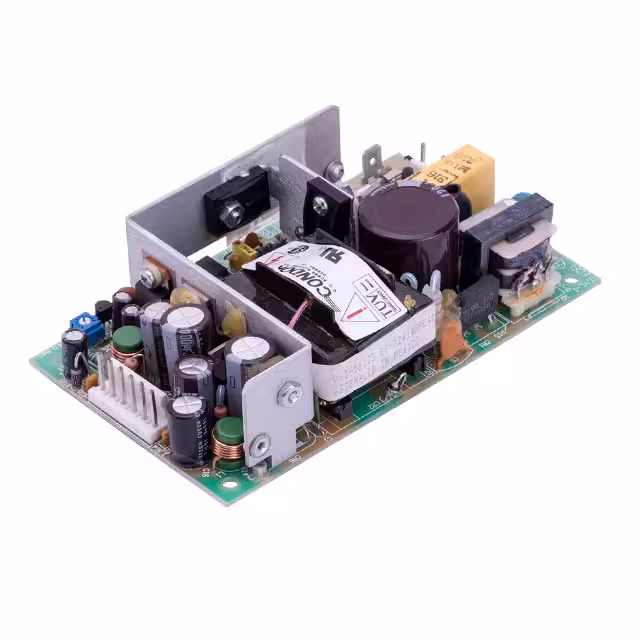

GPC40-9GAC/DC CONVERTER 9V 40W |
0 |
|
Технический лист |
GPC40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 40W (50W Forced Air) | ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | CE, cURus, TUV |
|
|
1011210CHCOREL-70-3001 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 6 A | 2 A | 2 A | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011212CHCOREL-70-3003 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5.1V | 7.5V | - | -7.5V | - | - | 6 A | 2 A | 2 A | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011213CHCOREL-70-3004 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 3.3V | 7V | 12V | - | - | - | 6 A | 5 A | 2 A | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011214CHCOREL-70-3005 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 18V | - | 18V | - | - | 5 A | 2 A | 2 A | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011211CHCOREL-70-3002 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | - | -15V | - | - | 6 A | 2 A | 2 A | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
1011380CHCOGRN-110-2004 OVP CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 4 A | 4 A | - | - | - | - | 110W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011377CHCOGRN-110-2001 OVP CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 12 A | 3 A | - | - | - | - | 110W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011378CHCOGRN-110-2002 OVP CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 12 A | 5 A | - | - | - | - | 110W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011379CHCOGRN-110-2003 OVP CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 5 A | 5 A | - | - | - | - | 110W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
1011254CHCOGRN-80-4004 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 8 A | 1 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011251CHCOGRN-80-4001 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 8 A | 5 A | 1.5 A | 1.5 A | - | - | 87W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011253CHCOGRN-80-4003 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 8 A | 1 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
