Подстроечные потенциометры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление | Мощность (Вт) | Допуск | Температурный коэффициент | Количество оборотов | Тип регулировки | Резистивный материал | Тип крепления | Тип вывода | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
67XR100KLFTRIMMER 100KOHM 0.5W PC PIN SIDE |
6,988 |
|
Технический лист |
67 | Bulk | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
|
67XR100LFTRIMMER 100 OHM 0.5W PC PIN SIDE |
1,497 |
|
Технический лист |
67 | Tube | Active | 100 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
|
67XR5KLFTRIMMER 5K OHM 0.5W PC PIN SIDE |
1,320 |
|
Технический лист |
67 | Bulk | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
|
67XR500LFTRIMMER 500 OHM 0.5W PC PIN SIDE |
1,319 |
|
Технический лист |
67 | Bulk | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
67YR500KLFTRIMMER 500K OHM 0.5W PC PIN TOP |
1,242 |
|
Технический лист |
67 | Bulk | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
67ZR5KLFTRIMMER 5K OHM 0.5W PC PIN SIDE |
981 |
|
Технический лист |
67 | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
|
67YR1MEGLFTRIMMER 1M OHM 0.5W PC PIN TOP |
733 |
|
Технический лист |
67 | Bulk | Active | 1 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
|
67XR50KLFTRIMMER 50K OHM 0.5W PC PIN SIDE |
365 |
|
Технический лист |
67 | Bulk | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
|
67YR50LFTRIMMER 50 OHM 0.5W PC PIN TOP |
268 |
|
Технический лист |
67 | Bulk | Active | 50 Ohms | 0.5W, 1/2W | ±20% | ±250ppm/°C | 20.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) |
|
PV32H502A01B00TRIMMER 5K OHM 0.5W PC PIN TOP |
2,999 |
|
Технический лист |
PV32 | Bulk | Active | 5 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.260" Dia (6.60mm) |
|
3386G-1-105LFTRIMMER 1M OHM 0.5W PC PIN TOP |
102 |
|
Технический лист |
Trimpot® 3386 - Sealed | Tube | Active | 1 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|

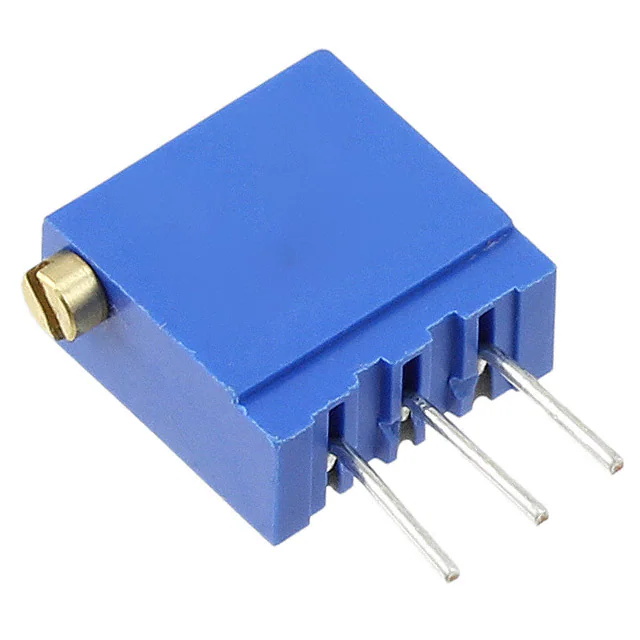

T93XB502KT20TRIMMER 5K OHM 0.5W PC PIN SIDE |
511 |
|
Технический лист |
T93 | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
3386R-1-202LFTRIMMER 2K OHM 0.5W PC PIN TOP |
491 |
|
Технический лист |
Trimpot® 3386 - Sealed | Tube | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|
3362P-1-104TRIMMER 100K OHM 0.5W PC PIN TOP |
325 |
|
Технический лист |
Trimpot® 3362 - Sealed | Tube | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm) |
|
|
3386Y-1-103LFTRIMMER 10K OHM 0.5W PC PIN TOP |
304 |
|
Технический лист |
Trimpot® 3386 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|

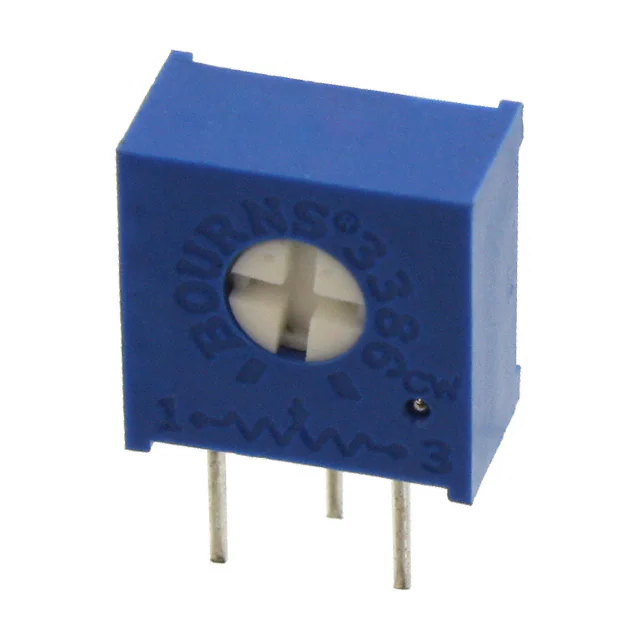

3386V-1-504LFTRIMMER 500KOHM 0.5W PC PIN SIDE |
263 |
|
Технический лист |
Trimpot® 3386 - Sealed | Tube | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|
|
3386G-1-504LFTRIMMER 500K OHM 0.5W PC PIN TOP |
250 |
|
Технический лист |
Trimpot® 3386 - Sealed | Tube | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|
|
3386V-1-503LFTRIMMER 50K OHM 0.5W PC PIN SIDE |
240 |
|
Технический лист |
Trimpot® 3386 - Sealed | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|
|
3386V-1-502LFTRIMMER 5K OHM 0.5W PC PIN SIDE |
202 |
|
Технический лист |
Trimpot® 3386 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
|
|
3386V-1-203LFTRIMMER 20K OHM 0.5W PC PIN SIDE |
200 |
|
Технический лист |
Trimpot® 3386 - Sealed | Tube | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.375" x 0.375" Face (9.53mm x 9.53mm) |
