Подстроечные потенциометры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление | Мощность (Вт) | Допуск | Температурный коэффициент | Количество оборотов | Тип регулировки | Резистивный материал | Тип крепления | Тип вывода | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV12T201A01B00TRIMMER 200 OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T202A01B00TRIMMER 2K OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T203A01B00TRIMMER 20K OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T204A01B00TRIMMER 200KOHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 200 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T205A01B00TRIMMER 2M OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 2 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T500A01B00TRIMMER 50 OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 50 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T501A01B00TRIMMER 500 OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T502A01B00TRIMMER 5K OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T503A01B00TRIMMER 50K OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T504A01B00TRIMMER 500KOHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T253A01B00TRIMMER 25K OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 25 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
|
PV12T254A01B00TRIMMER 250KOHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
PV12 | Tube | Active | 250 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 4.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.299" x 0.354" Face (7.60mm x 9.00mm) |
|
SM-42TW205TRIMMER 2M OHM 0.25W J LEAD TOP |
3 |
|
Технический лист |
SM42 | Tape & Reel (TR) | Active | 2 MOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

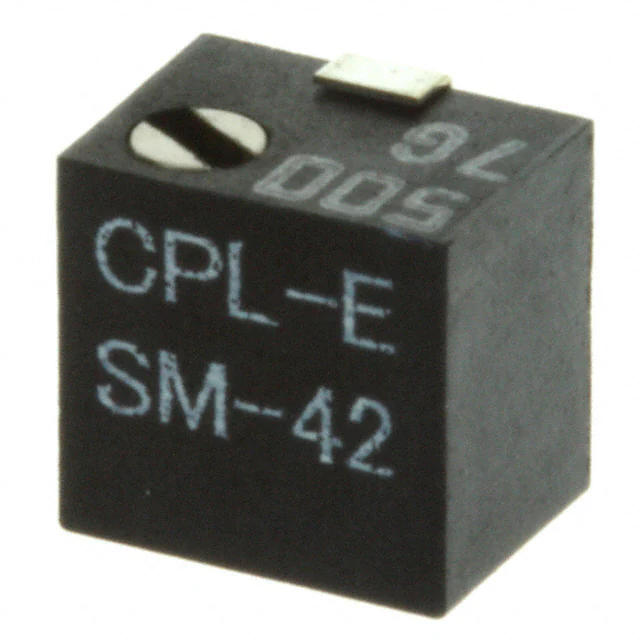

SM-42TA500TRIMMER 50 OHM 0.25W J LEAD SIDE |
0 |
|
Технический лист |
SM42 | Tape & Reel (TR) | Active | 50 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|

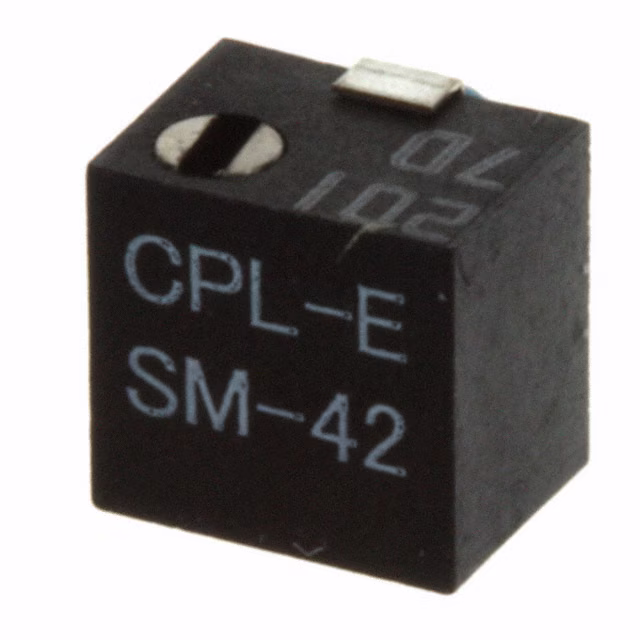

SM-42TA201TRIMMER 200OHM 0.25W J LEAD SIDE |
0 |
|
Технический лист |
SM42 | Tape & Reel (TR) | Active | 200 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|

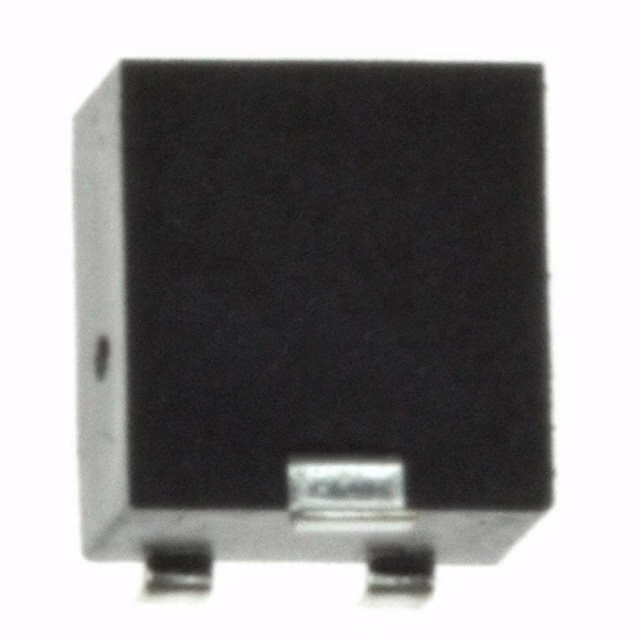

SM-42TX101TRIMMER 100 OHM 0.25W GW TOP ADJ |
0 |
|
Технический лист |
SM42 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
M63X205KB40T614TRIMMER |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63X203KB40T614TRIMMER |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63S202KB40T614TRIMMER |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
M63X502KB40T614TRIMMER |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
