Подстроечные потенциометры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление | Мощность (Вт) | Допуск | Температурный коэффициент | Количество оборотов | Тип регулировки | Резистивный материал | Тип крепления | Тип вывода | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3296W-1-502TRIMMER 5K OHM 0.5W PC PIN TOP |
318 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-503TRIMMER 50K OHM 0.5W PC PIN TOP |
310 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
3296Y-1-102TRIMMER 1K OHM 0.5W PC PIN TOP |
280 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-501TRIMMER 500 OHM 0.5W PC PIN TOP |
270 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-202TRIMMER 2K OHM 0.5W PC PIN TOP |
264 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
3296X-1-502TRIMMER 5K OHM 0.5W PC PIN SIDE |
246 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
|
|
3296W-1-104TRIMMER 100K OHM 0.5W PC PIN TOP |
180 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296Y-1-104TRIMMER 100K OHM 0.5W PC PIN TOP |
179 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-203TRIMMER 20K OHM 0.5W PC PIN TOP |
120 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
M43P103KB40TRIMMER 10KOHM 0.75W PC PIN SIDE |
4,319 |
|
Технический лист |
43 | Bulk | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
T63YB204KT20TRIMMER 200KOHM 0.25W PC PIN TOP |
772 |
|
Технический лист |
T63 | Tube | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB104KT20TRIMMER 100KOHM 0.25W PC PIN TOP |
740 |
|
Технический лист |
T63 | Tube | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB501KT20TRIMMER 500 OHM 0.25W PC PIN TOP |
445 |
|
Технический лист |
T63 | Tube | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB103KT20TRIMMER 10K OHM 0.25W PC PIN TOP |
329 |
|
Технический лист |
T63 | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|

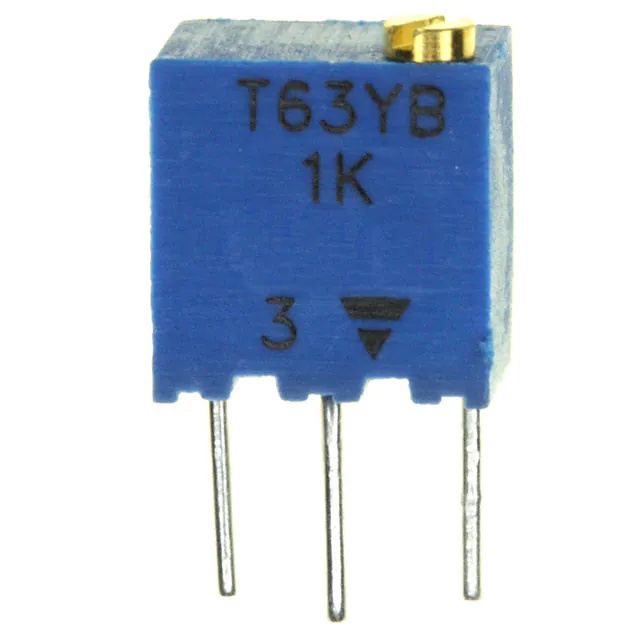

T63YB102KT20TRIMMER 1K OHM 0.25W PC PIN TOP |
298 |
|
Технический лист |
T63 | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB203KT20TRIMMER 20K OHM 0.25W PC PIN TOP |
224 |
|
Технический лист |
T63 | Tube | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB503KT20TRIMMER 50K OHM 0.25W PC PIN TOP |
167 |
|
Технический лист |
T63 | Tube | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
TS63Y104KT20TRIMMER 100K OHM 0.25W GW TOP |
142 |
|
Технический лист |
TS63 | Tube | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
3223W-1-501ETRIMMER 500OHM 0.125W J LEAD TOP |
6,656 |
|
Технический лист |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 500 Ohms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|
|
3223W-1-105ETRIMMER 1M OHM 0.125W J LEAD TOP |
613 |
|
Технический лист |
Trimpot® 3223 - Sealed | Tape & Reel (TR) | Active | 1 MOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
