Подстроечные потенциометры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление | Мощность (Вт) | Допуск | Температурный коэффициент | Количество оборотов | Тип регулировки | Резистивный материал | Тип крепления | Тип вывода | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T93YB502KT20TRIMMER 5K OHM 0.5W PC PIN TOP |
594 |
|
Технический лист |
T93 | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
T93YA203KT20TRIMMER 20K OHM 0.5W PC PIN TOP |
585 |
|
Технический лист |
T93 | Tube | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
T93YA105KT20TRIMMER 1M OHM 0.5W PC PIN TOP |
565 |
|
Технический лист |
T93 | Tube | Active | 1 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
T93YA501KT20TRIMMER 500 OHM 0.5W PC PIN TOP |
377 |
|
Технический лист |
T93 | Tube | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
T93YB203KT20TRIMMER 20K OHM 0.5W PC PIN TOP |
287 |
|
Технический лист |
T93 | Tube | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
PV37X103C01B00TRIMMER 10KOHM 0.25W PC PIN SIDE |
2,352 |
|
Технический лист |
PV37 | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±150ppm/°C | 12.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.264" x 0.157" Face (6.70mm x 4.00mm) |
|

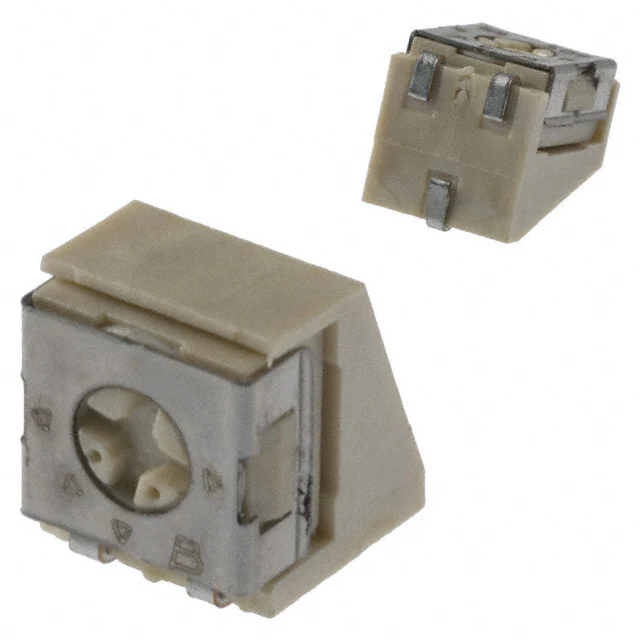

3314Z-1-103ETRIMMER 10KOHM 0.25W J LEAD SIDE |
7,819 |
|
Технический лист |
Trimpot® 3314 - Sealed | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.219" x 0.197" Face (5.56mm x 5.01mm) |
|
3314R-1-104ETRIMMER 100K OHM 0.25W GW BOT |
991 |
|
Технический лист |
Trimpot® 3314 - Sealed | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Bottom Adjustment | Cermet | Surface Mount | Gull Wing | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) |
|
|
3314R-1-501ETRIMMER 500 OHM 0.25W GW BOT ADJ |
938 |
|
Технический лист |
Trimpot® 3314 - Sealed | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Bottom Adjustment | Cermet | Surface Mount | Gull Wing | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) |
|
|
3314R-1-502ETRIMMER 5K OHM 0.25W GW BOT ADJ |
669 |
|
Технический лист |
Trimpot® 3314 - Sealed | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Bottom Adjustment | Cermet | Surface Mount | Gull Wing | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) |
|
PV37W204C01B00TRIMMER 200KOHM 0.25W PC PIN TOP |
588 |
|
Технический лист |
PV37 | Bulk | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±150ppm/°C | 12.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.157" Face (6.40mm x 4.00mm) |
|

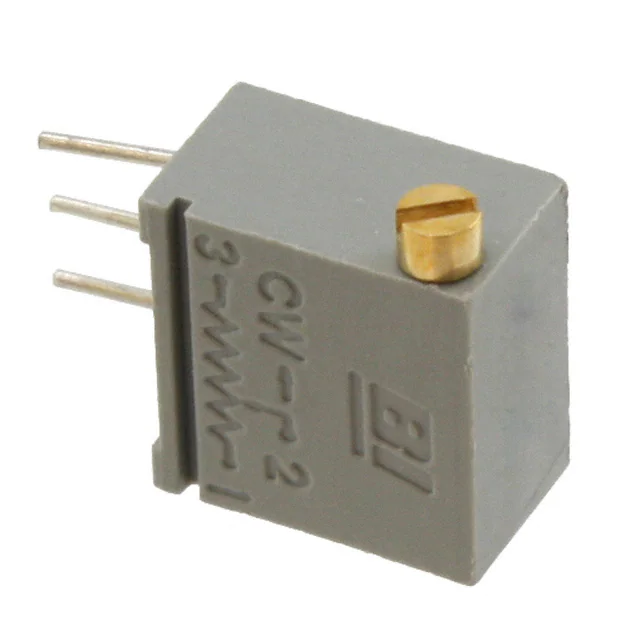

68XR10KLFTRIMMER 10K OHM 0.5W PC PIN SIDE |
555 |
|
Технический лист |
68 | Bulk | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.245" Face (9.53mm x 6.22mm) |
|
PV36P103C01B00TRIMMER 10K OHM 0.5W PC PIN SIDE |
482 |
|
Технический лист |
PV36 | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.378" x 0.197" Face (9.60mm x 5.00mm) |
|
|
68XR100KLFTRIMMER 100KOHM 0.5W PC PIN SIDE |
214 |
|
Технический лист |
68 | Bulk | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.245" Face (9.53mm x 6.22mm) |
|
3296W-1-473LFTRIMMER 47K OHM 0.5W PC PIN TOP |
3,199 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 47 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
3296Y-1-200LFTRIMMER 20 OHM 0.5W PC PIN TOP |
2,991 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 20 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
3296X-1-201LFTRIMMER 200 OHM 0.5W PC PIN SIDE |
2,536 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
|
|
3296W-1-204LFTRIMMER 200K OHM 0.5W PC PIN TOP |
2,339 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 200 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296X-1-104LFTRIMMER 100KOHM 0.5W PC PIN SIDE |
2,323 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
|
|
3296W-1-201LFTRIMMER 200 OHM 0.5W PC PIN TOP |
2,300 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
