Устройства защиты от перенапряжения (SPD)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Форма | Количество полюсов | Напряжение - Непрерывная работа (Макс.) (MCOV) | Ток - Разряд (Ном.) (8/20 мкС) | Ток - Разряд (Макс.) (8/20 мкС) | Рабочая температура | Напряжение - Степень защиты (VPR) | Напряжение - Уровень защиты (VP) (2416) | Рабочая температура | Особенности | Тип крепления | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2730590000SPD TYPE 2 350VAC MCOV 3 POLE |
2,407 |
|
Технический лист |
- | Box | Active | Type 2 | Base + Module | 3 | 350VAC | 20 kA | 50 kA | 200 kA | 2 kV | - | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
DS50PVS-1000SPD TYPE 2 1.06KV MCOV 2 POLE |
9,777 |
|
- |
- | Active | Type 2 | Base + Module | 2 | 1.06kV | 20 kA | - | - | - | 3.6 kV | -40°C ~ 85°C | - | DIN Rail | CE, CSA, cURus | |
|

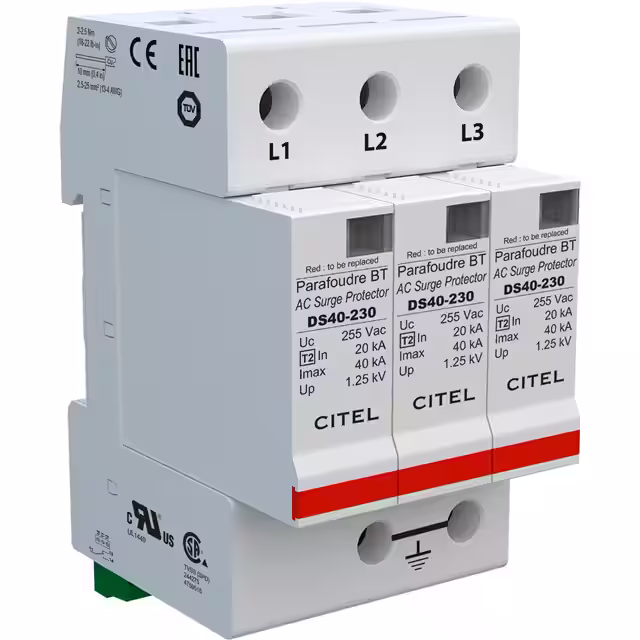

DS43S-230/GSPD TYPE 4 MCOV 1 POLE |
7,667 |
|
- |
- | Active | Type 4 | Base + Module | 1 | - | 20 kA | 40 kA | - | - | - | -35°C ~ 60°C | - | DIN Rail | - | |
|

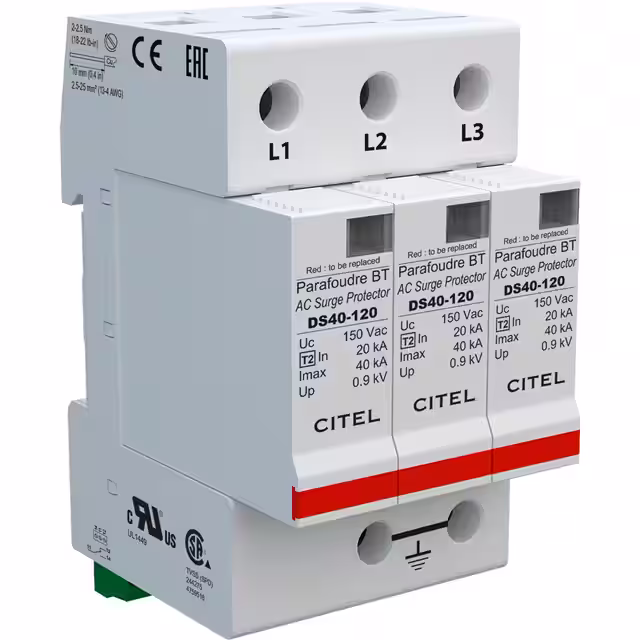

DS43S-120SPD TYPE 4 300VAC MCOV 1 POLE |
7,001 |
|
- |
- | Active | Type 4 | Base + Module | 1 | 300VAC | - | - | - | - | - | -35°C ~ 60°C | Remote Signaling Contacts | DIN Rail | EAC, TUV, UR | |
|
|
DS43S-230SPD TYPE 4 480VAC MCOV 1 POLE |
2,007 |
|
- |
- | Active | Type 4 | Base + Module | 1 | 480VAC | - | 160 kA | - | - | - | -35°C ~ 60°C | - | DIN Rail | EAC, TUV, UR | |
|

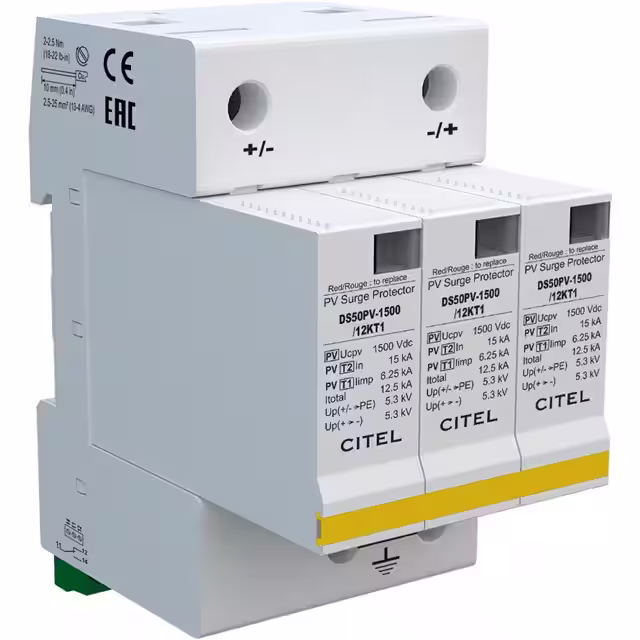

DS50PVS-1500/51SPD TYPE 2 1.5KV MCOV 1 POLE |
3,031 |
|
- |
- | Active | Type 2 | Base + Module | 1 | 1.5kV | 15 kA | 60 kA | - | - | 5.3 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, EAC, TUV, UR | |
|
DS43S-400SPD TYPE 1 680VAC MCOV 1 POLE |
7,134 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 680VAC | - | - | 100 kA | 2.5 kV | - | -35°C ~ 60°C | - | DIN Rail | EAC, TUV, UR | |
|
|
1260-3SMG-690SPD 750VAC MCOV 3 POLE |
8,579 |
|
Технический лист |
1260 | Box | Active | - | Base + Module | 3 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
SPD2-750-3P0SPD TYP 1/TYP 2 750V MCOV 3 POLE |
3,491 |
|
Технический лист |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 750V | 20 kA | 35 kA | 200 kA | 2.5 kV | 3.4 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
SPD2-550-4P0SPD TYP 1/TYP 2 550V MCOV 4 POLE |
5,722 |
|
Технический лист |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 550V | 20 kA | 50 kA | 200 kA | 2 kV | 2.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
PXSPDRDCAB12SPD 1 POLE |
8,135 |
|
- |
PXSPD | Bulk | Active | - | Base + Module | 1 | - | - | - | - | - | - | -40°C ~ 50°C | Thermally Protected | Chassis Mount | CSA, UL |
|
|
1260-4S-690SPD 750VAC MCOV 4 POLE |
5,511 |
|
Технический лист |
1260 | Box | Active | - | Base + Module | 4 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4S-480SPD 600VAC MCOV 4 POLE |
9,151 |
|
Технический лист |
1260 | Box | Active | - | Base + Module | 4 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
BSPM3480DLGRSPD TYPE 2 1.2KVAC MCOV 3 POLE |
3,223 |
|
Технический лист |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 3 | 1.2kVAC | 20 kA | 40 kA | 200 kA | 4 kV | - | - | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL |
|
|
RB-SPP-240PNSPD TYPE 1 |
2,663 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1260-4NS-230SPD 275VAC MCOV 4 POLE |
9,645 |
|
Технический лист |
1260 | Box | Active | - | Base + Module | 4 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4NS-127SPD 180VAC MCOV 4 POLE |
6,236 |
|
Технический лист |
1260 | Box | Active | - | Base + Module | 4 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4NS-120SPD 150VAC MCOV 4 POLE |
8,244 |
|
Технический лист |
1260 | Box | Active | - | Base + Module | 4 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4NS-277SPD 350VAC MCOV 4 POLE |
4,515 |
|
Технический лист |
1260 | Box | Active | - | Base + Module | 4 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
BSPM3208WYGSPD TYPE 2 550VAC MCOV 3 POLE |
3,845 |
|
Технический лист |
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 3 | 550VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | - | Thermally Protected | DIN Rail | ATEX, UL |
