Переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101P3Y9A2BESWITCH TOGGLE SPDT 0.4VA 20V |
59 |
|
Технический лист |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T105SHCQESWITCH TOGGLE SPDT 2A 120V |
94 |
|
Технический лист |
T | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SPDCQESWITCH TOGGLE SPDT 5A 120V |
14 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SCWCQESWITCH TOGGLE SPDT 5A 120V |
9 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET110H-ZSWITCH TOGGLE SPDT 10A 125V |
42 |
|
Технический лист |
ET | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
E105SF1AQESWITCH TOGGLE SPDT 7.5A 125V |
80 |
|
Технический лист |
E | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | ESD Conductive Bushing | -30°C ~ 85°C |
|

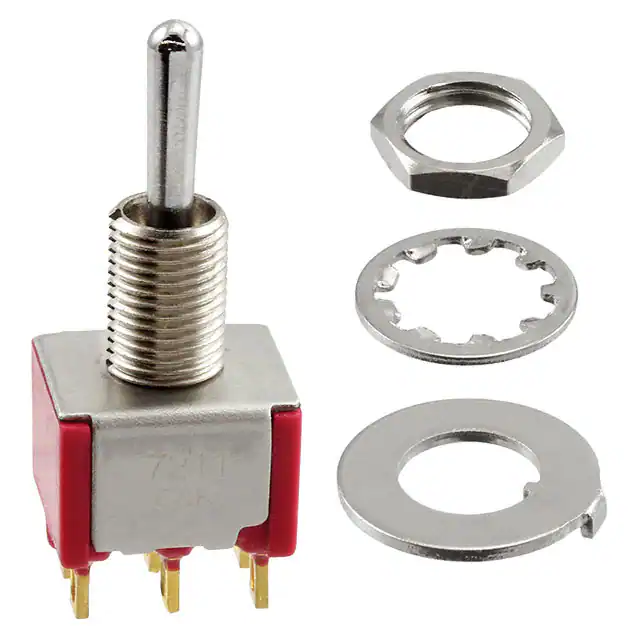

7211SYZBESWITCH TOGGLE SP3T 0.4VA 20V |
79 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

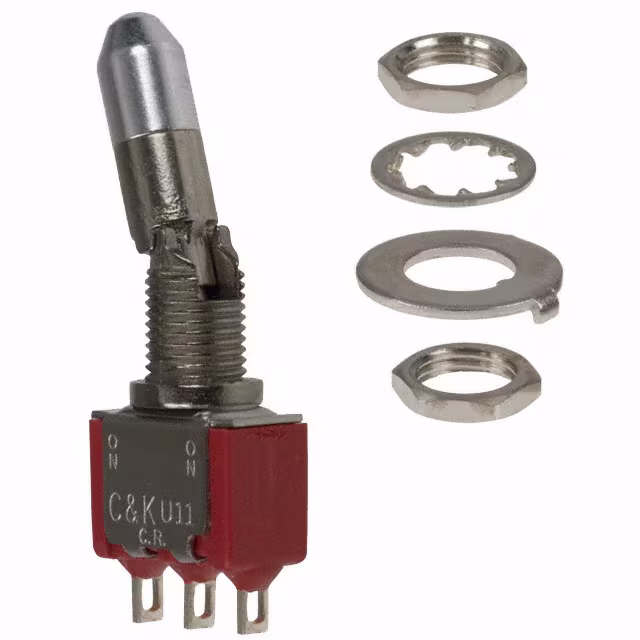

U11K2ZQESWITCH TOGGLE SPDT 5A 120V |
46 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

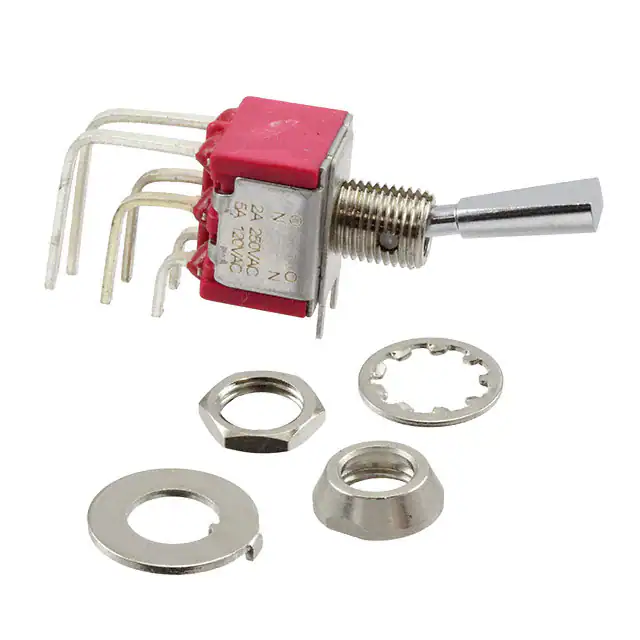

7201P3DAV2QESWITCH TOGGLE DPDT 5A 120V |
82 |
|
Технический лист |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T105LH9ABESWITCH TOGGLE SPDT 0.4VA 20V |
63 |
|
Технический лист |
T | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
U21P3CWZGESWITCH TOGGLE DPDT 5A 120V |
42 |
|
Технический лист |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
E105L3D1ABE2SWITCH TOGGLE SPDT 0.4VA 20V |
34 |
|
Технический лист |
E | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 23.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Black Actuator | -30°C ~ 85°C |
|

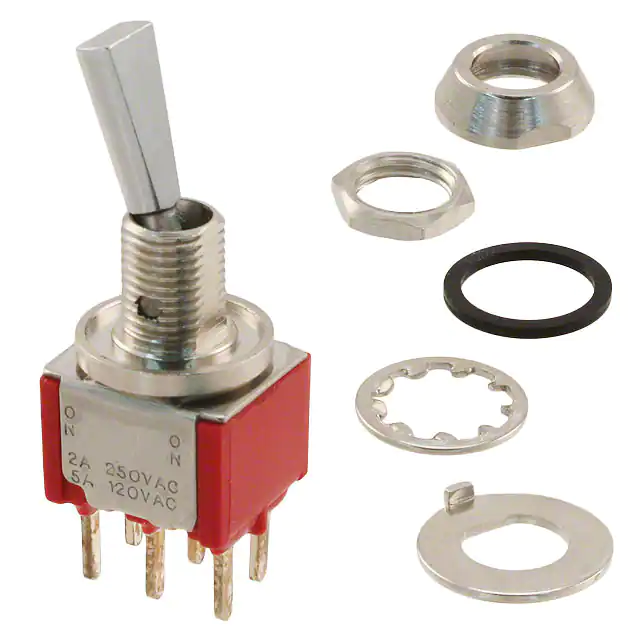

7208P3CWCQESWITCH TOGGLE DPDT 5A 120V |
18 |
|
Технический лист |
7000 | Tray | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E103SD1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
41 |
|
Технический лист |
E | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SD9AGESWITCH TOGGLE DPDT 5A 120V |
38 |
|
Технический лист |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

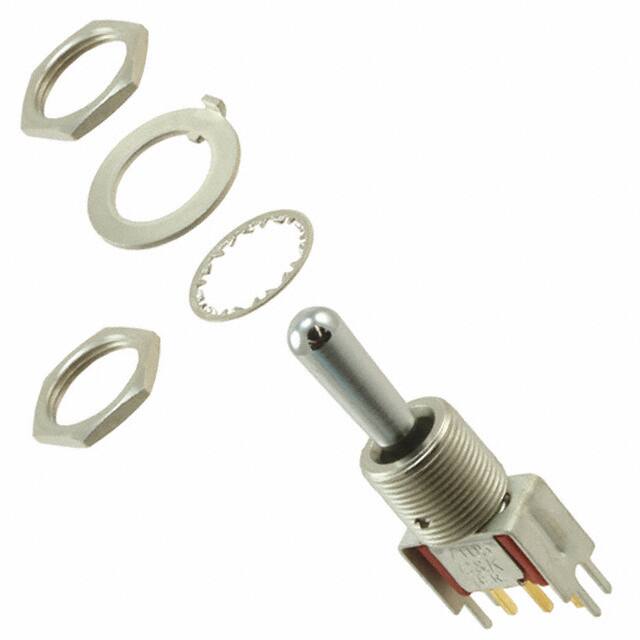

7105TPV3BESWITCH TOGGLE SPDT 0.4VA 20V |
54 |
|
Технический лист |
7000 | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

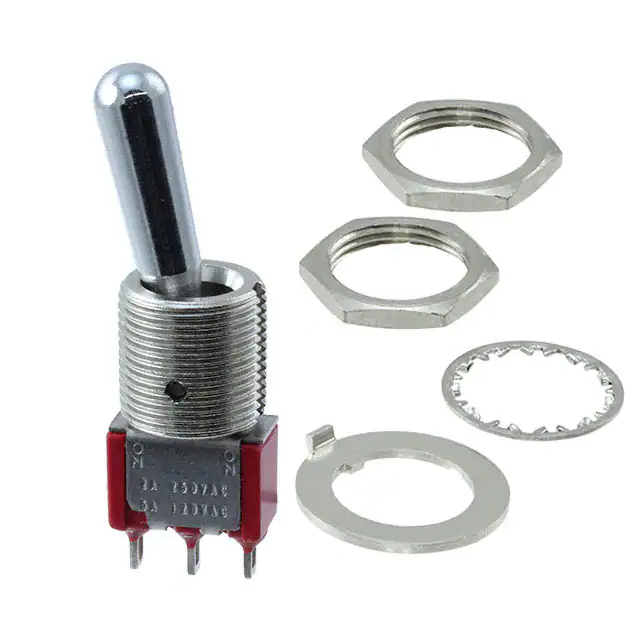

7101TPZQESWITCH TOGGLE SPDT 5A 120V |
38 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET21SD1CBESWITCH TOGGLE DPDT 0.4VA 20V |
23 |
|
Технический лист |
ET | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T201STDCBESWITCH TOGGLE DPDT 0.4VA 20V |
54 |
|
Технический лист |
T | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.38mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

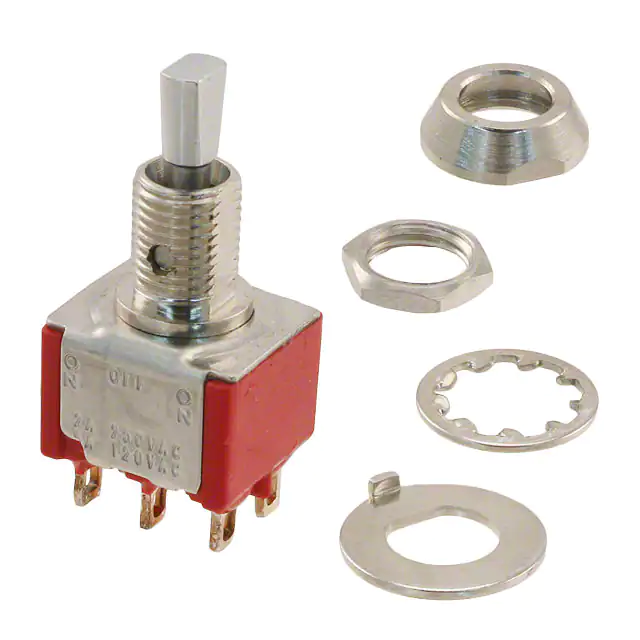

7205P4HZQESWITCH TOGGLE DPDT 5A 120V |
28 |
|
Технический лист |
7000 | Tray | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
