Переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

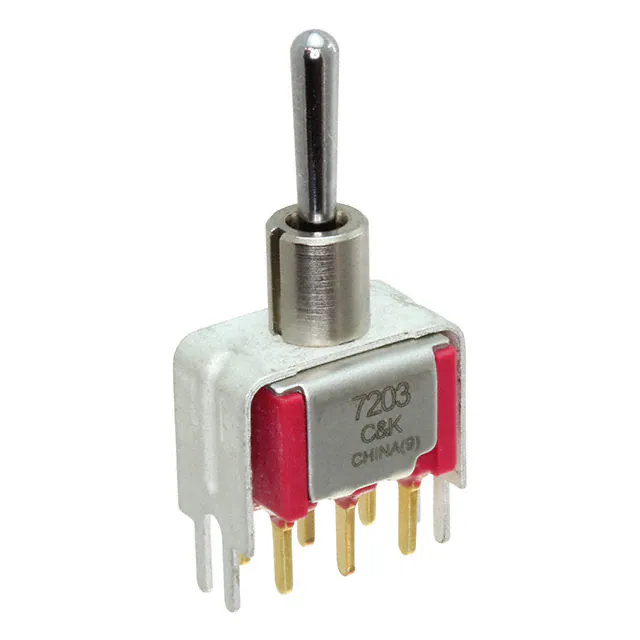

7203SD9V3BESWITCH TOGGLE DPDT 0.4VA 20V |
61 |
|
Технический лист |
7000 | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203MD9AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
32 |
|
Технический лист |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

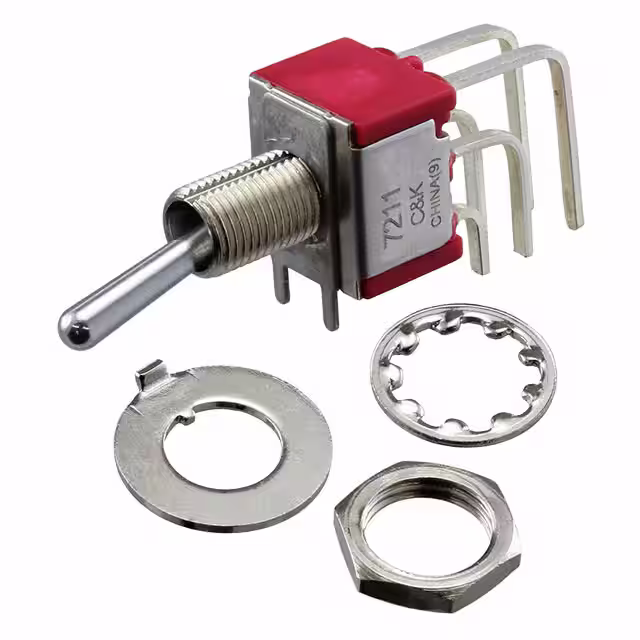

7211SYAV2QESWITCH TOGGLE SP3T 5A 120V |
23 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
S332RSWITCH TOGGLE DPDT 20A 125V |
1 |
|
Технический лист |
S300R | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Actuator | -10°C ~ 70°C |
|
WT12SSWITCH TOGGLE SPDT 10A 125V |
42 |
|
Технический лист |
WT | Bulk | Active | Panel Mount | SPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

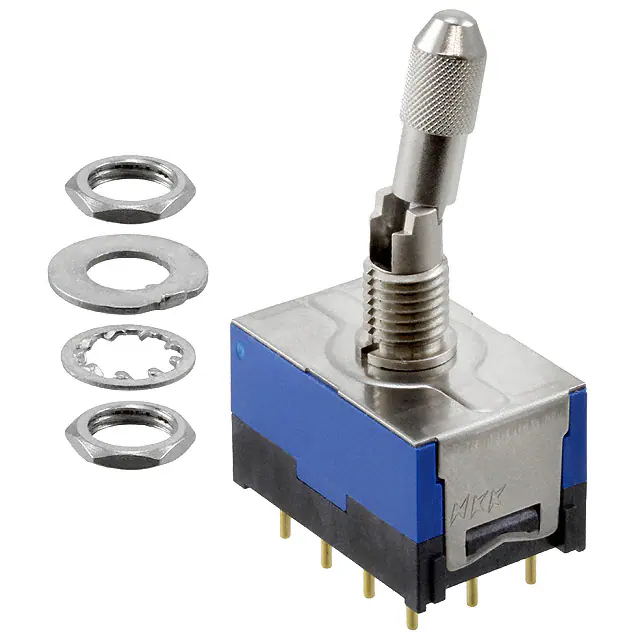

D22042LPSWITCH TOGGLE 4PDT 0.4VA 48V |
14 |
|
Технический лист |
D2 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
S31FSWITCH TOGGLE 3PST 20A 125V |
88 |
|
Технический лист |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
ET315E12-ZSWITCH TOGGLE 3PDT 15A 125V |
23 |
|
Технический лист |
ET | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

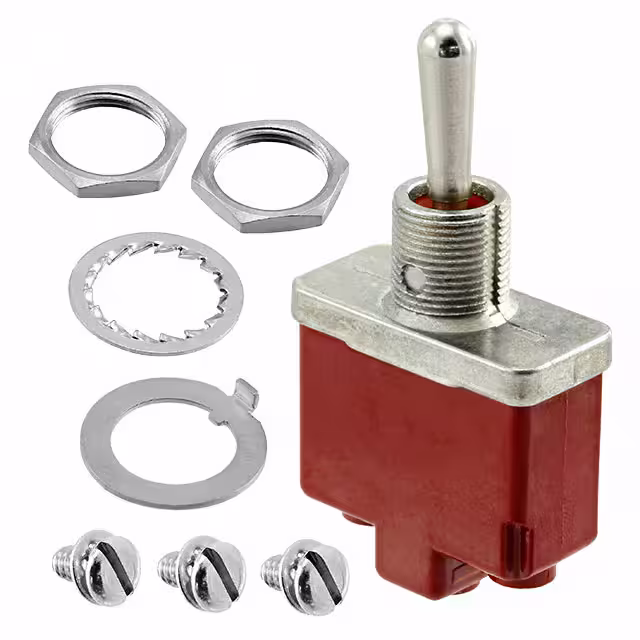

CT39001N020SWITCH TOGGLE SPDT 10A 125V |
93 |
|
Технический лист |
CT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
5592SWITCH TOGGLE DPDT 15A 24V |
73 |
|
Технический лист |
- | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
M-54111-01SWITCH TOGGLE SPST 25A 12V |
48 |
|
Технический лист |
M-54111 | Bulk | Active | Panel Mount | SPST | On-Off | 25A (DC) | - | 12 V | Standard Round | 17.46mm | Illuminated | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
S339SWITCH TOGGLE DPDT 15A 125V |
0 |
|
Технический лист |
S300 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
7401T1ZQESWITCH TOGGLE 4PDT 5A 120V |
32 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201P3D9V3QESWITCH TOGGLE DPDT 5A 120V |
76 |
|
Технический лист |
7000 | Tray | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101K12CWAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
93 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5590SWITCH TOGGLE DPDT 15A 24V |
69 |
|
Технический лист |
- | Bulk | Active | Panel Mount | DPDT | On-On | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|

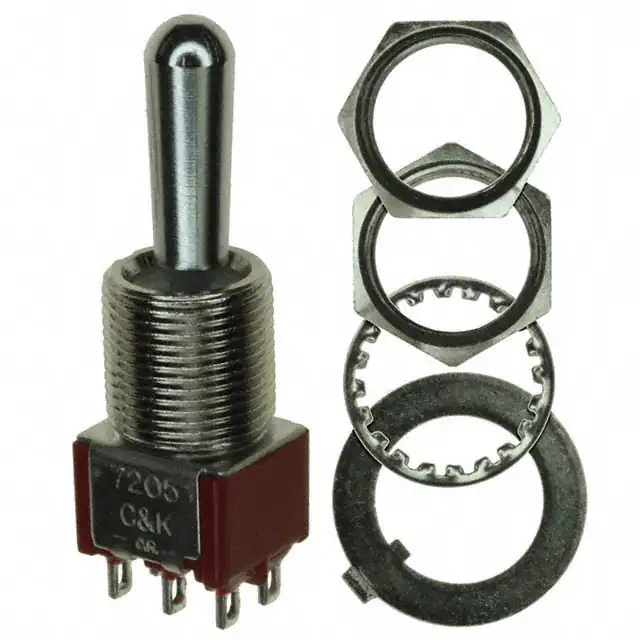

7205TZQESWITCH TOGGLE DPDT 5A 120V |
62 |
|
Технический лист |
7000 | Tray | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7211MD9AV2BESWITCH TOGGLE SP3T 0.4VA 20V |
25 |
|
Технический лист |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

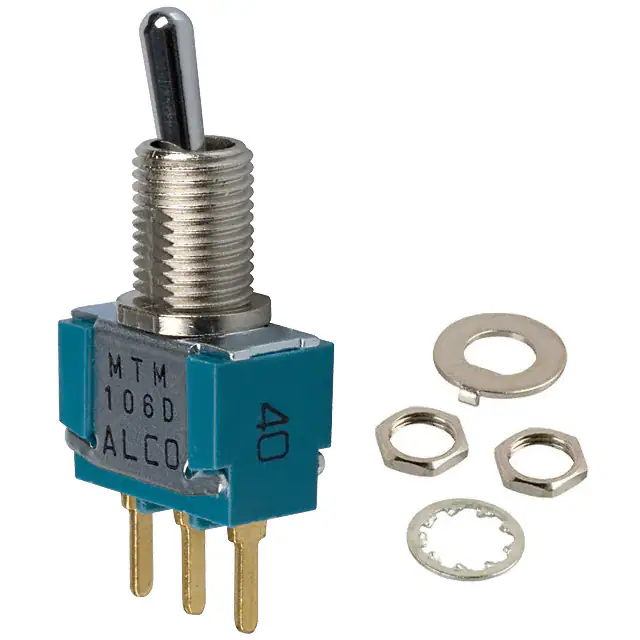

MTM106DPCSWITCH TOGGLE SPDT 6A 125V |
78 |
|
Технический лист |
MTM Green | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
7201K12AQEGSWITCH TOGGLE DPDT 5A 120V |
9 |
|
Технический лист |
7000 | Bag | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
