Переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G13JHCFSWITCH TOGGLE SPDT 0.4VA 28V |
1 |
|
Технический лист |
G | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
G13JVCFSWITCH TOGGLE SPDT 0.4VA 28V |
17 |
|
Технический лист |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
8E2012C-ZSWITCH TOGGLE DPDT 25MA 20V |
25 |
|
Технический лист |
8E | Bulk | Active | Panel Mount | DPDT | On-On | 25mA (DC) | - | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
7105SHZQESWITCH TOGGLE SPDT 5A 120V |
98 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
.jpg)
|
S303SWITCH TOGGLE SPDT 15A 125V |
73 |
|
Технический лист |
S300 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
ET215N12-ZSWITCH TOGGLE DPDT 15A 125V |
20 |
|
Технический лист |
ET | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
A24EHSWITCH TOGGLE SP3T 0.4VA 28V |
32 |
|
Технический лист |
A | Tray | Active | Through Hole, Right Angle | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
ET220N12-ZSWITCH TOGGLE DPDT 20A 125V |
51 |
|
Технический лист |
ET | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET02SD1WBESWITCH TOGGLE SPST 0.4VA 20V |
78 |
|
Технический лист |
ET | Tray | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

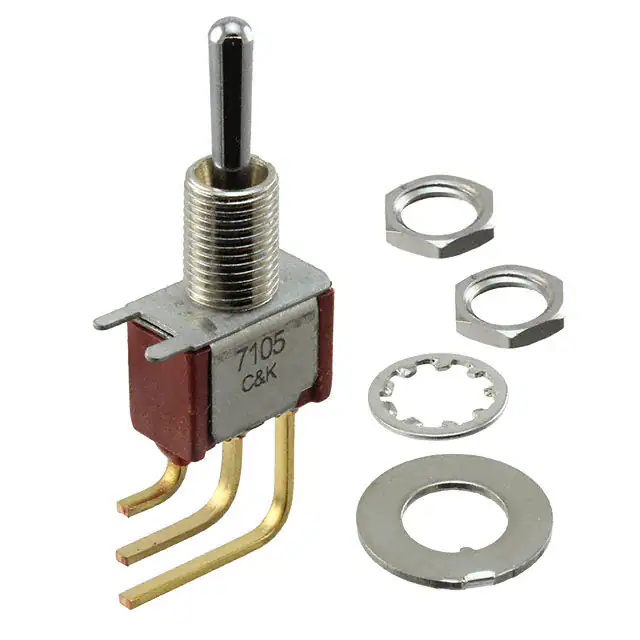

7105SYAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
85 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
9202CSWITCH TOGGLE DPDT 20A 125V |
19 |
|
Технический лист |
9200 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
5636AB9SWITCH TOGGLE SPDT 6A 125V |
38 |
|
Технический лист |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
B12JJHFSWITCH TOGGLE SPDT 0.4VA 28V |
13 |
|
Технический лист |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green | 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
7101P4YZQESWITCH TOGGLE SPDT 5A 120V |
75 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

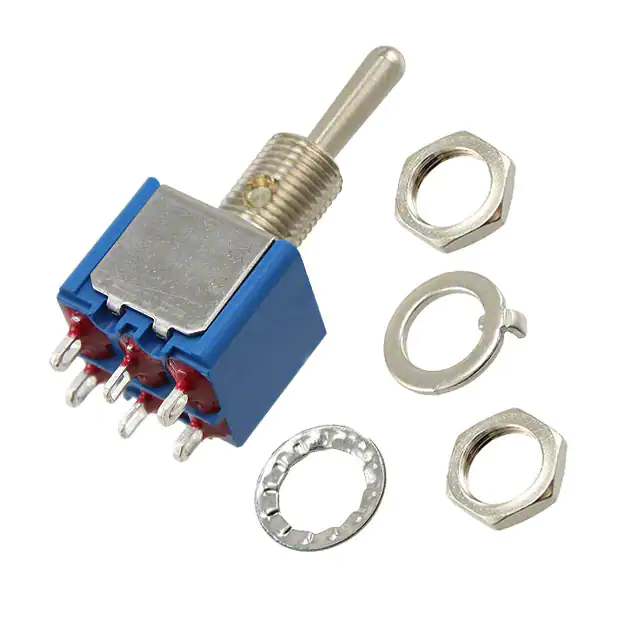

5649ABSWITCH TOGGLE DPDT 6A 125V |
50 |
|
Технический лист |
5000 | Tray | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
ET115H12-ZSWITCH TOGGLE SPDT 15A 125V |
35 |
|
Технический лист |
ET | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

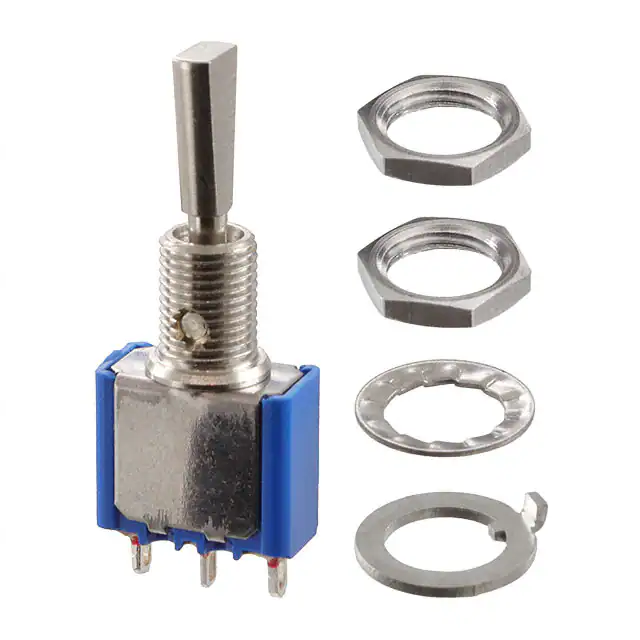

5638AB9SWITCH TOGGLE SPDT 6A 125V |
82 |
|
Технический лист |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
5637AB9SWITCH TOGGLE SPDT 6A 125V |
45 |
|
Технический лист |
5000 | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
4636A22UUSWITCH TOGGLE SPDT 6A 125V |
35 |
|
Технический лист |
4600 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
ET05SD1V3QESWITCH TOGGLE SPDT 2A 120V |
35 |
|
Технический лист |
ET | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 2A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
