Реле задержки времени
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип реле | Функция | Схема | Время задержки | Контактный рейтинг при напряжении | Напряжение - Питание | Тип вывода | Регулировка времени Метод | Метод инициализации синхронизации | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3DS-XLRELAY TIME DELAY 120HR DIN RAIL |
3 |
|
Технический лист |
H3DS | Bulk | Active | DIN Rail | Solid State Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 120 Hrs | - | 24 ~ 230VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
RTE-P1D12RELAY TIME DELAY 600HR 10A 240V |
8 |
|
Технический лист |
RTE | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 600 Hrs | 10A @ 240VAC/30VDC | 12VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|

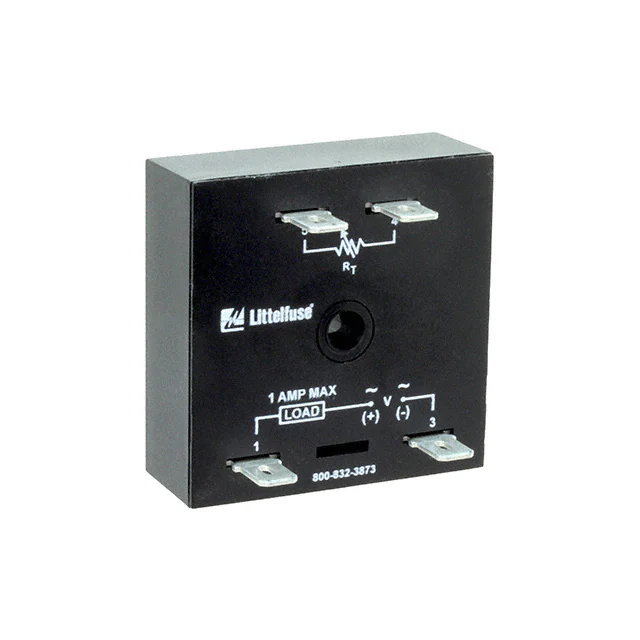

TS1422RELAY TIME DELAY 60SEC CHAS MT |
12 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

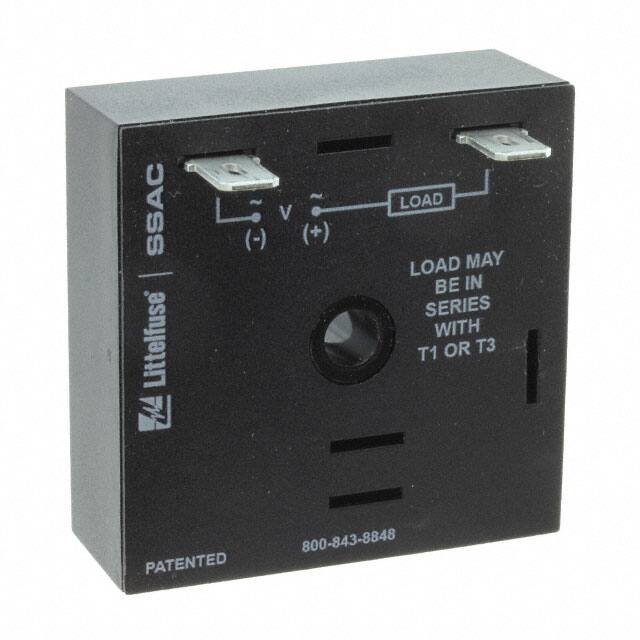

TS12130RELAY TIME DELAY 30SEC CHAS MT |
10 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 30 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

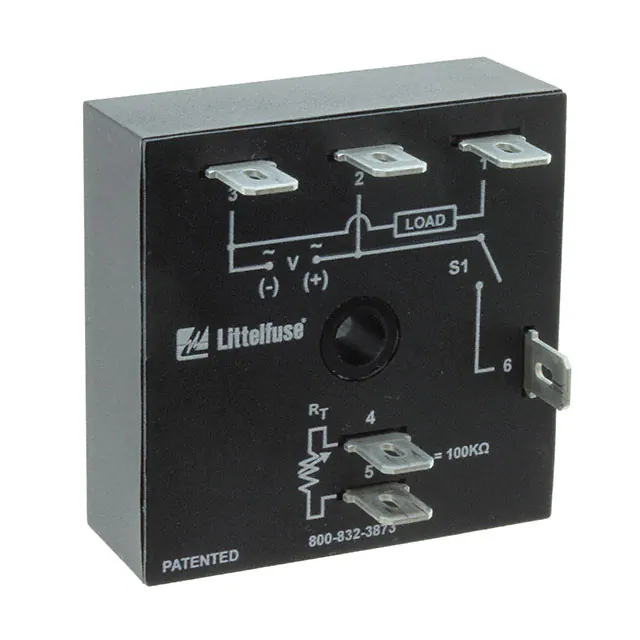

KSDS420RELAY TIME DELAY 10SEC CHAS MT |
5 |
|
Технический лист |
KSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|

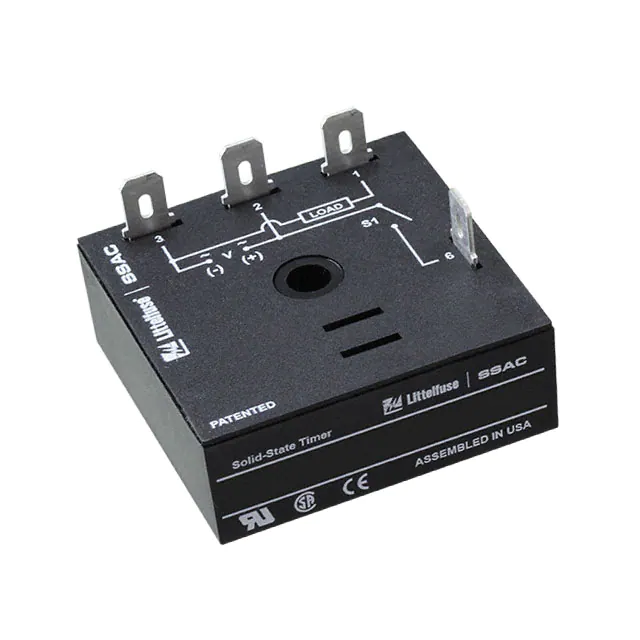

KSDB2115SRELAY TIME DELAY 15 SEC CHAS MT |
3 |
|
Технический лист |
KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 15 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
H3DK-S1A DC12RELAY TIME DELAY 1200HR 5A 250V |
20 |
|
Технический лист |
H3DK-S | Box | Active | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 1200 Hrs | 5A @ 250VAC | 12VDC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
PA2R10MV1RELAY TIME DELAY 240HR 10A 250V |
17 |
|
Технический лист |
PA2R10 | Box | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.5 Sec ~ 240 Hrs | 10A @ 250VAC | 12 ~ 240VAC/DC | Plug In, 11 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
RE22R1HMRRELAY TIME DELAY 300HR 8A 250V |
2 |
|
Технический лист |
Harmony | Box | Active | DIN Rail | Mechanical Relay | Interval | SPDT (1 Form C) | 0.05 Sec ~ 300 Hrs | 8A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|

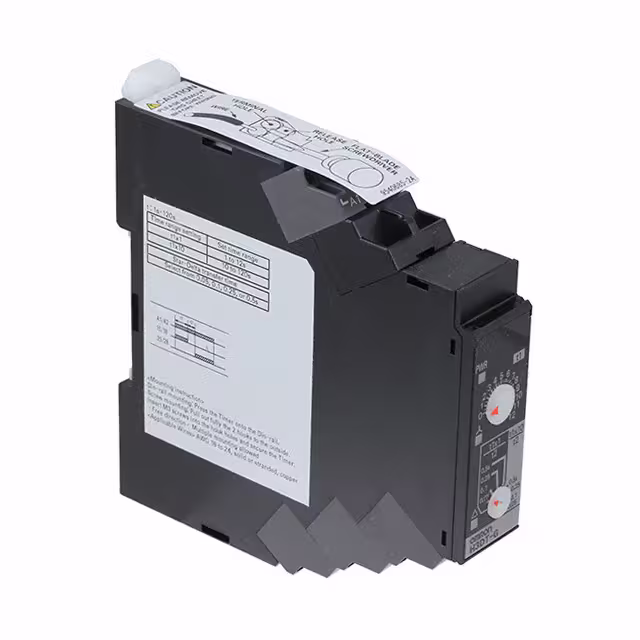

H3DT-G AC/DC24-240RELAY TIME DELAY 120SEC DIN RAIL |
4 |
|
Технический лист |
H3DT | Box | Active | DIN Rail | Mechanical Relay | Star Delta Controller | DPDT (2 Form C) | 1 Sec ~ 120 Sec | - | 24 ~ 240VAC/DC | Spring Terminal | Screwdriver Slot | Input Voltage | - | - |
|
DRTA24B06RELAY TIME DELAY 6A 280V DIN RL |
6 |
|
Технический лист |
DRT | Bulk | Active | DIN Rail | Solid State Relay | On-Delay | SPST-NO (1 Form A) | - | 6A @ 280VAC | 90 ~ 140VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
RE22R1DMRRELAY TIME DELAY 300HR 8A 250V |
6 |
|
Технический лист |
Harmony | Box | Active | DIN Rail | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 0.05 Sec ~ 300 Hrs | 8A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
HAA14QM24RELAY TIME DELAY 100HR 8A 250V |
4 |
|
Технический лист |
HAA | Box | Active | Socketable | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 24 ~ 240VAC/DC | Plug In, 14 Pin | Hand Dial | Input Voltage | - | - |
|
H3FA-A DC5RELAY TIME DELAY 10MIN 3A 250V |
23 |
|
Технический лист |
H3FA | Bulk | Active | Through Hole | Mechanical Relay | On-Delay | DPST-NO/NC (1 Form A and B) | 0.1 Sec ~ 10 Min | 3A @ 250VAC | 5VDC | PC Pin | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
DRTB06D06RELAY TIME DELAY 6A 48V DIN RAIL |
10 |
|
Технический лист |
DRT | Bulk | Active | DIN Rail | Solid State Relay | One Shot | SPST-NO (1 Form A) | - | 6A @ 48VDC | 12 ~ 24VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
GT3A-1AF20RELAY TIME DELAY 180HR 3A 240V |
4 |
|
Технический лист |
GT3 | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 180 Hrs | 3A @ 240VAC | 100 ~ 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
KRDM424RELAY TIME DELAY 100MIN 10A 125V |
9 |
|
Технический лист |
KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 1 Min ~ 100 Min | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

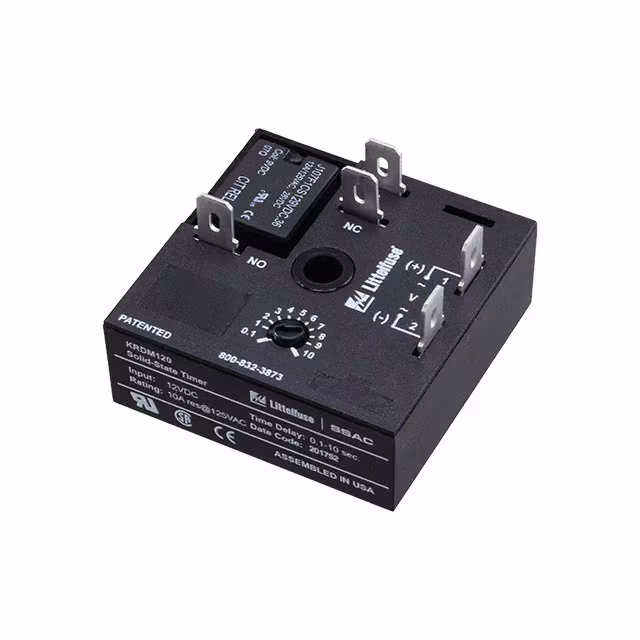

KRDM120RELAY TIME DELAY 10SEC 10A 125V |
3 |
|
Технический лист |
KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
GT3W-A11D12NRELAY TIME DELAY 6HR 3A 240V |
2 |
|
Технический лист |
GT3 | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 6 Hrs | 3A @ 240VAC | 12VDC | Plug In, 8 Pin (Octal) | Screwdriver Slot | Input Voltage | - | - |
|
PL2R10MV1RELAY TIME DELAY 240HR 10A 250V |
8 |
|
Технический лист |
PL2R10 | Box | Active | Socketable | Mechanical Relay | Repeat Cycle, Twin Timer | DPDT (2 Form C) | 0.5 Sec ~ 240 Hrs | 10A @ 250VAC | 12 ~ 240VAC/DC | Plug In, 11 Pin (Octal) | Hand Dial | Input Voltage | - | - |
